摘要近年来，无线通信技术高速发展，对低成本、高精度、低噪声和集成化晶体振荡器的需求迅猛增长。全集成的片上数控晶体振荡器(Digitally Controlled Crystal Oscillator,.以下简称DCXO),借助射频基站发送的频率校正信号而产生的自动频率控制(Automatic Frequency Control,以下简称AFC)信号直接控制电容阵列，克服频率随温度和时间的漂移，同时满足系统对频率精度的要求。因此，DCXO以其易集成和低成本具有替代昂贵的压控式温度补偿品振 Voltage Controlled Temperature Compensated Crystal Oscillator,以下简称 VCTCXO)的巨大市场潜力。本文针对DCXO的设计关键，从晶振的基本理论着手，分析了系统性能指标，对构建DCXO系统的关键电路展开了详细的研究与设计。首先，介绍国内外研究现状，提出了数控晶体振荡器相比传统的 TCXONCTCXO所具有的优势，以及实现DCXO的设计难点。为实现设计目标，概述了几种晶体振荡器的结构，分析各自的优缺点。在研究中，探讨了晶体谐振器的等效电路及衡量晶振性能的各项指标，分析了电路的理想与非理想特性。在此基础上，设计了基于Santos结构的晶振电路，给出了电路在起振阶段的小信号分析和大信号稳态分析。对大信号情况下，振荡幅度，晶体参数，偏置电流和器件尺寸之间的关系给出了量化的模型。电路引入了自动幅度控制来平衡相位噪声和功耗。数控电容阵列的设计采用14位的分段译码电容阵列，加入了一阶delta-sigma调制器来获得高精度的频率调谐。最后，给出电路的流片测试结果。测试结果表明：DCXO芯片面积0.5 mm×0.8mm,功耗为1.8mW。DCXO振荡在25MHz时，在频偏为1kHz 和10kHz处的相位噪声分别为-139dBc/Hz和-151dBc/Hz。频率可调范围约为35ppm,频率调谐精度0.04ppm。在温度-40℃~+80℃内，频率变化±7 ppm. 关键词：数控晶体振荡器，温度补偿式晶体振荡器，相位噪声，自动幅度控制， delta-sigma调制器，电源推动中图分类号：TN432 本论文工作受到国家自然科学基金资助（项目编号：60876019）

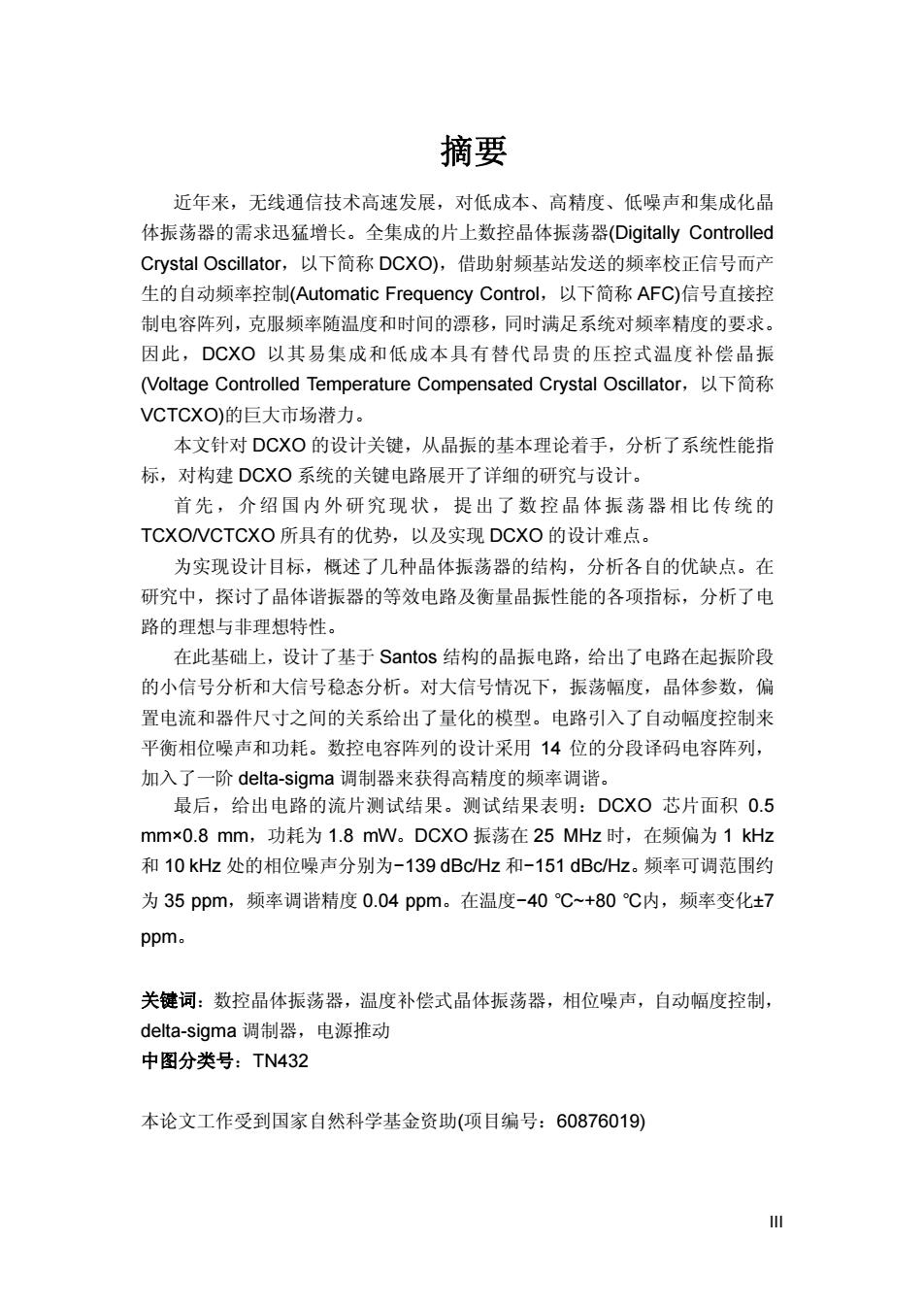

III 摘要近年来，无线通信技术高速发展，对低成本、高精度、低噪声和集成化晶体振荡器的需求迅猛增长。全集成的片上数控晶体振荡器(Digitally Controlled Crystal Oscillator，以下简称 DCXO)，借助射频基站发送的频率校正信号而产生的自动频率控制(Automatic Frequency Control，以下简称 AFC)信号直接控制电容阵列，克服频率随温度和时间的漂移，同时满足系统对频率精度的要求。因此，DCXO 以其易集成和低成本具有替代昂贵的压控式温度补偿晶振 (Voltage Controlled Temperature Compensated Crystal Oscillator，以下简称 VCTCXO)的巨大市场潜力。本文针对 DCXO 的设计关键，从晶振的基本理论着手，分析了系统性能指标，对构建 DCXO 系统的关键电路展开了详细的研究与设计。首先，介绍国内外研究现状，提出了数控晶体振荡器相比传统的 TCXO/VCTCXO 所具有的优势，以及实现 DCXO 的设计难点。为实现设计目标，概述了几种晶体振荡器的结构，分析各自的优缺点。在研究中，探讨了晶体谐振器的等效电路及衡量晶振性能的各项指标，分析了电路的理想与非理想特性。在此基础上，设计了基于 Santos 结构的晶振电路，给出了电路在起振阶段的小信号分析和大信号稳态分析。对大信号情况下，振荡幅度，晶体参数，偏置电流和器件尺寸之间的关系给出了量化的模型。电路引入了自动幅度控制来平衡相位噪声和功耗。数控电容阵列的设计采用 14 位的分段译码电容阵列，加入了一阶 delta-sigma 调制器来获得高精度的频率调谐。最后，给出电路的流片测试结果。测试结果表明：DCXO 芯片面积 0.5 mm×0.8 mm，功耗为 1.8 mW。DCXO 振荡在 25 MHz 时，在频偏为 1 kHz 和 10 kHz 处的相位噪声分别为−139 dBc/Hz 和−151 dBc/Hz。频率可调范围约为 35 ppm，频率调谐精度 0.04 ppm。在温度−40 ℃~+80 ℃内，频率变化±7 ppm。关键词：数控晶体振荡器，温度补偿式晶体振荡器，相位噪声，自动幅度控制， delta-sigma 调制器，电源推动中图分类号：TN432 本论文工作受到国家自然科学基金资助(项目编号：60876019)
