2.State(状态)and state function(状态函数) State:the comprehensive condition of a system. State function:physical quantities depicting the property of a system.(e.g.,p,V'T,M...) 3.Process(过程)and Path(途径)： Process:A sequence of interdependent and linked procedures which,at every stage,consume one or more resources to convert inputs into outputs.These outputs then serve as inputs for the next stage until a known goal or end results is reached.. Path(途径)：the sum of the processes for the system from an initial state to a final state
2. State (状态) and state function（状态函数） State：the comprehensive condition of a system. State function：physical quantities depicting the property of a system. (e.g., p,V,T,M…) 3. Process(过程) and Path(途径）: Process: A sequence of interdependent and linked procedures which, at every stage, consume one or more resources to convert inputs into outputs. These outputs then serve as inputs for the next stage until a known goal or end results is reached.. Path(途径) : the sum of the processes for the system from an initial state to a final state
Path/process (I) Final state Initial state Path/process (II) The characteristics of a state function: (1)the value of a state function is unique when the state of a system is specified. (2)the change in the value of a state function depends only on an initial state and a final state of a system and is independent of the path(途径) /process(过程)between the two states
(2) the change in the value of a state function depends only on an initial state and a final state of a system and is independent of the path (途径) /process(过程) between the two states. Initial state Final state Path/process (II) Path/process (I) The characteristics of a state function: (1) the value of a state function is unique when the state of a system is specified
Process(过程 Constant-temperature process:a process in which a system changes from an initial state to a final state at a constant temperature.T=T2=T Constant-pressure process:pi=p2=P Constant-volume process:V=12= Path I P=200 kPa P=100 kPa P个，V,T =0.5m3 V=2m3 T=149.075K T=298.15K P2=200 kPa P V2=1m3 Process 2 Process 1 T2=298.15K Path II (Two processes)
Process(过程) Constant-temperature process：a process in which a system changes from an initial state to a final state at a constant temperature. T1 =T2 =T Constant-pressure process：p1 =p2 =P Constant-volume process：V1 =V2 =V P1=100 kPa V1=2 m3 T1=298.15Ｋ P2= 200 kPa V2 =１m3 T2=298.15Ｋ P, V, T P=200 kPa V= 0.5 m3 T=149.075Ｋ 始态 Path II (Two processes） Path I Process 1 T Process 2 P
4.Thermodynamic energy(热力学能) thermodynamic energy (U):the total of all the forms the kinetic energy due to the motion of particles(translational, rotational,vibrational)and the potential energy associated with the vibrational and electric energy of atoms within molecules or crystals )of energy contained within a system.U is also called the internal energy )U is a state function. Molorined stimer U2-U1=△U hs别n 0,e eatonctarte Change in internal energy aU depend only on initial state and a final state of a system and is independent of the path between the two states
thermodynamic energy (U): the total of all the forms ( ) of energy contained within a system. U is also called the internal energy (内能). U is a state function. U2 U1 U Change in internal energy ΔU depend only on an initial state and a final state of a system and is independent of the path between the two states. the kinetic energy due to the motion of particles (translational, rotational, vibrational) and the potential energy associated with the vibrational and electric energy of atoms within molecules or crystals 4. Thermodynamic energy (热力学能)

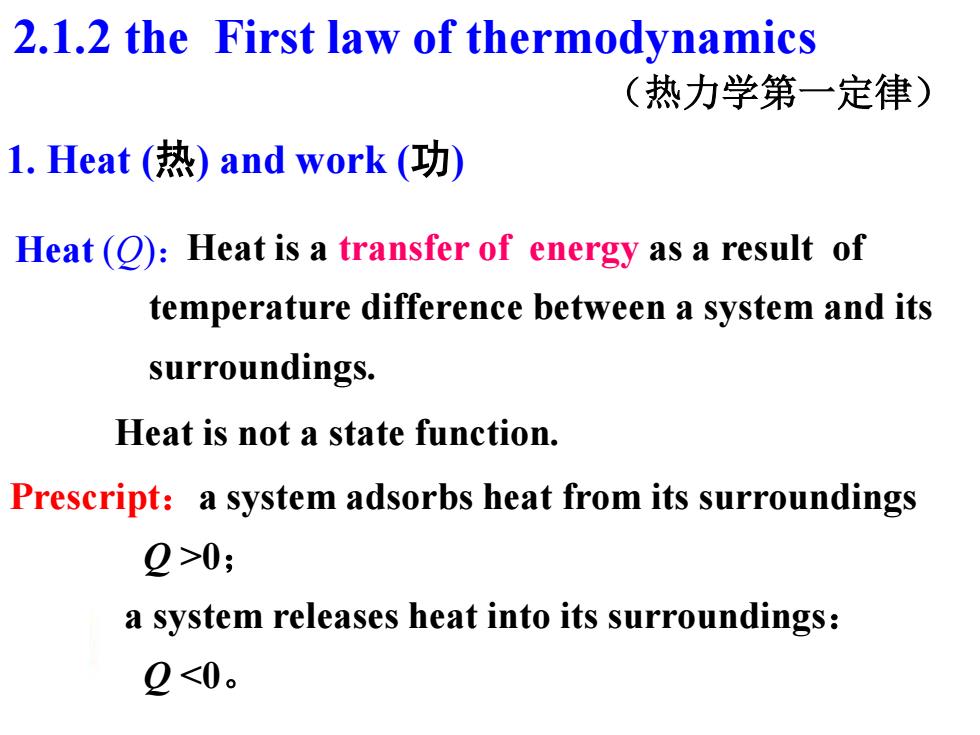

2.1.2 the First law of thermodynamics (热力学第一定律) l.Heat(热)and work(功) Heat():Heat is a transfer of energy as a result of temperature difference between a system and its surroundings. Heat is not a state function. Prescript:a system adsorbs heat from its surroundings 2>0; a system releases heat into its surroundings: 2<0
1. Heat (热) and work (功) Heat is a transfer of energy as a result of temperature difference between a system and its surroundings. Heat (Q)： Heat is not a state function. Prescript：a system adsorbs heat from its surroundings Q >0； a system releases heat into its surroundings： Q <0。 2.1.2 the First law of thermodynamics （热力学第一定律）
