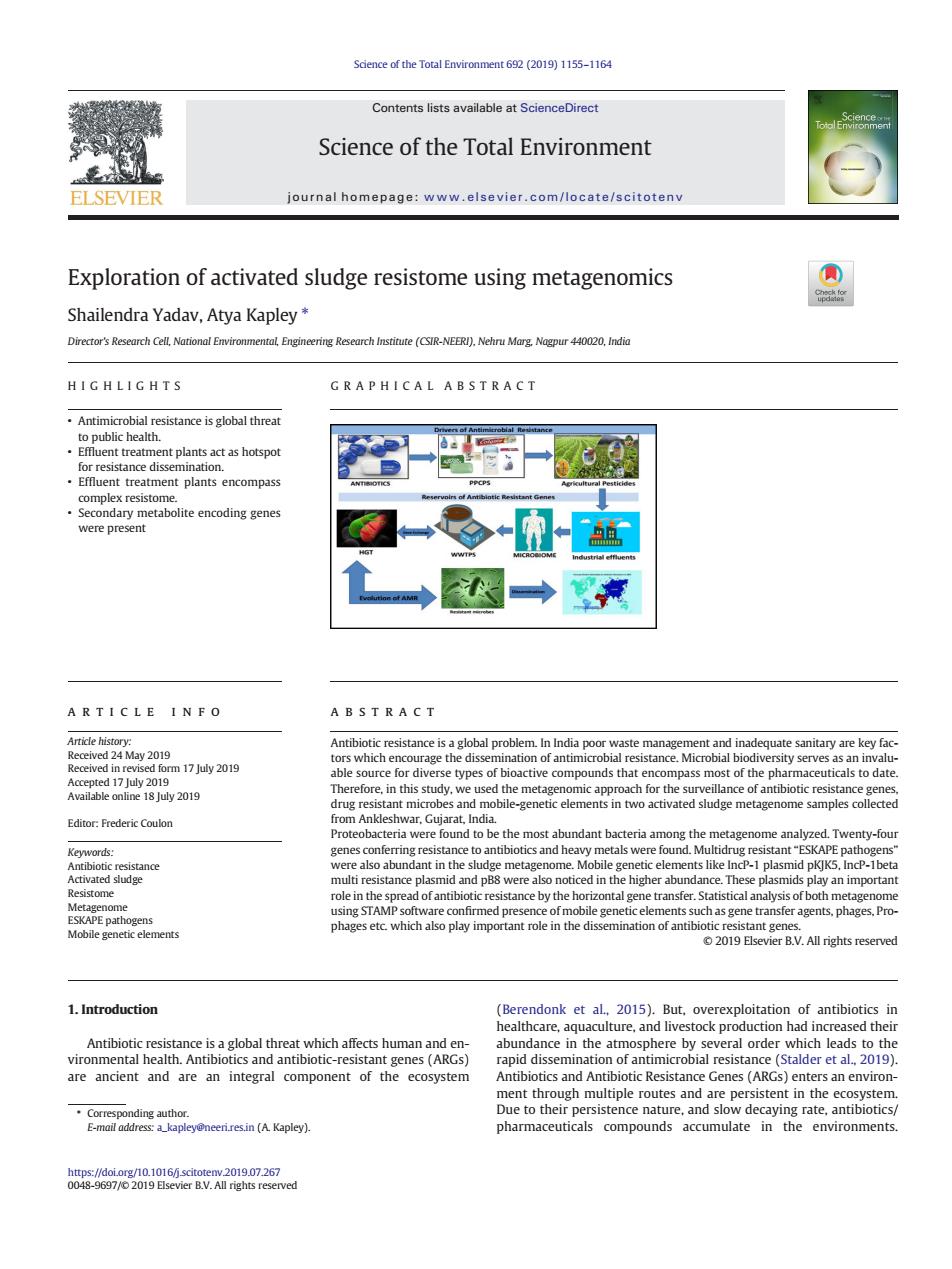

Exploration of activated sludge resistome using metagenomics Shailendra Yadav, Atya Kapley ⁎ Director's Research Cell, National Environmental, Engineering Research Institute (CSIR-NEERI), Nehru Marg, Nagpur 440020, India HIGHLIGHTS • Antimicrobial resistance is global threat to public health. • Effluent treatment plants act as hotspot for resistance dissemination. • Effluent treatment plants encompass complex resistome. • Secondary metabolite encoding genes were present GRAPHICAL ABSTRACT article info abstract Article history: Received 24 May 2019 Received in revised form 17 July 2019 Accepted 17 July 2019 Available online 18 July 2019 Editor: Frederic Coulon Antibiotic resistance is a global problem. In India poor waste management and inadequate sanitary are key factors which encourage the dissemination of antimicrobial resistance. Microbial biodiversity serves as an invaluable source for diverse types of bioactive compounds that encompass most of the pharmaceuticals to date. Therefore, in this study, we used the metagenomic approach for the surveillance of antibiotic resistance genes, drug resistant microbes and mobile-genetic elements in two activated sludge metagenome samples collected from Ankleshwar, Gujarat, India. Proteobacteria were found to be the most abundant bacteria among the metagenome analyzed. Twenty-four genes conferring resistance to antibiotics and heavy metals were found. Multidrug resistant “ESKAPE pathogens” were also abundant in the sludge metagenome. Mobile genetic elements like IncP-1 plasmid pKJK5, IncP-1beta multi resistance plasmid and pB8 were also noticed in the higher abundance. These plasmids play an important role in the spread of antibiotic resistance by the horizontal gene transfer. Statistical analysis of both metagenome using STAMP software confirmed presence of mobile genetic elements such as gene transfer agents, phages, Prophages etc. which also play important role in the dissemination of antibiotic resistant genes. © 2019 Elsevier B.V. All rights reserved Keywords: Antibiotic resistance Activated sludge Resistome Metagenome ESKAPE pathogens Mobile genetic elements 1. Introduction Antibiotic resistance is a global threat which affects human and environmental health. Antibiotics and antibiotic-resistant genes (ARGs) are ancient and are an integral component of the ecosystem (Berendonk et al., 2015). But, overexploitation of antibiotics in healthcare, aquaculture, and livestock production had increased their abundance in the atmosphere by several order which leads to the rapid dissemination of antimicrobial resistance (Stalder et al., 2019). Antibiotics and Antibiotic Resistance Genes (ARGs) enters an environment through multiple routes and are persistent in the ecosystem. Due to their persistence nature, and slow decaying rate, antibiotics/ pharmaceuticals compounds accumulate in the environments. Science of the Total Environment 692 (2019) 1155–1164 ⁎ Corresponding author. E-mail address: a_kapley@neeri.res.in (A. Kapley). https://doi.org/10.1016/j.scitotenv.2019.07.267 0048-9697/© 2019 Elsevier B.V. All rights reserved Contents lists available at ScienceDirect Science of the Total Environment journal homepage: www.elsevier.com/locate/scitotenv

Therefore, they are being considered as chemicals of emerging concern or as pollutants. The total amount of resistance gene associated with an ecosystem is known as “resistome” (Finley et al., 2013; Stalder et al., 2019). Generally, antimicrobial resistance develops by natural selection or by adaptation of bacteria in the presence of antibiotics. It is gained either by acquiring resistance genes or by chromosomal mutation. Horizontal Gene Transfer (HGT) plays an essential role in the dissemination of antimicrobial resistance (Berglund, 2015; Che et al., 2019). It accounts for about 75% resistance genes exchange between environments, farm animals, and gut microbiota (Soucy et al., 2015) (von Wintersdorff et al., 2016). Mobile Genetic Elements (MGEs) also acts as a vector for the dissemination of ARGs (Stevenson et al., 2017; Tao et al., 2016). The higher concentration of antibiotics residues, heavy metals and Antibiotic Resistance Bacteria (ARBs) are important factors which contribute in the selection of new ARGs and Multidrug-resistant Bacteria (MRBs) (Andersson and Hughes, 2014; Fluegge, 2017). Usage of antibiotics at the subinhibitory concentration also promotes the wider dissemination of antimicrobial resistance (Andersson and Hughes, 2014). World Health Organization (WHO) has expressed its concern over increasing incidences of resistance, which is compromising the treatment of infectious diseases and causing widespread of communityacquired infections (Hofer, 2019; Willyard, 2017). Mostly, MRBs like Escherichia coli, Klebsiella pneumoniae, and Staphylococcus aureus are responsible for community-acquired infections (WHO, 2014). Such infectious diseases are hard to treat because of the higher drug resistance, which results in a more extended hospital stay and an increase in the treatment cost. Due to the poor sanitary conditions and unregulated use of antibiotics, the problem has become more severe in developing countries (Founou et al., 2017; Holmes et al., 2016). The burden of antibiotic resistance is rising consistently, and India has emerged as the largest consumer of antibiotics (Laxminarayan and Chaudhury, 2016). A significant portion of the Indian population has acquired resistance to antibiotics of one or another type (McKenna, 2013). Thus, it becomes evident that the epidemic of antimicrobial resistance (AMR) is rising globally, with a much higher pace than what has been imagined earlier (Lobanovska and Pilla, 2017). Further, engineered systems like Sewage Treatment Plants (STPs) and Wastewater Treatment Plants (WWTPs) are acting as a reservoir of ARGs (Almakki et al., 2019; Karkman et al., 2017). Because of the prevalence of antibiotic residues, ARBs, and heavy metals at higher concentration, such system acts as a hotspot for the dissemination of resistance. Also, these systems are rich in nutrient concentration, which facilitates cell-cell interaction, thus increasing chances of HGT (Manaia et al., 2018). Antibiotics belonging to classes like β-lactams, fluoroquinolones, tetracyclines, macrolides, etc. have been found in the WWTPs (Almakki et al., 2019; Brunton et al., 2019; Guo et al., 2017; Nnadozie et al., 2017). Activated sludge process is commonly used for biological remediation of pollutants present in wastewater. Activated sludge harbors huge prokaryotic diversity. Bacteria play a key role in the degradation of toxic pollutants (Cai et al., 2016; Kapley et al., 2015). Therefore, the presence of antibiotics and to what extent such compounds can be eliminated by activated sludge process has emerged as an active matter of research (Jelic et al., 2011; Shchegolkova et al., 2016). Microorganisms inhabiting such a complex environment produce secondary metabolites, which may act as a bioresource for the development of novel antimicrobial compounds (Culligan et al., 2014; Lewis et al., 2010). They belong to various chemical classes having antitumor, antiviral, or antibiotic activities (Vaishnav and Demain, 2011). Since no new antibiotic was discovered in the past decade and conventional techniques have failed to yield new antimicrobials, analysis of activated sludge metagenome may increase the chances of discovering novel secondary metabolite with antimicrobial potential (Brown and Wright, 2016; Teitzel, 2019). Metagenomics is the genomic analysis of microbial communities (Forbes et al., 2017). Metagenomics has the potential to discover enormous microbial diversity associated with activated sludge biomass (Jadeja et al., 2014; Lv et al., 2015). Thus, functional screening of metagenomic libraries generated from activated sludge may yield novel biocatalysts having pharmaceutical and commercial importance (Castro et al., 2014; dos Santos et al., 2017). The metagenomic approach is currently used for monitoring the abundance of antibiotic-resistant genes and for the discovery of novel bioactive compounds in the diverse niche (Gatica et al., 2019; He et al., 2019; Lewis, 2017; Nowrotek et al., 2019; Zhang et al., 2019). Reddy & Dubey et al. (2019) used metagenomic approach for the mining of antibiotic and metal ion resistance genes in the water of river Ganga. They found that beta-lactam was most abundant ARGs in the water of Ganga (Reddy and Dubey, 2019). While going through the literature, no articles were found emphasizing on resistome profiling of activated sludge from India. Most of the study available aims on catabolic and taxonomic profiling, targeting the bioremediation potential of microbial consortia (Jadeja et al., 2019; Raina et al., 2019; Sen and Mukhopadhyay, 2019). Therefore, in the present study, two activated sludge samples obtained from WWTPs, Ankleshwar, Gujarat, India were sequenced using nextgeneration Illumina sequencing. The study emphasized on the monitoring the abundance of the ARBs, ARGs, and MGEs in activated sludge metagenome because of their role in the dissemination of AMRs. The present study also investigated the prevalence of biosynthetic gene cluster encoding for secondary metabolites in the activated sludge. For the first time, the study reports the abundance of ARGs and MGEs from an activated sludge sample considering antibiotics as a potent chemical pollutant of WWTPs from India. 2. Materials & methods 2.1. Sampling and qualitative and quantitative analysis of gDNA Samples were collected from both effluent treatment plants situated in Ankleshwar, Gujarat, India. Sample AKR012_contigs was collected from the Common Effluent Treatment Plant (CETP) in five 500 ml sampling bottle treating wastewater generated from dyes and other chemical industries. Similarly, sample A2_S27_assembly was collected from Effluent Treatment Plant (ETP) in five 500 ml sampling bottle treating wastewater from different small-scale industries. The collected samples were immediately preserved using dry ice. Metagenomic DNA was extracted from each sampling bottle in duplicate (10 for each sample) using Fast DNA Spin Kit for Soil, MP Biomedicals. After extraction metagenomic DNA obtained from both activated sludge samples were checked by agarose gel (1%) electrophoresis. Five microliters (μl) of extracted DNA was loaded and checked for the intact band. The agarose gel was run at 85 V for 50 min. The obtained DNA was also checked for purity (A260/280 ratio) using Nanodrop 8000. Positive DNA samples were pooled together and were then sent for sequencing. The concentration of extracted DNA from each sample was determined using Qubit® 2.0 Fluorometer. 2.2. Preparation of 2 ×150 NextSeq libraries Metagenomic sequencing was performed on Illumina Truseq platform using “Nano DNA HT Library Preparation Kit.” Around 200 ng of the obtained DNA was sheared by Covaris. The resulting fragments were then converted to blunt ends using End Repair Mix. 3′ overhangs were removed by the 3′ to 5′ exonuclease, and the subsequent gaps of 5′ overhangs were filled by 5′ to 3′ polymerase. Single ‘A’ nucleotide was added to the 3′ end of blunt fragments to prevent self-ligation during the adapter ligation reaction (Kapley et al., 2015). Single ‘T’ nucleotide was added on the 3′ end of the adapter during its ligation to the fragment to ensure lower chimera or concatenated templates formation. For hybridization, indexing adapters were ligated to the ends of the template DNA fragments and subsequently introduced onto the flow cell. The purification of the ligated product was carried out by 1156 S. Yadav, A. Kapley / Science of the Total Environment 692 (2019) 1155–1164

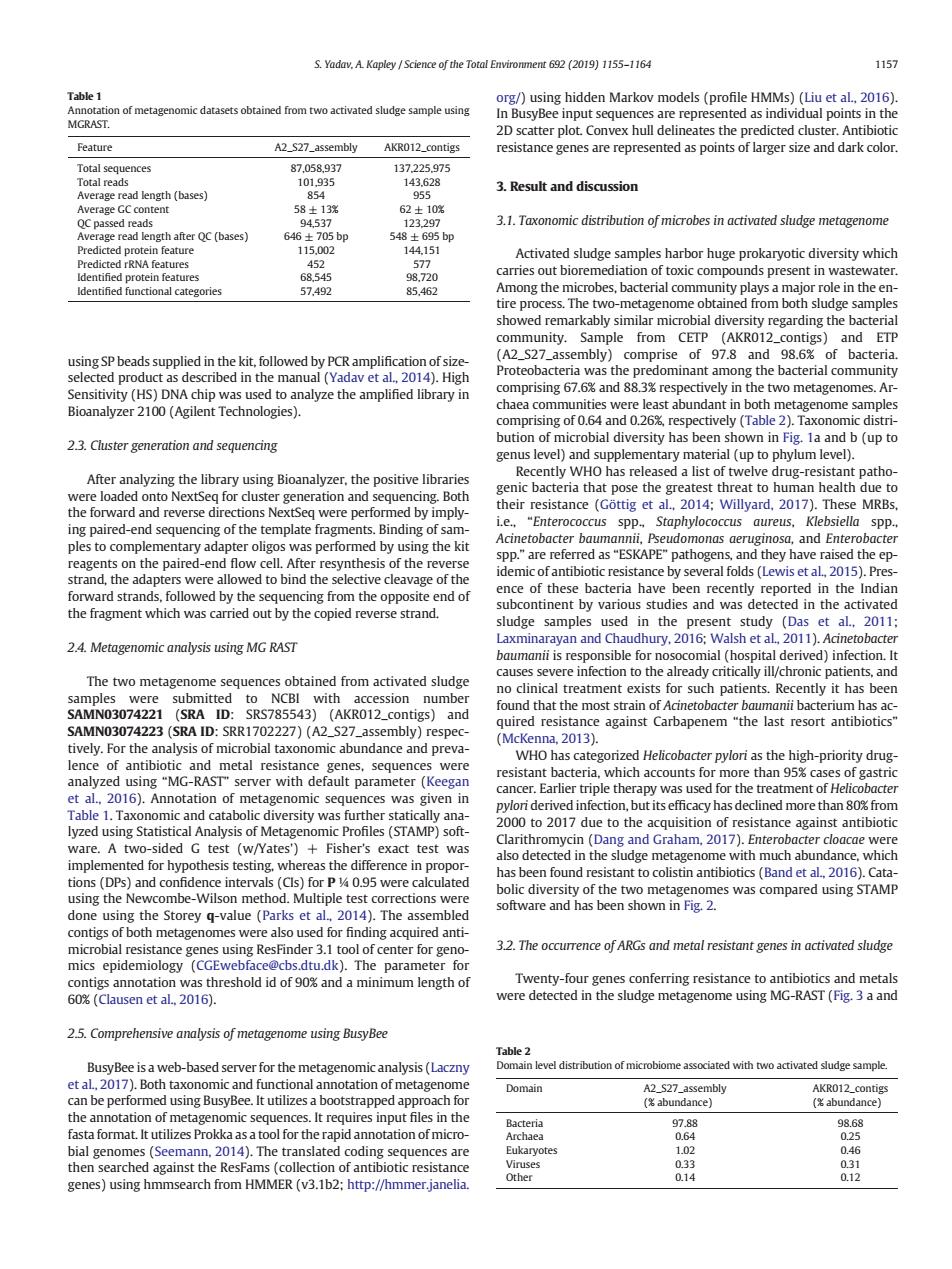

using SP beads supplied in the kit, followed by PCR amplification of sizeselected product as described in the manual (Yadav et al., 2014). High Sensitivity (HS) DNA chip was used to analyze the amplified library in Bioanalyzer 2100 (Agilent Technologies). 2.3. Cluster generation and sequencing After analyzing the library using Bioanalyzer, the positive libraries were loaded onto NextSeq for cluster generation and sequencing. Both the forward and reverse directions NextSeq were performed by implying paired-end sequencing of the template fragments. Binding of samples to complementary adapter oligos was performed by using the kit reagents on the paired-end flow cell. After resynthesis of the reverse strand, the adapters were allowed to bind the selective cleavage of the forward strands, followed by the sequencing from the opposite end of the fragment which was carried out by the copied reverse strand. 2.4. Metagenomic analysis using MG RAST The two metagenome sequences obtained from activated sludge samples were submitted to NCBI with accession number SAMN03074221 (SRA ID: SRS785543) (AKR012_contigs) and SAMN03074223 (SRA ID: SRR1702227) (A2_S27_assembly) respectively. For the analysis of microbial taxonomic abundance and prevalence of antibiotic and metal resistance genes, sequences were analyzed using “MG-RAST” server with default parameter (Keegan et al., 2016). Annotation of metagenomic sequences was given in Table 1. Taxonomic and catabolic diversity was further statically analyzed using Statistical Analysis of Metagenomic Profiles (STAMP) software. A two-sided G test (w/Yates') + Fisher's exact test was implemented for hypothesis testing, whereas the difference in proportions (DPs) and confidence intervals (CIs) for P ¼ 0.95 were calculated using the Newcombe-Wilson method. Multiple test corrections were done using the Storey q-value (Parks et al., 2014). The assembled contigs of both metagenomes were also used for finding acquired antimicrobial resistance genes using ResFinder 3.1 tool of center for genomics epidemiology (CGEwebface@cbs.dtu.dk). The parameter for contigs annotation was threshold id of 90% and a minimum length of 60% (Clausen et al., 2016). 2.5. Comprehensive analysis of metagenome using BusyBee BusyBee is a web-based server for the metagenomic analysis (Laczny et al., 2017). Both taxonomic and functional annotation of metagenome can be performed using BusyBee. It utilizes a bootstrapped approach for the annotation of metagenomic sequences. It requires input files in the fasta format. It utilizes Prokka as a tool for the rapid annotation of microbial genomes (Seemann, 2014). The translated coding sequences are then searched against the ResFams (collection of antibiotic resistance genes) using hmmsearch from HMMER (v3.1b2; http://hmmer.janelia. org/) using hidden Markov models (profile HMMs) (Liu et al., 2016). In BusyBee input sequences are represented as individual points in the 2D scatter plot. Convex hull delineates the predicted cluster. Antibiotic resistance genes are represented as points of larger size and dark color. 3. Result and discussion 3.1. Taxonomic distribution of microbes in activated sludge metagenome Activated sludge samples harbor huge prokaryotic diversity which carries out bioremediation of toxic compounds present in wastewater. Among the microbes, bacterial community plays a major role in the entire process. The two-metagenome obtained from both sludge samples showed remarkably similar microbial diversity regarding the bacterial community. Sample from CETP (AKR012_contigs) and ETP (A2_S27_assembly) comprise of 97.8 and 98.6% of bacteria. Proteobacteria was the predominant among the bacterial community comprising 67.6% and 88.3% respectively in the two metagenomes. Archaea communities were least abundant in both metagenome samples comprising of 0.64 and 0.26%, respectively (Table 2). Taxonomic distribution of microbial diversity has been shown in Fig. 1a and b (up to genus level) and supplementary material (up to phylum level). Recently WHO has released a list of twelve drug-resistant pathogenic bacteria that pose the greatest threat to human health due to their resistance (Göttig et al., 2014; Willyard, 2017). These MRBs, i.e., “Enterococcus spp., Staphylococcus aureus, Klebsiella spp., Acinetobacter baumannii, Pseudomonas aeruginosa, and Enterobacter spp.” are referred as “ESKAPE” pathogens, and they have raised the epidemic of antibiotic resistance by several folds (Lewis et al., 2015). Presence of these bacteria have been recently reported in the Indian subcontinent by various studies and was detected in the activated sludge samples used in the present study (Das et al., 2011; Laxminarayan and Chaudhury, 2016; Walsh et al., 2011). Acinetobacter baumanii is responsible for nosocomial (hospital derived) infection. It causes severe infection to the already critically ill/chronic patients, and no clinical treatment exists for such patients. Recently it has been found that the most strain of Acinetobacter baumanii bacterium has acquired resistance against Carbapenem “the last resort antibiotics” (McKenna, 2013). WHO has categorized Helicobacter pylori as the high-priority drugresistant bacteria, which accounts for more than 95% cases of gastric cancer. Earlier triple therapy was used for the treatment of Helicobacter pylori derived infection, but its efficacy has declined more than 80% from 2000 to 2017 due to the acquisition of resistance against antibiotic Clarithromycin (Dang and Graham, 2017). Enterobacter cloacae were also detected in the sludge metagenome with much abundance, which has been found resistant to colistin antibiotics (Band et al., 2016). Catabolic diversity of the two metagenomes was compared using STAMP software and has been shown in Fig. 2. 3.2. The occurrence of ARGs and metal resistant genes in activated sludge Twenty-four genes conferring resistance to antibiotics and metals were detected in the sludge metagenome using MG-RAST (Fig. 3 a and Table 1 Annotation of metagenomic datasets obtained from two activated sludge sample using MGRAST. Feature A2_S27_assembly AKR012_contigs Total sequences 87,058,937 137,225,975 Total reads 101,935 143,628 Average read length (bases) 854 955 Average GC content 58 ± 13% 62 ± 10% QC passed reads 94,537 123,297 Average read length after QC (bases) 646 ± 705 bp 548 ± 695 bp Predicted protein feature 115,002 144,151 Predicted rRNA features 452 577 Identified protein features 68,545 98,720 Identified functional categories 57,492 85,462 Table 2 Domain level distribution of microbiome associated with two activated sludge sample. Domain A2_S27_assembly (% abundance) AKR012_contigs (% abundance) Bacteria 97.88 98.68 Archaea 0.64 0.25 Eukaryotes 1.02 0.46 Viruses 0.33 0.31 Other 0.14 0.12 S. Yadav, A. Kapley / Science of the Total Environment 692 (2019) 1155–1164 1157

b). Specifically, ARGs conferring resistance to Aminoglycoside, Betalactam group, erythromycin, methicillin, fluoroquinolones, and lysozyme inhibitors were abundant in both the metagenome. ResFinder 3.1 annotated assembled contigs of both metagenomes using BLAST for acquired resistance genes. In total, 13 and 12 contigs were annotated for acquired resistant genes in A2_S27_assembly and AKR012_contigs respectively. The details are given in Tables 3a and 3b. Acquired ARGs encoding for beta-lactamase, aminoglycoside, rifampicin, trimethoprim, etc. was found in both metagenomes. Genes encoding for resistance like glycopeptide, fosfomycin, macrolide, nitroimidazole, oxazolidinone were not found in both metagenomes. Genes encoding for acquired tetracycline resistance genes were not detected in the A2_S27_assembly metagenome. Similarly, genes encoding for acquired colistin resistance was not found in AKR012_contigs metagenome. Several multidrug ef- flux pumps conferring multidrug resistance including CmeABC_operon which encodes for the multidrug efflux pump in Campylobacter_jejuni were found in both metagenomes. ARGs conferring Methicillin resistance in Staphylococci was also detected. Further genes conferring resistance to toxic metals such as Arsenic, Cadmium, Copper, and Zinc and Mercury were abundant in both sludge metagenome. Metagenomic analyses have shown that antibiotic resistance genes are ubiquitous in every ecosystem including pristine environments (Chen et al., 2016; Guo et al., 2017; Wu et al., 2018; Zeng et al., 2019). Aquatic habitat serves as hotspot exchange of resistant genes. The study confirms that wastewater and WWTPs are among the most significant anthropogenic sources for ARBs, ARGs, and MGEs in the environment. Due to their higher abundance, the selection pressure in such environments is often high which drives the development of new AMR strains (Gullberg et al., 2014; Li et al., 2015; Luo et al., 2017; Pal et al., 2015). 3.3. Role of mobile genetic elements in the dissemination of ARGs Subsystem based analysis of both sludge metagenome data using both MGRAST and STAMP indicated the presence of MGEs, which can be broadly categorized into five types based on their function (Fig. 4). Among the MGEs, sequences encoding for phages and prophages were most abundant, followed by gene transfer agents in both metagenomes. Their abundance may lead to the rapid and broader dissemination of ARGs in the WWTPs and the environment. It can be inferred from the metagenome data that WWTPs and sludge sample act as a hotspot for the selection of antibiotic resistance via horizontal gene transfer (Karkman et al., 2017). MGEs are among important factor which contributes to the dissemination of ARGs. The higher concentration of pharmaceutically active compounds, pesticides, and heavy metals may increase the rate of Fig. 2. Comparative analysis of catabolic diversity present in both activated sludge metagenome using STAMP. S. Yadav, A. Kapley / Science of the Total Environment 692 (2019) 1155–1164 1159
