《Design and manufacturing（ME371、ME337）》课程教学资源（参考教材）《Shigley’s Mechanical Engineering Design》（Richard G. Budynas、J. Keith Nisbett，Ninth Edition）

Shigley's Mechanical Engineering Design

Shigley’s Mechanical Engineering Design bud29281_fm_i-xxii_1.qxd 12/24/09 3:38 PM Page 1 epg Disk1:Desktop Folder:TEMPWORK:Don't-Delete Jobs:MHDQ196/Budynas:

PART Basics

PART 1Basics bud29281_ch01_002-030.qxd 11/11/2009 5:34 pm Page 2 pinnacle s-171:Desktop Folder:Temp Work:Don't Delete (Jobs):MHDQ196/Budynas:

Introduction to Mechanical Engineering Design Chapter Outline Design 4 Mechanical Engineering Design 5 Phases and Interactions of the Design Process 5 Design Tools and Resources P The Design Engineer's Professional Responsibilities 10 Standards and Codes 12 Economics 12 Safety and Product Liability 15 Stress and Strength 15 1-10 Uncertainty 16 1-11 Design Factor and Factor of Safety 17 1-12 Reliability 18 1-13 Dimensions and Tolerances 19 1-14 Units 21 1-15 Calculations and Significant Figures 22 1-6 Design Topic Interdependencies 23 1-17 Power Transmission Case Study Specifications 24 3

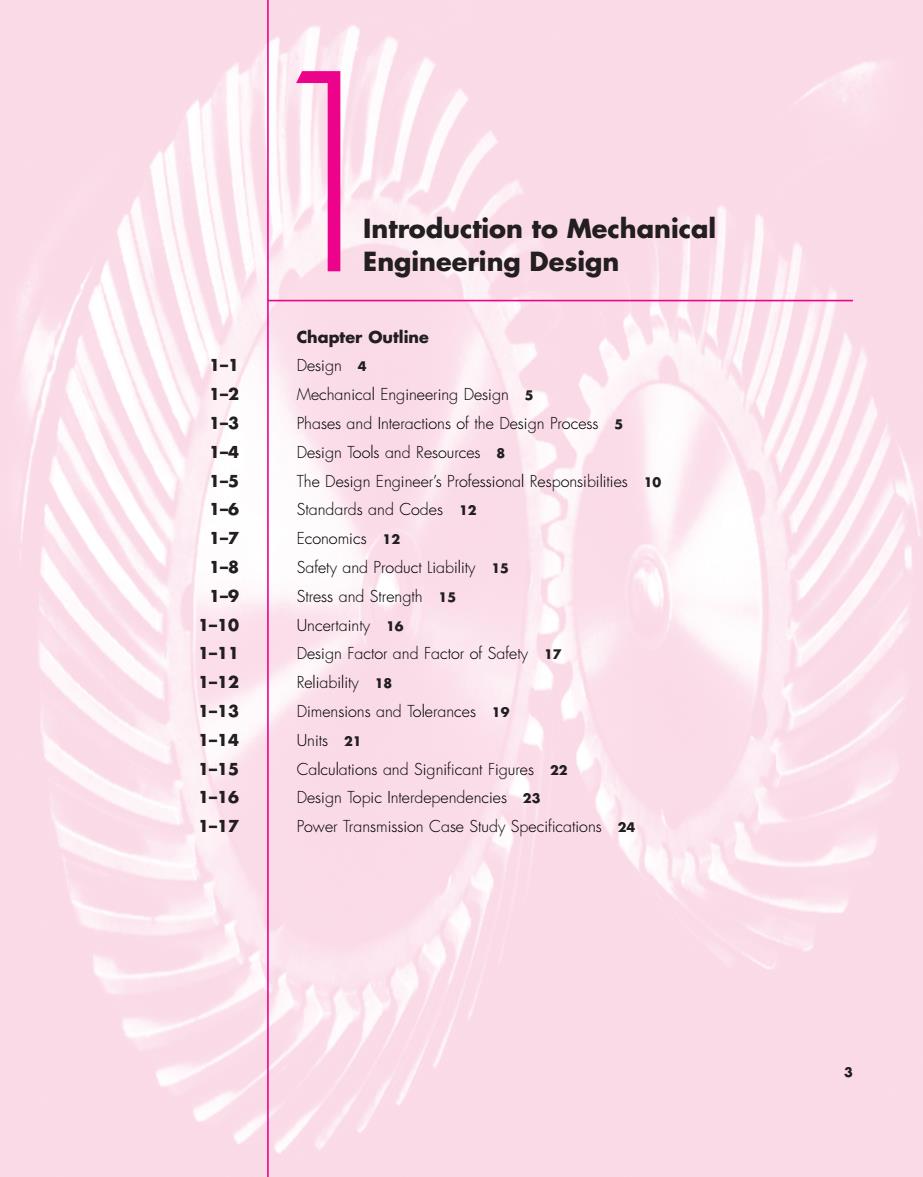

3 Chapter Outline 1–1 Design 4 1–2 Mechanical Engineering Design 5 1–3 Phases and Interactions of the Design Process 5 1–4 Design Tools and Resources 8 1–5 The Design Engineer’s Professional Responsibilities 10 1–6 Standards and Codes 12 1–7 Economics 12 1–8 Safety and Product Liability 15 1–9 Stress and Strength 15 1–10 Uncertainty 16 1–11 Design Factor and Factor of Safety 17 1–12 Reliability 18 1–13 Dimensions and Tolerances 19 1–14 Units 21 1–15 Calculations and Significant Figures 22 1–16 Design Topic Interdependencies 23 1–17 Power Transmission Case Study Specifications 24 1Introduction to Mechanical Engineering Design bud29281_ch01_002-030.qxd 11/11/2009 5:35 pm Page 3 pinnacle s-171:Desktop Folder:Temp Work:Don't Delete (Jobs):MHDQ196/Budynas:

Mechanical Engineering Design Mechanical design is a complex process,requiring many skills.Extensive relationships need to be subdivided into a series of simple tasks.The complexity of the process requires a sequence in which ideas are introduced and iterated. We first address the nature of design in general,and then mechanical engineering design in particular.Design is an iterative process with many interactive phases.Many resources exist to support the designer,including many sources of information and an abundance of computational design tools.Design engineers need not only develop com- petence in their field but they must also cultivate a strong sense of responsibility and professional work ethic. There are roles to be played by codes and standards,ever-present economics,safety, and considerations of product liability.The survival of a mechanical component is often related through stress and strength.Matters of uncertainty are ever-present in engineer- ing design and are typically addressed by the design factor and factor of safety,either in the form of a deterministic (absolute)or statistical sense.The latter,statistical approach,deals with a design's reliability and requires good statistical data. In mechanical design,other considerations include dimensions and tolerances, units,and calculations. The book consists of four parts.Part 1,Basics,begins by explaining some differ- ences between design and analysis and introducing some fundamental notions and approaches to design.It continues with three chapters reviewing material properties, stress analysis,and stiffness and deflection analysis,which are the principles necessary for the remainder of the book. Part 2,Failure Prevention,consists of two chapters on the prevention of failure of mechanical parts.Why machine parts fail and how they can be designed to prevent fail- ure are difficult questions,and so we take two chapters to answer them,one on pre- venting failure due to static loads,and the other on preventing fatigue failure due to time-varying,cyclic loads. In Part 3,Design of Mechanical Elements,the concepts of Parts 1 and 2 are applied to the analysis,selection,and design of specific mechanical elements such as shafts, fasteners,weldments,springs,rolling contact bearings,film bearings,gears,belts, chains,and wire ropes. Part 4,Analysis Tools,provides introductions to two important methods used in mechanical design,finite element analysis and statistical analysis.This is optional study material,but some sections and examples in Parts 1 to 3 demonstrate the use of these tools. There are two appendixes at the end of the book.Appendix A contains many use- ful tables referenced throughout the book.Appendix B contains answers to selected end-of-chapter problems. 1-1 Design To design is either to formulate a plan for the satisfaction of a specified need or to solve a specific problem.If the plan results in the creation of something having a physical reality,then the product must be functional,safe,reliable,competitive,usable,manu- facturable,and marketable. Design is an innovative and highly iterative process.It is also a decision-making process.Decisions sometimes have to be made with too little information,occasion- ally with just the right amount of information,or with an excess of partially contradictory information.Decisions are sometimes made tentatively,with the right reserved to adjust as more becomes known.The point is that the engineering designer has to be personally comfortable with a decision-making,problem-solving role

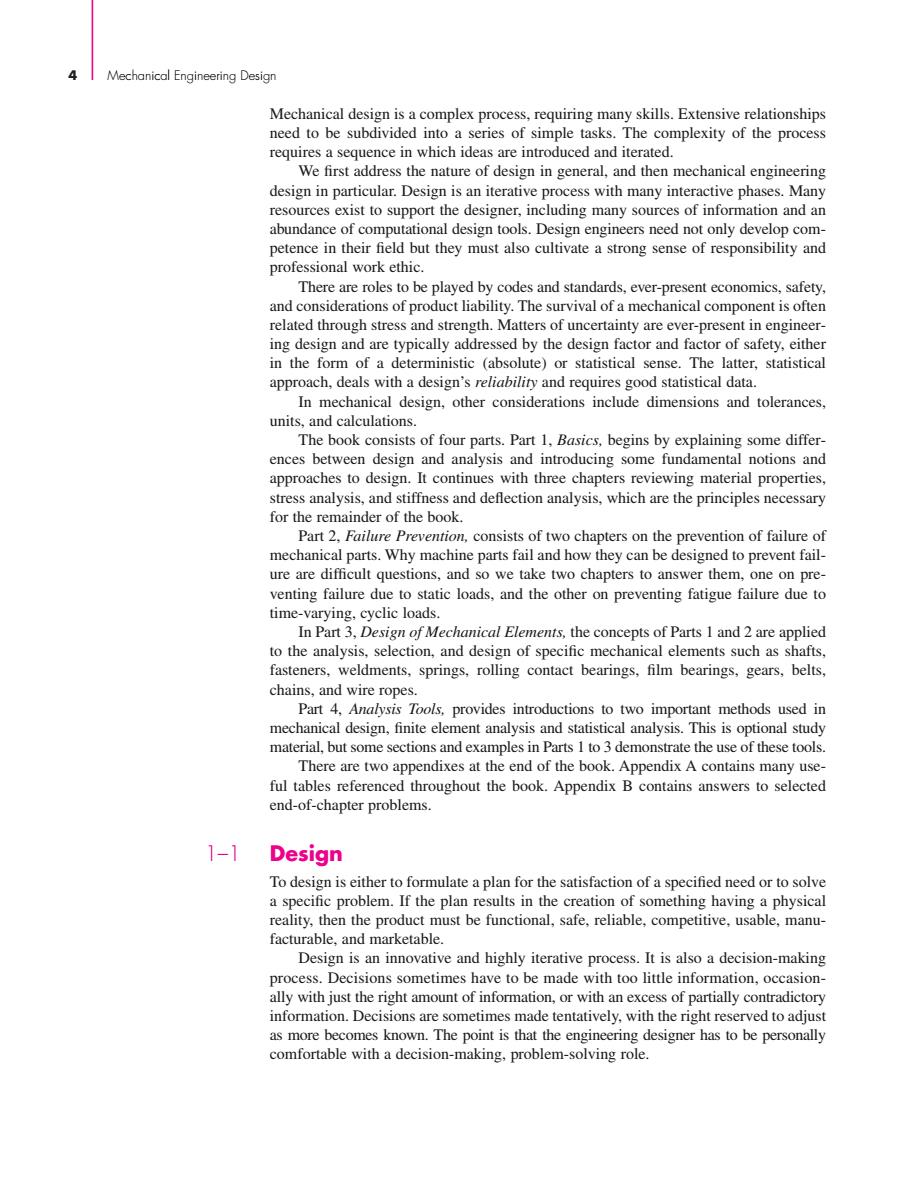

4 Mechanical Engineering Design Mechanical design is a complex process, requiring many skills. Extensive relationships need to be subdivided into a series of simple tasks. The complexity of the process requires a sequence in which ideas are introduced and iterated. We first address the nature of design in general, and then mechanical engineering design in particular. Design is an iterative process with many interactive phases. Many resources exist to support the designer, including many sources of information and an abundance of computational design tools. Design engineers need not only develop com￾petence in their field but they must also cultivate a strong sense of responsibility and professional work ethic. There are roles to be played by codes and standards, ever-present economics, safety, and considerations of product liability. The survival of a mechanical component is often related through stress and strength. Matters of uncertainty are ever-present in engineer￾ing design and are typically addressed by the design factor and factor of safety, either in the form of a deterministic (absolute) or statistical sense. The latter, statistical approach, deals with a design’s reliability and requires good statistical data. In mechanical design, other considerations include dimensions and tolerances, units, and calculations. The book consists of four parts. Part 1, Basics, begins by explaining some differ￾ences between design and analysis and introducing some fundamental notions and approaches to design. It continues with three chapters reviewing material properties, stress analysis, and stiffness and deflection analysis, which are the principles necessary for the remainder of the book. Part 2, Failure Prevention, consists of two chapters on the prevention of failure of mechanical parts. Why machine parts fail and how they can be designed to prevent fail￾ure are difficult questions, and so we take two chapters to answer them, one on pre￾venting failure due to static loads, and the other on preventing fatigue failure due to time-varying, cyclic loads. In Part 3, Design of Mechanical Elements, the concepts of Parts 1 and 2 are applied to the analysis, selection, and design of specific mechanical elements such as shafts, fasteners, weldments, springs, rolling contact bearings, film bearings, gears, belts, chains, and wire ropes. Part 4, Analysis Tools, provides introductions to two important methods used in mechanical design, finite element analysis and statistical analysis. This is optional study material, but some sections and examples in Parts 1 to 3 demonstrate the use of these tools. There are two appendixes at the end of the book. Appendix A contains many use￾ful tables referenced throughout the book. Appendix B contains answers to selected end-of-chapter problems. 1–1 Design To design is either to formulate a plan for the satisfaction of a specified need or to solve a specific problem. If the plan results in the creation of something having a physical reality, then the product must be functional, safe, reliable, competitive, usable, manu￾facturable, and marketable. Design is an innovative and highly iterative process. It is also a decision-making process. Decisions sometimes have to be made with too little information, occasion￾ally with just the right amount of information, or with an excess of partially contradictory information. Decisions are sometimes made tentatively, with the right reserved to adjust as more becomes known. The point is that the engineering designer has to be personally comfortable with a decision-making, problem-solving role. bud29281_ch01_002-030.qxd 11/11/2009 5:35 pm Page 4 pinnacle s-171:Desktop Folder:Temp Work:Don't Delete (Jobs):MHDQ196/Budynas:

Introduction to Mechanical Engineering Design Design is a communication-intensive activity in which both words and pictures are used,and written and oral forms are employed.Engineers have to communicate effec- tively and work with people of many disciplines.These are important skills,and an engineer's success depends on them. A designer's personal resources of creativeness,communicative ability,and problem- solving skill are intertwined with the knowledge of technology and first principles. Engineering tools(such as mathematics,statistics,computers,graphics,and languages) are combined to produce a plan that,when carried out,produces a product that is fimnc- tional,safe,reliable,competitive,usable,manufacturable,and marketable,regardless of who builds it or who uses it. 1-2 Mechanical Engineering Design Mechanical engineers are associated with the production and processing of energy and with providing the means of production,the tools of transportation,and the techniques of automation.The skill and knowledge base are extensive.Among the disciplinary bases are mechanics of solids and fluids,mass and momentum transport,manufactur- ing processes,and electrical and information theory.Mechanical engineering design involves all the disciplines of mechanical engineering. Real problems resist compartmentalization.A simple journal bearing involves fluid flow,heat transfer,friction,energy transport,material selection,thermomechanical treatments,statistical descriptions,and so on.A building is environmentally controlled. The heating,ventilation,and air-conditioning considerations are sufficiently specialized that some speak of heating,ventilating,and air-conditioning design as if it is separate and distinct from mechanical engineering design.Similarly,internal-combustion engine design,turbomachinery design,and jet-engine design are sometimes considered dis- crete entities.Here,the leading string of words preceding the word design is merely a product descriptor.Similarly,there are phrases such as machine design,machine-element design,machine-component design,systems design,and fluid-power design.All of these phrases are somewhat more focused examples of mechanical engineering design. They all draw on the same bodies of knowledge,are similarly organized,and require similar skills. 1-3 Phases and Interactions of the Design Process What is the design process?How does it begin?Does the engineer simply sit down at a desk with a blank sheet of paper and jot down some ideas?What happens next?What factors influence or control the decisions that have to be made?Finally,how does the design process end? The complete design process,from start to finish,is often outlined as in Fig.1-1. The process begins with an identification of a need and a decision to do something about it.After many iterations,the process ends with the presentation of the plans for satisfying the need.Depending on the nature of the design task,several design phases may be repeated throughout the life of the product,from inception to termi- nation.In the next several subsections,we shall examine these steps in the design process in detail. Identification of need generally starts the design process.Recognition of the need and phrasing the need often constitute a highly creative act,because the need may be only a vague discontent,a feeling of uneasiness,or a sensing that something is not right. The need is often not evident at all;recognition can be triggered by a particular adverse

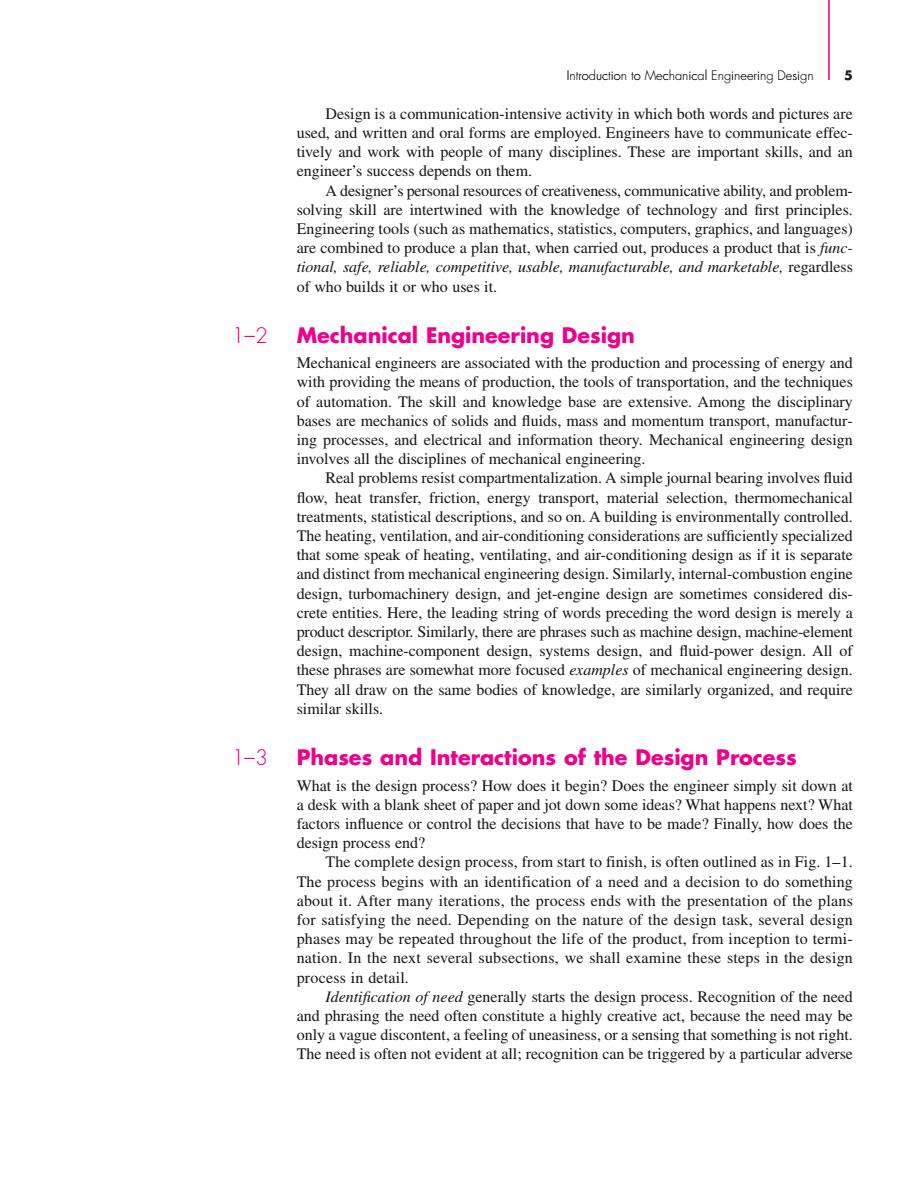

Introduction to Mechanical Engineering Design 5 Design is a communication-intensive activity in which both words and pictures are used, and written and oral forms are employed. Engineers have to communicate effec￾tively and work with people of many disciplines. These are important skills, and an engineer’s success depends on them. A designer’s personal resources of creativeness, communicative ability, and problem￾solving skill are intertwined with the knowledge of technology and first principles. Engineering tools (such as mathematics, statistics, computers, graphics, and languages) are combined to produce a plan that, when carried out, produces a product that is func￾tional, safe, reliable, competitive, usable, manufacturable, and marketable, regardless of who builds it or who uses it. 1–2 Mechanical Engineering Design Mechanical engineers are associated with the production and processing of energy and with providing the means of production, the tools of transportation, and the techniques of automation. The skill and knowledge base are extensive. Among the disciplinary bases are mechanics of solids and fluids, mass and momentum transport, manufactur￾ing processes, and electrical and information theory. Mechanical engineering design involves all the disciplines of mechanical engineering. Real problems resist compartmentalization. A simple journal bearing involves fluid flow, heat transfer, friction, energy transport, material selection, thermomechanical treatments, statistical descriptions, and so on. A building is environmentally controlled. The heating, ventilation, and air-conditioning considerations are sufficiently specialized that some speak of heating, ventilating, and air-conditioning design as if it is separate and distinct from mechanical engineering design. Similarly, internal-combustion engine design, turbomachinery design, and jet-engine design are sometimes considered dis￾crete entities. Here, the leading string of words preceding the word design is merely a product descriptor. Similarly, there are phrases such as machine design, machine-element design, machine-component design, systems design, and fluid-power design. All of these phrases are somewhat more focused examples of mechanical engineering design. They all draw on the same bodies of knowledge, are similarly organized, and require similar skills. 1–3 Phases and Interactions of the Design Process What is the design process? How does it begin? Does the engineer simply sit down at a desk with a blank sheet of paper and jot down some ideas? What happens next? What factors influence or control the decisions that have to be made? Finally, how does the design process end? The complete design process, from start to finish, is often outlined as in Fig. 1–1. The process begins with an identification of a need and a decision to do something about it. After many iterations, the process ends with the presentation of the plans for satisfying the need. Depending on the nature of the design task, several design phases may be repeated throughout the life of the product, from inception to termi￾nation. In the next several subsections, we shall examine these steps in the design process in detail. Identification of need generally starts the design process. Recognition of the need and phrasing the need often constitute a highly creative act, because the need may be only a vague discontent, a feeling of uneasiness, or a sensing that something is not right. The need is often not evident at all; recognition can be triggered by a particular adverse bud29281_ch01_002-030.qxd 11/11/2009 5:35 pm Page 5 pinnacle s-171:Desktop Folder:Temp Work:Don't Delete (Jobs):MHDQ196/Budynas:
