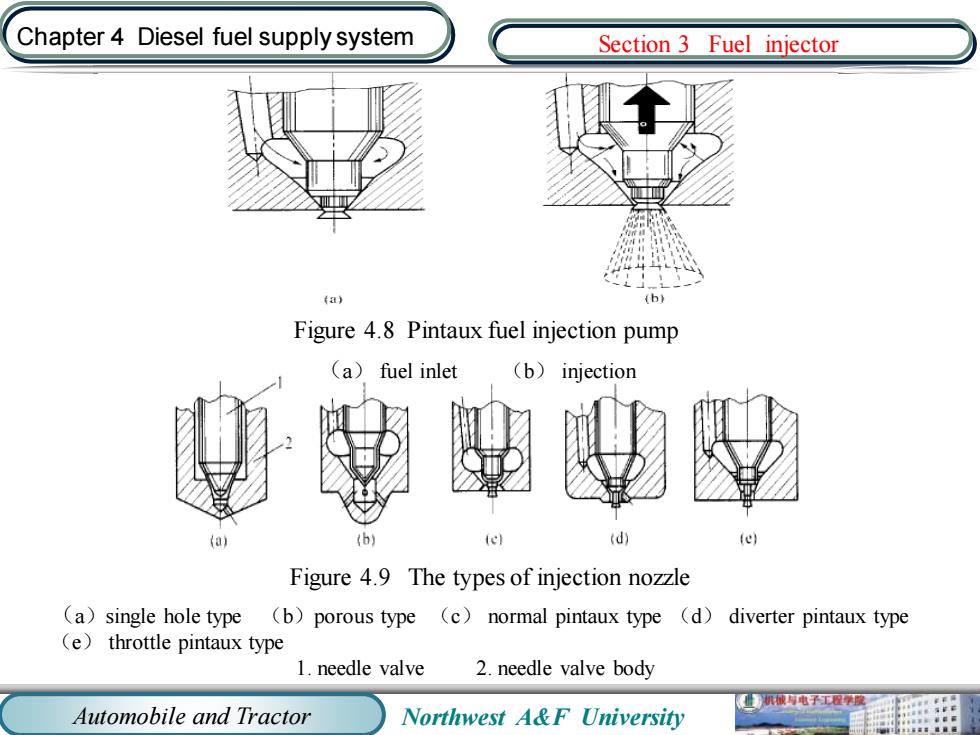

Chapter 4 Diesel fuel supply system Section 3 Fuel injector ta) b Figure 4.8 Pintaux fuel injection pump (a)fuel inlet (b)injection (a b】 e (d) Figure 4.9 The types of injection nozzle (a)single hole type (b)porous type (c)normal pintaux type (d)diverter pintaux type (e)throttle pintaux type 1.needle valve 2.needle valve body 机被有电子工程模 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 4 Diesel fuel supply system Figure 4.8 Pintaux fuel injection pump （a） fuel inlet （b） injection Figure 4.9 The types of injection nozzle （a）single hole type （b）porous type （c） normal pintaux type （d） diverter pintaux type （e） throttle pintaux type 1. needle valve 2. needle valve body Section 3 Fuel injector

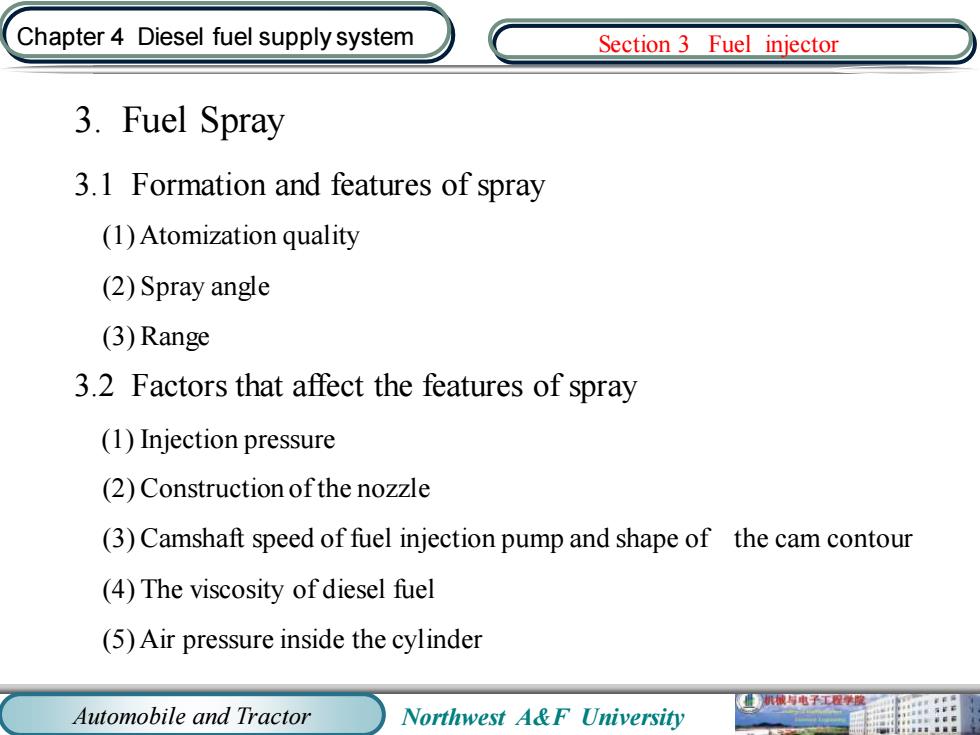

Chapter 4 Diesel fuel supply system Section 3 Fuel injector 3.Fuel Spray 3.1 Formation and features of spray (1)Atomization quality (2)Spray angle (3)Range 3.2 Factors that affect the features of spray (1)Injection pressure (2)Construction ofthe nozzle (3)Camshaft speed of fuel injection pump and shape of the cam contour (4)The viscosity of diesel fuel (5)Air pressure inside the cylinder 机械电子工程学度 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 4 Diesel fuel supply system 3. Fuel Spray 3.1 Formation and features of spray (1) Atomization quality (2) Spray angle (3) Range 3.2 Factors that affect the features of spray (1) Injection pressure (2) Construction of the nozzle (3) Camshaft speed of fuel injection pump and shape of the cam contour (4) The viscosity of diesel fuel (5) Air pressure inside the cylinder Section 3 Fuel injector

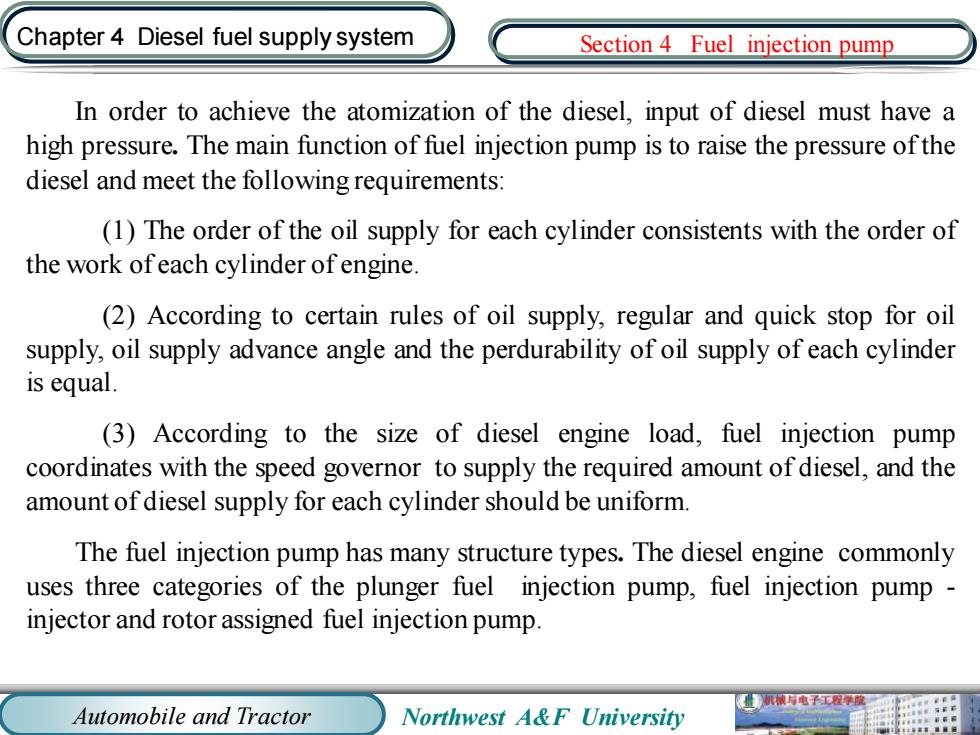

Chapter 4 Diesel fuel supply system Section 4 Fuel injection pump In order to achieve the atomization of the diesel,input of diesel must have a high pressure.The main function of fuel injection pump is to raise the pressure of the diesel and meet the following requirements: (1)The order of the oil supply for each cylinder consistents with the order of the work ofeach cylinder of engine. (2)According to certain rules of oil supply,regular and quick stop for oil supply,oil supply advance angle and the perdurability of oil supply of each cylinder is equal. (3)According to the size of diesel engine load,fuel injection pump coordinates with the speed governor to supply the required amount of diesel,and the amount of diesel supply for each cylinder should be uniform. The fuel injection pump has many structure types.The diesel engine commonly uses three categories of the plunger fuel injection pump,fuel injection pump- injector and rotor assigned fuel injection pump. 机械对电子工程学膜 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 4 Diesel fuel supply system In order to achieve the atomization of the diesel, input of diesel must have a high pressure. The main function of fuel injection pump is to raise the pressure of the diesel and meet the following requirements: (1) The order of the oil supply for each cylinder consistents with the order of the work of each cylinder of engine. (2) According to certain rules of oil supply, regular and quick stop for oil supply, oil supply advance angle and the perdurability of oil supply of each cylinder is equal. (3) According to the size of diesel engine load, fuel injection pump coordinates with the speed governor to supply the required amount of diesel, and the amount of diesel supply for each cylindershould be uniform. The fuel injection pump has many structure types. The diesel engine commonly uses three categories of the plunger fuel injection pump, fuel injection pump - injector and rotor assigned fuel injection pump. Section 4 Fuel injection pump

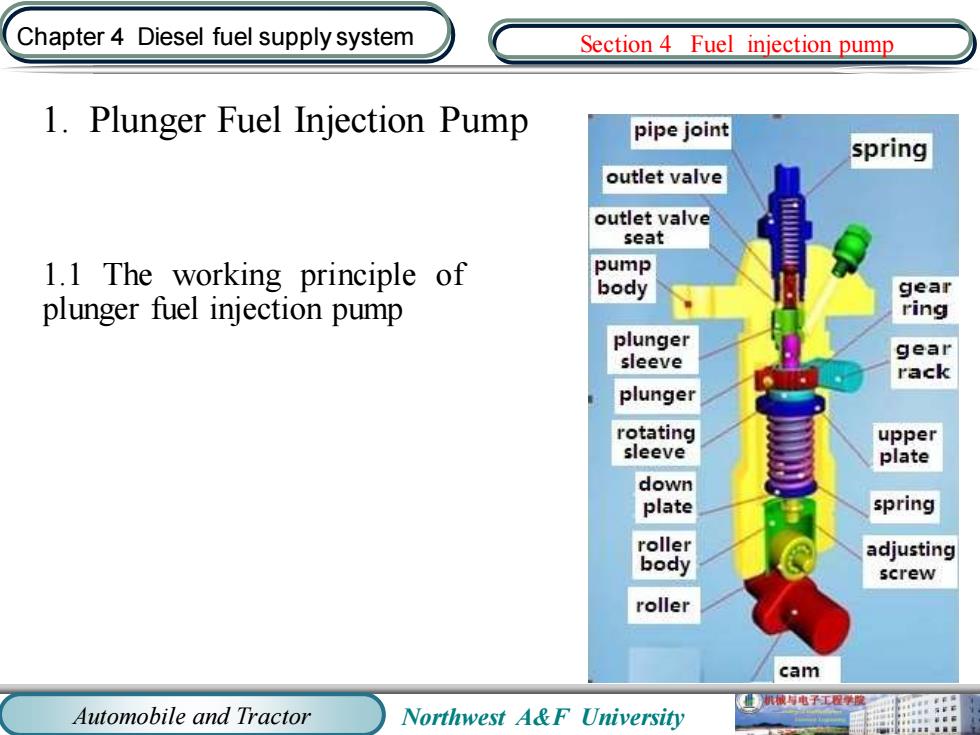

Chapter 4 Diesel fuel supply system Section 4 Fuel injection pump 1.Plunger Fuel Injection Pump pipe joint spring outlet valve outlet valve seat 1.1 The working principle of pump body gear plunger fuel injection pump ring plunger sleeve gear rack plunger rotating upper sleeve plate down plate spring roller adjusting body screw roller cam 械电子工程学度 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 4 Diesel fuel supply system 1. Plunger Fuel Injection Pump 1.1 The working principle of plunger fuel injection pump Section 4 Fuel injection pump

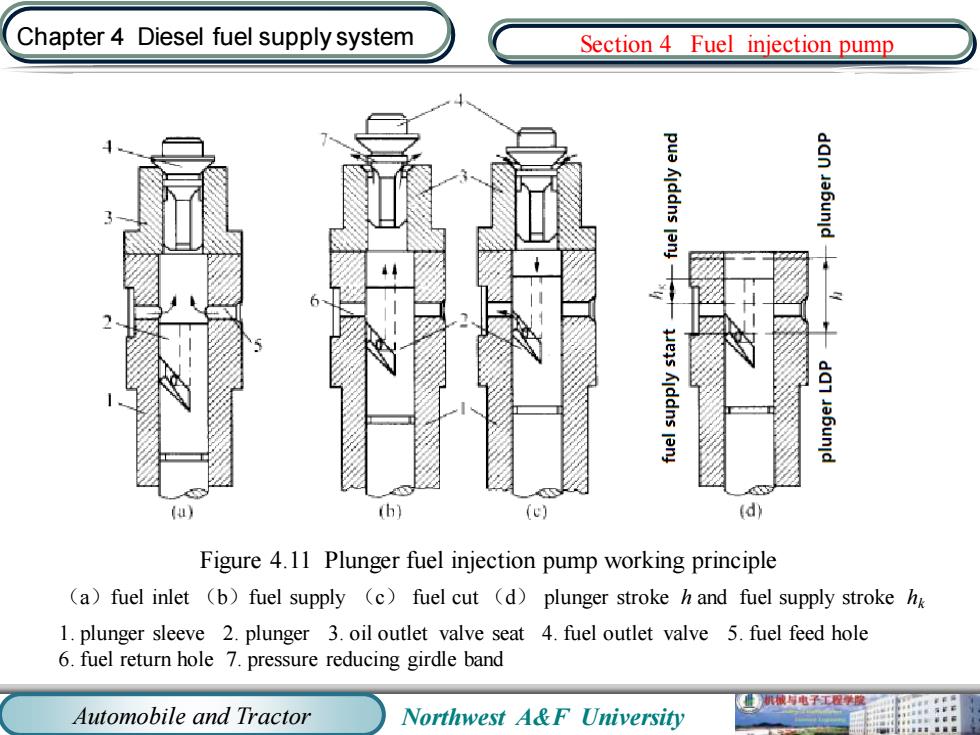

Chapter 4 Diesel fuel supply system Section 4 Fuel injection pump dan Ja6unid (u】 (h) (c) (d) Figure 4.11 Plunger fuel injection pump working principle (a)fuel inlet (b)fuel supply (c)fuel cut (d)plunger stroke h and fuel supply stroke h 1.plunger sleeve 2.plunger 3.oil outlet valve seat 4.fuel outlet valve 5.fuel feed hole 6.fuel return hole 7.pressure reducing girdle band 业机械寿电子工程学家 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 4 Diesel fuel supply system Figure 4.11 Plunger fuel injection pump working principle （a）fuel inlet （b）fuel supply （c） fuel cut （d） plunger stroke h and fuel supply stroke hk 1. plunger sleeve 2. plunger 3. oil outlet valve seat 4. fuel outlet valve 5. fuel feed hole 6. fuel return hole 7. pressure reducing girdle band Section 4 Fuel injection pump
