Chapter 1 Clutch Section 1 Function and Type 1.The Functions and Types of Clutches 1.1 Functions (1)Ensure the engine start and a smooth start to the vehicles (2)Shift gears when traveling or temporary stoppage (3)Overload protection to transmission system 1.2 Types Currently,there are mainly three categories clutch used on vehicles; friction clutch;fluid coupling and electromagnetic clutch Automobiles and tractors widely use friction clutches.According to their structures and working characteristics,they can be divided into four categories. (1)According to the number of friction discs (the driven discs),they can be divided into single-disc clutches,dual-disc clutches and multi- disc clutches. 机械电子工程学 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 1 Clutch 1. The Functions and Types of Clutches 1.1 Functions (1) Ensure the engine start and a smooth start to the vehicles (2) Shift gears when traveling or temporary stoppage (3) Overload protection to transmission system 1.2 Types Currently, there are mainly three categories clutch used on vehicles; friction clutch; fluid coupling and electromagnetic clutch. Automobiles and tractors widely use friction clutches. According to their structures and working characteristics, they can be divided into four categories. (1) According to the number of friction discs (the driven discs), they can be divided into single-disc clutches, dual-disc clutches and multidisc clutches. Section 1 Function and Type
Chapter 1 Clutch Section 1 Function and Type (2)According to the structures of hold-down mechanism,they can be divided into spring loaded clutches,lever-actuated clutches, hydraulic compression clutches and electromagnetic compression clutches. (3)According to working conditions of the friction surfaces,they can be divided into dry clutches and wet clutches. (4)According to the role of clutches in the transmission system, they can be divided into single-action clutches and double action clutches. 业机械与电子工程学原 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 1 Clutch (2) According to the structures of hold-down mechanism, they can be divided into spring loaded clutches, lever-actuated clutches, hydraulic compression clutches and electromagnetic compression clutches. (3) According to working conditions of the friction surfaces, they can be divided into dry clutches and wet clutches. (4) According to the role of clutches in the transmission system, they can be divided into single-action clutches and double action clutches. Section 1 Function and Type
Chapter 1 Clutch Section 2 Friction Clutch 2.The Components and Working Principle of Friction Clutches Friction clutches mainly including active part,driven part,hold- down mechanism and control mechanism. The working principle is that clutches transmit torque relying on friction between the friction surfaces of the active part and driven part. 2.1 Composition (1)Active part:Including the flywheel,clutch cover,pressure plate, which rotes together with the engine crankshaft. (2)Driven part:Including the driven plate and the clutch shaft. (3)Hold-down mechanism:Usually formed by helical springs or diaphragm springs 机城电子工程学度 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 1 Clutch 2. The Components and Working Principle of Friction Clutches Friction clutches mainly including active part ,driven part, holddown mechanism and control mechanism. The working principle is that clutches transmit torque relying on friction between the friction surfaces of the active part and driven part. 2.1 Composition (1) Active part: Including the flywheel, clutch cover, pressure plate, which rotes together with the engine crankshaft. (2) Driven part: Including the driven plate and the clutch shaft. (3) Hold-down mechanism: Usually formed by helical springs or diaphragm springs. Section 2 Friction Clutch

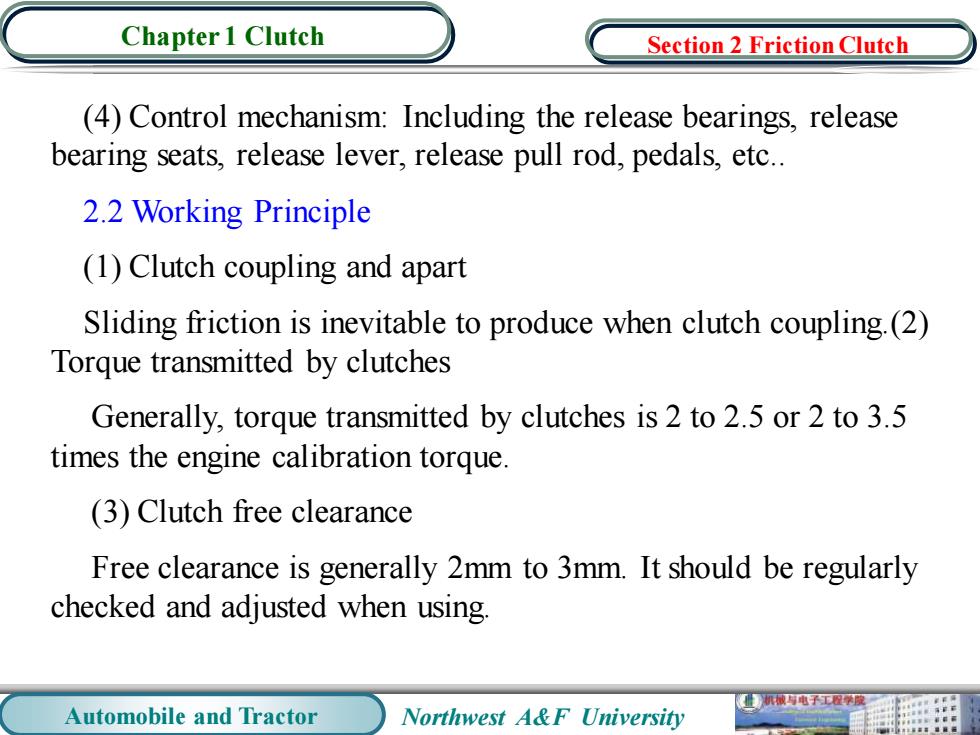

Chapter 1 Clutch Section 2 Friction Clutch (4)Control mechanism:Including the release bearings,release bearing seats,release lever,release pull rod,pedals,etc.. 2.2 Working Principle (1)Clutch coupling and apart Sliding friction is inevitable to produce when clutch coupling.(2) Torque transmitted by clutches Generally,torque transmitted by clutches is 2 to 2.5 or 2 to 3.5 times the engine calibration torque. (3)Clutch free clearance Free clearance is generally 2mm to 3mm.It should be regularly checked and adjusted when using. 机械写电子工程学现 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 1 Clutch (4) Control mechanism: Including the release bearings, release bearing seats, release lever, release pull rod, pedals, etc.. 2.2 Working Principle (1) Clutch coupling and apart Sliding friction is inevitable to produce when clutch coupling.(2) Torque transmitted by clutches Generally, torque transmitted by clutches is 2 to 2.5 or 2 to 3.5 times the engine calibration torque. (3) Clutch free clearance Free clearance is generally 2mm to 3mm. It should be regularly checked and adjusted when using. Section 2 Friction Clutch

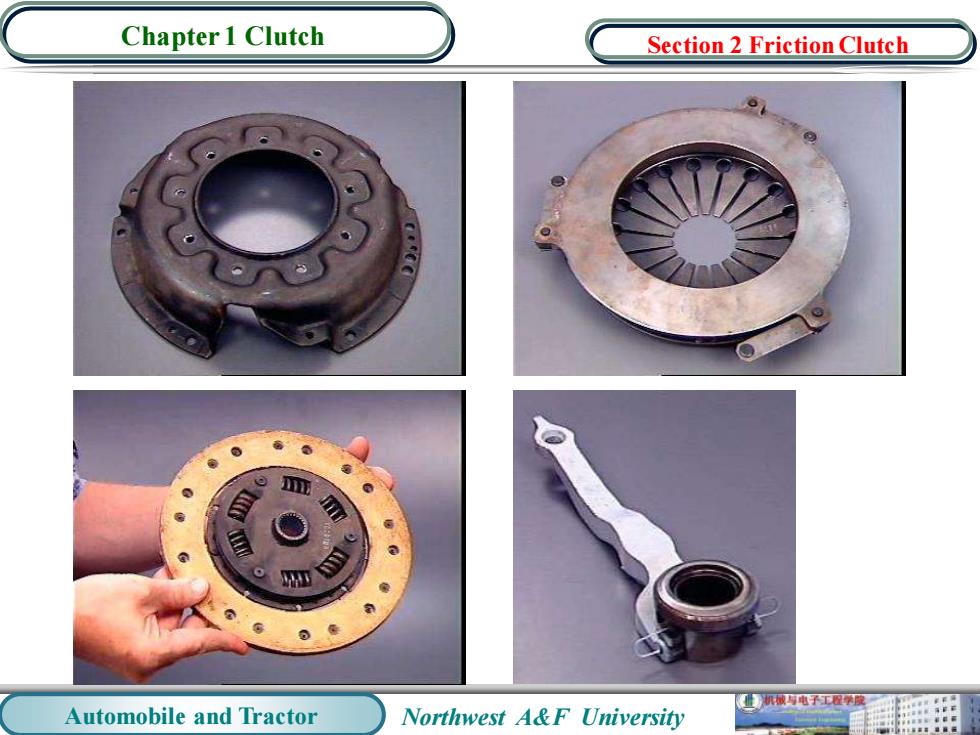

Chapter 1 Clutch Section 2 Friction Clutch Automobile and Tractor Northwest A&F University 电子学度用
Automobile and Tractor Northwest A&F University Chapter 1 Clutch Section 2 Friction Clutch
