Chapter 6 Lubricating system Section 1 Lubricating oil and method The function of the engine lubrication system provides clean lubricating oil to all friction surfaces to reduce friction losses and wear of parts;lubricating oil can cool and clean the worn surface through the lubricating oil circulation;lubricating oil film attached to the part surface can prevent oxidation and corrosion of part; lubricating oil film is formed between the piston,piston rings and the cylinder walls, which can enhance the tightness of the cylinder. Requirements:reasonable oil circuit,reliable operation,ensure engines in all cases that the friction parts can acquire reliable lubrication,and require clean lubricating oil. 1.Lubricating Oil 2.Method of Lubrication According to parts of the working conditions and movement,respectively,the following methods of lubrication. (1)pressure lubrication. (2)splash lubrication. (3)grease lubrication. (4)oil mist lubrication. 械电子工程学度 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 6 Lubricating system The function of the engine lubrication system provides clean lubricating oil to all friction surfaces to reduce friction losses and wear of parts; lubricating oil can cool and clean the worn surface through the lubricating oil circulation; lubricating oil film attached to the part surface can prevent oxidation and corrosion of part; lubricating oil film is formed between the piston, piston rings and the cylinder walls, which can enhance the tightness of the cylinder. Requirements: reasonable oil circuit, reliable operation, ensure engines in all cases that the friction parts can acquire reliable lubrication , and require clean lubricating oil. 1. Lubricating Oil 2. Method of Lubrication According to parts of the working conditions and movement, respectively, the following methods of lubrication. (1) pressure lubrication. (2) splash lubrication. (3) grease lubrication. (4) oil mist lubrication. Section 1 Lubricating oil and method

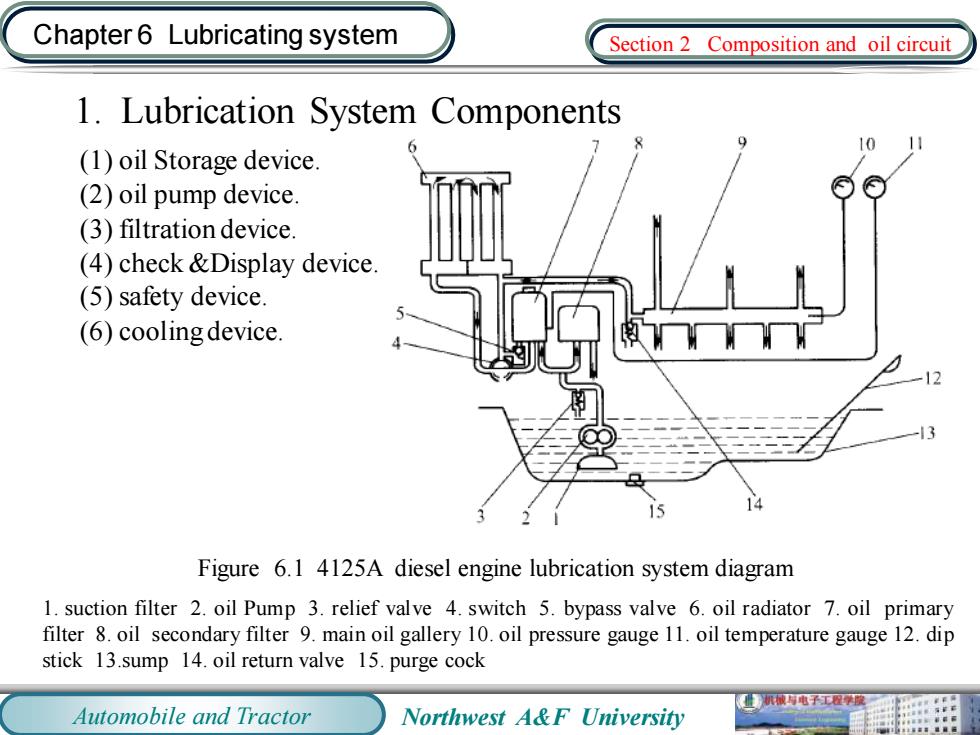

Chapter 6 Lubricating system Section 2 Composition and oil circuit 1.Lubrication System Components (1)oil Storage device. (2)oil pump device. (3)filtration device. (4)check &Display device. (5)safety device. (6)cooling device. Figure 6.1 4125A diesel engine lubrication system diagram 1.suction filter 2.oil Pump 3.relief valve 4.switch 5.bypass valve 6.oil radiator 7.oil primary filter 8.oil secondary filter 9.main oil gallery 10.oil pressure gauge 11.oil temperature gauge 12.dip stick 13.sump 14.oil return valve 15.purge cock 机械持电子工程膜 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 6 Lubricating system 1. Lubrication System Components (1) oil Storage device. (2) oil pump device. (3) filtration device. (4) check &Display device. (5) safety device. (6) cooling device. Figure 6.1 4125A diesel engine lubrication system diagram 1. suction filter 2. oil Pump 3. relief valve 4. switch 5. bypass valve 6. oil radiator 7. oil primary filter 8. oil secondary filter 9. main oil gallery 10. oil pressure gauge 11. oil temperature gauge 12. dip stick 13.sump 14. oil return valve 15. purge cock Section 2 Composition and oil circuit
Chapter 6 Lubricating system Section 2 Composition and oil circuit 2.The Oil Circuit of Lubrication System (1)4125A diesel engine lubrication system. (2)Dongfeng EQ6100-1 gasoline engine lubrication system. 0日 斯料仁料 10 机械电子工程学二 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 6 Lubricating system 2. The Oil Circuit of Lubrication System (1) 4125A diesel engine lubrication system. (2) Dongfeng EQ6100-1 gasoline engine lubrication system. Section 2 Composition and oil circuit

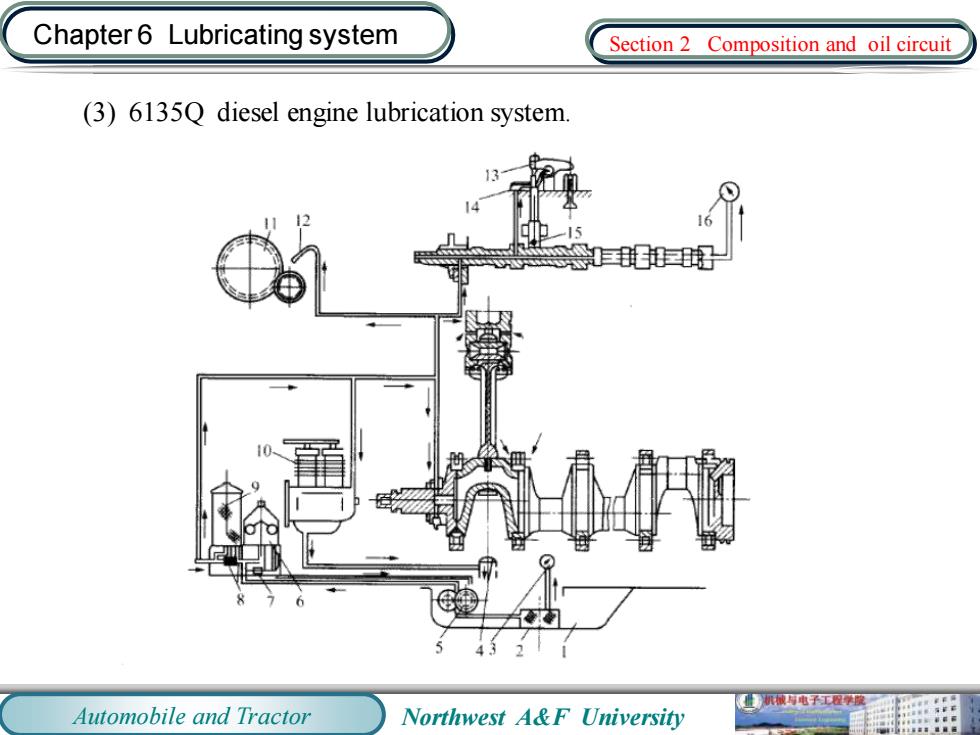

Chapter 6 Lubricating system Section 2 Composition and oil circuit (3)6135Q diesel engine lubrication system. 超球好 机被与电子工程保 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 6 Lubricating system (3) 6135Q diesel engine lubrication system. Section 2 Composition and oil circuit
Chapter 6 Lubricating system Section 3 The main parts of system 1.Oil Pump The function of oil pump is to increase oil pressure and guarantee the flow of oil to provide forcibly oil to the friction surface,which make the engine parts acquire reliable lubrication.Generally,oil pump has two types:gear-type and rotor-type oil pump. 1.1 Gear-type oil pump Figure 6.4 4125A diesel engine oil pump schematic diagram 1.driving gear 2.follower gear 3.oil outlet passage 4.relief valve 5.oil pump case 6.oil inlet passage 7.suction filter 业械电子工程学膜 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 6 Lubricating system 1. Oil Pump The function of oil pump is to increase oil pressure and guarantee the flow of oil to provide forcibly oil to the friction surface, which make the engine parts acquire reliable lubrication. Generally, oil pump has two types: gear-type and rotor-type oil pump. 1.1 Gear-type oil pump Figure 6.4 4125A diesel engine oil pump schematic diagram 1. driving gear 2. follower gear 3. oil outlet passage 4. relief valve 5. oil pump case 6. oil inlet passage 7. suction filter Section 3 The main parts of system
