The English Proceedings of the College of&Electrical Engineering.n University.in the Second Half of 2015 as the controller,which comes with an intemal MCU 60K FLASH ROM,can instantly erase the way electricity,rewrite,support for serial has been power consumption,superior anti-jamming.etc.,will help reduce system weight,good stability. The most important thing is,STC12C5A60S2 microcontroller has two serial ports (RXD.TXD and RXDI,TXD1).GPS module can be implemented with the GSM module is ected t the microcontroller.I serial connection with the GPS positioning module.serial port 2 is connected with Fig3The whole simulation diagram of the Combination ock GSM communication modules.After the success of GPS positioning.the location information sent to the through the serial I port 1,and sends the location information string to the serial por 2.port 2 interrupt function control use.store the received data,the last data will be sent to the owner of the phone.it can be easily dual serial communication B Lock Module Lock module [3-5]by the STC12C5A60S2 microcontroller as the main chip,16 keys as input keys,the result via the LCD display.In order to prevent the occurrence of power failure and other unforeseen circumstances use of AT24C02 as the power-down protection.When you enter a passwor using the keys,if the password is correct,then lock open and lights,then you can change the password, oress Enter twice in a row after a modifier key to ,improve safety,in the display if the passwo d is wrong the on-screer prompts for wrong.when consecutive errors after three keys are locked,the buzzer alarm one minute duration.Lock the overall simulation and the overall flow chart shown in Figure 3,Figure 4. 10
The English Proceedings of the College of Instrumentation & Electrical Engineering, Jilin University, in the Second Half of 2015 10 as the controller, which comes with an internal MCU 60K FLASH ROM, can instantly erase the way electricity, rewrite, support for serial has been programmed, conducive to achieving the program online programming. Meanwhile a high-speed, low power consumption, superior anti-jamming, etc., will help reduce system weight, good stability. The most important thing is, STC12C5A60S2 microcontroller has two serial ports (RXD, TXD and RXD1, TXD1), GPS module can be implemented simultaneously with the GSM module is connected to the microcontroller. 1 serial connection with the GPS positioning module, serial port 2 is connected with GSM communication modules. After the success of GPS positioning, the location information sent to the microcontroller through the serial port 1, and then sends the location information string to the serial port 2, port 2 interrupt function control use, store the received data, the last data will be sent to the owner of the phone, it can be easily dual serial communication. B Lock Module Lock module [3-5] by the STC12C5A60S2 microcontroller as the main chip, 16 keys as input keys, the result via the LCD display. In order to prevent the occurrence of power failure and other unforeseen circumstances, the use of AT24C02 as the power-down protection. When you enter a password using the keys, if the password is correct, then lock open and lights, then you can change the password, press Enter twice in a row after a modifier key to identifying new password, improve safety; in the display if the password is wrong the on-screen prompts for wrong, when consecutive errors after three keys are locked, the buzzer alarm one minute duration. Lock the overall simulation and the overall flow chart shown in Figure 3, Figure 4. Fig.3 The whole simulation diagram of the Combination lock
Pang Shuo et anti-the lock digital output,low power,compact acceleratior sensors,no external AD converter,small size,light enter a passwore weight.Also having signal conditioning.temperature compensation function.affected by temperature change is small,good stability.Shown simply VCC. correct? GND.SCL.SDA four pins connected with the microcontroller operation,easy to use,the acceleration module works Fig 5. Enter agair Enter aga Fig.5 The working principle diagram of the acceleration module D GPSpositioning module After the car is stolen,in order to obtain the exac location of the car,the system adds GPS positioning Password messae function[8-9]Using GPS module to determine the latitude and longitude of the location of the car, positioning and coordinate into the form,isolated degrees,minutes,seconds,to give the desired N(S).E(W)coordinates,and then through serial TXD.RXD respectively microcontroller RXD.TXD connected to the positioning results to the Press new pas The GPS system uses CNP301UA model module. which has a small,compact,light weight,high press new password precision,close star,high sensitivity and flexibility advantages of self-defined user configuration,you can change success achieve fast,accurate During the test,are positioned at different locations. the positioning results shown in Figure6: End 1 Fig.4 The whole flow chart of the Combination lock After find information shows that the difference in entered.the system needs to perceive the car was the meridian once every latitude.from the difference moving before starting GPS positioning module and between the actual 111 kilometers,is a difference of GSM communication modules.The system uses an one point is approximately 111 meters from one acceleration sensor senses the car move When the car me 3600=30.8,in every latitude is moving.the acceleration value changes,the longitude difference was, the actual distanc acceleration sensor detects changes in the value and difference of 111 cos kilometers (current latitude spread to the microcontroller,and then start the GPS value),a difference of one point is approximately 111 module for real-time positioning one thousand meters/3600*cos. Acceleration sensor r selection MMA7455,it is a Fig6 shows,measuring the distance between two 11

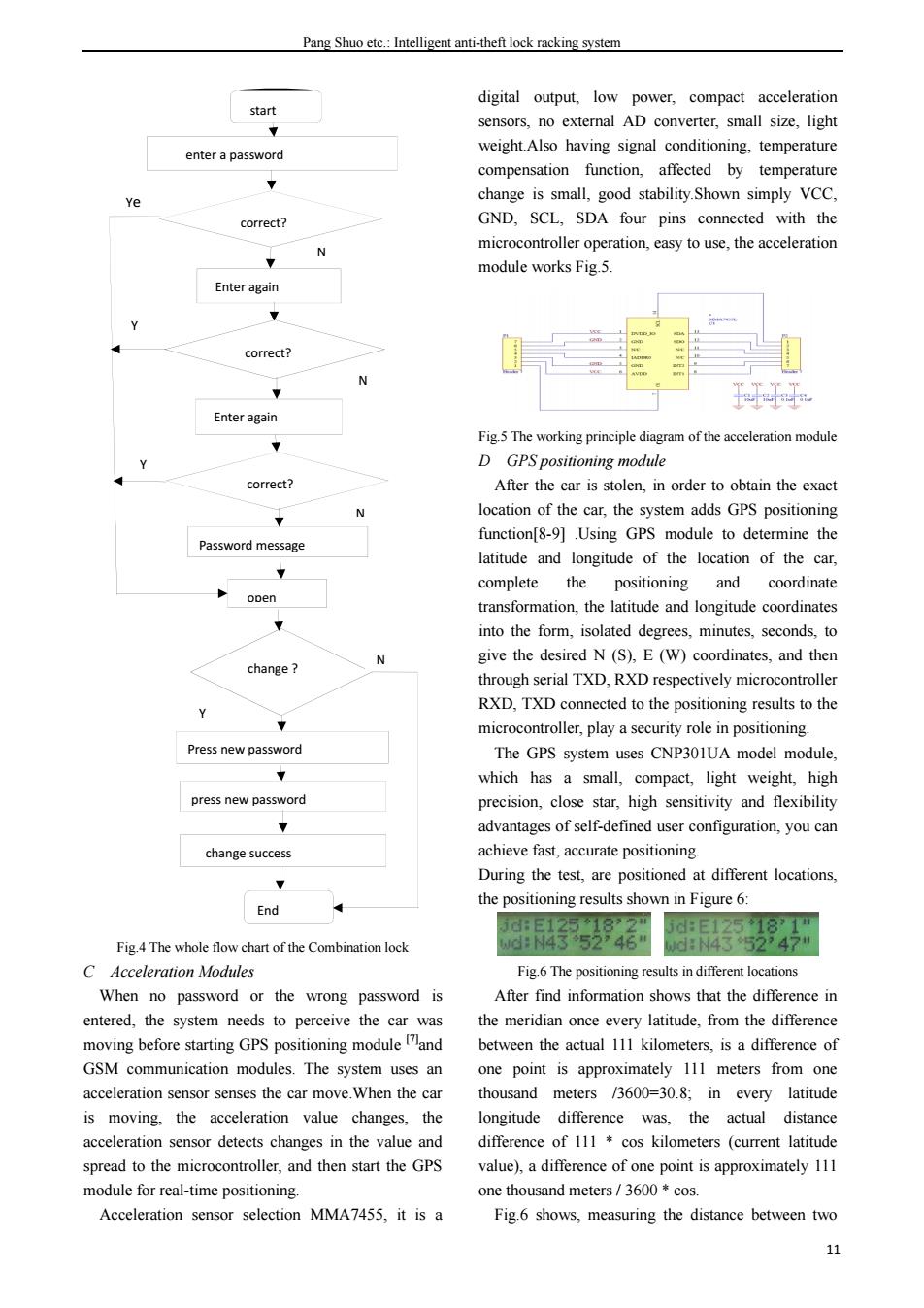

Pang Shuo etc.: Intelligent anti-theft lock racking system 11 Fig.4 The whole flow chart of the Combination lock C Acceleration Modules When no password or the wrong password is entered, the system needs to perceive the car was moving before starting GPS positioning module [7]and GSM communication modules. The system uses an acceleration sensor senses the car move.When the car is moving, the acceleration value changes, the acceleration sensor detects changes in the value and spread to the microcontroller, and then start the GPS module for real-time positioning. Acceleration sensor selection MMA7455, it is a digital output, low power, compact acceleration sensors, no external AD converter, small size, light weight.Also having signal conditioning, temperature compensation function, affected by temperature change is small, good stability.Shown simply VCC, GND, SCL, SDA four pins connected with the microcontroller operation, easy to use, the acceleration module works Fig.5. Fig.5 The working principle diagram of the acceleration module D GPS positioning module After the car is stolen, in order to obtain the exact location of the car, the system adds GPS positioning function[8-9] .Using GPS module to determine the latitude and longitude of the location of the car, complete the positioning and coordinate transformation, the latitude and longitude coordinates into the form, isolated degrees, minutes, seconds, to give the desired N (S), E (W) coordinates, and then through serial TXD, RXD respectively microcontroller RXD, TXD connected to the positioning results to the microcontroller, play a security role in positioning. The GPS system uses CNP301UA model module, which has a small, compact, light weight, high precision, close star, high sensitivity and flexibility advantages of self-defined user configuration, you can achieve fast, accurate positioning. During the test, are positioned at different locations, the positioning results shown in Figure 6: Fig.6 The positioning results in different locations After find information shows that the difference in the meridian once every latitude, from the difference between the actual 111 kilometers, is a difference of one point is approximately 111 meters from one thousand meters /3600=30.8; in every latitude longitude difference was, the actual distance difference of 111 * cos kilometers (current latitude value), a difference of one point is approximately 111 one thousand meters / 3600 * cos. Fig.6 shows, measuring the distance between two Ye N Enter again Y correct? N Enter again Y correct? N Password message open change ? N Y Press new password press new password change success End correct? start enter a password
The English Proceedings of the College of Insrumntion&Electrical Engineering.n University.in the Second Half of 2015 anchor points meridian of I minute30.8 m/min= 30.8 m,measuring the distance on the weft of 1 IV TEST RESULTS minute*30.8 m/min cos43=22.5 meters and the overall measurement distance meters The actual After the commissioning of each module,the overall system were tested. the error within five meters,and the difference Locks can achieve the basic functions.when the between the actual distance of 2.1 meters,the error is correct password is entered open lock indicator lights about 5%.The error depends largely on the model have three input opportunities buzzer alarm if the three selected GPS module,for higher positioning accuracy. are wrong and in the case of lock open can change the can chse more accurate GPS positioning module. display shows the results and the results shown in Fig When the car is stolen,if they can accurately 8 and 9. informed of the specific location of the car,for the Password Lock recovery of stolen vehicles have a key role.Therefore you can use GSM communication module-GPS InFut :***** FigThe results when entering the pas of the phone,so that owners can grasp the orientatio of the car lies.The system uses SIM900A Input1:**** communication module to send and receive text Input2:***量 messages to communicate with the owners of mobile Fig.9 The results when changeing the password phones SIM900A communication module with low GPS module can locate the current latitude and power consumption,among other functions and longitude,when the car began to locate stolen,and the receive calls.GSM module complete with computer location information sent via GSM module to the data communication via Al commands,you need to owner of the phone.Fig.10. set the mode to send short messages Text format and determines th。 received number GSM information.Working SIM900A 1251802 module flow chart shown in Fig.7 0435247 start 1251802 Start GSM 0435247 1251802 The connection is successful? 0435246 Seting GSM Chararter Set 1251802 Set the text mode 043*5246 Determine the phone number Fig10Mobile phone received positioning infomation Texting V EPILOGUE We completed the design and testing of intelligent Fnd anti-theft lock tracking system.On the basis of traditional electronic locks,an increase of password Fig.7The work flo of SIM900A protection and real-time positioning.more

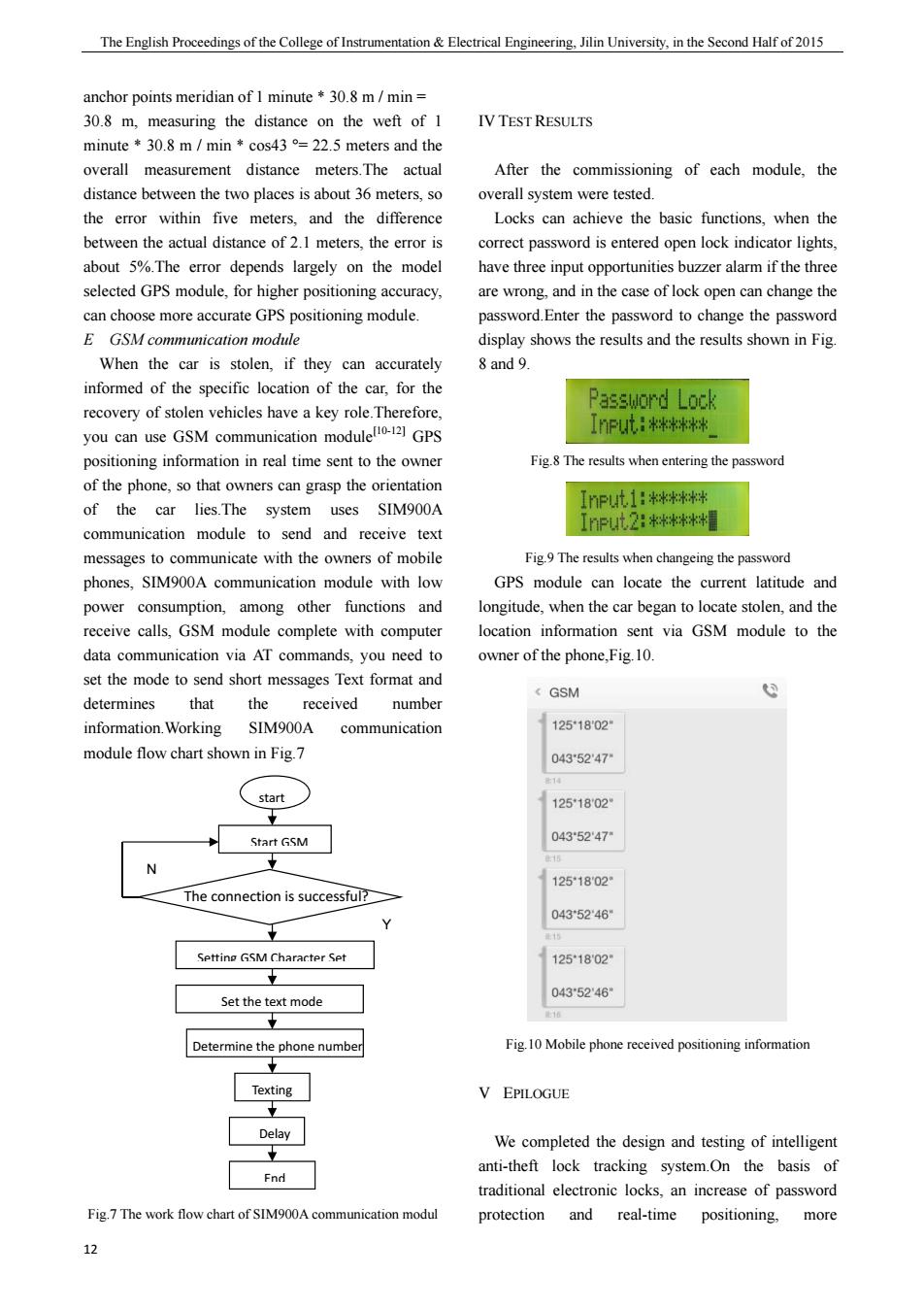

The English Proceedings of the College of Instrumentation & Electrical Engineering, Jilin University, in the Second Half of 2015 12 anchor points meridian of 1 minute * 30.8 m / min = 30.8 m, measuring the distance on the weft of 1 minute * 30.8 m / min * cos43 °= 22.5 meters and the overall measurement distance meters.The actual distance between the two places is about 36 meters, so the error within five meters, and the difference between the actual distance of 2.1 meters, the error is about 5%.The error depends largely on the model selected GPS module, for higher positioning accuracy, can choose more accurate GPS positioning module. E GSM communication module When the car is stolen, if they can accurately informed of the specific location of the car, for the recovery of stolen vehicles have a key role.Therefore, you can use GSM communication module[10-12] GPS positioning information in real time sent to the owner of the phone, so that owners can grasp the orientation of the car lies.The system uses SIM900A communication module to send and receive text messages to communicate with the owners of mobile phones, SIM900A communication module with low power consumption, among other functions and receive calls, GSM module complete with computer data communication via AT commands, you need to set the mode to send short messages Text format and determines that the received number information.Working SIM900A communication module flow chart shown in Fig.7 Fig.7 The work flow chart of SIM900A communication modul IV TEST RESULTS After the commissioning of each module, the overall system were tested. Locks can achieve the basic functions, when the correct password is entered open lock indicator lights, have three input opportunities buzzer alarm if the three are wrong, and in the case of lock open can change the password.Enter the password to change the password display shows the results and the results shown in Fig. 8 and 9. Fig.8 The results when entering the password Fig.9 The results when changeing the password GPS module can locate the current latitude and longitude, when the car began to locate stolen, and the location information sent via GSM module to the owner of the phone,Fig.10. Fig.10 Mobile phone received positioning information V EPILOGUE We completed the design and testing of intelligent anti-theft lock tracking system.On the basis of traditional electronic locks, an increase of password protection and real-time positioning, more start Start GSM The connection is successful? Setting GSM Character Set Set the text mode Determine the phone number Texting Delay End Y N
Pang Shuo et anti-the lock intelligent By entering a password is easy to solve the [10]Li Hong phone send and receive short message [J]MCU shortcomings of the traditional key stolen;using the acceleration module,GPS module and a GSM module 24-26. combined to achieve a real-time location tracking when the car is stolen.Test results show that the 111]Cheng.Creek,Huang Yuanqing.Zhang Xin,and other positioning accuracy of the system is ess than fiv remote detection system based on GPRS communication meters from the car stolen to receive the SMS technology sensors and micro systems,0827(2) response time of less than 60 seconds /times.This system is the development of electronic anti-theft 83-85 locks provide a new design ideas,with high value and 1121 Zhang Mingshan Research and Design of GPRS mobile data network access terminals [D]based on Hangzhou Zhejiang University of Technology.004 References 1131 Yan Zheng-long design and implementation of GIs GPS ]Zhang Yongqiang high reliability lock design /GSM GPRS technology based vehicle monitoring Electronic Testing,012(:91-95. system Northwest University:Natural Science Edition, [2]Yang Jing.Tian Dengyao,daytime core GSM based 2008,38(1y127-130. security system Electronic Design Engineering. [14]Design and implementation of BI Jun .GPS GSM 2010,18(11150-153. handheld locator Electronic Measurement and [3]Shen Hongwei microcontroller-based intelligent system Instrument,2005,19(3):38-41 architecture design and implementation [M]Beijing Electroni Industry Press,02 4]Zhou Gongming AT89C2051 microcontroller based design of electronic burglar alarm lock system [J] Mianyang Normal University,2007,26(5):112-115. 15]Design Li Mingxi new electronic locks 2004.17(3y40. [6]Dong Jicheng a new security microcontroller lock [J] Electronie Technology,(3):58-0 [7]Wang Yu.Chen Changjia,Dong Yanlei study acceleration sensor based on the vehicle anti-theft technology Computer Technology and Development 2013,23(5135-141 8]Design and Application Qiuzong De spacebome GPS receiver ]Chinese aerospace,2003.11:3-26. [9]B.Hofmann-Wellonhof.H.Lichtenegger.J.Collins.Global positioning system-theory and practice.New York Springer-Verlag.2001. 13

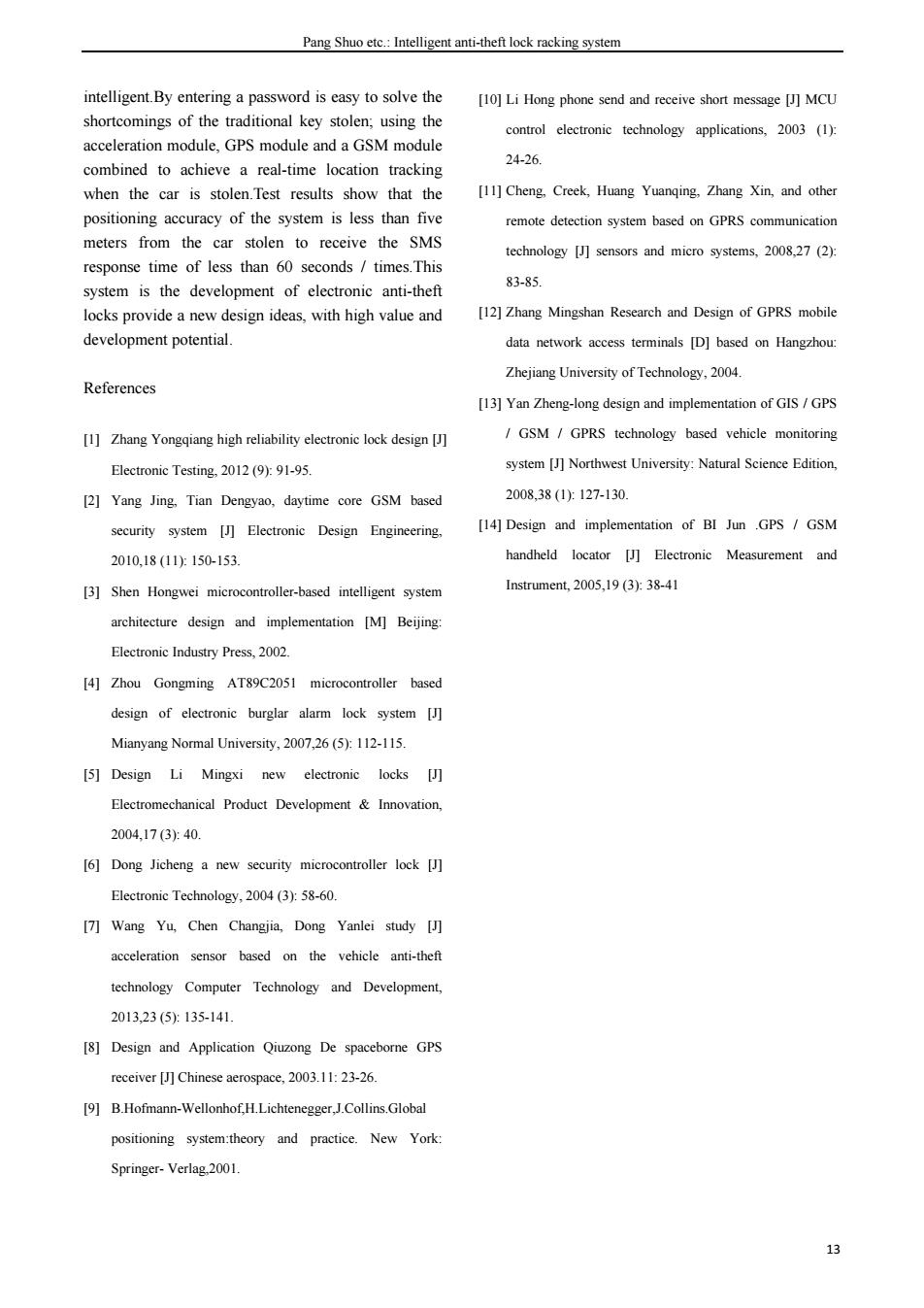

Pang Shuo etc.: Intelligent anti-theft lock racking system 13 intelligent.By entering a password is easy to solve the shortcomings of the traditional key stolen; using the acceleration module, GPS module and a GSM module combined to achieve a real-time location tracking when the car is stolen.Test results show that the positioning accuracy of the system is less than five meters from the car stolen to receive the SMS response time of less than 60 seconds / times.This system is the development of electronic anti-theft locks provide a new design ideas, with high value and development potential. References [1] Zhang Yongqiang high reliability electronic lock design [J] Electronic Testing, 2012 (9): 91-95. [2] Yang Jing, Tian Dengyao, daytime core GSM based security system [J] Electronic Design Engineering, 2010,18 (11): 150-153. [3] Shen Hongwei microcontroller-based intelligent system architecture design and implementation [M] Beijing: Electronic Industry Press, 2002. [4] Zhou Gongming AT89C2051 microcontroller based design of electronic burglar alarm lock system [J] Mianyang Normal University, 2007,26 (5): 112-115. [5] Design Li Mingxi new electronic locks [J] Electromechanical Product Development & Innovation, 2004,17 (3): 40. [6] Dong Jicheng a new security microcontroller lock [J] Electronic Technology, 2004 (3): 58-60. [7] Wang Yu, Chen Changjia, Dong Yanlei study [J] acceleration sensor based on the vehicle anti-theft technology Computer Technology and Development, 2013,23 (5): 135-141. [8] Design and Application Qiuzong De spaceborne GPS receiver [J] Chinese aerospace, 2003.11: 23-26. [9] B.Hofmann-Wellonhof,H.Lichtenegger,J.Collins.Global positioning system:theory and practice. New York: Springer- Verlag,2001. [10] Li Hong phone send and receive short message [J] MCU control electronic technology applications, 2003 (1): 24-26. [11] Cheng, Creek, Huang Yuanqing, Zhang Xin, and other remote detection system based on GPRS communication technology [J] sensors and micro systems, 2008,27 (2): 83-85. [12] Zhang Mingshan Research and Design of GPRS mobile data network access terminals [D] based on Hangzhou: Zhejiang University of Technology, 2004. [13] Yan Zheng-long design and implementation of GIS / GPS / GSM / GPRS technology based vehicle monitoring system [J] Northwest University: Natural Science Edition, 2008,38 (1): 127-130. [14] Design and implementation of BI Jun .GPS / GSM handheld locator [J] Electronic Measurement and Instrument, 2005,19 (3): 38-41
Caozhan-peng et Distributed Wirele Monitoring System of Factrory Machinery Temperature Smart Home based on Raspberry Pi Liu jiwei:liu mengchen:Gao ranran Abstrac-A prototype of smart home is established based on Raspberry pi as base-station and relay,By Raspberry pi board. embedded system is used.On Linux system,we use python and conro light,curtain,GPIO,switch electric kettle and listen to the music on Internet by mobile phone.Temperature measurement,monitoring and alarm system is as well. Key ords-Raspberry Pi Smart Home Linux O FORWARD ove 01G.a THE goal of home automation is to make our home life thi a JSB por upply,Rey underlying system,using oper I v-oul an ntelligent home-contre HDMI hig吵 definition ant to achieve. We use Python aking advantage of its convenient language nan a credit c eatures.In our work,Raspberry Pi is a perfect relay poin mply turn the I because of the use of wireless network technology.w such as electronic spreads achieve a mobile remote control lights,remote control play high- othe curtains,remote control switches giving the kettles boil teatures.Raspberry Pi cor ater supply,watercress FM broadcast implementationo power supply,Keyboare a smart home entertainment system and Pyroelectric the Raspberry Pi board nch sensor to achieve the alarm function,and the application processor,the storage device is not strong enough,b of mobile video surveillance reflect smart home security low price,provides us with an ideal platform system. embedded development. Based on the Raspberry Pi intelligent home systems development is complex and cumbersome abandon RaspberryPi Windows systems,make full use of open-source the underlying system to complete the task of every nuance. every nuance of the interactive features into a whole network,to achieve intelligent Claim. 1 INTRODUCTION Raspberry Pi,the Chinese called"Raspberry Pi"is a charity registered in England"Raspberry Pi Foundation," the development,education for students computer programming and design,ony credit card sized card-type computer,the system based on Linux.Although its appearance"petite"inner"coris very powerful,video. audio and other functions all Jie,is a"small but perfectly Fig 1 The macro-structure of the Raspberry Pi B plate formed." In our development process,we chose the Raspberry Pi 2 SMART HOME SYSTEM of B-type version,it is a miniature ARM-based PC

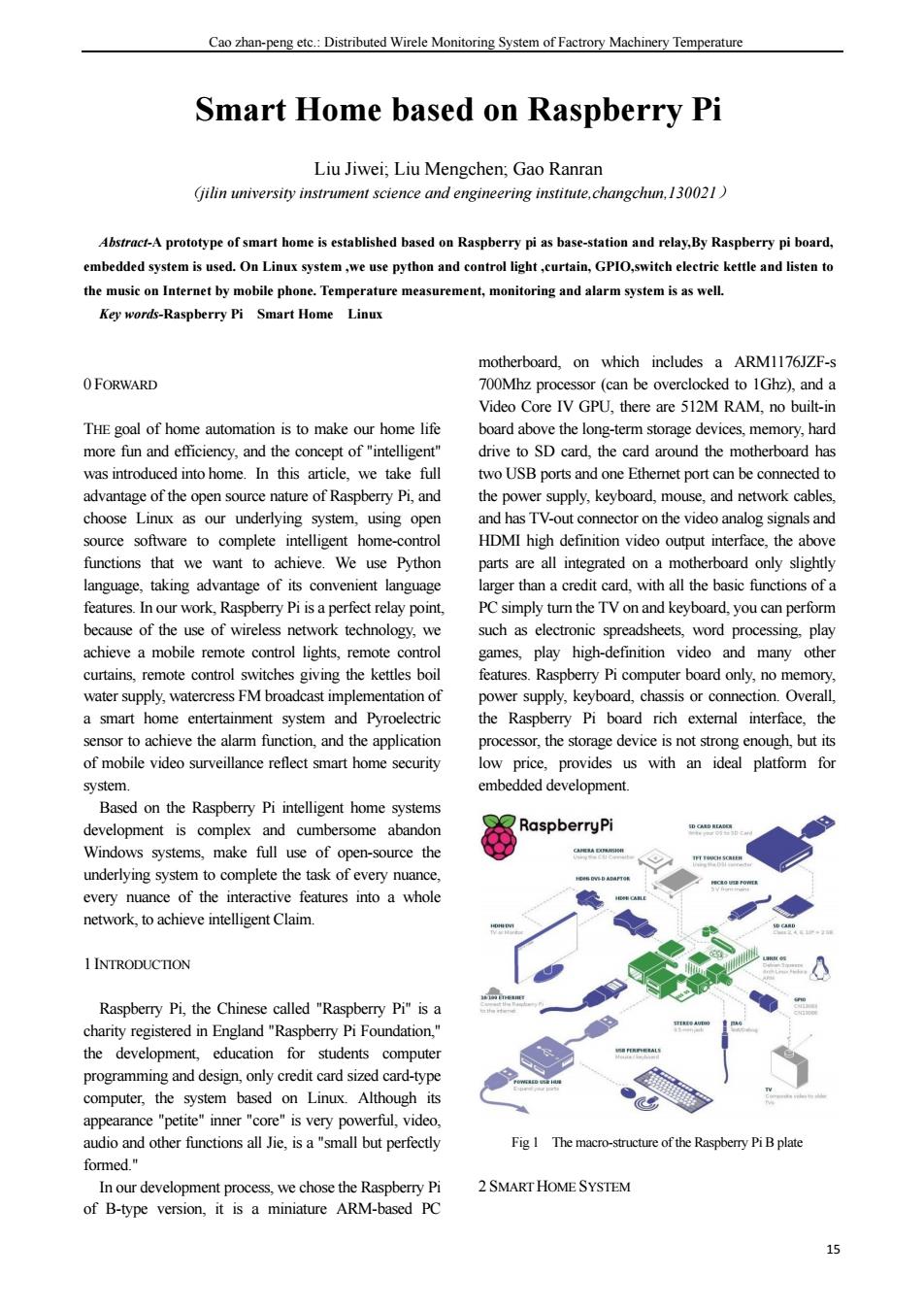

Cao zhan-peng etc.: Distributed Wirele Monitoring System of Factrory Machinery Temperature 15 Smart Home based on Raspberry Pi Liu Jiwei; Liu Mengchen; Gao Ranran （jilin university instrument science and engineering institute,changchun,130021） Abstract-A prototype of smart home is established based on Raspberry pi as base-station and relay,By Raspberry pi board, embedded system is used. On Linux system ,we use python and control light ,curtain, GPIO,switch electric kettle and listen to the music on Internet by mobile phone. Temperature measurement, monitoring and alarm system is as well. Key words-Raspberry Pi Smart Home Linux 0 FORWARD THE goal of home automation is to make our home life more fun and efficiency, and the concept of "intelligent" was introduced into home. In this article, we take full advantage of the open source nature of Raspberry Pi, and choose Linux as our underlying system, using open source software to complete intelligent home-control functions that we want to achieve. We use Python language, taking advantage of its convenient language features. In our work, Raspberry Pi is a perfect relay point, because of the use of wireless network technology, we achieve a mobile remote control lights, remote control curtains, remote control switches giving the kettles boil water supply, watercress FM broadcast implementation of a smart home entertainment system and Pyroelectric sensor to achieve the alarm function, and the application of mobile video surveillance reflect smart home security system. Based on the Raspberry Pi intelligent home systems development is complex and cumbersome abandon Windows systems, make full use of open-source the underlying system to complete the task of every nuance, every nuance of the interactive features into a whole network, to achieve intelligent Claim. 1 INTRODUCTION Raspberry Pi, the Chinese called "Raspberry Pi" is a charity registered in England "Raspberry Pi Foundation," the development, education for students computer programming and design, only credit card sized card-type computer, the system based on Linux. Although its appearance "petite" inner "core" is very powerful, video, audio and other functions all Jie, is a "small but perfectly formed." In our development process, we chose the Raspberry Pi of B-type version, it is a miniature ARM-based PC motherboard, on which includes a ARM1176JZF-s 700Mhz processor (can be overclocked to 1Ghz), and a Video Core IV GPU, there are 512M RAM, no built-in board above the long-term storage devices, memory, hard drive to SD card, the card around the motherboard has two USB ports and one Ethernet port can be connected to the power supply, keyboard, mouse, and network cables, and has TV-out connector on the video analog signals and HDMI high definition video output interface, the above parts are all integrated on a motherboard only slightly larger than a credit card, with all the basic functions of a PC simply turn the TV on and keyboard, you can perform such as electronic spreadsheets, word processing, play games, play high-definition video and many other features. Raspberry Pi computer board only, no memory, power supply, keyboard, chassis or connection. Overall, the Raspberry Pi board rich external interface, the processor, the storage device is not strong enough, but its low price, provides us with an ideal platform for embedded development. Fig 1 The macro-structure of the Raspberry Pi B plate 2 SMART HOME SYSTEM
