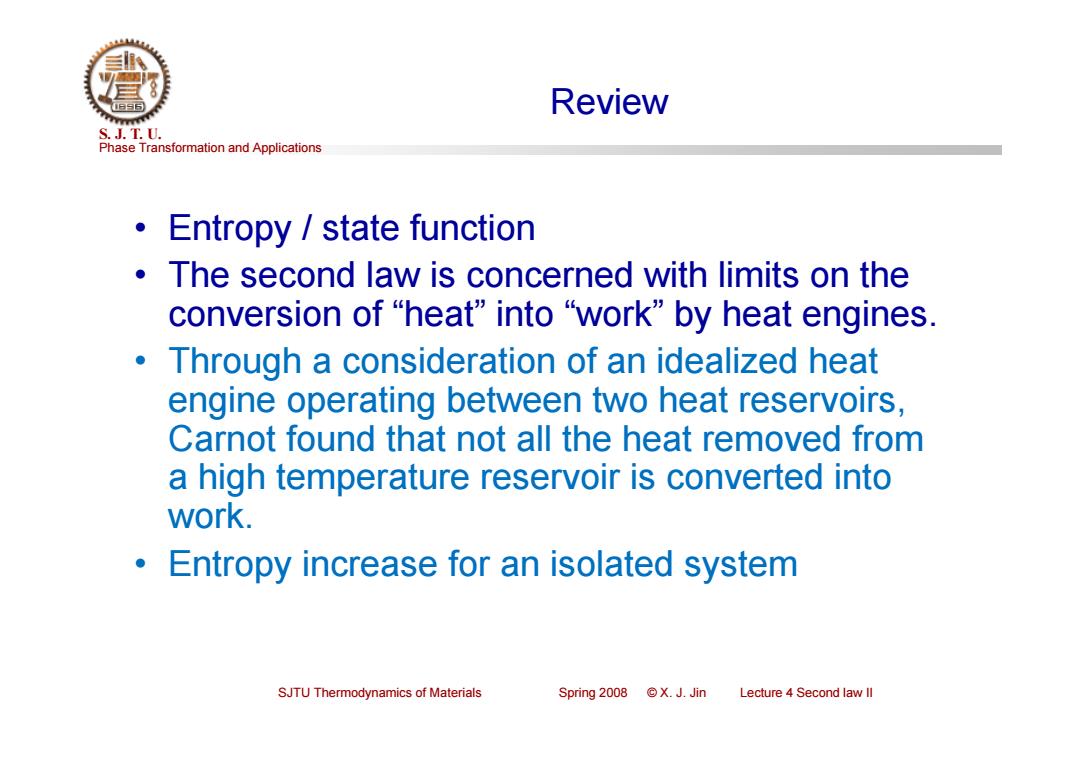

Review S.J.T.0. Phase Transformation and Applications o Entropy state function The second law is concerned with limits on the conversion of "heat"into "work"by heat engines. Through a consideration of an idealized heat engine operating between two heat reservoirs, Carnot found that not all the heat removed from a high temperature reservoir is converted into work. Entropy increase for an isolated system SJTU Thermodynamics of Materials Spring2008©X.J.Jin Lecture 4 Second law ll
Phase Transformation and Applications S. J. T. U. SJTU Thermodynamics of Materials Spring 2008 © X. J. Jin Lecture 4 Second law II Review • Entropy / state function • The second law is concerned with limits on the conversion of “heat” into “work” by heat engines. • Through a consideration of an idealized heat engine operating between two heat reservoirs, Carnot found that not all the heat removed from a high temperature reservoir is converted into work. • Entropy increase for an isolated system

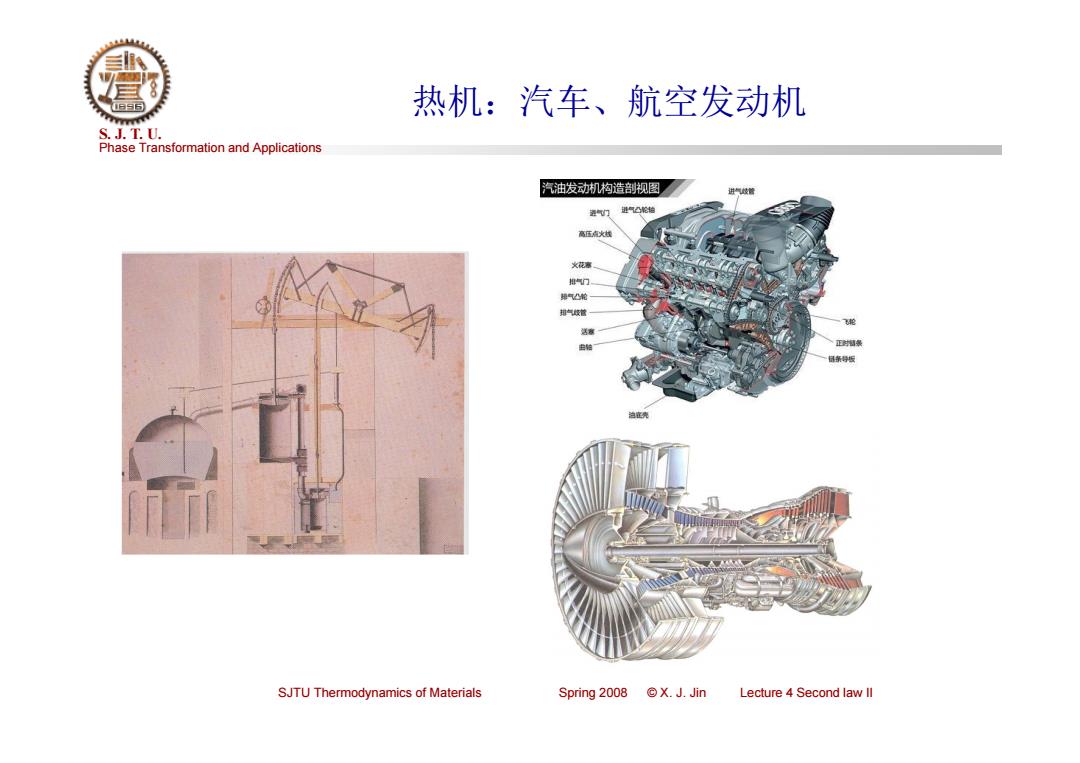

热机：汽车、航空发动机 S.J.T.0. Phase Transformation and Applications 汽油发机构造剖视图 门 进气公轮轴 高正点火线 火花率 推气门 气公轮 却气级管 活容 正条 品条导板 SJTU Thermodynamics of Materials Spring2008©X.J.Jin Lecture 4 Second law Il
Phase Transformation and Applications S. J. T. U. SJTU Thermodynamics of Materials Spring 2008 © X. J. Jin Lecture 4 Second law II 热机：汽车、航空发动机

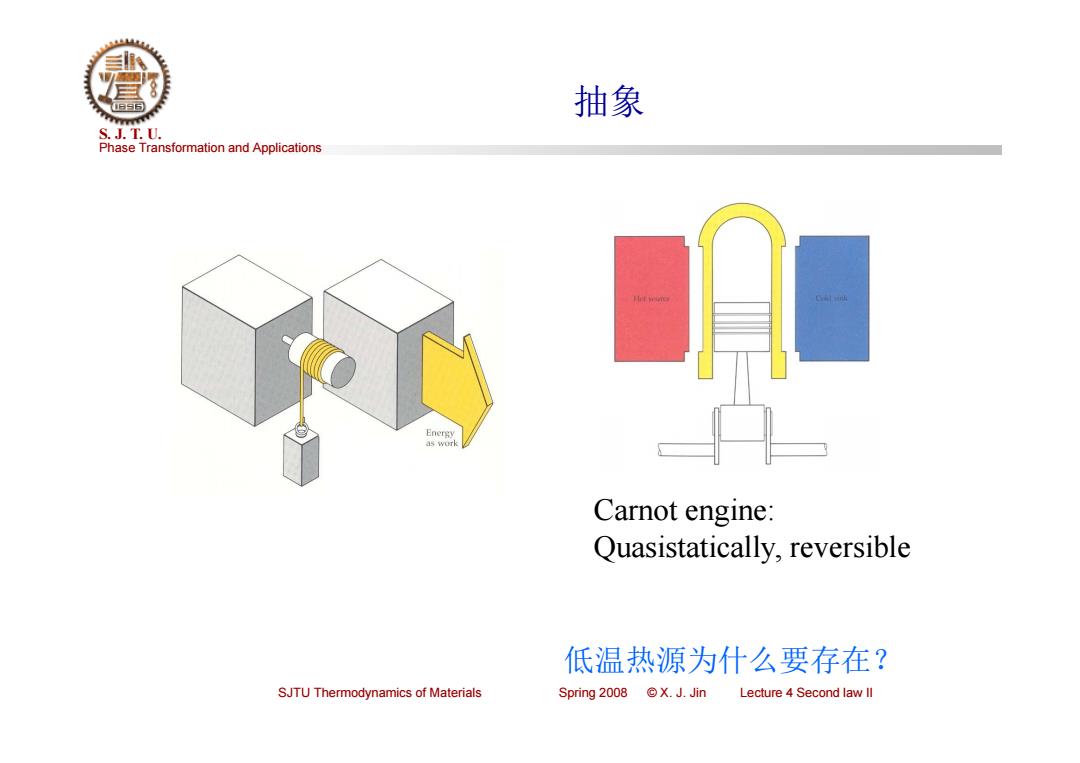

抽象 S.J.T.0. Phase Transformation and Applications Energy as work Carnot engine: Quasistatically,reversible 低温热源为什么要存在？ SJTU Thermodynamics of Materials Spring2008©X.J.Jin Lecture 4 Second law ll
Phase Transformation and Applications S. J. T. U. SJTU Thermodynamics of Materials Spring 2008 © X. J. Jin Lecture 4 Second law II 抽象 Carnot engine: Quasistatically, reversible 低温热源为什么要存在？

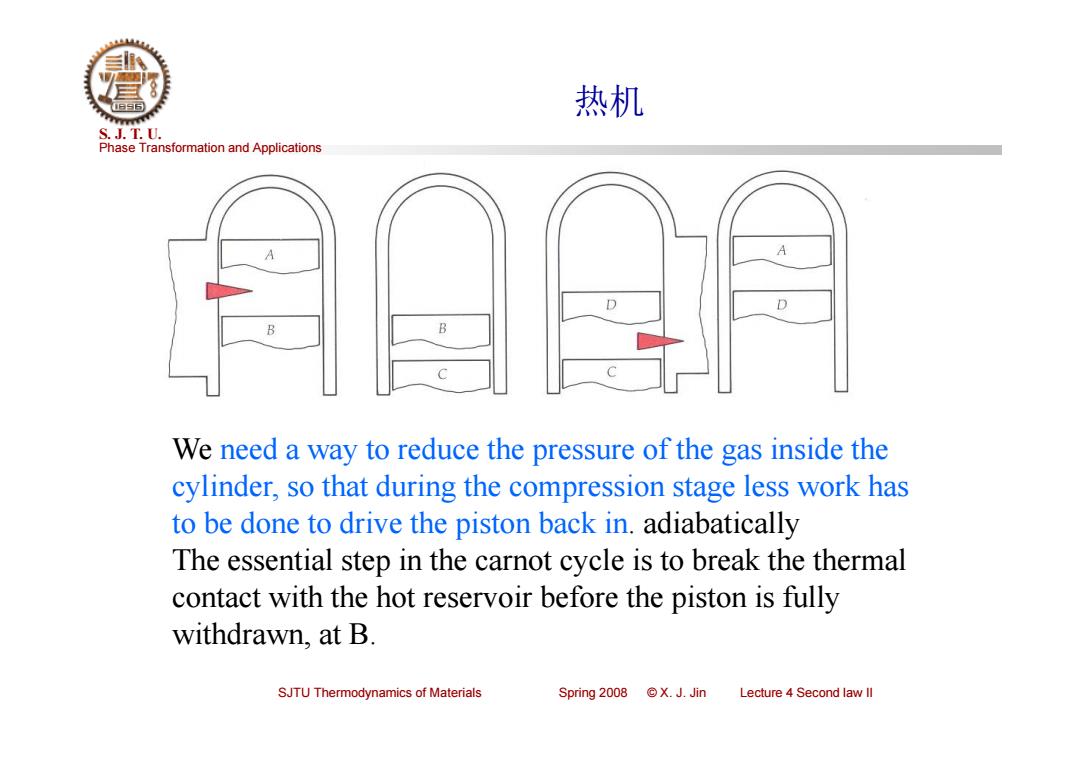

热机 S.J.T.0. Phase Transformation and Applications A D D B B We need a way to reduce the pressure of the gas inside the cylinder,so that during the compression stage less work has to be done to drive the piston back in.adiabatically The essential step in the carnot cycle is to break the thermal contact with the hot reservoir before the piston is fully withdrawn,at B. SJTU Thermodynamics of Materials Spring2008©X.J.Jin Lecture 4 Second law ll
Phase Transformation and Applications S. J. T. U. SJTU Thermodynamics of Materials Spring 2008 © X. J. Jin Lecture 4 Second law II 热机 We need a way to reduce the pressure of the gas inside the cylinder, so that during the compression stage less work has to be done to drive the piston back in. adiabatically The essential step in the carnot cycle is to break the thermal contact with the hot reservoir before the piston is fully withdrawn, at B
