Chapter 7 Basic Hydraulic Circuits Chapter list 7.1 Pressure Control Circuits 7.2 Speed Control Circuits 7.3 Directional Control Circuits 7.4 Multi-actuator Control Circuits Homepage List Upwards Downwards Retumn Exit

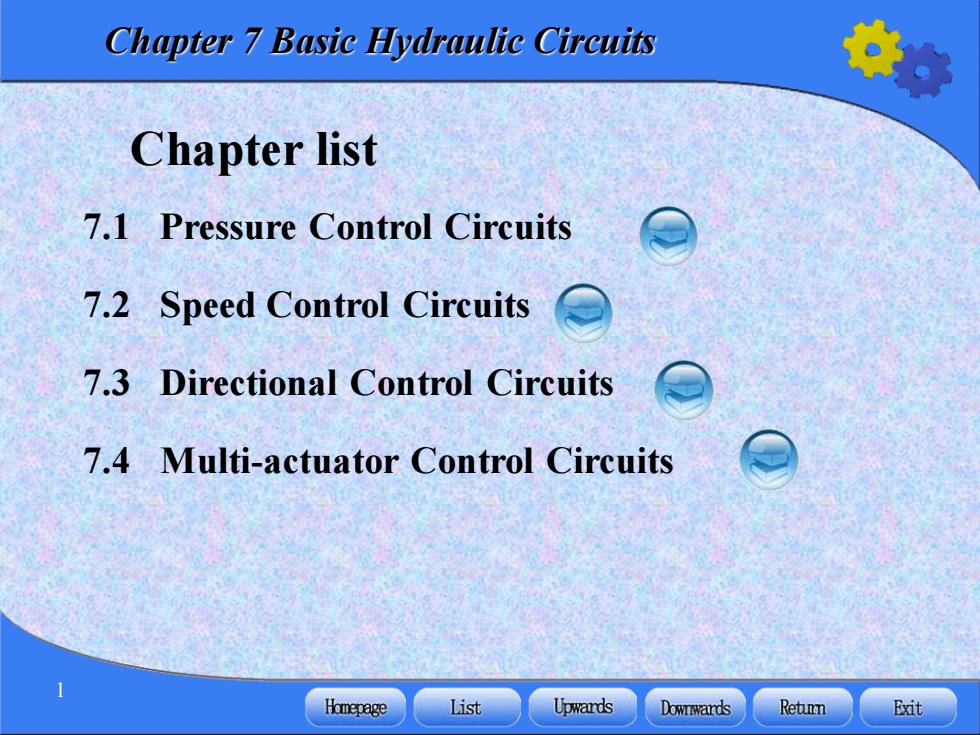

Chapter 7 Basic Hydraulic Circuits 1 7.1 Pressure Control Circuits 7.2 Speed Control Circuits 7.3 Directional Control Circuits 7.4 Multi-actuator Control Circuits Chapter list
Chapter 7 Basic Hydraulie Circuits Introduction Any hydraulic system is constituted by several basic hydraulic circuits.A hydraulic basic circuit is a group of components. Let's classify:the functions in hydraulic system by: pressure control circuits:control entire or partial operating pressure; speed control circuits:control and regulate motion speed of actuator elements; Directional control circuits:control and shift motion direction of actuator; Multi-actuator control circuits:control and shift operating cycle between several actuators. Homepage List Upwards Downwards Retumn Exit
Chapter 7 Basic Hydraulic Circuits 2 Introduction Any hydraulic system is constituted by several basic hydraulic circuits. A hydraulic basic circuit is a group of components. Let’s classify: the functions in hydraulic system by: pressure control circuits: control entire or partial operating pressure; speed control circuits: control and regulate motion speed of actuator elements; Directional control circuits: control and shift motion direction of actuator; Multi-actuator control circuits: control and shift operating cycle between several actuators
Chapter 7 Basic Hydraulie Cireuits 7.1 Pressure Control Circuits Used to control and regulate the entire and partial pressure to realize a satisfied force and torque requirements,enhance working efficiency and improve the properties in a hydraulic system(six types shown in below) 7.1.1 Pressure regulated circuits 7.1.2 Pressure-venting circuits 7.1.3 Pressure-reducing circuits 7.1.4 Pressure-increasing circuits 7.1.5 Pressure counterbalance circuits 7.1.6 Pressure-holding circuits Hmepage List Upward达s Downwards Retumn Exit
Chapter 7 Basic Hydraulic Circuits 3 7.1 Pressure Control Circuits 7.1.1 Pressure regulated circuits 7.1.2 Pressure-venting circuits 7.1.3 Pressure-reducing circuits 7.1.4 Pressure-increasing circuits 7.1.5 Pressure counterbalance circuits 7.1.6 Pressure-holding circuits Used to control and regulate the entire and partial pressure to realize a satisfied force and torque requirements, enhance working efficiency and improve the properties in a hydraulic system (six types shown in below)
Chapter 7 Basie Hydraulie Cireuits 7.1.1 Pressure regulated circuits 1.Pressure regulated from remote port 月 To system system X仪 Curren System pressure 九 c) Play Play Play Dy吧 DVD D吧 Fig.7-1 a)Pressure regulated from remote port b)Multistage pressure regulated circuit c)Step less pressure regulated circuit 1-Relief-valve pilot 2,3-Pressure regulated valves 4-Directional valve Homepage List Upwards Downwards Retumn Exit
Chapter 7 Basic Hydraulic Circuits 4 7.1.1 Pressure regulated circuits 1. Pressure regulated from remote port Fig.7-1 a)Pressure regulated from remote port b)Multistage pressure regulated circuit c) Step less pressure regulated circuit 1-Relief-valve pilot 2,3-Pressure regulated valves 4-Directional valve
Chapter 7 Basie Hydraulie Cireuits 2.Multistage pressure regulated circuits As shown in Fig.7-1b. 3.Step less pressure regulated circuits As shown in Fig.7-1c. 5 Homepage List Upwards Downwards Retumn Exit
Chapter 7 Basic Hydraulic Circuits 5 2. Multistage pressure regulated circuits As shown in Fig.7-1b. As shown in Fig.7-1c. 3. Step less pressure regulated circuits
