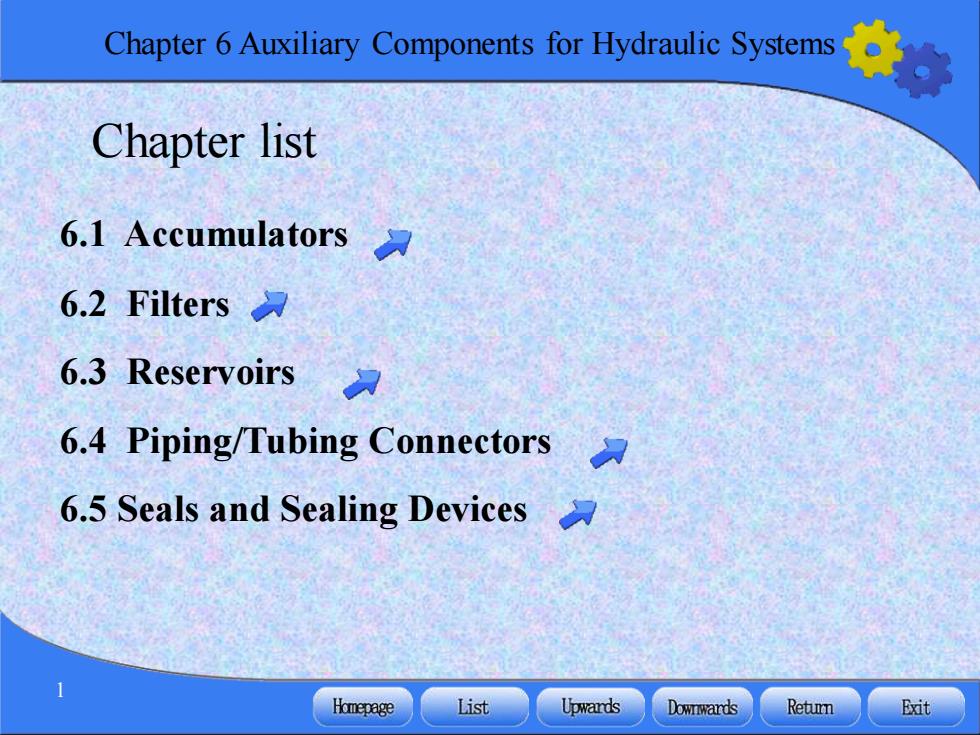

Chmer Componats for Hr ym Chapter list 6.1 Accumulators 6.2 Filters习 6.3 Reservoirs 6.4 Piping/Tubing Connectors 6.5 Seals and Sealing Devices Homepage List Upwards Dowrwards Retun Exit
Chapter 6 Auxiliary Components for Hydraulic Systems 1 6.1 Accumulators 6.2 Filters 6.3 Reservoirs 6.4 Piping/Tubing Connectors 6.5 Seals and Sealing Devices Chapter list

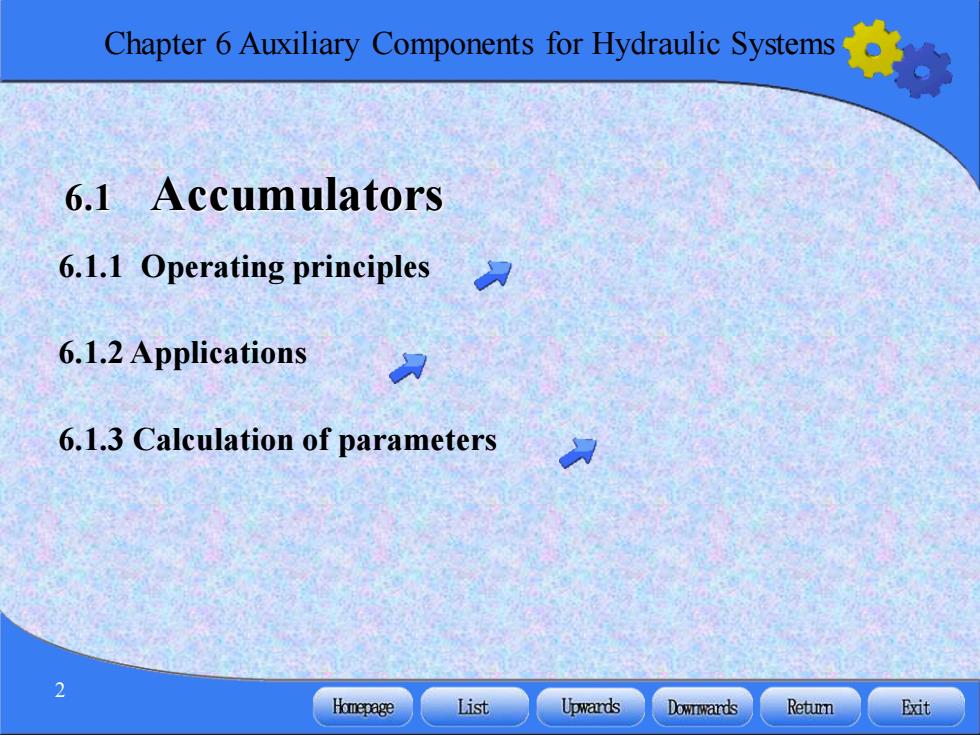

Chaptery Compore for ram 6.1 Accumulators 6.1.1 Operating principles 6.1.2 Applications 6.1.3 Calculation of parameters Homepage List Upwards Downwards Retun Exit
Chapter 6 Auxiliary Components for Hydraulic Systems 2 6.1 Accumulators 6.1.1 Operating principles 6.1.2 Applications 6.1.3 Calculation of parameters

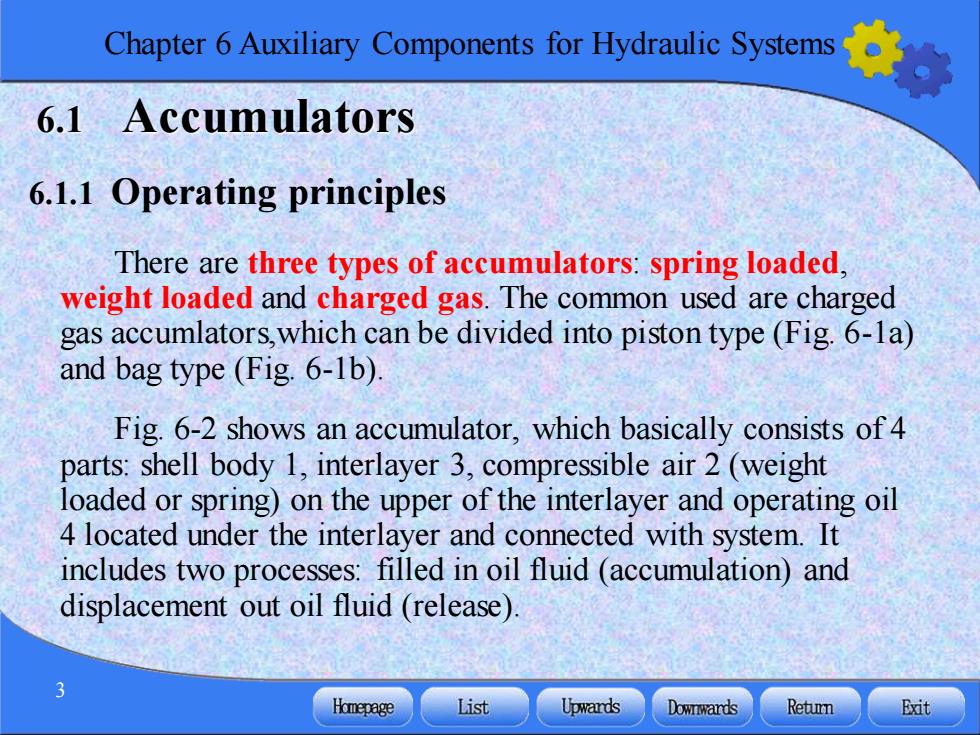

r6 Auxiliary Components for Hydraulic Systs 6.1 Accumulators 6.1.1 Operating principles There are three types of accumulators:spring loaded, weight loaded and charged gas.The common used are charged gas accumlators,which can be divided into piston type(Fig.6-1a) and bag type(Fig.6-1b). Fig.6-2 shows an accumulator,which basically consists of 4 parts:shell body 1,interlayer 3,compressible air 2(weight loaded or spring)on the upper of the interlayer and operating oil 4 located under the interlayer and connected with system.It includes two processes:filled in oil fluid(accumulation)and displacement out oil fluid(release) Homepage List Upwards Downward达 Return Exit
Chapter 6 Auxiliary Components for Hydraulic Systems 3 6.1 Accumulators 6.1.1 Operating principles There are three types of accumulators: spring loaded, weight loaded and charged gas. The common used are charged gas accumlators,which can be divided into piston type (Fig. 6-1a) and bag type (Fig. 6-1b). Fig. 6-2 shows an accumulator, which basically consists of 4 parts: shell body 1, interlayer 3, compressible air 2 (weight loaded or spring) on the upper of the interlayer and operating oil 4 located under the interlayer and connected with system. It includes two processes: filled in oil fluid (accumulation) and displacement out oil fluid (release)
Chapter 6 Auxiliary Components for Hydraulic Systems Play DVD a)Piston type 1-Piston 2-Cylinder 3-Gas valve Play D吧 b)Bag type 1-Gas valve 2-Steel shell 3-Bladder 4-Poppet valve b) Fig 6-1 Charged gas accumulator Homepage List Upwards Downward止 Return Exit
Chapter 6 Auxiliary Components for Hydraulic Systems 4 Fig. 6-1 Charged gas accumulator a) Piston type b) Bag type 1-Piston 2-Cylinder 3- Gas valve 1-Gas valve 2-Steel shell 3-Bladder 4-Poppet valve
Chapter 6 Auxiliary Components for Hydraulic Systems a) b) c) Fig.6-2 Operating principle of accumulator a)After displacement out oil fluid b)Filled in oil fluid c)Displacement out oil fluid 1-Shell 2-Compressible gas(or weight or spring)3-Interlayer 4-Operating fluid 5 Homepage List Upwards Downwards Retun Exit
Chapter 6 Auxiliary Components for Hydraulic Systems 5 Fig. 6-2 Operating principle of accumulator a) After displacement out oil fluid b) Filled in oil fluid c) Displacement out oil fluid 1-Shell 2- Compressible gas ( or weight or spring) 3-Interlayer 4-Operating fluid
