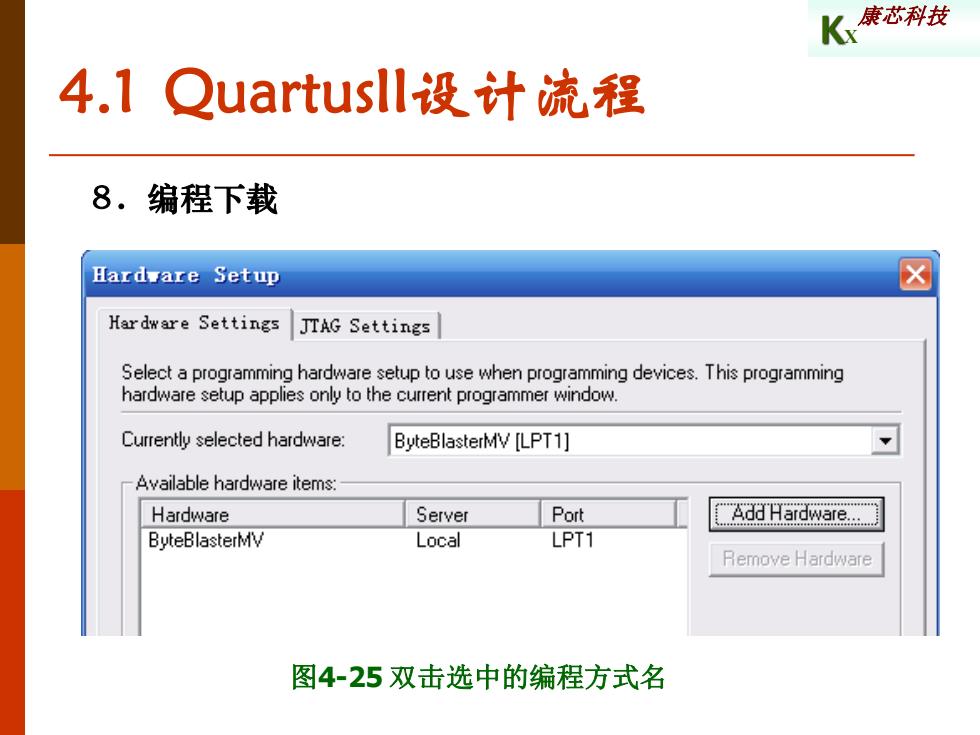

K康芯科技 4.1 Quartusll-设计流程 8.编程下载 Hardware Setup ☒ Hardware Settings JTAG Settings Select a programming hardware setup to use when programming devices.This programming hardware setup applies only to the current programmer window. Currently selected hardware: ByteBlasterMV [LPT1] -Available hardware items: Hardware Server Port Add Hardware ByteBlasterMV Local LPT1 Remove Hardware 图4-25双击选中的编程方式名
KX 康芯科技 4.1 QuartusII设计流程 图4-25 双击选中的编程方式名 8．编程下载

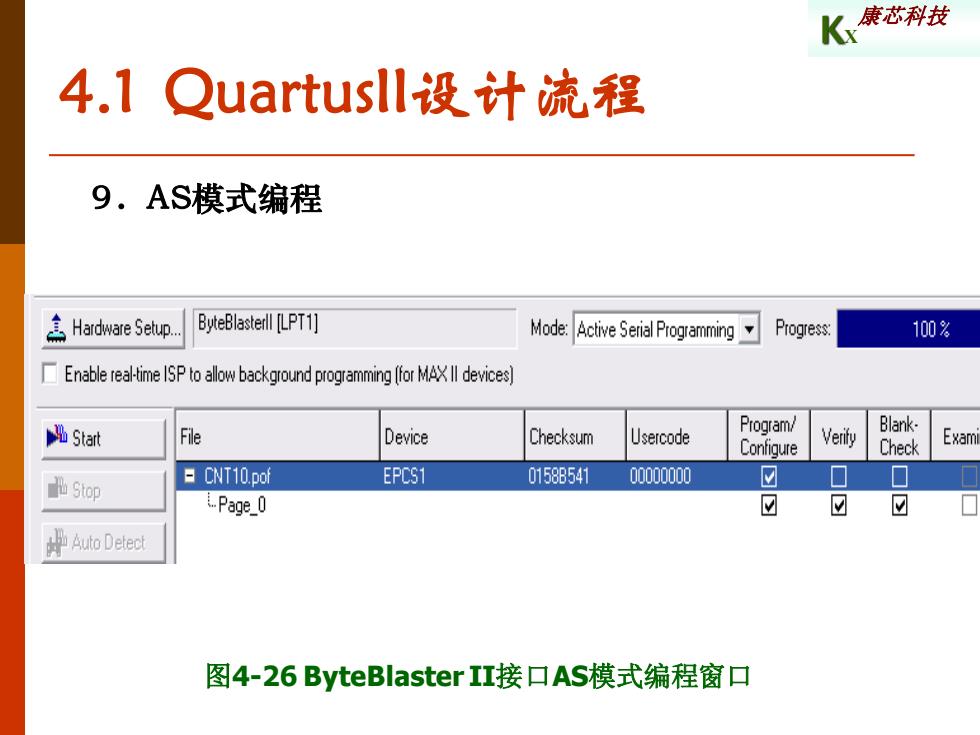

K能芯科技 4.1 Quartusll-设计流程 9.AS模式编程 高Harwere Sep. ByteBlaster [LPT1] Mode:Active Serial Programming Progress: 100% Enable real-time ISP to allow background programming (for MAldevices) Start Blank- File Device Checksum Usercode Program/ Verity Check Exami Configure Stop CNT10.pof EPCS1 01588541 00000000 回 Page_0 ☑ ☑ ☑ Auto Detect 图4-26 ByteBlaster II接口AS模式编程窗口
KX 康芯科技 4.1 QuartusII设计流程 图4-26 ByteBlaster II接口AS模式编程窗口 9．AS模式编程

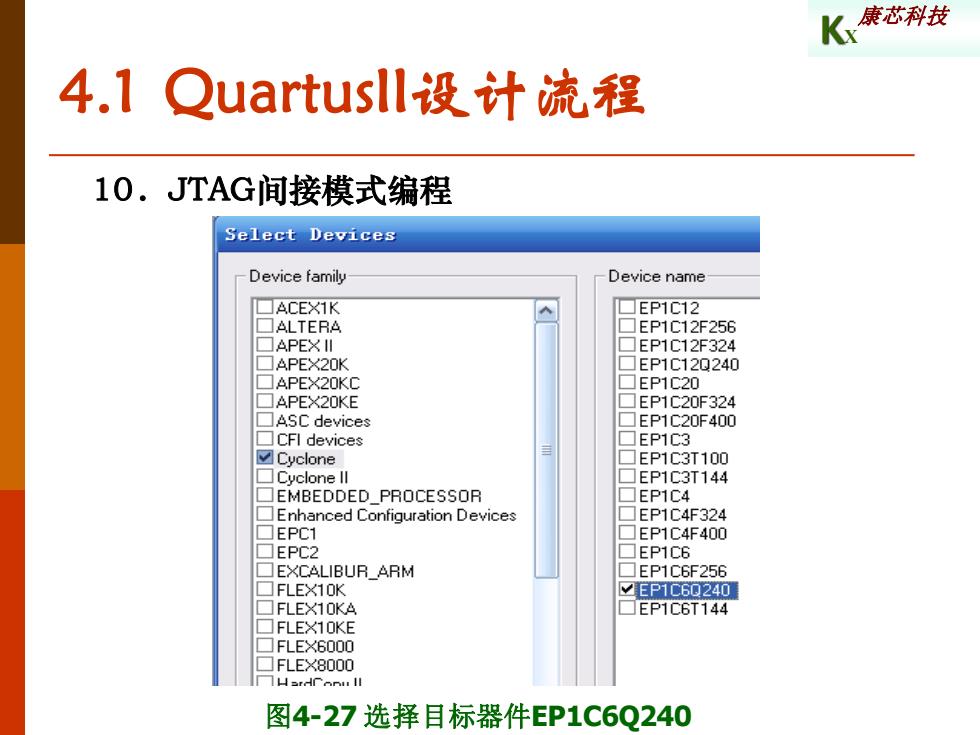

K康芯科技 4.1 Quartusll-设计流程 10.JTAG间接模式编程 Select Devices Device family Device name ☐ACEX1K ☐EP1C12 ☐ALTERA ☐EP1C12F256 ☐APEX II ☐EP1C12F324 ☐APEX20K ☐EP1C120240 ☐APEX20KC ▣EP1C20 ☐APEX20KE ☐EP1C20F324 ☐ASC devices ☐EP1C20F400 ☐CFl devices ☐EP1C3 ☑Cyclone ☐EP1C3T100 ☐Cyclone ll ☐EP1C3T144 ☐EMBEDDED PROCESSOR ☐EP1C4 Enhanced Configuration Devices ☐EP1C4F324 ■EPC1 ☐EP1C4F400 ■EPC2 □EP1C6 ☐EXCALIBUR_ARM ☐EP1C6F256 ☐FLEX1OK MEP1C60240 ■FLEX1OKA ☐EP1C6T144 ☐FLEX10KE ■FLEX6000 FLEX8000 1HardConu ll 图4-27选择目标器件EP1C6Q240
KX 康芯科技 4.1 QuartusII设计流程 图4-27 选择目标器件EP1C6Q240 10．JTAG间接模式编程

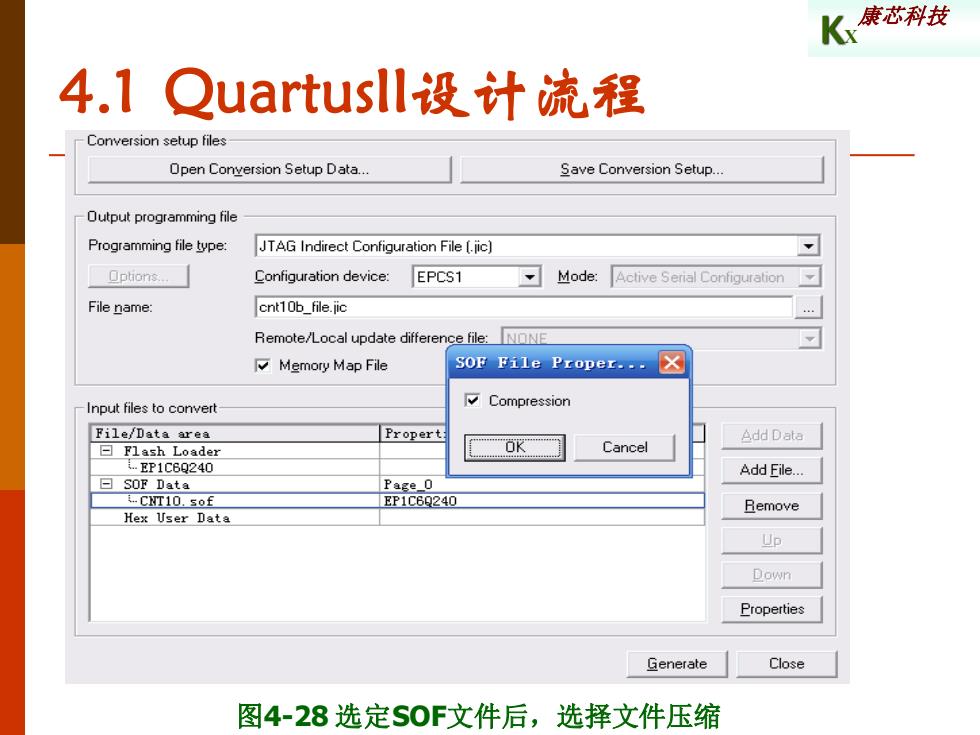

K康芯科技 4.1 QuartusI-设计流程 Conversion setup files Open Conversion Setup Data. Save Conversion Setup. Output programming file Programming file type: JTAG Indirect Configuration File [.jic] Options. Configuration device: EPCS1 Mode:Active Serial Configuration File name cnt10b_file.jic 4 Remote/Local update difference file:NONE Memory Map File SOF File Proper. ☒ Input files to convert Compression File/Data area Propert Add Data 曰Flash Loader K Cancel Add Eile. 曰S0 F Data Page_0 CNT10.sof EP1C69240 Remove Hex User Data Up Down Properties Generate Close 图4-28选定S0F文件后，选择文件压缩
KX 康芯科技 4.1 QuartusII设计流程 图4-28 选定SOF文件后，选择文件压缩 10．JTAG间接模式编程

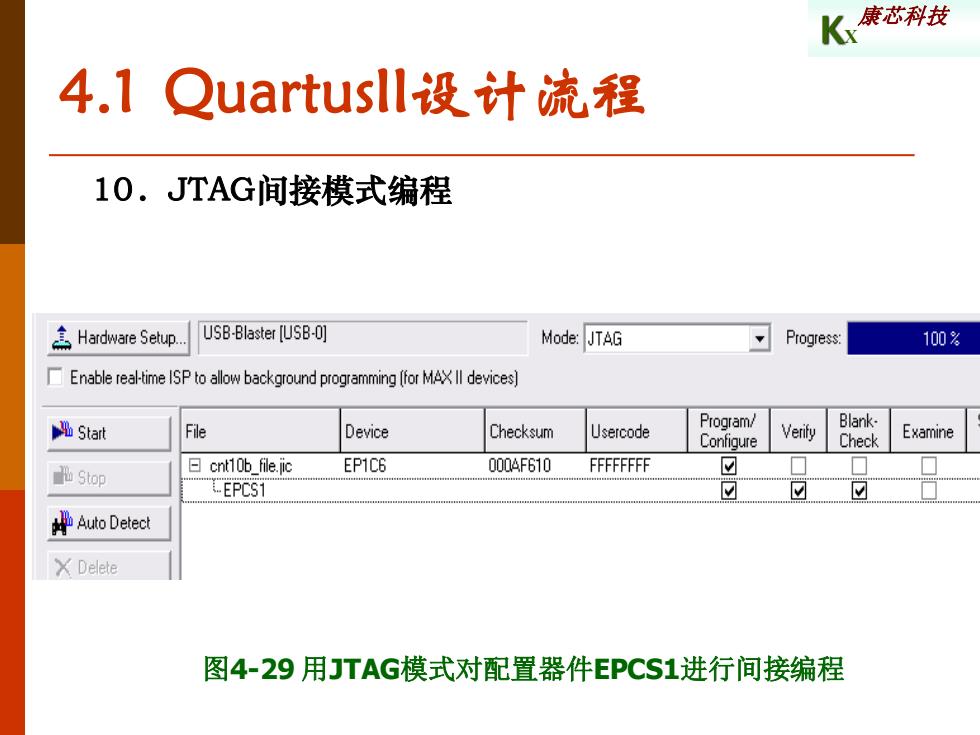

K康芯科技 4.1 Quartusll-设计流程 10.JTAG间接模式编程 高HardwareSetup. USB-Blaster [USB-0] Mode:JTAG Progress: 100% Enable real-time ISP to allow background programming (for MAI devices] Start File Device Checksum Usercode Program/ Configure Verify Blank- Check Examine Stop 曰cnti0b_file.ic EP1C6 000AF610 FFFFFFFF ☑ LEPCS1 ☑ Auto Detect X Delete 图4-29用JTAG模式对配置器件EPCS1进行间接编程
KX 康芯科技 4.1 QuartusII设计流程 图4-29 用JTAG模式对配置器件EPCS1进行间接编程 10．JTAG间接模式编程
