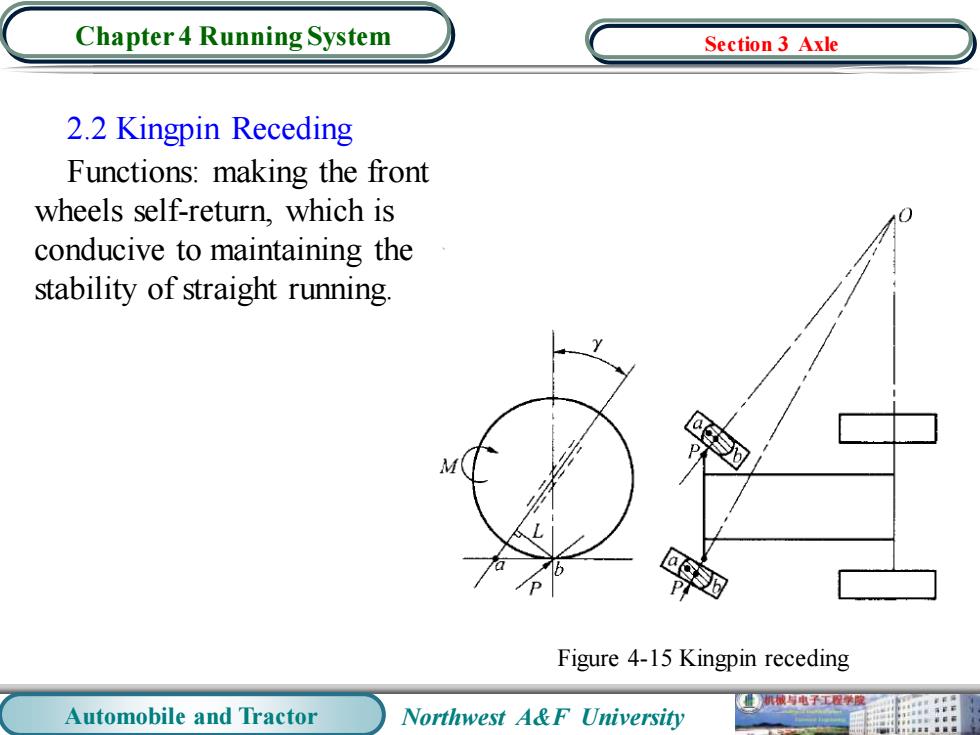

Chapter 4 Running System Section 3 Axle 2.2 Kingpin Receding Functions:making the front wheels self-return,which is conducive to maintaining the stability of straight running Figure 4-15 Kingpin receding 业机被有电子工学度 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 4 Running System 2.2 Kingpin Receding Functions: making the front wheels self-return, which is conducive to maintaining the stability of straight running. Figure 4-15 Kingpin receding Section 3 Axle

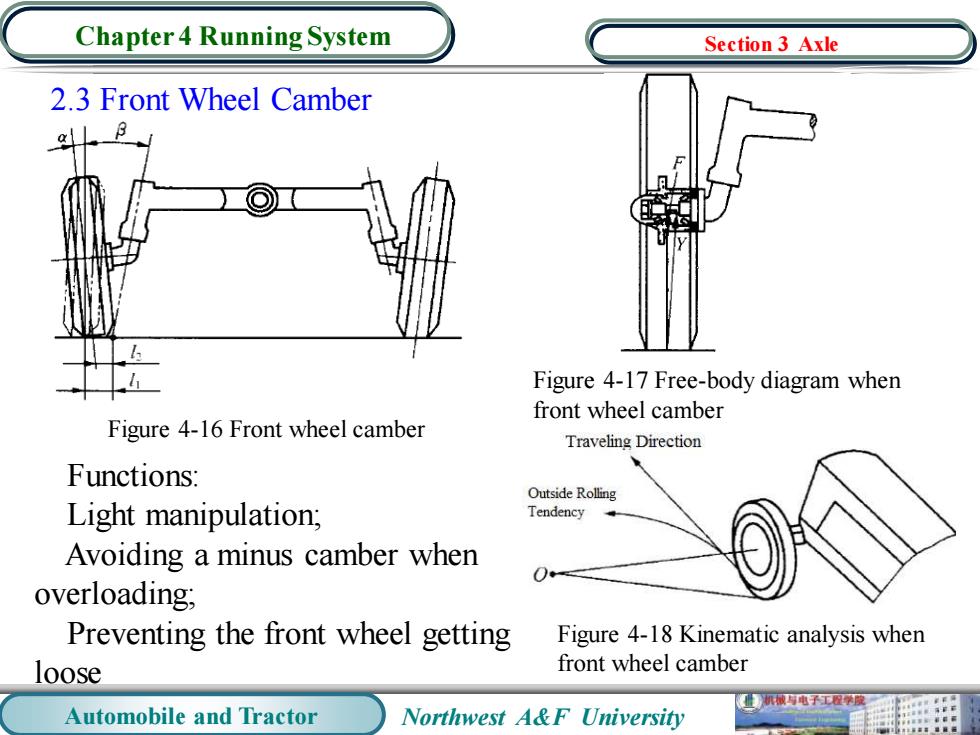

Chapter 4 Running System Section 3 Axle 2.3 Front Wheel Camber Figure 4-17 Free-body diagram when front wheel camber Figure 4-16 Front wheel camber Traveling Direction Functions: Outside Rolling Light manipulation; Tendency Avoiding a minus camber when overloading; Preventing the front wheel getting Figure 4-18 Kinematic analysis when loose front wheel camber 业机电子工程学度✉ Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 4 Running System 2.3 Front Wheel Camber Functions: Light manipulation; Avoiding a minus camber when overloading; Preventing the front wheel getting loose Figure 4-16 Front wheel camber Figure 4-17 Free-body diagram when front wheel camber Figure 4-18 Kinematic analysis when front wheel camber Section 3 Axle
