Chapter 10 Engine working conditions and features Section 2 Adjustment feature 1.2 The fuel adjustment feature of diesel engine The purpose and method:Making diesel fuel adjustment feature,the fuel supply advance angle adjustment should be made in the best position, maintain a certain engine speed (generally rated speed),and the speed governor and the oil pump link rod is turned off.During the test of engine, cooling water temperature,oil pressure and temperature are within the normal range. 烟度 Figure 10.3 The fuel adjustment feature of diesel engine 机械电子工程学度 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 10 Engine working conditions and features The purpose and method: Making diesel fuel adjustment feature, the fuel supply advance angle adjustment should be made in the best position, maintain a certain engine speed (generally rated speed), and the speed governor and the oil pump link rod is turned off. During the test of engine, cooling water temperature, oil pressure and temperature are within the normal range. Figure 10.3 The fuel adjustment feature of diesel engine 1.2 The fuel adjustment feature of diesel engine Section 2 Adjustment feature
Chapter 10 Engine working conditions and features Section 2 Adjustment feature 2.Adjustment Feature of Gasoline Engine 2.1 The ignition advance angle adjustment feature of gasoline engine When the gasoline engine throttle opening,speed and concentration of mixed gas are constant,the relationship of gasoline effective power Pe and fuel consumption rate ge with the changes of ignition advance angle 0 is known as the ignition advance angle adjustment feature. const opening=const P P (kw) 14.7 [g/(kW-h)] 11.8 408 272 206130 409 Figure 10.4 The ignition adjustment feature of gasoline engine 业机械与电子工程学度 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 10 Engine working conditions and features 2. Adjustment Feature of Gasoline Engine 2.1 The ignition advance angle adjustment feature of gasoline engine When the gasoline engine throttle opening, speed and concentration of mixed gas are constant, the relationship of gasoline effective power Pe and fuel consumption rate ge with the changes of ignition advance angle θ is known as the ignition advance angle adjustmentfeature. Section 2 Adjustment feature

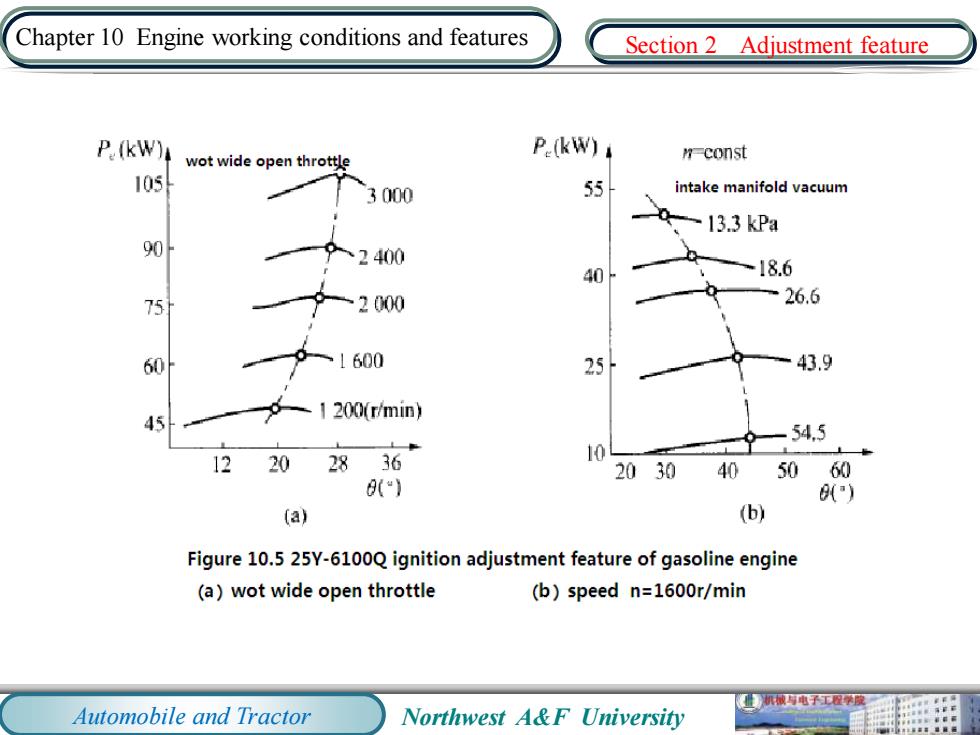

Chapter 10 Engine working conditions and features Section 2 Adjustment feature P.(kW) P.(kW) wot wide open throttle nconst 105 3000 55 intake manifold vacuum 0一133kPa 90 2400 40 -18.6 75 ,2000 —26.6 60F 1600 25 -43.9 1 200(r/min) 45 10 一545 12 202836 2030405060 8(“） )） (a) (b) Figure 10.5 25Y-6100Q ignition adjustment feature of gasoline engine (a)wot wide open throttle (b)speed n=1600r/min 机械电子工程学度 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 10 Engine working conditions and features Section 2 Adjustment feature
Chapter 10 Engine working conditions and features Section 2 Adjustment feature 2.2 The fuel adjustment feature of gasoline engine When gasoline engine speed P%) and throttle opening are constant, 80 the relationship of the best ignition 60 advance angle,the effective power, 40 and fuel consumption rate with the P opening =const opening 20 changes of mixed gas is known as 0 the fuel adjustment feature of the &(6) opening speed and throttle opening. 180 140 100 0.40.60.81.01.2a (a) (b) Figure 10.6 The fuel adjustment feature of gasoline engine (a)Gf is used for abscissa (b)a is used for abscissa 1,2,3.different throttle opening 业机被与电子工程学原 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 10 Engine working conditions and features When gasoline engine speed and throttle opening are constant, the relationship of the best ignition advance angle, the effective power, and fuel consumption rate with the changes of mixed gas is known as the fuel adjustment feature of the speed and throttle opening. 2.2 The fuel adjustment feature of gasoline engine Section 2 Adjustment feature
Chapter 10 Engine working conditions and features Section 3 Load feature When the engine speed is constant,load feature of the engine is the law of the performance indicators(mainly economic performance indicators Gf,ge)with the load (such as Pe,or Te)changing. The load feature reflects the actual working performance,when the engine speed is constantand the load is in the change; The size of load represents the size of heat intensity when the engine is working Load feature can directly display the economics exhaust gas temperature and other parameters when the engine is working at different loads Load feature can be measured easily. 1.The Load Feature of Gasoline Engine Under the conditions of the best ignition advance angle,carburetor adjustment in good condition and the constant gasoline engine speed,the relationship of the hourly fuel consumption,fuel consumption rate with the changes of load is known as the load feature of gasoline engine 机械电子工程学度 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 10 Engine working conditions and features When the engine speed is constant, load feature of the engine is the law of the performance indicators (mainly economic performance indicators Gf, ge) with the load (such as Pe, or Te) changing. The load feature reflects the actual working performance， when the engine speed is constant and the load is in the change; The size of load represents the size of heat intensity when the engine is working； Load feature can directly display the economics、 exhaust gas temperature and other parameters when the engine is working at different loads； Load feature can be measured easily. 1. The Load Feature of Gasoline Engine Under the conditions of the best ignition advance angle , carburetor adjustment in good condition and the constant gasoline engine speed , the relationship of the hourly fuel consumption, fuel consumption rate with the changes of load is known as the load feature of gasoline engine. Section 3 Load feature
