Laboratory Exercise 6 Adders,Subtractors,and Multipliers The purpose of this exercise is to examine arithmetic circuits that add,subtract,and multiply numbers.Each be implemented in t ways.nrst by de th describes the requr ules ared.bothin terms of the eircuit structure and its speed of operation. PartI Consider again the four-bit ripple-carry adder circuit that was used in lab exercise 2.a diagram of this circuit is ps shown below 当口学日 a)Four-bit ripple-carry adder circuit e时d b)Eight-bitregistered adder circui Figure 1.An8-bit signed adder with registered inputs and outputs
Laboratory Exercise 6 Adders, Subtractors, and Multipliers The purpose of this exercise is to examine arithmetic circuits that add, subtract, and multiply numbers. Each type of circuit will be implemented in two ways: first by writing VHDL code that describes the required functionality, and second by making use of predefined subcircuits from Altera’s library of parameterized modules (LPMs). The results produced for various implementations will be compared, both in terms of the circuit structure and its speed of operation. Part I Consider again the four-bit ripple-carry adder circuit that was used in lab exercise 2; a diagram of this circuit is reproduced in Figure 1a. You are to create an 8-bit version of the adder and include it in the circuit shown in Figure 1b. Your circuit should be designed to support signed numbers in 2’s-complement form, and the Overflow output should be set to 1 whenever the sum produced by the adder does not provide the correct signed value. Perform the steps shown below. + A S 8 8 8 B R Q R Q R Q cout cin Q D 0 Overflow Clock FA a0 b0 s0 FA c1 a1 b1 s1 FA c2 a2 b2 s2 FA c3 a3 b3 s3 cout a) Four-bit ripple-carry adder circuit cin + A S 8 8 B R Q R Q R Q Q D 0 Overflow Clock cin cout b) Eight-bit registered adder circuit Figure 1. An 8-bit signed adder with registered inputs and outputs. 1
1.Make a new Quartus lI project and write VHDL code that describes the circuit in Figure 1.Use the circuit structure in Figure atodescribe your adder. 2.Include the required input and output ports in your project to implement the adder circuit on the DE2 board. Connect the inputs A and B to switches SW1s-s and SW7.respectively.Use KEYo as an active-low s res input,and us KEY as a manual clocl input.Display the sum outputs of the adder on nal value of s should appear on HEXI-0. 3.Compile your code and use timing simulation to verify the correct operation of the circuit.Once the sim DE2 board and test it by using different values of A delay? PartⅡ and displays as described for Part I. 1.Simulate vour adder/subtractor circuit to show that it functions p roperly.and then download itonto the DE2 board and test it by using different switch settings. 2.Open the Quartus II Compilation Report and examine the results reported by the Timing Analyzer.What is the fmax of your circuit?What is the longest path in the circuit in terms of delay PartI me or n the rogram sectio of Al module in your VHDL code,compile the project and use the Quartus II Chip Editor tool to examine some of the details of the implemented circuit One way to examine the adder subcircuit using the Chip Editor tool is illustrated in Figure 2.In the Quartu right-ick the chy that ents the lpm add8 the co Thi te opens the Chip E tor windo logic element operty Editor window displayed in Figure 4.In the box labeled ws you
1. Make a new Quartus II project and write VHDL code that describes the circuit in Figure 1b. Use the circuit structure in Figure 1a to describe your adder. 2. Include the required input and output ports in your project to implement the adder circuit on the DE2 board. Connect the inputs A and B to switches SW15−8 and SW7−0, respectively. Use KEY0 as an active-low asynchronous reset input, and use KEY1 as a manual clock input. Display the sum outputs of the adder on the red LEDR7−0 lights and display the overflow output on the green LEDG8 light. The hexadecimal values of A and B should be shown on the displays HEX7-6 and HEX5-4, and the hexadecimal value of S should appear on HEX1-0. 3. Compile your code and use timing simulation to verify the correct operation of the circuit. Once the simulation works properly, download the circuit onto the DE2 board and test it by using different values of A and B. Be sure to check for proper functionality of the Overflow output. 4. Open the Quartus II Compilation Report and examine the results reported by the Timing Analyzer. What is the maximum operating frequency, fmax, of your circuit? What is the longest path in the circuit in terms of delay? Part II Modify your circuit from Part I so that it can perform both addition and subtraction of eight-bit numbers. Use switch SW16 to specify whether addition or subtraction should be performed. Connect the other switches, lights, and displays as described for Part I. 1. Simulate your adder/subtractor circuit to show that it functions properly, and then download it onto the DE2 board and test it by using different switch settings. 2. Open the Quartus II Compilation Report and examine the results reported by the Timing Analyzer. What is the fmax of your circuit? What is the longest path in the circuit in terms of delay? Part III Repeat Part I using the predefined adder circuit called lpm add sub, instead of your ripple-carry adder structure from Figure 1. The lpm add sub module can be found in Altera’s library of parameterized modules (LPMs), which is provided as part of the Quartus II system. The procedure for using these predefined modules in Quartus II projects is described in the tutorial Using Library Modules in VHDL Designs, which is available on the DE2 System CD and in the University Program section of Altera’s web site. 1. Configure the lpm add sub module so that it performs only addition, to make the functionality comparable to Part I. Store your configuration of the lpm add sub module in the file lpm add8.v. After instantiating this module in your VHDL code, compile the project and use the Quartus II Chip Editor tool to examine some of the details of the implemented circuit. One way to examine the adder subcircuit using the Chip Editor tool is illustrated in Figure 2. In the Quartus II Project Navigator window right-click on the part of your circuit hierarchy that represents the lpm add8 subcircuit, and select the command Locate > Locate in Chip Editor. This opens the Chip Editor window shown in Figure 3. The logic elements in the Cyclone II FPGA that are used to implement the adder are highlighted in blue in the Chip Editor tool. Position your mouse pointer over any of these logic elements and double-click to open the Resource Property Editor window displayed in Figure 4. In the box labeled Node name you can select any of the nine logic elements that implement the adder module. The Resource Property Editor allows you to examine the contents of a logic element and to see how one logic element is connected others. 2
Set Top-Level Entty Megawizard Plug-In Mans Figure 2.Locating the eight-bit adder in the Chip Editor tool Figure 3.The highlighted logic elements for the eight-bit adde
Figure 2. Locating the eight-bit adder in the Chip Editor tool. Figure 3. The highlighted logic elements for the eight-bit adder. 3

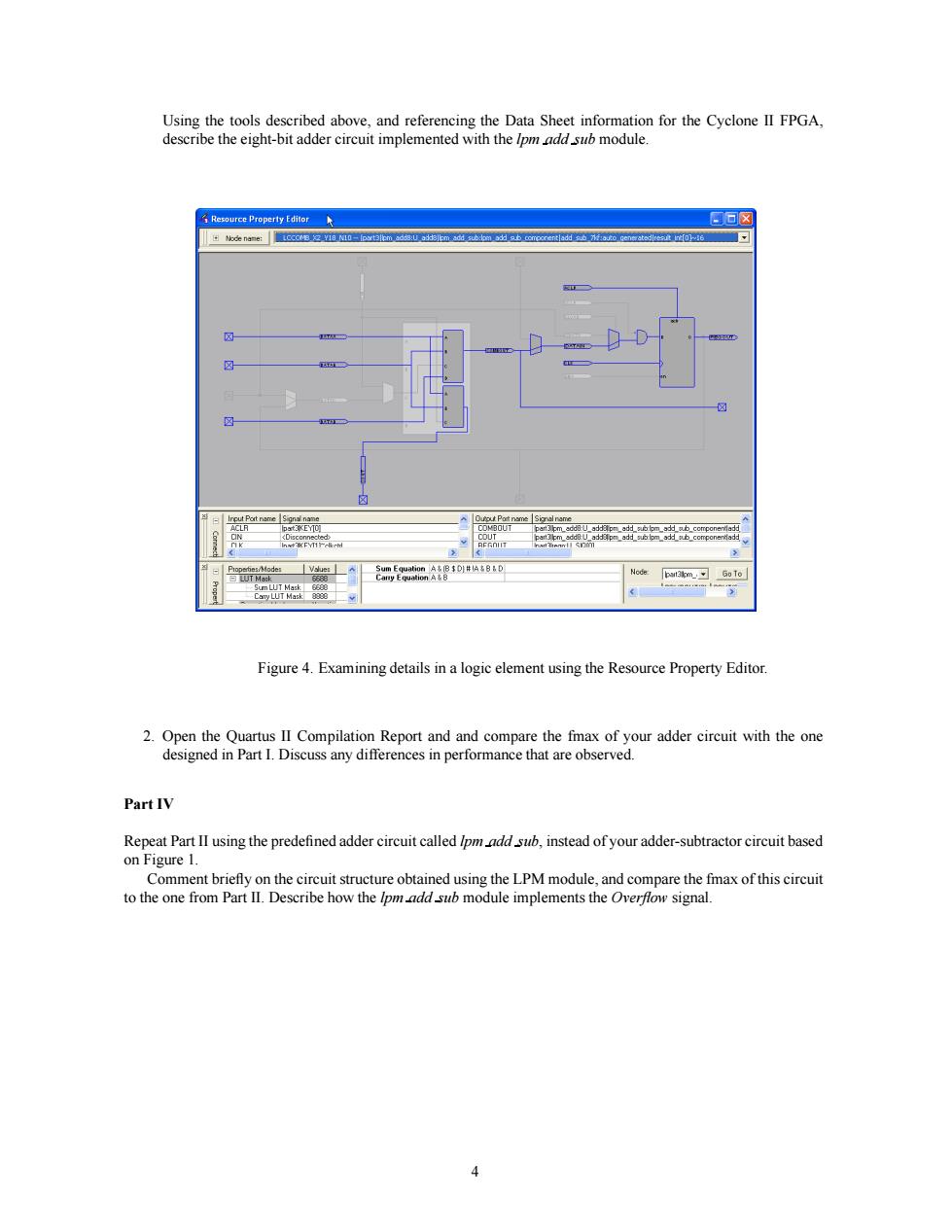

aon习se Figure 4.Examining details in a logic element using the Resource Property Editor. PartIV Comment briefly on the circuit structure obtained using the LPM module,and compare the fmax of this circuit to the one from Part II.Describe how the Ipmadd sub module implements the Overflow signal. g
Using the tools described above, and referencing the Data Sheet information for the Cyclone II FPGA, describe the eight-bit adder circuit implemented with the lpm add sub module. Figure 4. Examining details in a logic element using the Resource Property Editor. 2. Open the Quartus II Compilation Report and and compare the fmax of your adder circuit with the one designed in Part I. Discuss any differences in performance that are observed. Part IV Repeat Part II using the predefined adder circuit called lpm add sub, instead of your adder-subtractor circuit based on Figure 1. Comment briefly on the circuit structure obtained using the LPM module, and compare the fmax of this circuit to the one from Part II. Describe how the lpm add sub module implements the Overflow signal. 4
Part V figure shows the same example using four-bit binary numbers.Since each digit in B is either I or 0,the summand shows how each summand can be formed by using the Boolear x699 132 10000100 a)Decimal b)Binary x88&0 a3bo azbo abo aobo asby azby aby aoby a3b2 azbz abz aob2 asb3 azbs aby aoby c)Implementation Figure 5.Multiplication of binary numbers. eA ererodc hnd nd full adder ules are use to generate the required sums

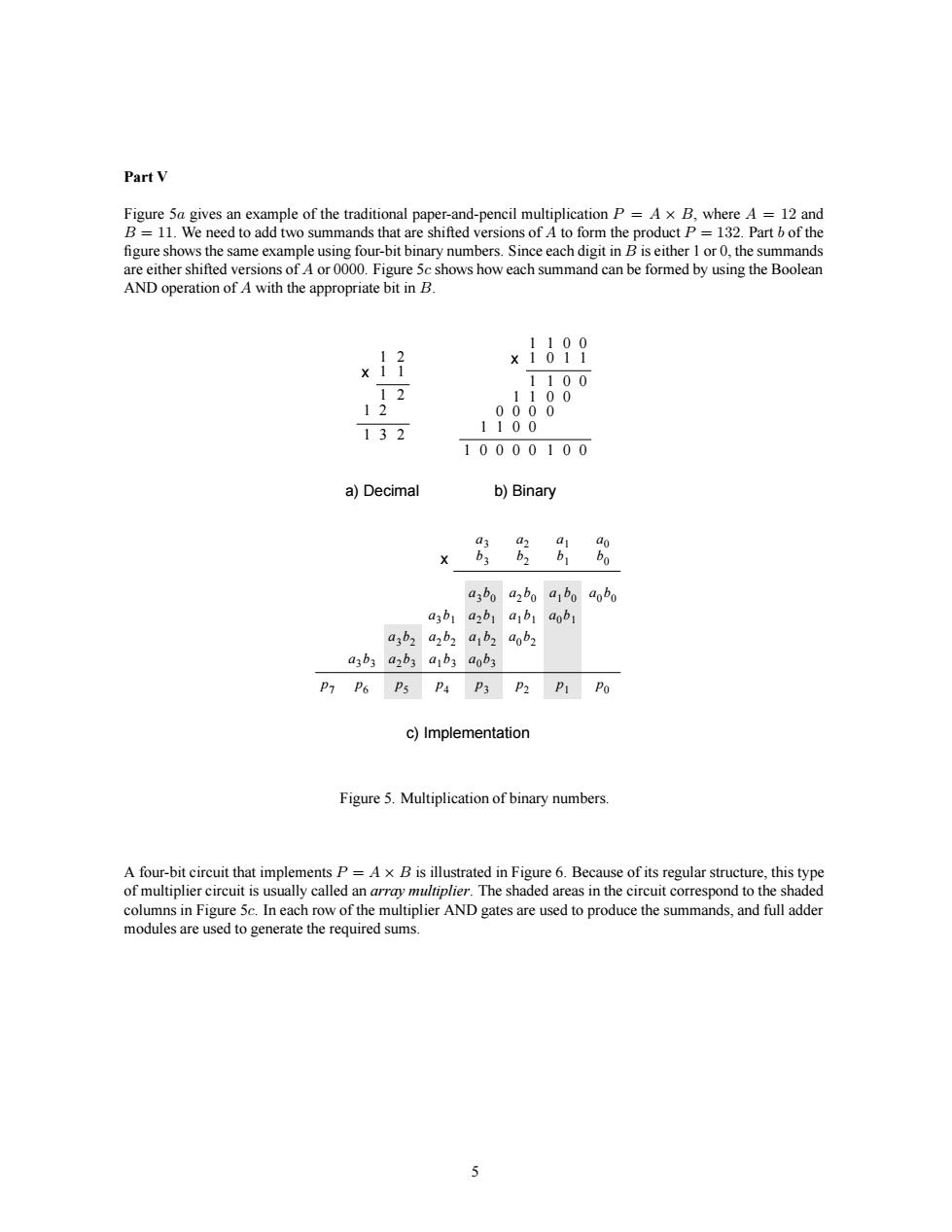

Part V Figure 5a gives an example of the traditional paper-and-pencil multiplication P = A × B, where A = 12 and B = 11. We need to add two summands that are shifted versions of A to form the product P = 132. Part b of the figure shows the same example using four-bit binary numbers. Since each digit in B is either 1 or 0, the summands are either shifted versions of A or 0000. Figure 5c shows how each summand can be formed by using the Boolean AND operation of A with the appropriate bit in B. b0 a0 p0 p1 p2 p3 p4 p6 p7 p5 b0 a1 b0 a2 b0 a3 b1 a0 b1 a1 b1 a2 b1 a3 b2 a0 b2 a1 b2 a2 b2 a3 b3 a0 b3 a1 b3 a2 b3 a3 x 1 1 0 0 1 0 1 1 1 1 0 0 1 1 0 0 0 0 0 0 1 1 0 0 1 0 0 0 0 1 0 0 b) Binary c) Implementation x a0 a1 a2 a3 b0 b1 b2 b3 x 1 2 1 1 1 2 1 2 1 3 2 a) Decimal Figure 5. Multiplication of binary numbers. A four-bit circuit that implements P = A × B is illustrated in Figure 6. Because of its regular structure, this type of multiplier circuit is usually called an array multiplier. The shaded areas in the circuit correspond to the shaded columns in Figure 5c. In each row of the multiplier AND gates are used to produce the summands, and full adder modules are used to generate the required sums. 5
