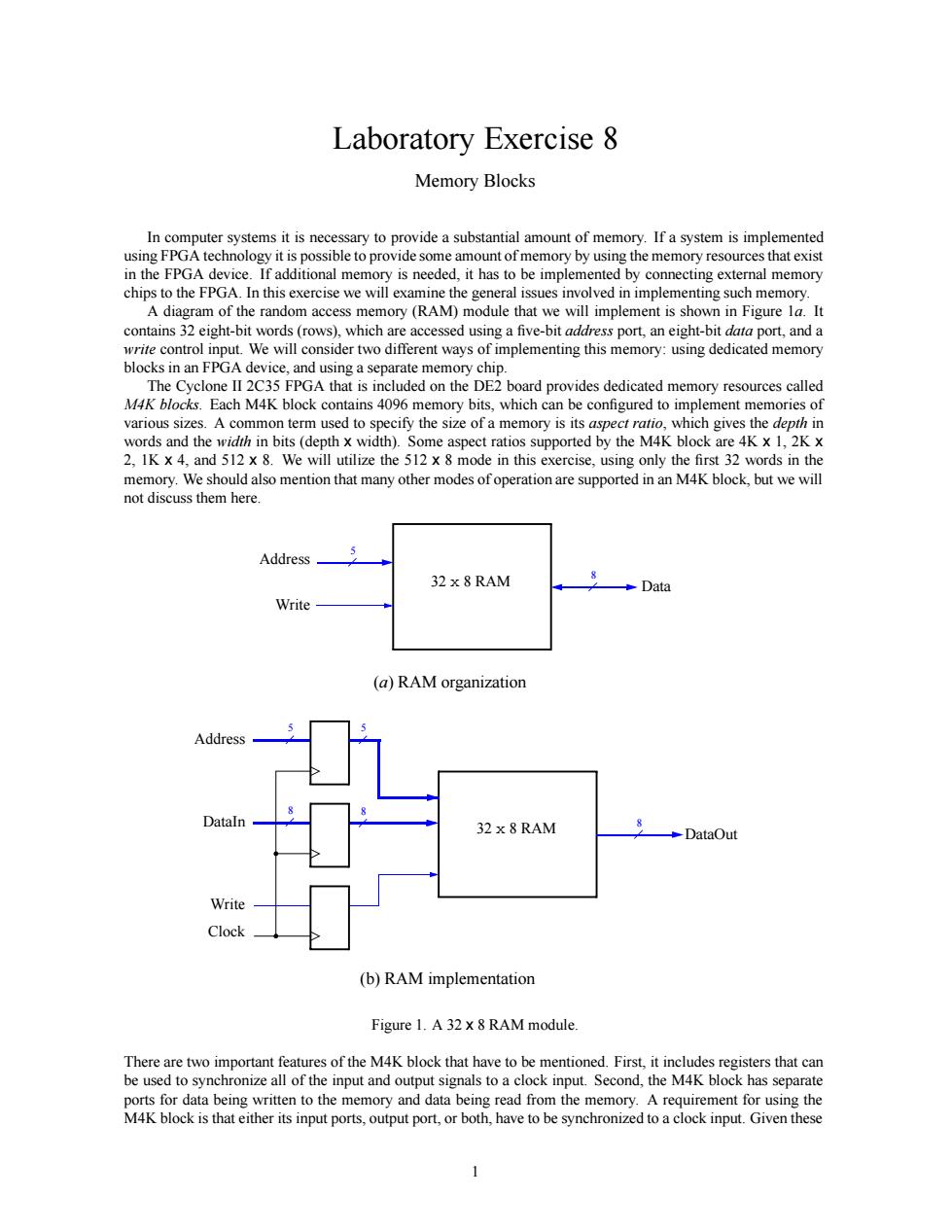

Laboratory Exercise 8 Memory Blocks Incmpuer systems it isnecesary to provide a substantial amount of memory.Ifa system is implemented n the EpGA to prov chips to the FPGA.In this exercise we will examine the general issues involved in impementing such memorv A diagram of the random access memory (RAM)module that we will implement is shown in Figure la.It contains 32 ight-b (rows),which ar re accessed using a five-bit add ort.and a blocks inn FPGA devi cated memory and using The Cyclone II 2C35 FPGA that is included on the DE2 board provides dedicated memory resources called Each M4K block contan 0 mmry bits.which can be confgured to ze or e4KL2K 2.IKand 5128.We will utilize the 512 mode in this exercise,using only the first 32 words in the memory.We should also mention that many other modes of operation are supported in an M4K block,but we will not discuss them here Address_5 32 x 8 RAM Data Write (a)RAM organization 32x8 RAM 8 DataOut (b)RAM implementation Figure 1.A 32x8 RAM module. s for data being written to the memoryand data beingread from M4K block is that ether its input ports,ouput portor both,have to be synchronedtoa ock input.Given these
Laboratory Exercise 8 Memory Blocks In computer systems it is necessary to provide a substantial amount of memory. If a system is implemented using FPGA technology it is possible to provide some amount of memory by using the memory resources that exist in the FPGA device. If additional memory is needed, it has to be implemented by connecting external memory chips to the FPGA. In this exercise we will examine the general issues involved in implementing such memory. A diagram of the random access memory (RAM) module that we will implement is shown in Figure 1a. It contains 32 eight-bit words (rows), which are accessed using a five-bit address port, an eight-bit data port, and a write control input. We will consider two different ways of implementing this memory: using dedicated memory blocks in an FPGA device, and using a separate memory chip. The Cyclone II 2C35 FPGA that is included on the DE2 board provides dedicated memory resources called M4K blocks. Each M4K block contains 4096 memory bits, which can be configured to implement memories of various sizes. A common term used to specify the size of a memory is its aspect ratio, which gives the depth in words and the width in bits (depth x width). Some aspect ratios supported by the M4K block are 4K x 1, 2K x 2, 1K x 4, and 512 x 8. We will utilize the 512 x 8 mode in this exercise, using only the first 32 words in the memory. We should also mention that many other modes of operation are supported in an M4K block, but we will not discuss them here. 32 x 8 RAM Write 5 Address 8 Data (a) RAM organization 32 x 8 RAM 8 DataOut 5 Address 8 DataIn Write Clock 5 8 (b) RAM implementation Figure 1. A 32 x 8 RAM module. There are two important features of the M4K block that have to be mentioned. First, it includes registers that can be used to synchronize all of the input and output signals to a clock input. Second, the M4K block has separate ports for data being written to the memory and data being read from the memory. A requirement for using the M4K block is that either its input ports, output port, or both, have to be synchronized to a clock input. Given these 1

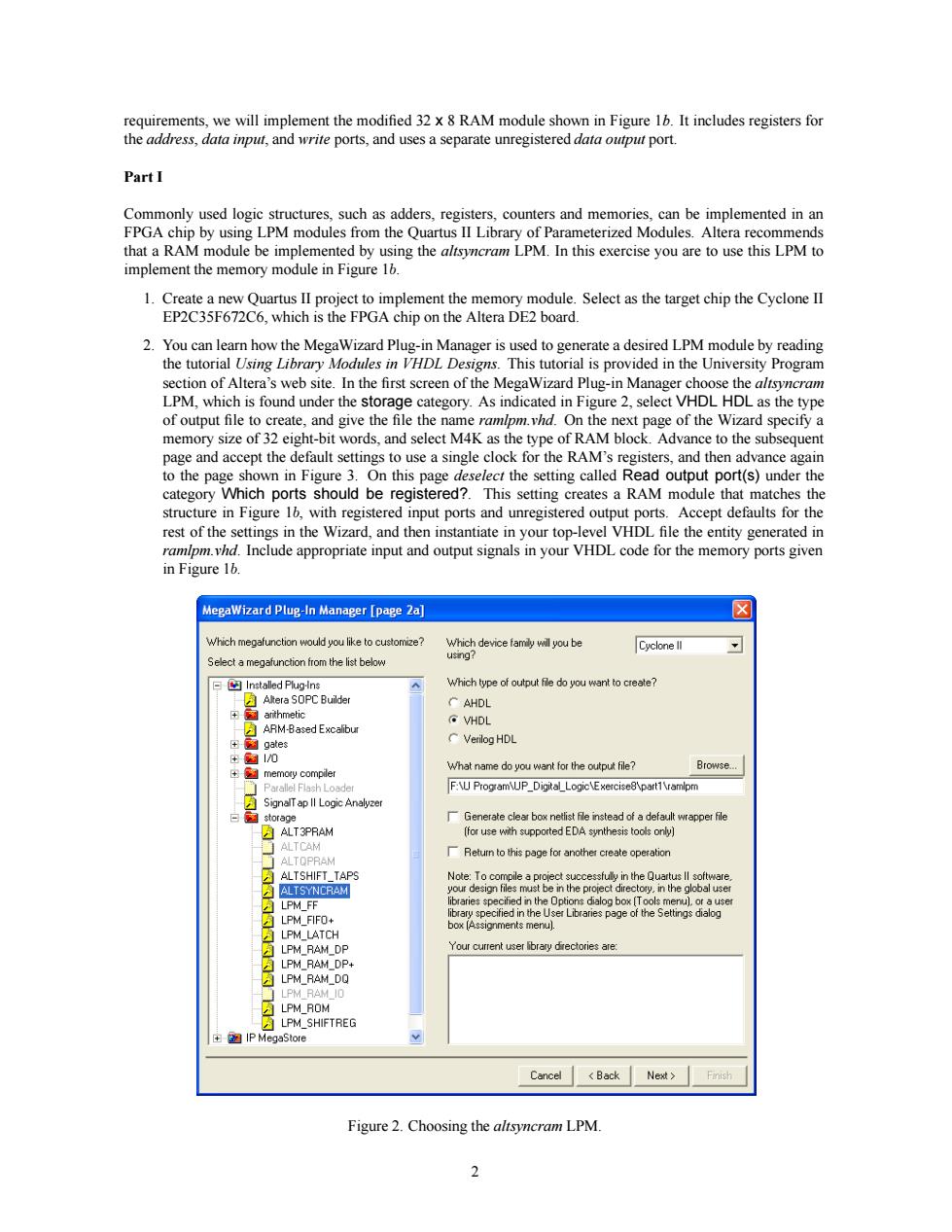

ents we will ir ent the modified 32 x 8 rAm module sh inFigure It includes registers for PartI Com nly used logic structur such as adders counters and m that a RAM module be implemented by using the altsyncram LPM.In this exercise you are to use this LPM to implement the memory module in Figure 16 CP6 e o t le v Ouartus II project to implement the dule.Select as the target chip the Cyclone II 2.how the MegaWizard Plug-in Manager is used to generatea desired LPM module by reading the tutor s in VHDL De ersity Program As indicated in Fis of output file to create,and give the file the name ramlpm.On the next page of the Wizard specify a accept Fig ngs to use a single clock aled Read ou category Which ports should be registered?This setting creates a RAM module that matches the structurein Figure with registered input ports and unregistered output ports.Accept defaults for the VHDL file the entity generated in ude appropriate input and output signals in your code for the memory ports given MegaWizard Plug-In Manager [page 2a] ☒ Selectameosfuncfon tiom the list belw Which ypefledoe? AHDL what name do you want for the output file? Browse.. F:PogaUP DigiLogic\Ekerci parpm ALT 3FRAM 厂Retmothpgelesnctgcesecpesen CRAN aTocnCearneeceenhe9uatsete Concel<Back Nest>」fm Figure 2.Choosing the altsyncram LPM
requirements, we will implement the modified 32 x 8 RAM module shown in Figure 1b. It includes registers for the address, data input, and write ports, and uses a separate unregistered data output port. Part I Commonly used logic structures, such as adders, registers, counters and memories, can be implemented in an FPGA chip by using LPM modules from the Quartus II Library of Parameterized Modules. Altera recommends that a RAM module be implemented by using the altsyncram LPM. In this exercise you are to use this LPM to implement the memory module in Figure 1b. 1. Create a new Quartus II project to implement the memory module. Select as the target chip the Cyclone II EP2C35F672C6, which is the FPGA chip on the Altera DE2 board. 2. You can learn how the MegaWizard Plug-in Manager is used to generate a desired LPM module by reading the tutorial Using Library Modules in VHDL Designs. This tutorial is provided in the University Program section of Altera’s web site. In the first screen of the MegaWizard Plug-in Manager choose the altsyncram LPM, which is found under the storage category. As indicated in Figure 2, select VHDL HDL as the type of output file to create, and give the file the name ramlpm.vhd. On the next page of the Wizard specify a memory size of 32 eight-bit words, and select M4K as the type of RAM block. Advance to the subsequent page and accept the default settings to use a single clock for the RAM’s registers, and then advance again to the page shown in Figure 3. On this page deselect the setting called Read output port(s) under the category Which ports should be registered?. This setting creates a RAM module that matches the structure in Figure 1b, with registered input ports and unregistered output ports. Accept defaults for the rest of the settings in the Wizard, and then instantiate in your top-level VHDL file the entity generated in ramlpm.vhd. Include appropriate input and output signals in your VHDL code for the memory ports given in Figure 1b. Figure 2. Choosing the altsyncram LPM. 2
AegaWizard Plug-In Manager ALTSYNCRAM [page 7 of 10] ☒ Mcre Options. 厂8 Cancal <Baok Ned Frith Figure 3.Configuring input and output ports on the altsyncram LPM. 3.Compile the circuit.Observe in the Compilation Report that the Ouartus II Compiler uses 256 bits in one of the M4K memory blocks to implement the RAM circuit. 4.Simulate the behavior ofyour circuit and ensure that you can read and write data in the memory. PartII plays 1.Make a new Quartus II project which will be used to implement the desired circuit on the DE2 board. 2QDsR e as the Write signal and use i on HEXS and HEX.and show the data read out of the memory on HEXI and HEX0. 3.Test your circuit and make sure that all 32 locations can be loaded properly. Part IlI Instead of directly in ating the lpm module on h ture in the VHDL code.In a VHDLs array.A 32x8 array,which has 32 words with8 bits per word,can be declared by the statements TYPE mem Is ArrAY(O TO 31)OF STDLOGIC VECTOR(7 DOWNTO O): SIGNAL memoryarray:mem;
Figure 3. Configuring input and output ports on the altsyncram LPM. 3. Compile the circuit. Observe in the Compilation Report that the Quartus II Compiler uses 256 bits in one of the M4K memory blocks to implement the RAM circuit. 4. Simulate the behavior of your circuit and ensure that you can read and write data in the memory. Part II Now, we want to realize the memory circuit in the FPGA on the DE2 board, and use toggle switches to load some data into the created memory. We also want to display the contents of the RAM on the 7-segment displays. 1. Make a new Quartus II project which will be used to implement the desired circuit on the DE2 board. 2. Create another VHDL file that instantiates the ramlpm module and that includes the required input and output pins on the DE2 board. Use toggle switches SW7−0 to input a byte of data into the RAM location identified by a 5-bit address specified with toggle switches SW15−11. Use SW17 as the Write signal and use KEY0 as the Clock input. Display the value of the Write signal on LEDG0. Show the address value on the 7-segment displays HEX7 and HEX6, show the data being input to the memory on HEX5 and HEX4, and show the data read out of the memory on HEX1 and HEX0. 3. Test your circuit and make sure that all 32 locations can be loaded properly. Part III Instead of directly instantiating the LPM module, we can implement the required memory by specifying its structure in the VHDL code. In a VHDL-specified design it is possible to define the memory as a multidimensional array. A 32 x 8 array, which has 32 words with 8 bits per word, can be declared by the statements TYPE mem IS ARRAY(0 TO 31) OF STD LOGIC VECTOR(7 DOWNTO 0); SIGNAL memory array : mem; 3
the fiin-fl be used.One is to use an LPM module from the Library of Parameterized Modules,as we saw in Part I.The other sto dctine the memory rqurmen byuin suabe style of this maybentp a m the l II Help shows lelp fo "in d men Perform the following steps: 1.Create a new project which will be used to implement the desired circuit on the DE2 board. 2.Write a VHDL file that provides the necessary functionality.including the ability to load the RAMand read its contents as done in Part II. 3.Assign the pins on the FPGA to connect to the switches and the 7-segment displays. 4.Compile the circuit and download it into the FPGA chip. 5.t the functionality of your design by applying some inputs and observing the output.Deseribe any erences you observe in comparison to the circuit from Part I PartIV The DE2 board includes an SRAM chip,called IS61LV25616AL-10,which is a static RAM having a capacity Name Purpose Chip enable-asserted low during all SRAM operations can be assered ow during ony read operations,or during all operations B ed lou the byte of an address Table 1.SRAM control inputs. The he chin is described in i of modes of operation of the memory and lists many timing parameters related to its use his exercise mple operating mode s to always assert(set ntrol inp nto this mode are appears on Aand the WE input is not asserted.The memory places valid data on the I/port after the address access delay,t.When the read cycle ends because of a change in the address value,the output data remains valid for the ouput hold time,toA
In the Cyclone II FPGA, such an array can be implemented either by using the flip-flops that each logic element contains or, more efficiently, by using the M4K blocks. There are two ways of ensuring that the M4K blocks will be used. One is to use an LPM module from the Library of Parameterized Modules, as we saw in Part I. The other is to define the memory requirement by using a suitable style of VHDL code from which the Quartus II compiler can infer that a memory block should be used. Quartus II Help shows how this may be done with examples of VHDL code (search in the Help for “Inferred memory”). Perform the following steps: 1. Create a new project which will be used to implement the desired circuit on the DE2 board. 2. Write a VHDL file that provides the necessary functionality, including the ability to load the RAM and read its contents as done in Part II. 3. Assign the pins on the FPGA to connect to the switches and the 7-segment displays. 4. Compile the circuit and download it into the FPGA chip. 5. Test the functionality of your design by applying some inputs and observing the output. Describe any differences you observe in comparison to the circuit from Part II. Part IV The DE2 board includes an SRAM chip, called IS61LV25616AL-10, which is a static RAM having a capacity of 256K 16-bit words. The SRAM interface consists of an 18-bit address port, A 17−0, and a 16-bit bidirectional data port, I/O15−0. It also has several control inputs, CE, OE, W E, UB, and LB, which are described in Table 1. Name Purpose CE Chip enable−asserted low during all SRAM operations OE Output enable−can be asserted low during only read operations, or during all operations W E Write enable−asserted low during a write operation UB Upper byte−asserted low to read or write the upper byte of an address LB Lower byte−asserted low to read or write the lower byte of an address Table 1. SRAM control inputs. The operation of the IS61LV25616AL chip is described in its data sheet, which can obtained from the DE2 System CD that is included with the DE2 board, or by performing an Internet search. The data sheet describes a number of modes of operation of the memory and lists many timing parameters related to its use. For the purposes of this exercise a simple operating mode is to always assert (set to 0) the control inputs CE, OE, UB, and LB, and then to control reading and writing of the memory by using only the W E input. Simplified timing diagrams that correspond to this mode are given in Figure 4. Part (a) shows a read cycle, which begins when a valid address appears on A17−0 and the W E input is not asserted. The memory places valid data on the I/O15−0 port after the address access delay, tAA. When the read cycle ends because of a change in the address value, the output data remains valid for the output hold time, tOHA. 4

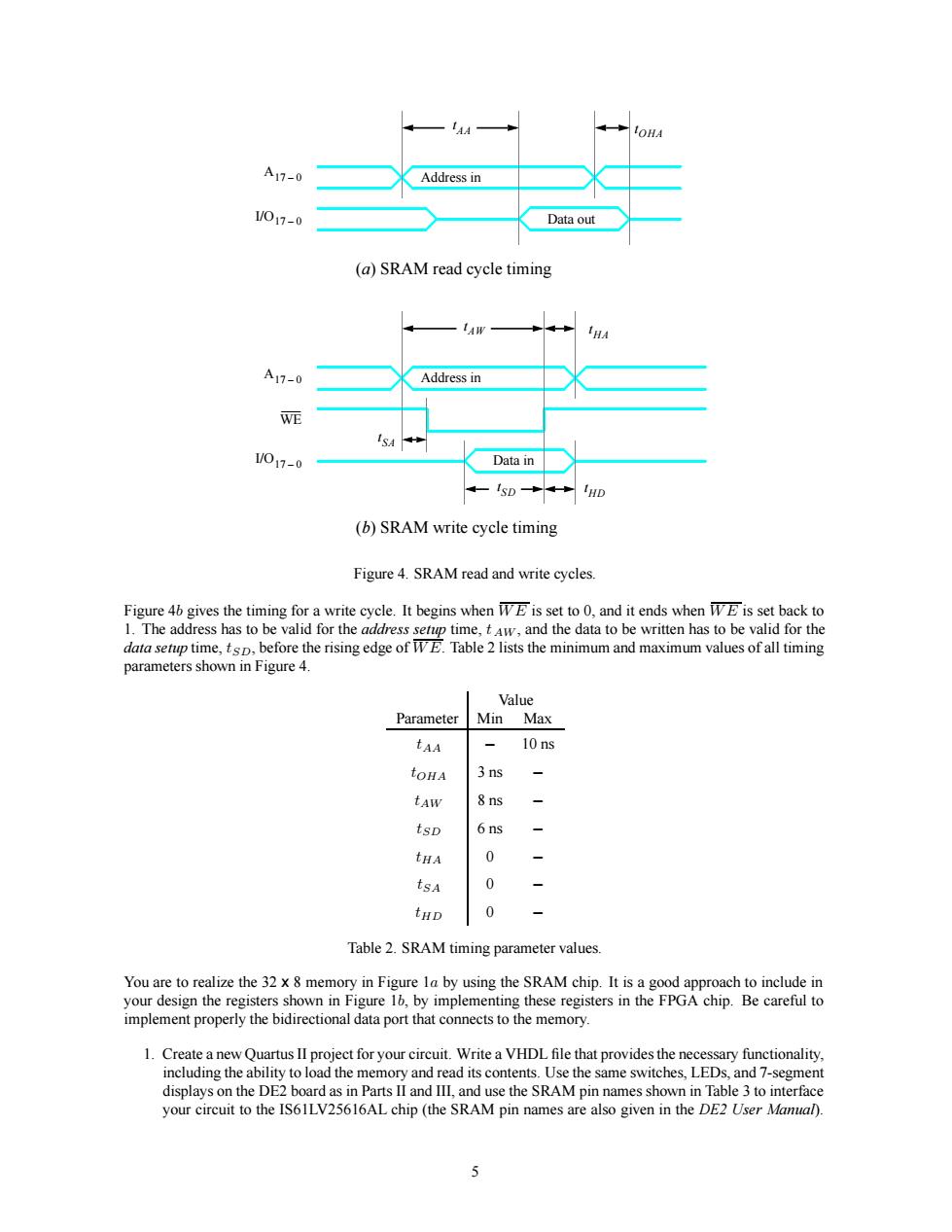

A7-0 Address in V017-0 Data out (a)SRAM read cycle timing A17-0 Address in WE Data in +IsD HD (b)SRAM write cycle timing Figure 4.SRAM read and write cycles. de when set hack t data sep time,s before the rising edge of Table2 lists the minimum and maximum values of all timing parameters shown in Figure 4. Value Parameter Min Max -10ns toHA 3 ns tAW 8ns 6ns tHA 0 tsA 0 八 0 、 Table 2.SRAM timing parameter values your design the 1.Create anew Quartus lI project for your circuit.Write a VHDL file that provides the nece ary functionality -segmen
Data out Address in t AA t OHA (a) SRAM read cycle timing Address in t AW t HA (b) SRAM write cycle timing Data in tHD t SD t SA A17 0 – I/O17 0 – A17 0 – I/O17 0 – WE Figure 4. SRAM read and write cycles. Figure 4b gives the timing for a write cycle. It begins when W E is set to 0, and it ends when W E is set back to 1. The address has to be valid for the address setup time, t AW , and the data to be written has to be valid for the data setup time, tSD, before the rising edge of W E. Table 2 lists the minimum and maximum values of all timing parameters shown in Figure 4. Value Parameter Min Max tAA − 10 ns tOHA 3 ns − tAW 8 ns − tSD 6 ns − tHA 0 − tSA 0 − tHD 0 − Table 2. SRAM timing parameter values. You are to realize the 32 x 8 memory in Figure 1a by using the SRAM chip. It is a good approach to include in your design the registers shown in Figure 1b, by implementing these registers in the FPGA chip. Be careful to implement properly the bidirectional data port that connects to the memory. 1. Create a new Quartus II project for your circuit. Write a VHDL file that provides the necessary functionality, including the ability to load the memory and read its contents. Use the same switches, LEDs, and 7-segment displays on the DE2 board as in Parts II and III, and use the SRAM pin names shown in Table 3 to interface your circuit to the IS61LV25616AL chip (the SRAM pin names are also given in the DE2 User Manual). 5
