MACHINE LEARNING BERKELEY Aside ● There are ways to make transformers more efficient (architecture-wise) ● BUT recall:a major appeal of using transformers is that they scale well relative to compute Transformer architectures are supposed to be simple:self attention is just huge matrix multiplications o huge matrix multiplications are good for parallelization o want to keep the architecture as simple as possible
Aside ● There are ways to make transformers more efficient (architecture-wise) ● BUT recall: a major appeal of using transformers is that they scale well relative to compute ● Transformer architectures are supposed to be simple: self attention is just huge matrix multiplications ○ huge matrix multiplications are good for parallelization ○ want to keep the architecture as simple as possible

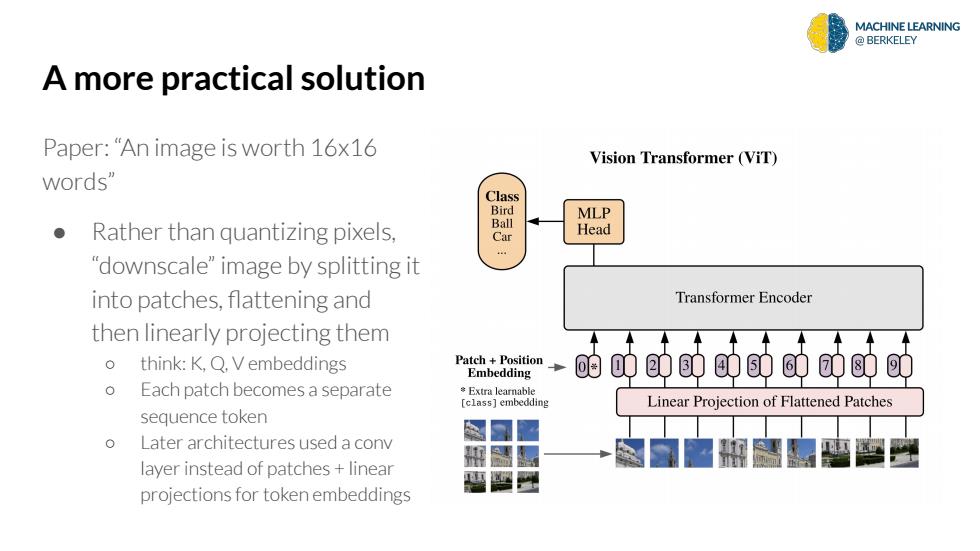

MACHINE LEARNING BERKELEY A more practical solution Paper:"An image is worth 16x16 Vision Transformer (ViT) words" Class Bird MLP Rather than quantizing pixels, Ball Car Head "downscale"image by splitting it into patches,flattening and Transformer Encoder then linearly projecting them 0 think:K,Q.V embeddings Patch Position Embedding 的〔 0欧助的的的的0的 o Each patch becomes a separate Extra learnable [class]embedding Linear Projection of Flattened Patches sequence token o Later architectures used a conv layer instead of patches+linear projections for token embeddings
A more practical solution Paper: “An image is worth 16x16 words” ● Rather than quantizing pixels, “downscale” image by splitting it into patches, flattening and then linearly projecting them ○ think: K, Q, V embeddings ○ Each patch becomes a separate sequence token ○ Later architectures used a conv layer instead of patches + linear projections for token embeddings
