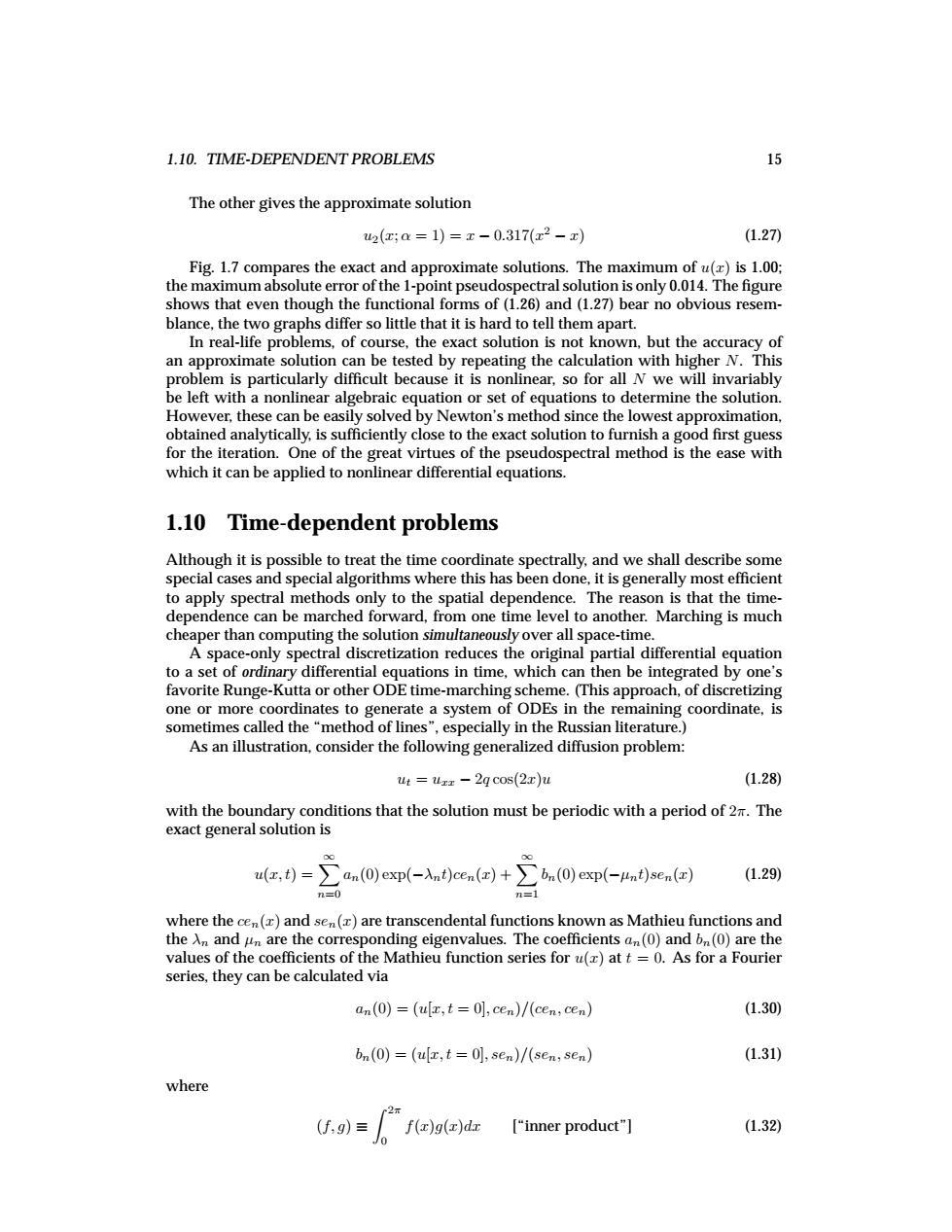

1.10.TIME-DEPENDENT PROBLEMS 15 The other gives the approximate solution 2(x;a=1)=x-0.317(x2-x) (1.27 Fig.1.7 compares the exact and approximate solutions.The maximum of u(x)is 1.00: the maximum absolute error of the 1-point pseudospectral solution is only 0.014.The figure shows that even though the functional forms of(1.26)and(1.27)bear no obvious resem- blance,the two graphs differ so little that it is hard to tell them apart. In real-life problems,of course,the exact solution is not known,but the accuracy of an approximate solution can be tested by repeating the calculation with higher N.This problem is particularly difficult because it is nonlinear,so for all N we will invariably be left with a nonlinear algebraic equation or set of equations to determine the solution. However,these can be easily solved by Newton's method since the lowest approximation, obtained analytically,is sufficiently close to the exact solution to furnish a good first guess for the iteration.One of the great virtues of the pseudospectral method is the ease with which it can be applied to nonlinear differential equations. 1.10 Time-dependent problems Although it is possible to treat the time coordinate spectrally,and we shall describe some special cases and special algorithms where this has been done,it is generally most efficient to apply spectral methods only to the spatial dependence.The reason is that the time- dependence can be marched forward,from one time level to another.Marching is much cheaper than computing the solution simultaneously over all space-time. A space-only spectral discretization reduces the original partial differential equation to a set of ordinary differential equations in time,which can then be integrated by one's favorite Runge-Kutta or other ODE time-marching scheme.(This approach,of discretizing one or more coordinates to generate a system of ODEs in the remaining coordinate,is sometimes called the"method of lines",especially in the Russian literature.) As an illustration,consider the following generalized diffusion problem: ut=u-2q cos(2x)u (1.28) with the boundary conditions that the solution must be periodic with a period of 2.The exact general solution is u(z,t)=>an(0)exp(-Xnt)cen(z)+>bn(0)exp(-unt)sen() (1.29) n=0 n=1 where the cen(z)and sen(z)are transcendental functions known as Mathieu functions and the An and un are the corresponding eigenvalues.The coefficients an(0)and bn(0)are the values of the coefficients of the Mathieu function series for u(z)at t=0.As for a Fourier series,they can be calculated via an(0)=(ulz,t =0],cen)/(cen;cen) (1.30) bn(0)=(u[r,t=0];sen)/(sen;sen) (1.31)） where (f,g)≡ f(x)g(x)dz ["inner product"] (1.32)
1.10. TIME-DEPENDENT PROBLEMS 15 The other gives the approximate solution u2(x; α = 1) = x − 0.317(x2 − x) (1.27) Fig. 1.7 compares the exact and approximate solutions. The maximum of u(x) is 1.00; the maximum absolute error of the 1-point pseudospectral solution is only 0.014. The figure shows that even though the functional forms of (1.26) and (1.27) bear no obvious resemblance, the two graphs differ so little that it is hard to tell them apart. In real-life problems, of course, the exact solution is not known, but the accuracy of an approximate solution can be tested by repeating the calculation with higher N. This problem is particularly difficult because it is nonlinear, so for all N we will invariably be left with a nonlinear algebraic equation or set of equations to determine the solution. However, these can be easily solved by Newton’s method since the lowest approximation, obtained analytically, is sufficiently close to the exact solution to furnish a good first guess for the iteration. One of the great virtues of the pseudospectral method is the ease with which it can be applied to nonlinear differential equations. 1.10 Time-dependent problems Although it is possible to treat the time coordinate spectrally, and we shall describe some special cases and special algorithms where this has been done, it is generally most efficient to apply spectral methods only to the spatial dependence. The reason is that the timedependence can be marched forward, from one time level to another. Marching is much cheaper than computing the solution simultaneously over all space-time. A space-only spectral discretization reduces the original partial differential equation to a set of ordinary differential equations in time, which can then be integrated by one’s favorite Runge-Kutta or other ODE time-marching scheme. (This approach, of discretizing one or more coordinates to generate a system of ODEs in the remaining coordinate, is sometimes called the “method of lines”, especially in the Russian literature.) As an illustration, consider the following generalized diffusion problem: ut = uxx − 2q cos(2x)u (1.28) with the boundary conditions that the solution must be periodic with a period of 2π. The exact general solution is u(x, t) = X∞ n=0 an(0) exp(−λnt)cen(x) + X∞ n=1 bn(0) exp(−µnt)sen(x) (1.29) where the cen(x) and sen(x) are transcendental functions known as Mathieu functions and the λn and µn are the corresponding eigenvalues. The coefficients an(0) and bn(0) are the values of the coefficients of the Mathieu function series for u(x) at t = 0. As for a Fourier series, they can be calculated via an(0) = (u[x, t = 0], cen)/(cen, cen) (1.30) bn(0) = (u[x, t = 0], sen)/(sen, sen) (1.31) where (f,g) ≡ Z 2π 0 f(x)g(x)dx [“inner product”] (1.32)

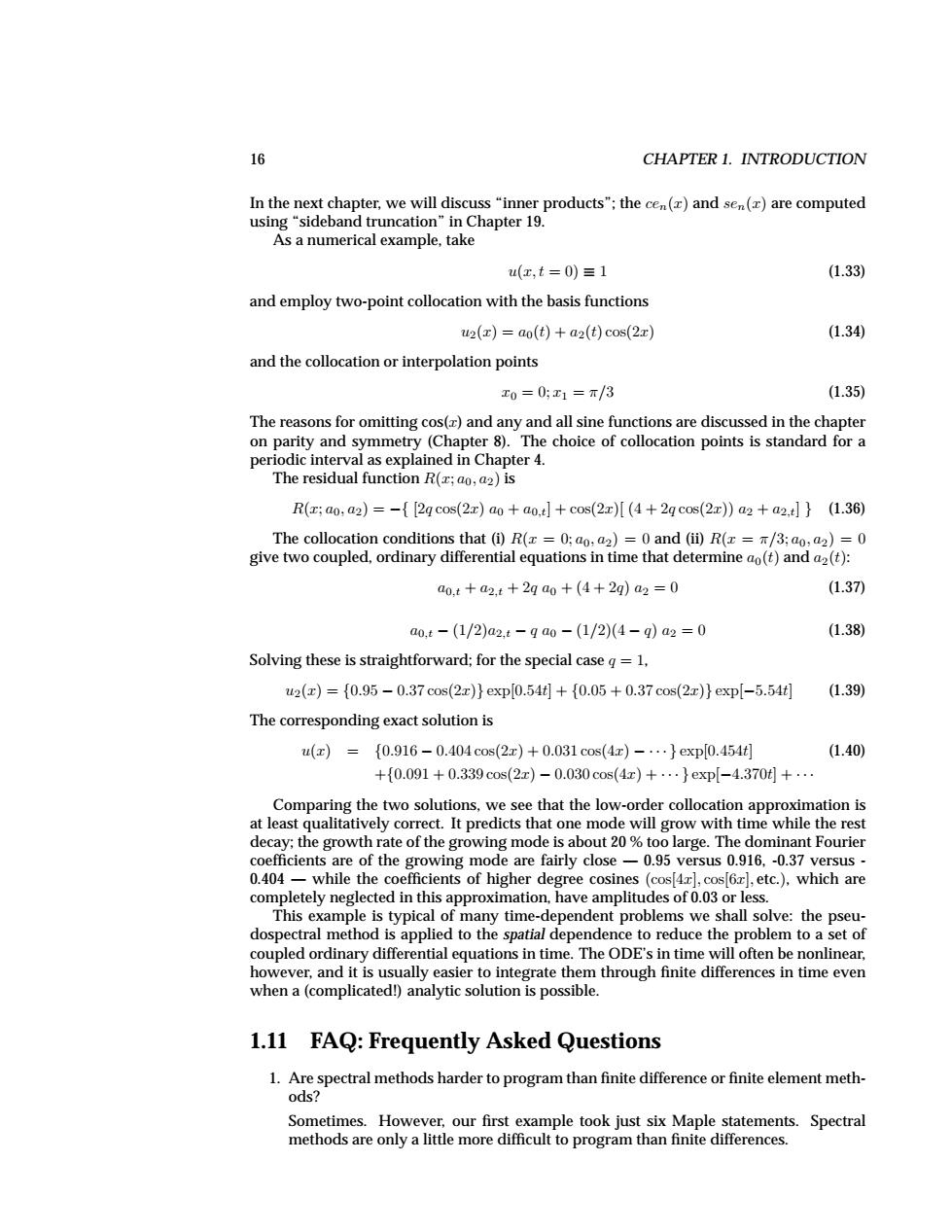

16 CHAPTER 1.INTRODUCTION In the next chapter,we will discuss "inner products";the cen()and sen(z)are computed using“sideband truncation”in Chapter 19. As a numerical example,take u(x,t=0)≡1 (1.33) and employ two-point collocation with the basis functions u2(x)=ao(t)+a2(t)cos(2x) (1.34 and the collocation or interpolation points x0=0:x1=T/3 (1.35) The reasons for omitting cos(z)and any and all sine functions are discussed in the chapter on parity and symmetry (Chapter 8).The choice of collocation points is standard for a periodic interval as explained in Chapter 4. The residual function R(z;ao,a2)is R(x;a0,a2)=-{[2qcos(2x)a0+a0,t+cos(2x)[(4+2gcos(2x)a2+a2,t}(1.36) The collocation conditions that (i)R(z 0;ao,a2)=0 and (ii)R(x =/3;ao,a2)=0 give two coupled,ordinary differential equations in time that determine ao(t)and a2(t): a0.t+a2,t+2ga0+(4+2q)a2=0 (1.37) a0,t-(1/2)a2,t-9a0-(1/2)(4-q)a2=0 (1.38) Solving these is straightforward;for the special case q=1, 2(x)={0.95-0.37cos(2x)}exp[0.54t+{0.05+0.37cos(2x)}exp[-5.54t (1.39) The corresponding exact solution is u(x）={0.916-0.404cos(2x)+0.031cos(4x）-…}exp0.454t (1.40) +{0.091+0.339cos(2x)-0.030cos(4x)+…}exp[-4.370t+· Comparing the two solutions,we see that the low-order collocation approximation is at least qualitatively correct.It predicts that one mode will grow with time while the rest decay;the growth rate of the growing mode is about 20 too large.The dominant Fourier coefficients are of the growing mode are fairly close-0.95 versus 0.916,-0.37 versus- 0.404-while the coefficients of higher degree cosines (cos[4x],cos[6z],etc.),which are completely neglected in this approximation,have amplitudes of 0.03 or less. This example is typical of many time-dependent problems we shall solve:the pseu- dospectral method is applied to the spatial dependence to reduce the problem to a set of coupled ordinary differential equations in time.The ODE's in time will often be nonlinear, however,and it is usually easier to integrate them through finite differences in time even when a(complicated!)analytic solution is possible. 1.11 FAQ:Frequently Asked Questions 1.Are spectral methods harder to program than finite difference or finite element meth- ods? Sometimes.However,our first example took just six Maple statements.Spectral methods are only a little more difficult to program than finite differences
16 CHAPTER 1. INTRODUCTION In the next chapter, we will discuss “inner products”; the cen(x) and sen(x) are computed using “sideband truncation” in Chapter 19. As a numerical example, take u(x, t = 0) ≡ 1 (1.33) and employ two-point collocation with the basis functions u2(x) = a0(t) + a2(t) cos(2x) (1.34) and the collocation or interpolation points x0 = 0; x1 = π/3 (1.35) The reasons for omitting cos(x) and any and all sine functions are discussed in the chapter on parity and symmetry (Chapter 8). The choice of collocation points is standard for a periodic interval as explained in Chapter 4. The residual function R(x; a0, a2) is R(x; a0, a2) = −{ [2q cos(2x) a0 + a0,t] + cos(2x)[ (4 + 2q cos(2x)) a2 + a2,t] } (1.36) The collocation conditions that (i) R(x = 0; a0, a2)=0 and (ii) R(x = π/3; a0, a2)=0 give two coupled, ordinary differential equations in time that determine a0(t) and a2(t): a0,t + a2,t + 2q a0 + (4 + 2q) a2 = 0 (1.37) a0,t − (1/2)a2,t − q a0 − (1/2)(4 − q) a2 = 0 (1.38) Solving these is straightforward; for the special case q = 1, u2(x) = {0.95 − 0.37 cos(2x)} exp[0.54t] + {0.05 + 0.37 cos(2x)} exp[−5.54t] (1.39) The corresponding exact solution is u(x) = {0.916 − 0.404 cos(2x)+0.031 cos(4x) −···} exp[0.454t] (1.40) +{0.091 + 0.339 cos(2x) − 0.030 cos(4x) + ···} exp[−4.370t] + ··· Comparing the two solutions, we see that the low-order collocation approximation is at least qualitatively correct. It predicts that one mode will grow with time while the rest decay; the growth rate of the growing mode is about 20 % too large. The dominant Fourier coefficients are of the growing mode are fairly close — 0.95 versus 0.916, -0.37 versus - 0.404 — while the coefficients of higher degree cosines (cos[4x], cos[6x], etc.), which are completely neglected in this approximation, have amplitudes of 0.03 or less. This example is typical of many time-dependent problems we shall solve: the pseudospectral method is applied to the spatial dependence to reduce the problem to a set of coupled ordinary differential equations in time. The ODE’s in time will often be nonlinear, however, and it is usually easier to integrate them through finite differences in time even when a (complicated!) analytic solution is possible. 1.11 FAQ: Frequently Asked Questions 1. Are spectral methods harder to program than finite difference or finite element methods? Sometimes. However, our first example took just six Maple statements. Spectral methods are only a little more difficult to program than finite differences

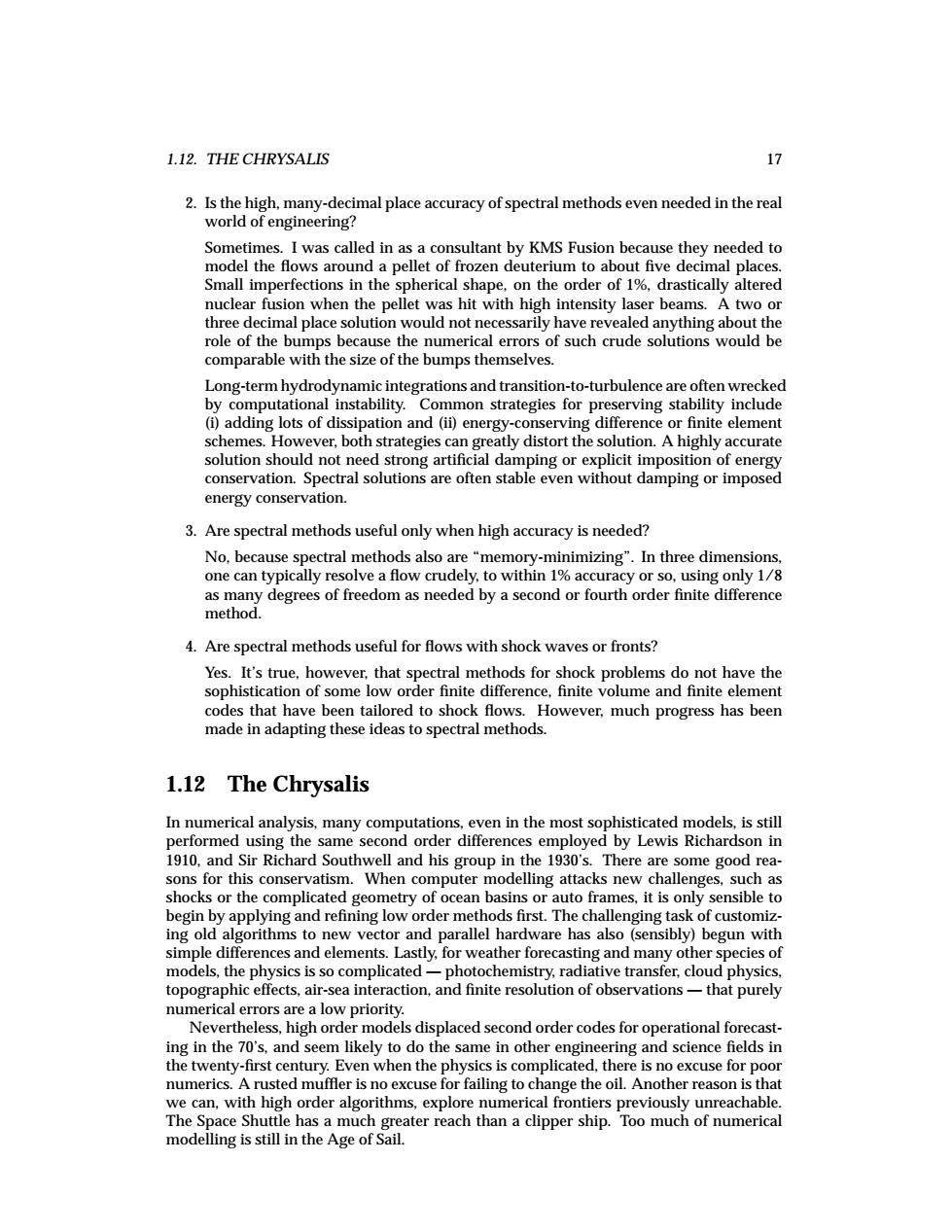

1.12.THE CHRYSALIS 17 2.Is the high,many-decimal place accuracy of spectral methods even needed in the real world of engineering? Sometimes.I was called in as a consultant by KMS Fusion because they needed to model the fows around a pellet of frozen deuterium to about five decimal places. Small imperfections in the spherical shape,on the order of 1%,drastically altered nuclear fusion when the pellet was hit with high intensity laser beams.A two or three decimal place solution would not necessarily have revealed anything about the role of the bumps because the numerical errors of such crude solutions would be comparable with the size of the bumps themselves. Long-term hydrodynamic integrations and transition-to-turbulence are often wrecked by computational instability.Common strategies for preserving stability include (i)adding lots of dissipation and (ii)energy-conserving difference or finite element schemes.However,both strategies can greatly distort the solution.A highly accurate solution should not need strong artificial damping or explicit imposition of energy conservation.Spectral solutions are often stable even without damping or imposed energy conservation. 3.Are spectral methods useful only when high accuracy is needed? No,because spectral methods also are"memory-minimizing".In three dimensions, one can typically resolve a flow crudely,to within 1%accuracy or so,using only 1/8 as many degrees of freedom as needed by a second or fourth order finite difference method 4.Are spectral methods useful for flows with shock waves or fronts? Yes.It's true,however,that spectral methods for shock problems do not have the sophistication of some low order finite difference,finite volume and finite element codes that have been tailored to shock flows.However,much progress has been made in adapting these ideas to spectral methods. 1.12 The Chrysalis In numerical analysis,many computations,even in the most sophisticated models,is still performed using the same second order differences employed by Lewis Richardson in 1910,and Sir Richard Southwell and his group in the 1930's.There are some good rea- sons for this conservatism.When computer modelling attacks new challenges,such as shocks or the complicated geometry of ocean basins or auto frames,it is only sensible to begin by applying and refining low order methods first.The challenging task of customiz- ing old algorithms to new vector and parallel hardware has also (sensibly)begun with simple differences and elements.Lastly,for weather forecasting and many other species of models,the physics is so complicated-photochemistry,radiative transfer,cloud physics, topographic effects,air-sea interaction,and finite resolution of observations-that purely numerical errors are a low priority. Nevertheless,high order models displaced second order codes for operational forecast- ing in the 70's,and seem likely to do the same in other engineering and science fields in the twenty-first century.Even when the physics is complicated,there is no excuse for poor numerics.A rusted muffler is no excuse for failing to change the oil.Another reason is that we can,with high order algorithms,explore numerical frontiers previously unreachable. The Space Shuttle has a much greater reach than a clipper ship.Too much of numerical modelling is still in the Age of Sail
1.12. THE CHRYSALIS 17 2. Is the high, many-decimal place accuracy of spectral methods even needed in the real world of engineering? Sometimes. I was called in as a consultant by KMS Fusion because they needed to model the flows around a pellet of frozen deuterium to about five decimal places. Small imperfections in the spherical shape, on the order of 1%, drastically altered nuclear fusion when the pellet was hit with high intensity laser beams. A two or three decimal place solution would not necessarily have revealed anything about the role of the bumps because the numerical errors of such crude solutions would be comparable with the size of the bumps themselves. Long-term hydrodynamic integrations and transition-to-turbulence are often wrecked by computational instability. Common strategies for preserving stability include (i) adding lots of dissipation and (ii) energy-conserving difference or finite element schemes. However, both strategies can greatly distort the solution. A highly accurate solution should not need strong artificial damping or explicit imposition of energy conservation. Spectral solutions are often stable even without damping or imposed energy conservation. 3. Are spectral methods useful only when high accuracy is needed? No, because spectral methods also are “memory-minimizing”. In three dimensions, one can typically resolve a flow crudely, to within 1% accuracy or so, using only 1/8 as many degrees of freedom as needed by a second or fourth order finite difference method. 4. Are spectral methods useful for flows with shock waves or fronts? Yes. It’s true, however, that spectral methods for shock problems do not have the sophistication of some low order finite difference, finite volume and finite element codes that have been tailored to shock flows. However, much progress has been made in adapting these ideas to spectral methods. 1.12 The Chrysalis In numerical analysis, many computations, even in the most sophisticated models, is still performed using the same second order differences employed by Lewis Richardson in 1910, and Sir Richard Southwell and his group in the 1930’s. There are some good reasons for this conservatism. When computer modelling attacks new challenges, such as shocks or the complicated geometry of ocean basins or auto frames, it is only sensible to begin by applying and refining low order methods first. The challenging task of customizing old algorithms to new vector and parallel hardware has also (sensibly) begun with simple differences and elements. Lastly, for weather forecasting and many other species of models, the physics is so complicated — photochemistry, radiative transfer, cloud physics, topographic effects, air-sea interaction, and finite resolution of observations — that purely numerical errors are a low priority. Nevertheless, high order models displaced second order codes for operational forecasting in the 70’s, and seem likely to do the same in other engineering and science fields in the twenty-first century. Even when the physics is complicated, there is no excuse for poor numerics. A rusted muffler is no excuse for failing to change the oil. Another reason is that we can, with high order algorithms, explore numerical frontiers previously unreachable. The Space Shuttle has a much greater reach than a clipper ship. Too much of numerical modelling is still in the Age of Sail

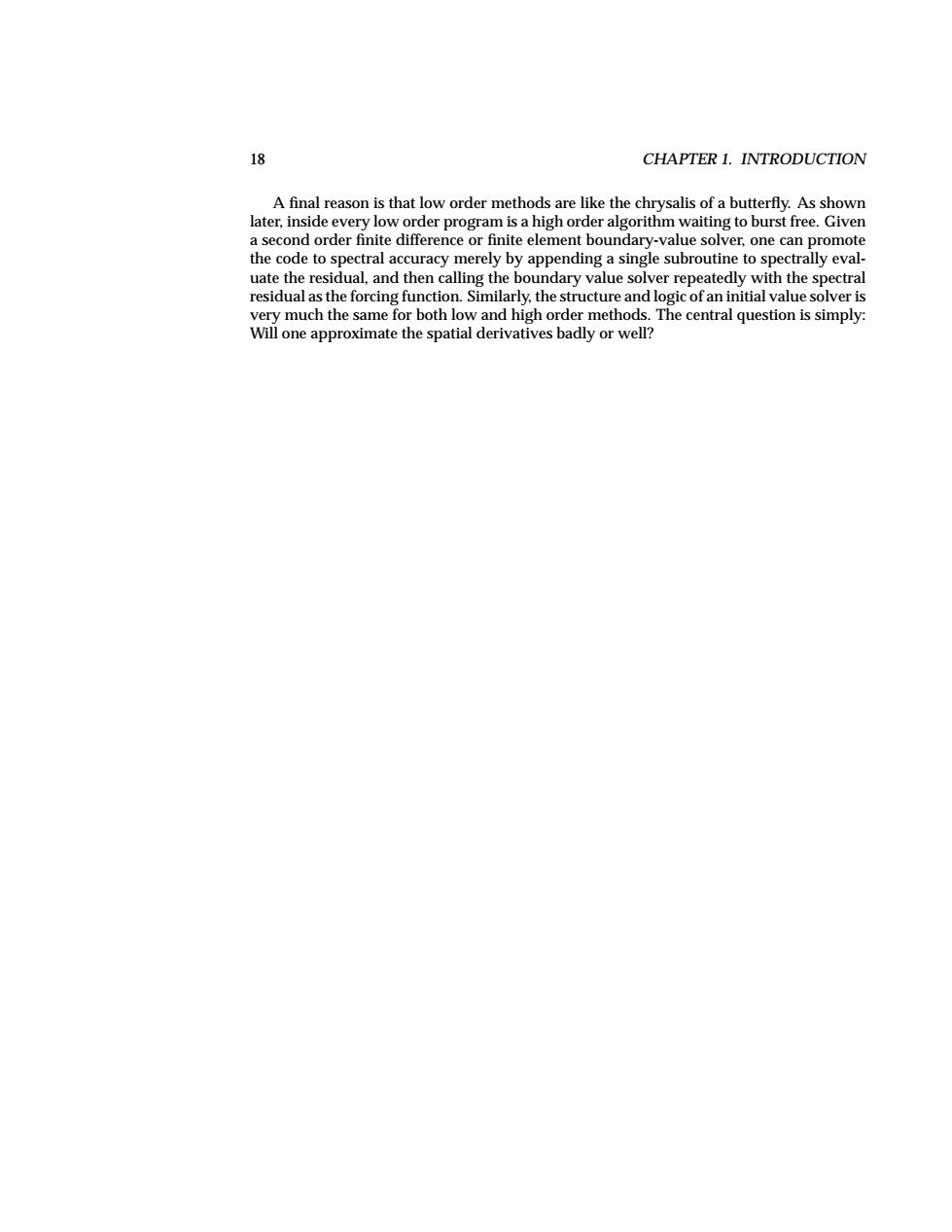

18 CHAPTER 1.INTRODUCTION A final reason is that low order methods are like the chrysalis of a butterfly.As shown later,inside every low order program is a high order algorithm waiting to burst free.Given a second order finite difference or finite element boundary-value solver,one can promote the code to spectral accuracy merely by appending a single subroutine to spectrally eval- uate the residual,and then calling the boundary value solver repeatedly with the spectral residual as the forcing function.Similarly,the structure and logic of an initial value solver is very much the same for both low and high order methods.The central question is simply: Will one approximate the spatial derivatives badly or well?
18 CHAPTER 1. INTRODUCTION A final reason is that low order methods are like the chrysalis of a butterfly. As shown later, inside every low order program is a high order algorithm waiting to burst free. Given a second order finite difference or finite element boundary-value solver, one can promote the code to spectral accuracy merely by appending a single subroutine to spectrally evaluate the residual, and then calling the boundary value solver repeatedly with the spectral residual as the forcing function. Similarly, the structure and logic of an initial value solver is very much the same for both low and high order methods. The central question is simply: Will one approximate the spatial derivatives badly or well?

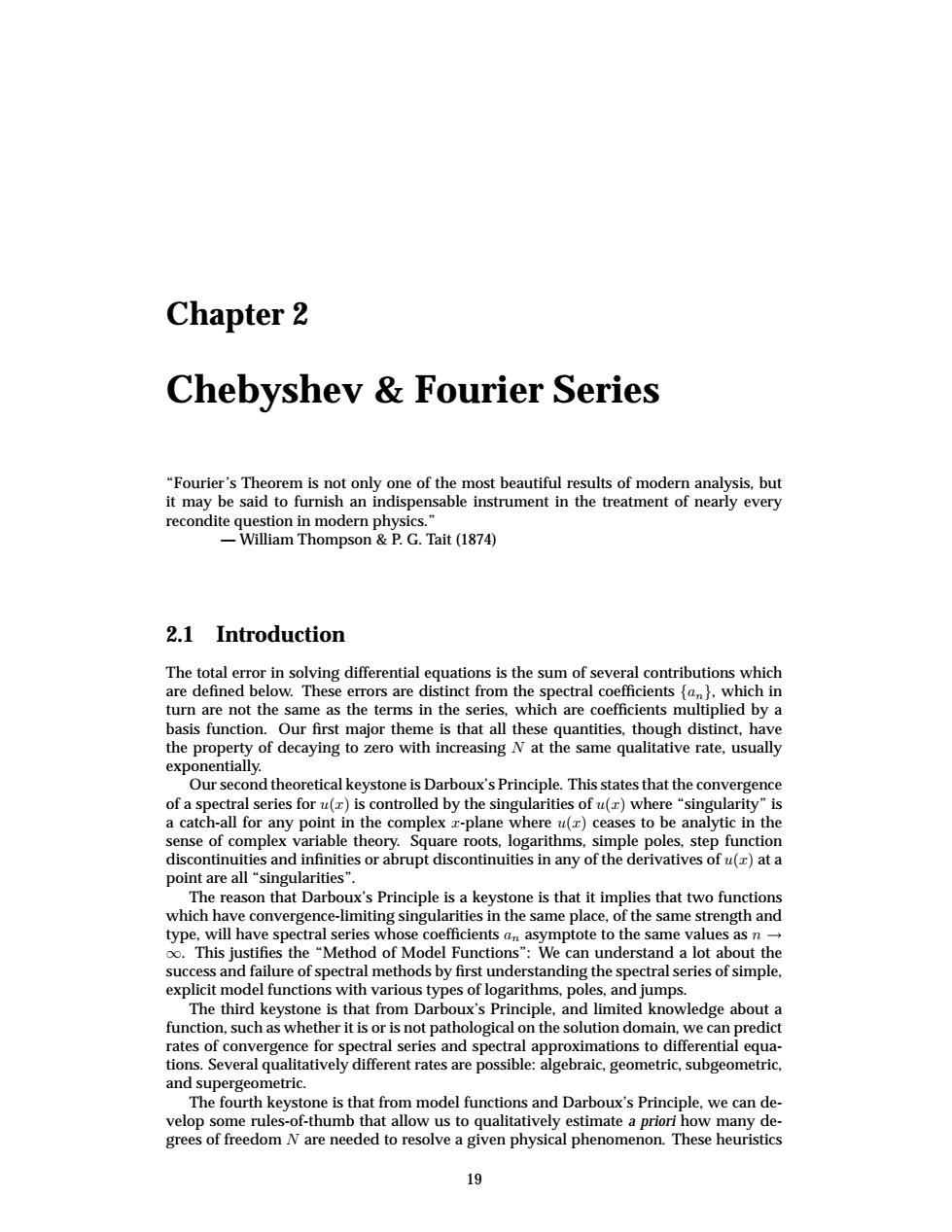

Chapter 2 Chebyshev Fourier Series "Fourier's Theorem is not only one of the most beautiful results of modern analysis,but it may be said to furnish an indispensable instrument in the treatment of nearly every recondite question in modern physics.' -William Thompson P.G.Tait(1874) 2.1 Introduction The total error in solving differential equations is the sum of several contributions which are defined below.These errors are distinct from the spectral coefficients fa,which in turn are not the same as the terms in the series,which are coefficients multiplied by a basis function.Our first major theme is that all these quantities,though distinct,have the property of decaying to zero with increasing N at the same qualitative rate,usually exponentially. Our second theoretical keystone is Darboux's Principle.This states that the convergence of a spectral series for u(z)is controlled by the singularities of u(z)where "singularity"is a catch-all for any point in the complex z-plane where u(z)ceases to be analytic in the sense of complex variable theory.Square roots,logarithms,simple poles,step function discontinuities and infinities or abrupt discontinuities in any of the derivatives of u()at a point are all“singularities”. The reason that Darboux's Principle is a keystone is that it implies that two functions which have convergence-limiting singularities in the same place,of the same strength and type,will have spectral series whose coefficients an asymptote to the same values as n oo.This justifies the "Method of Model Functions":We can understand a lot about the success and failure of spectral methods by first understanding the spectral series of simple, explicit model functions with various types of logarithms,poles,and jumps. The third keystone is that from Darboux's Principle,and limited knowledge about a function,such as whether it is or is not pathological on the solution domain,we can predict rates of convergence for spectral series and spectral approximations to differential equa- tions.Several qualitatively different rates are possible:algebraic,geometric,subgeometric, and supergeometric. The fourth keystone is that from model functions and Darboux's Principle,we can de- velop some rules-of-thumb that allow us to qualitatively estimate a priori how many de- grees of freedom N are needed to resolve a given physical phenomenon.These heuristics 19
Chapter 2 Chebyshev & Fourier Series “Fourier’s Theorem is not only one of the most beautiful results of modern analysis, but it may be said to furnish an indispensable instrument in the treatment of nearly every recondite question in modern physics.” — William Thompson & P. G. Tait (1874) 2.1 Introduction The total error in solving differential equations is the sum of several contributions which are defined below. These errors are distinct from the spectral coefficients {an}, which in turn are not the same as the terms in the series, which are coefficients multiplied by a basis function. Our first major theme is that all these quantities, though distinct, have the property of decaying to zero with increasing N at the same qualitative rate, usually exponentially. Our second theoretical keystone is Darboux’s Principle. This states that the convergence of a spectral series for u(x) is controlled by the singularities of u(x) where “singularity” is a catch-all for any point in the complex x-plane where u(x) ceases to be analytic in the sense of complex variable theory. Square roots, logarithms, simple poles, step function discontinuities and infinities or abrupt discontinuities in any of the derivatives of u(x) at a point are all “singularities”. The reason that Darboux’s Principle is a keystone is that it implies that two functions which have convergence-limiting singularities in the same place, of the same strength and type, will have spectral series whose coefficients an asymptote to the same values as n → ∞. This justifies the “Method of Model Functions”: We can understand a lot about the success and failure of spectral methods by first understanding the spectral series of simple, explicit model functions with various types of logarithms, poles, and jumps. The third keystone is that from Darboux’s Principle, and limited knowledge about a function, such as whether it is or is not pathological on the solution domain, we can predict rates of convergence for spectral series and spectral approximations to differential equations. Several qualitatively different rates are possible: algebraic, geometric, subgeometric, and supergeometric. The fourth keystone is that from model functions and Darboux’s Principle, we can develop some rules-of-thumb that allow us to qualitatively estimate a priori how many degrees of freedom N are needed to resolve a given physical phenomenon. These heuristics 19
