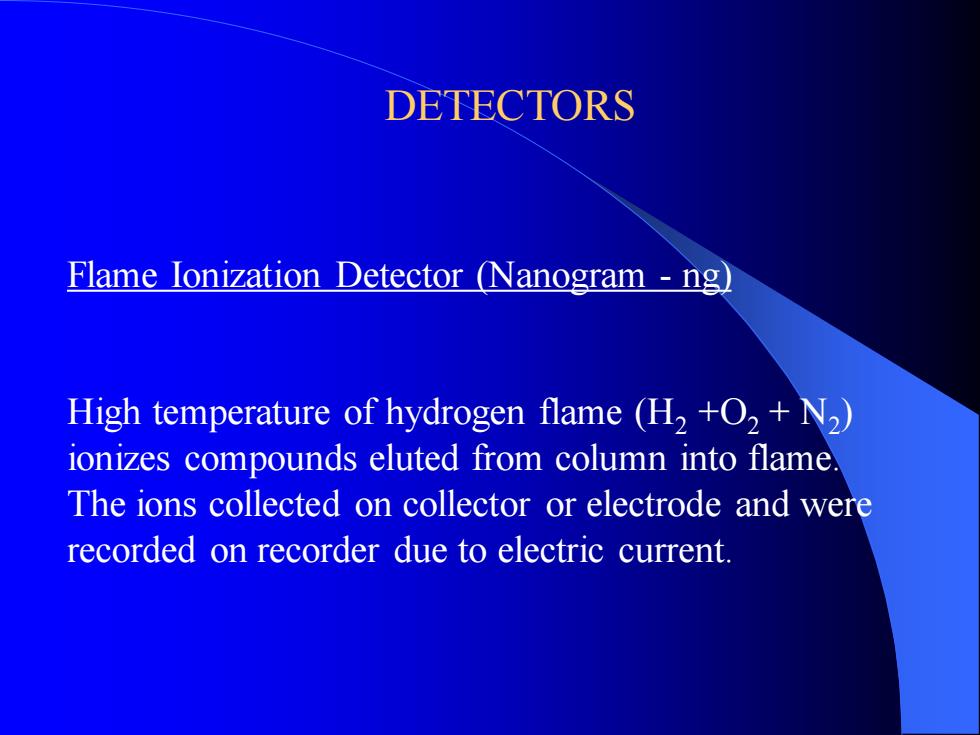

DETECTORS Flame Ionization Detector (Nanogram - ng) High temperature of hydrogen flame (H2 +O2 + N2 ) ionizes compounds eluted from column into flame. The ions collected on collector or electrode and were recorded on recorder due to electric current
DETECTORS Flame Ionization Detector (Nanogram - ng) High temperature of hydrogen flame (H2 +O2 + N2 ) ionizes compounds eluted from column into flame. The ions collected on collector or electrode and were recorded on recorder due to electric current
Exhaust Chimney Igniter Hydrogen Inlet Column Effluent Polarizing Electrode Collector Electrode Schematic Diagram of Flame Ionization Detector
Exhaust Chimney Igniter Hydrogen Inlet Column Effluent Polarizing Electrode Collector Electrode Schematic Diagram of Flame Ionization Detector
Schematic Diagram of Flame Ionization Detector Collector Jet Flame Detector electronics - 220 volts Column Chassis ground Signal output
Schematic Diagram of Flame Ionization Detector Collector Jet Flame Detector electronics - 220 volts Column Chassis ground Signal output
Thermal Conductivity Detector Measures the changes of thermal conductivity due to the sample (mg). Sample can be recovered
Thermal Conductivity Detector Measures the changes of thermal conductivity due to the sample (mg). Sample can be recovered
Thermal Conductivity Detector Principal: The thermal balance of a heated filament Electrical power is converted to heat in a resistant filament and the temperature will climb until heat power loss form the filament equals the electrical power input. The filament may loose heat by radiation to a cooler surface and by conduction to the molecules coming into contact with it
Thermal Conductivity Detector Principal: The thermal balance of a heated filament Electrical power is converted to heat in a resistant filament and the temperature will climb until heat power loss form the filament equals the electrical power input. The filament may loose heat by radiation to a cooler surface and by conduction to the molecules coming into contact with it
