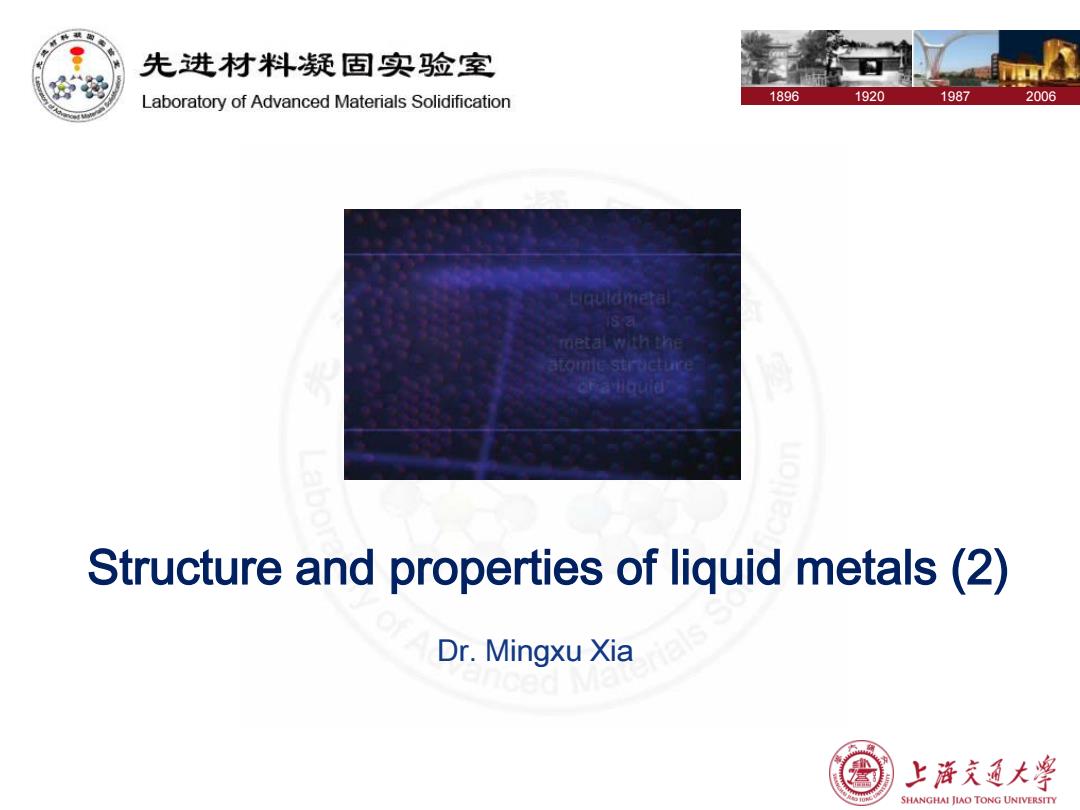

先进材料疑固实验室 Laboratory of Advanced Materials Solidification 1896 1920 1987 2006 uai过a metal with the atomie strocture Structure and properties of liquid metals(2) Dr.Mingxu Xia 上浒充通大学 SHANGHAI JIAO TONG UNIVERSITY
1896 1920 1987 2006 Structure and properties of liquid metals (2) Dr. Mingxu Xia
先进材料疑固实验室 Outline Laboratory of Advanced Materials Solidification State of matter Brief introduction to liquid metal The structure of liquid metal Viscosity of liquid metal Surface and interface of liquid metal Fluidity of liquid metal Other properties of liquid metal anced Materials Solid 上浒充通大学 SHANGHAI JIAO TONG UNIVERSITY
Outline State of matter Brief introduction to liquid metal The structure of liquid metal Viscosity of liquid metal Surface and interface of liquid metal Fluidity of liquid metal Other properties of liquid metal
先进材料疑固实验室 Viscosity of liquid metal Laboratory of Advanced Materials Solidification The viscosity of a liquid is a measure of its resistance to gradual deformation by shear stress or tensile stress.For liquids,it corresponds to the informal concept of "thickness". 上浒充通大学 SHANGHAI JIAO TONG UNIVERSITY
Viscosity of liquid metal The viscosity of a liquid is a measure of its resistance to gradual deformation by shear stress or tensile stress. For liquids, it corresponds to the informal concept of “thickness
先进材料疑固实验室 Viscosity of liquid metal Laboratory of Advanced Materials Solidification Dynamic(Shear)viscosity The dynamic(shear)viscosity of a fluid expresses its resistance to shearing flows,where adjacent layers move parallel to each other with different speeds. If the speed of the top plate is small enough,the y dimension fluid particles will move faster than the one just boundary plate below it,and friction between them will give rise to (2D,moving) velocity,u a force resisting their relative motion. shear stress,t F()=nA警 (1) fluid gradient, n is dynamic viscosity of the liquid,A is the area of the liquid where the shear force is applied,vx is boundary plate(2D,stationary) velocity of liquid along the x direction. 上浒充通大学 SHANGHAI JIAO TONG UNIVERSITY
Viscosity of liquid metal Dynamic (Shear) viscosity The dynamic (shear) viscosity of a fluid expresses its resistance to shearing flows, where adjacent layers move parallel to each other with different speeds. If the speed of the top plate is small enough, the fluid particles will move faster than the one just below it, and friction between them will give rise to a force resisting their relative motion
先进材料疑固实验室 Viscosity of liquid metal Laboratory of Advanced Materials Solidification The ratio u/y is called the rate of shear deformation or shear velocity,and is the derivative of the fluid speed in the direction perpendicular to the plates.Isaac Newton expressed the viscous forces by the differential equation Bu T=μ0y where t=F/A,and ou/oy is the local shear velocity.This formula assumes that the flow is moving along parallel lines and the y-axis,perpendicular to the flow,points in the direction of maximum shear velocity.This equation can be used where the velocity does not vary linearly with y,such as in fluid flowing through a pipe. shear stress,r gradient, velocity,u 上浒充通大学 SHANGHAI JIAO TONG UNIVERSITY
Viscosity of liquid metal The ratio u/y is called the rate of shear deformation or shear velocity, and is the derivative of the fluid speed in the direction perpendicular to the plates. Isaac Newton expressed the viscous forces by the differential equation where τ = F/A, and ∂u/∂y is the local shear velocity. This formula assumes that the flow is moving along parallel lines and the y-axis, perpendicular to the flow, points in the direction of maximum shear velocity. This equation can be used where the velocity does not vary linearly with y, such as in fluid flowing through a pipe
