先进材料疑固实验室 OUTLINE Laboratory of Advanced Materials Solidification Solute Redistribution Solute distribution coefficient Solute redistribution in equilibrium state Solute redistribution in non-equilibrium state Solute distribution in front of S/L interface Application:Zone melting Morphology Instability of a S/L interface Constitutional undercooling Morphological instability of a S/L interface Interface instability of pure metal Solidification microstructure:Cells and dendrites nced Mav 上浒充通大学 SHANGHAI JIAO TONG UNIVERSITY
OUTLINE Solute Redistribution • Solute distribution coefficient • Solute redistribution in equilibrium state • Solute redistribution in non-equilibrium state • Solute distribution in front of S/L interface • Application: Zone melting Morphology Instability of a S/L interface • Constitutional undercooling • Morphological instability of a S/L interface • Interface instability of pure metal • Solidification microstructure: Cells and dendrites
先进材料疑固实验室 Situation 3:No diffusion in the solid,normal Laboratory of Advanced Materials Solidification diffusion in the liquid,no convection. In Situation 3,there exists a steady state in which the solid growth does not cause any change of the distribution of solute concentration in the liguid. y af IS S anced Materia 上浒充通大学 SHANGHAI JIAO TONG UNIVERSITY
In Situation 3, there exists a steady state in which the solid growth does not cause any change of the distribution of solute concentration in the liquid. Situation 3: No diffusion in the solid, normal diffusion in the liquid, no convection
先进材料疑固实验室 Situation 3:No diffusion in the solid,Limited diffusion in the liquid,no convection. Laboratory of Advanced Materials Solidification L Phase diagram T厂 C Initial point koCp C's Co C'L Colko 5 Solute concentration (b) L L Clk C Transient stage Steady state stage 5 (c) 5 (d) The figure is from 切聊过被阶段 稳定生长阶段 徐洲,姚寿山主编,《材料 8 mitial Steady 加工原理》科技出版社, transient state 最后过该阶段1 2003 stage. stage Final p62 8 transientL (e) stage 熟 上浒充通大 SHANGHAI JIAO TONG UNIVERSITY
Situation 3: No diffusion in the solid, Limited diffusion in the liquid, no convection

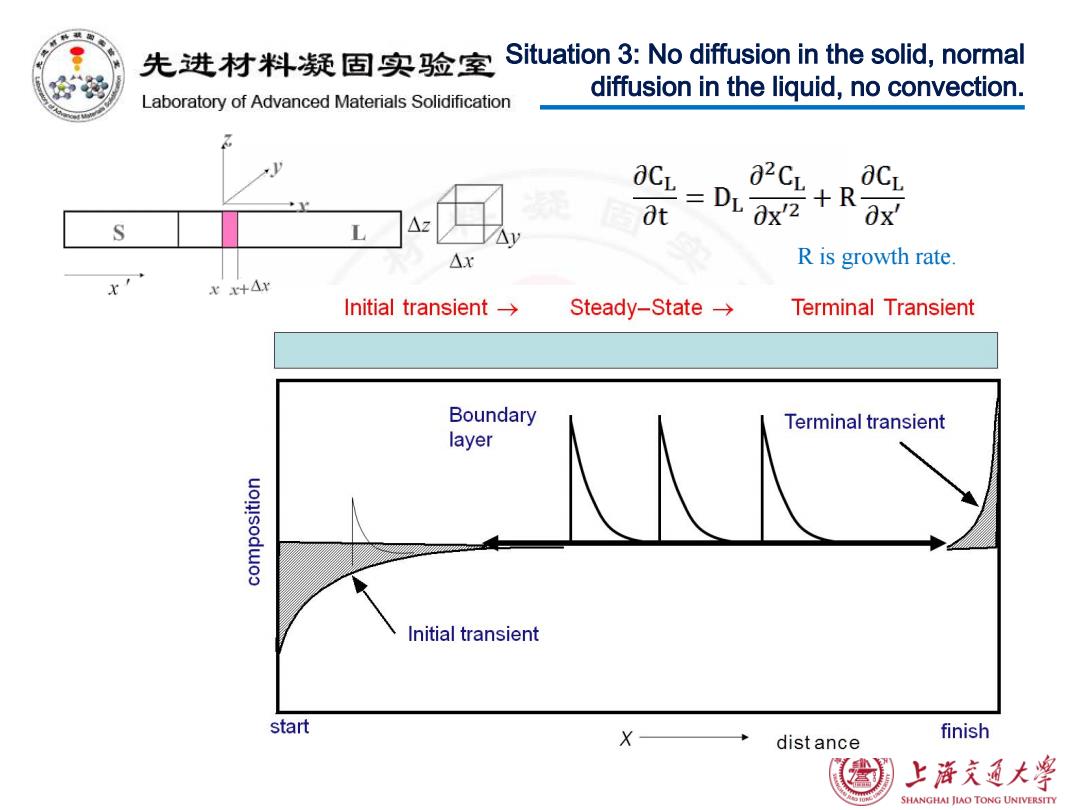

先进材料凝固实验室 Situation 3:No diffusion in the solid,normal diffusion in the liquid,no convection. Laboratory of Advanced Materials Solidification aCL at S L △x R is growth rate. rr+Ar Initial transient→ Steady-State→ Terminal Transient Boundary Terminal transient layer Initial transient start X dist ance finish 上游充通大学 SHANGHAI JIAO TONG UNIVERSITY
R is growth rate. Situation 3: No diffusion in the solid, normal diffusion in the liquid, no convection
