Complex Il (Succinate Dehydrogenase) Path of Electrons Acyl CoA dehydrogenase complex from Succinate, Inner membrane Glycerol-3-phosphate Glycerol-3- dehydrogenase Glycerol-3-phosphate AD →NAD Phosphate, Intermembrane space NAOH+G and Fatty Acids to UQ
Path of Electrons from Succinate, Glycerol-3- Phosphate, and Fatty Acids to UQ Complex II (Succinate Dehydrogenase)
Complex Ill (cytochrome bi) (cytochrome c Reductase) -transfers electrons from reduced CoQ(UQH,to cytochrome c -contains as many as 11 subunits -contains 3 cytochromes:cyt bL,cyt bH cyt ci
Complex III (cytochrome b1 ) (cytochrome c Reductase) -transfers electrons from reduced CoQ (UQH2 ) to cytochrome c -contains as many as 11 subunits -contains 3 cytochromes: cyt bL , cyt bH , cyt c1

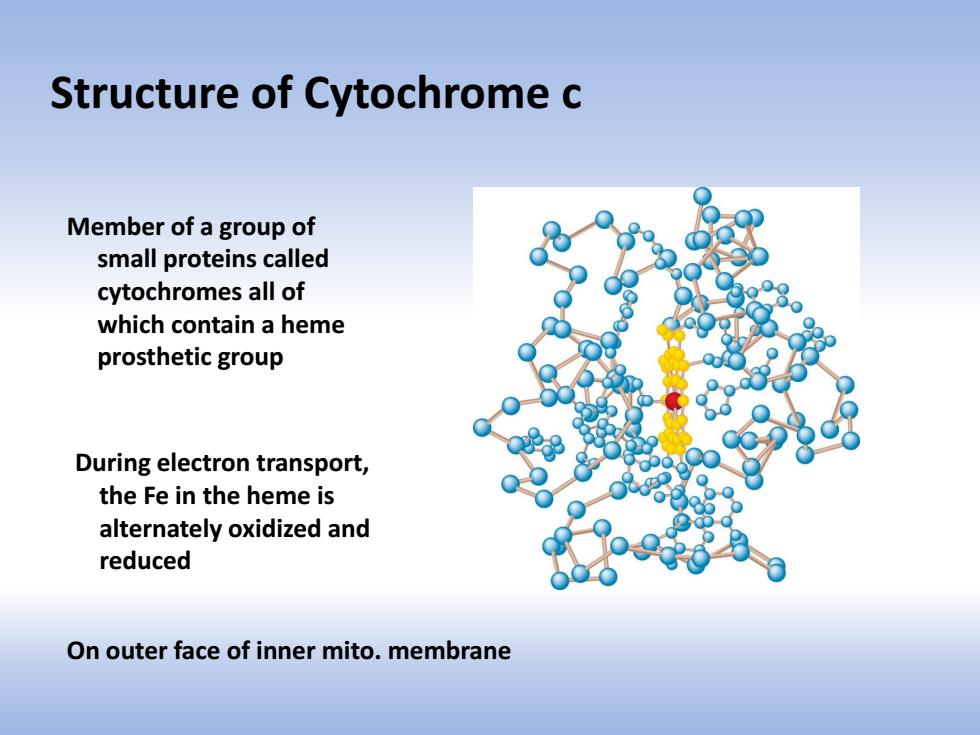

Structure of Cytochrome c Member of a group of small proteins called cytochromes all of which contain a heme prosthetic group During electron transport, the Fe in the heme is alternately oxidized and reduced On outer face of inner mito.membrane
Structure of Cytochrome c Member of a group of small proteins called cytochromes all of which contain a heme prosthetic group During electron transport, the Fe in the heme is alternately oxidized and reduced On outer face of inner mito. membrane

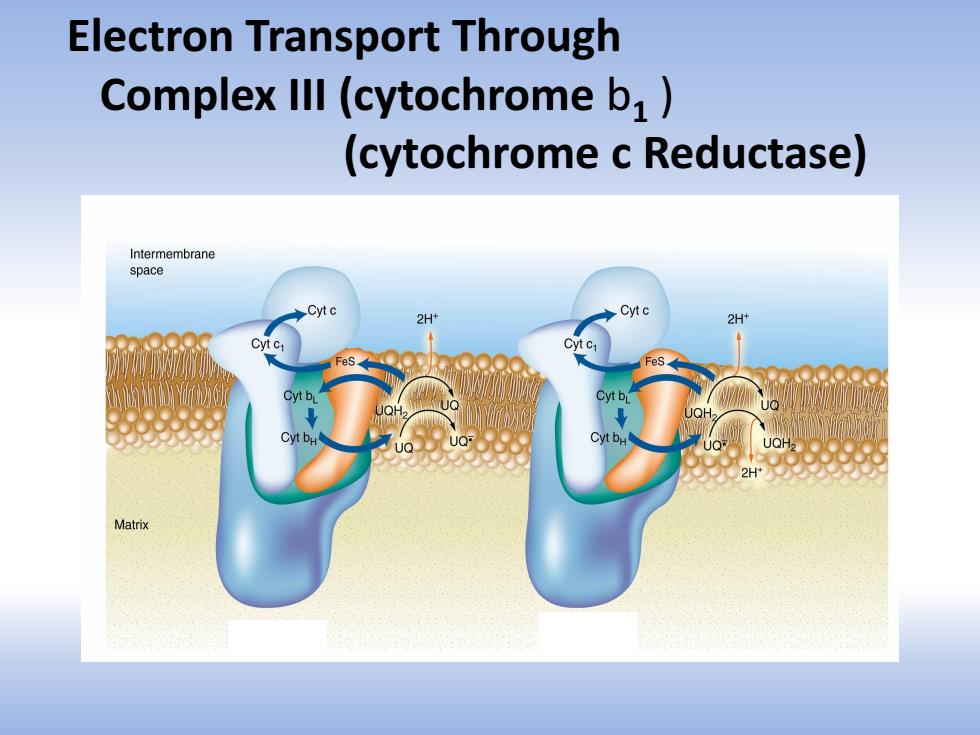

Electron Transport Through Complex Ill (cytochrome bi) (cytochrome c Reductase) Intermembrane space Cyt c 2H* Cyt c 2H* UOH Matrix
Electron Transport Through Complex III (cytochrome b1 ) (cytochrome c Reductase)
