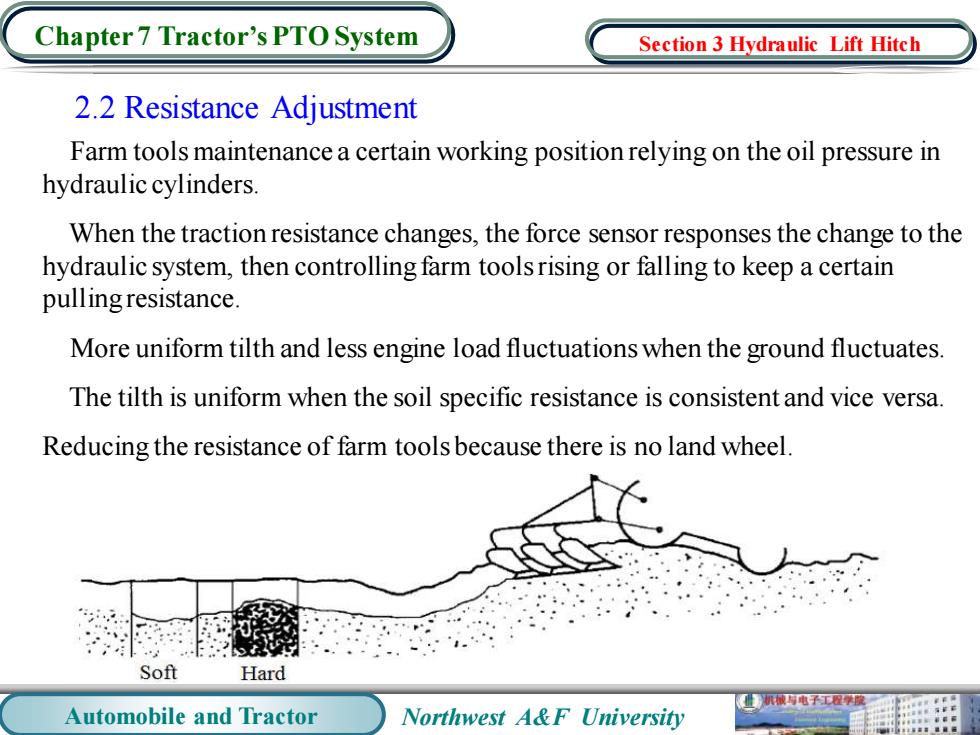

Chapter 7 Tractor's PTO System Section 3 Hydraulic Lift Hitch 2.2 Resistance Adjustment Farm tools maintenance a certain working position relying on the oil pressure in hydraulic cylinders. When the traction resistance changes,the force sensor responses the change to the hydraulic system,then controlling farm tools rising or falling to keep a certain pulling resistance. More uniform tilth and less engine load fluctuations when the ground fluctuates. The tilth is uniform when the soil specific resistance is consistent and vice versa. Reducing the resistance of farm tools because there is no land wheel. … Soft Hard 械电子工程学 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 7 Tractor’s PTO System 2.2 Resistance Adjustment Farm tools maintenance a certain working position relying on the oil pressure in hydraulic cylinders. When the traction resistance changes, the force sensor responses the change to the hydraulic system, then controlling farm tools rising or falling to keep a certain pulling resistance. More uniform tilth and less engine load fluctuations when the ground fluctuates. The tilth is uniform when the soil specific resistance is consistent and vice versa. Reducing the resistance of farm tools because there is no land wheel. Section 3 Hydraulic Lift Hitch

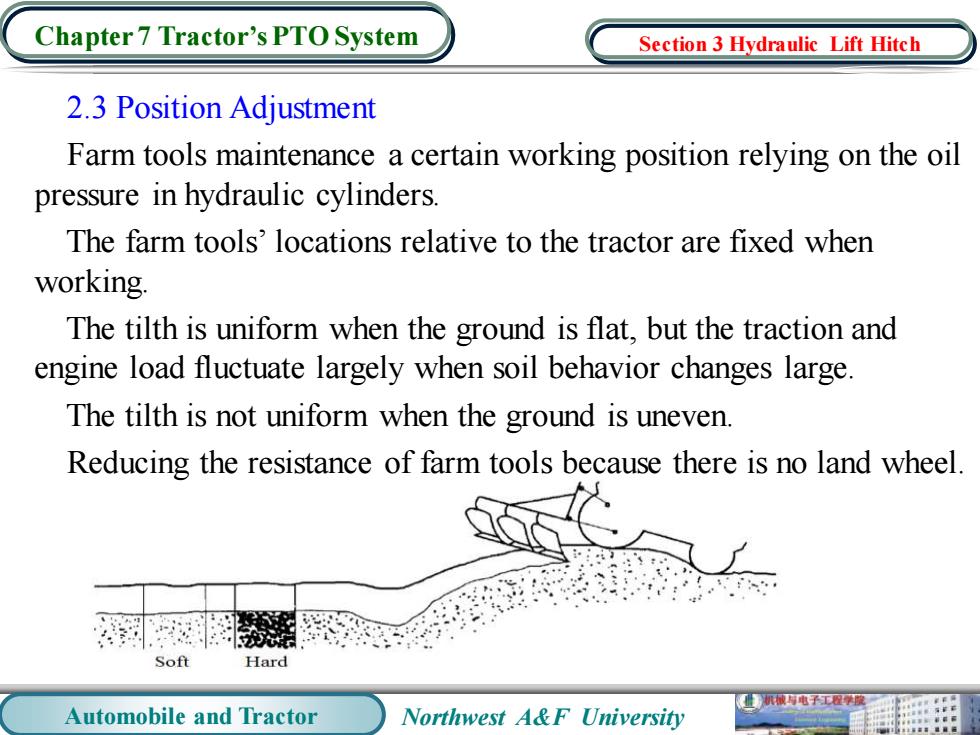

Chapter 7 Tractor's PTO System Section 3 Hydraulic Lift Hitch 2.3 Position Adjustment Farm tools maintenance a certain working position relying on the oil pressure in hydraulic cylinders. The farm tools'locations relative to the tractor are fixed when working. The tilth is uniform when the ground is flat,but the traction and engine load fluctuate largely when soil behavior changes large. The tilth is not uniform when the ground is uneven. Reducing the resistance of farm tools because there is no land wheel Soft Hard 机被电子工程度 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 7 Tractor’s PTO System 2.3 Position Adjustment Farm tools maintenance a certain working position relying on the oil pressure in hydraulic cylinders. The farm tools’ locations relative to the tractor are fixed when working. The tilth is uniform when the ground is flat, but the traction and engine load fluctuate largely when soil behavior changes large. The tilth is not uniform when the ground is uneven. Reducing the resistance of farm tools because there is no land wheel. Section 3 Hydraulic Lift Hitch
Chapter 7 Tractor's PTO System Section 3 Hydraulic Lift Hitch 3.The Components and Working Principle of Hydraulic System According to the installed positions of oil pump,hydro-cylinder and distributor in the tractor,hydraulic systems can be divided into three types:individually mounted type,semi-individually mounted type and integral type. 械电子工程学度 Automobile and Tractor Northwest A&F University
Automobile and Tractor Northwest A&F University Chapter 7 Tractor’s PTO System 3. The Components and Working Principle of Hydraulic System According to the installed positions of oil pump, hydro-cylinder and distributor in the tractor, hydraulic systems can be divided into three types: individually mounted type, semi-individually mounted type and integral type. Section 3 Hydraulic Lift Hitch
