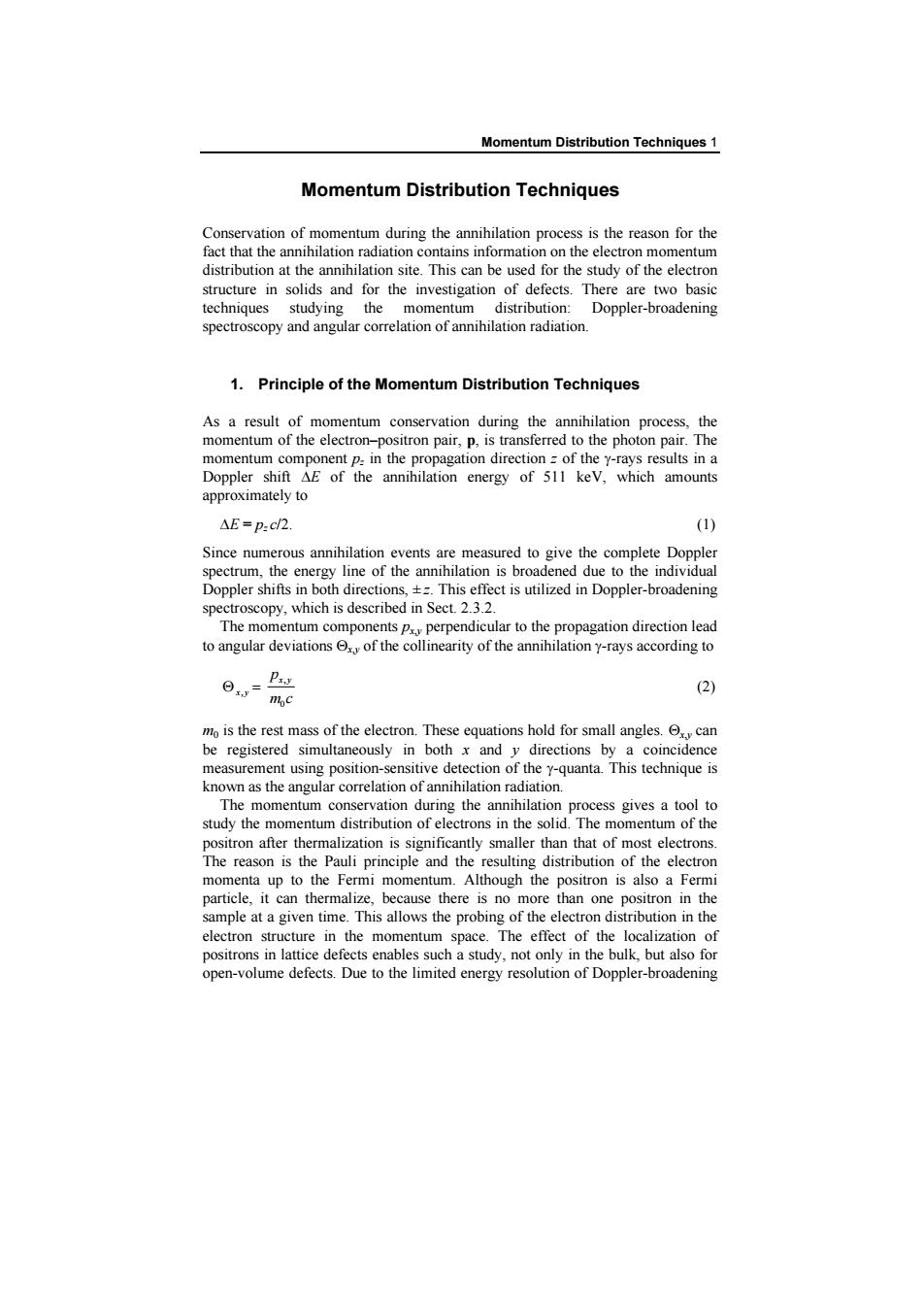

Momentum Distribution Techniques 1 Momentum Distribution Techniques Conservation of momentum during the annihilation process is the reason for the fact that the annihilation radiation contains information on the electron momentum distribution at the annihilation site.This can be used for the study of the electron structure in solids and for the investigation of defects.There are two basic techniques studying the momentum distribution:Doppler-broadening spectroscopy and angular correlation of annihilation radiation. 1.Principle of the Momentum Distribution Techniques As a result of momentum conservation during the annihilation process,the momentum of the electron-positron pair,p,is transferred to the photon pair.The momentum component p:in the propagation direction of the y-rays results in a Doppler shift AE of the annihilation energy of 511 keV,which amounts approximately to △E=p-c/2 (1) Since numerous annihilation events are measured to give the complete Doppler spectrum,the energy line of the annihilation is broadened due to the individual Doppler shifts in both directions,+=.This effect is utilized in Doppler-broadening spectroscopy,which is described in Sect.2.3.2. The momentum components p perpendicular to the propagation direction lead to angular deviations x of the collinearity of the annihilation y-rays according to Θw= (2) mc mo is the rest mass of the electron.These equations hold for small angles.can be registered simultaneously in both x and y directions by a coincidence measurement using position-sensitive detection of the y-quanta.This technique is known as the angular correlation of annihilation radiation. The momentum conservation during the annihilation process gives a tool to study the momentum distribution of electrons in the solid.The momentum of the positron after thermalization is significantly smaller than that of most electrons. The reason is the Pauli principle and the resulting distribution of the electron momenta up to the Fermi momentum.Although the positron is also a Fermi particle,it can thermalize,because there is no more than one positron in the sample at a given time.This allows the probing of the electron distribution in the electron structure in the momentum space.The effect of the localization of positrons in lattice defects enables such a study,not only in the bulk,but also for open-volume defects.Due to the limited energy resolution of Doppler-broadening
Momentum Distribution Techniques 1 Momentum Distribution Techniques Conservation of momentum during the annihilation process is the reason for the fact that the annihilation radiation contains information on the electron momentum distribution at the annihilation site. This can be used for the study of the electron structure in solids and for the investigation of defects. There are two basic techniques studying the momentum distribution: Doppler-broadening spectroscopy and angular correlation of annihilation radiation. 1. Principle of the Momentum Distribution Techniques As a result of momentum conservation during the annihilation process, the momentum of the electron–positron pair, p, is transferred to the photon pair. The momentum component pz in the propagation direction z of the g-rays results in a Doppler shift DE of the annihilation energy of 511 keV, which amounts approximately to DE = pz c/2. (1) Since numerous annihilation events are measured to give the complete Doppler spectrum, the energy line of the annihilation is broadened due to the individual Doppler shifts in both directions, ± z. This effect is utilized in Doppler-broadening spectroscopy, which is described in Sect. 2.3.2. The momentum components px,y perpendicular to the propagation direction lead to angular deviations Qx,y of the collinearity of the annihilation g-rays according to Qx y x y p m c , , = 0 (2) m0 is the rest mass of the electron. These equations hold for small angles. Qx,y can be registered simultaneously in both x and y directions by a coincidence measurement using position-sensitive detection of the g-quanta. This technique is known as the angular correlation of annihilation radiation. The momentum conservation during the annihilation process gives a tool to study the momentum distribution of electrons in the solid. The momentum of the positron after thermalization is significantly smaller than that of most electrons. The reason is the Pauli principle and the resulting distribution of the electron momenta up to the Fermi momentum. Although the positron is also a Fermi particle, it can thermalize, because there is no more than one positron in the sample at a given time. This allows the probing of the electron distribution in the electron structure in the momentum space. The effect of the localization of positrons in lattice defects enables such a study, not only in the bulk, but also for open-volume defects. Due to the limited energy resolution of Doppler-broadening

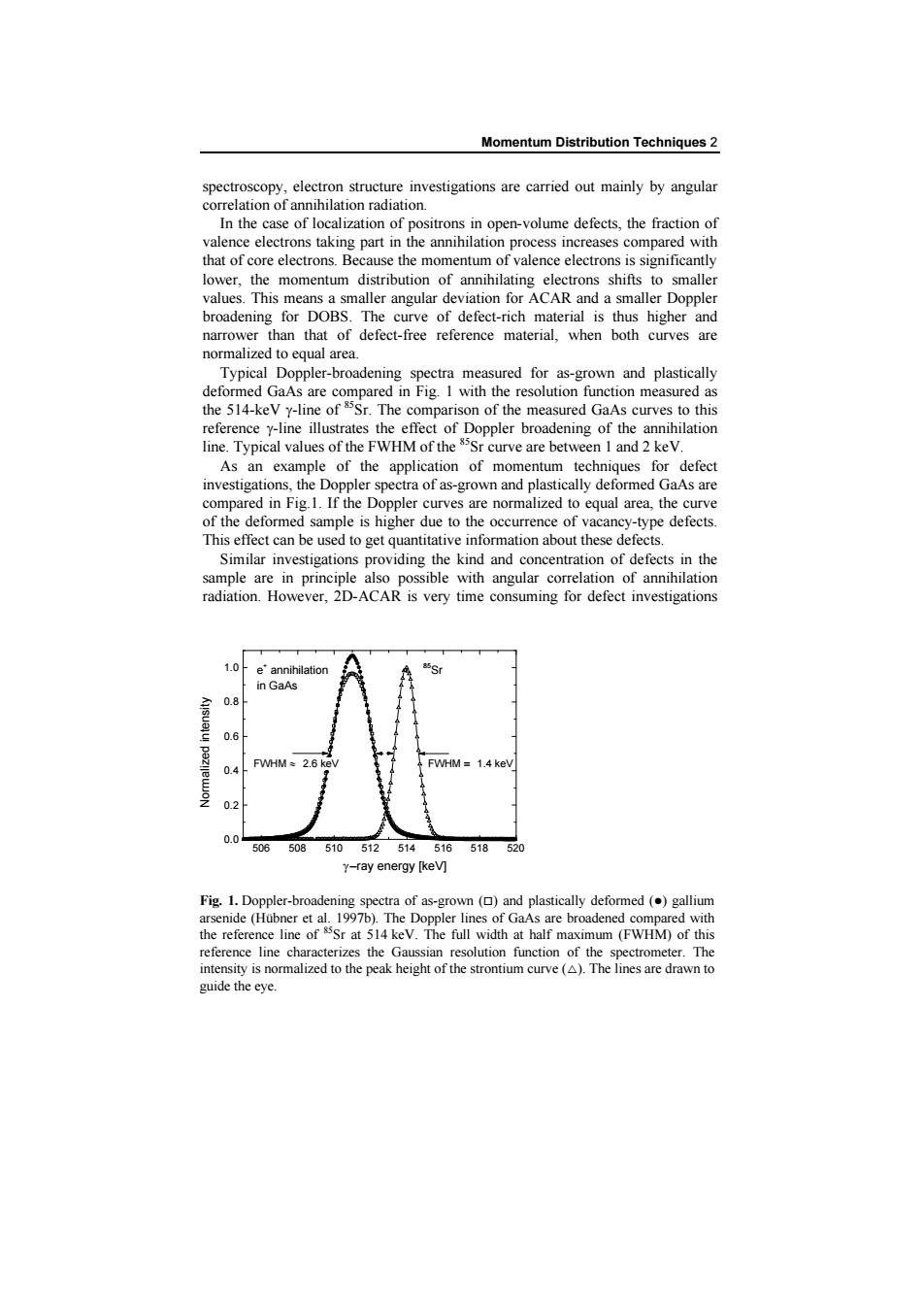

Momentum Distribution Techniques 2 spectroscopy,electron structure investigations are carried out mainly by angular correlation of annihilation radiation In the case of localization of positrons in open-volume defects,the fraction of valence electrons taking part in the annihilation process increases compared with that of core electrons.Because the momentum of valence electrons is significantly lower,the momentum distribution of annihilating electrons shifts to smaller values.This means a smaller angular deviation for ACAR and a smaller Doppler broadening for DOBS.The curve of defect-rich material is thus higher and narrower than that of defect-free reference material,when both curves are normalized to equal area. Typical Doppler-broadening spectra measured for as-grown and plastically deformed GaAs are compared in Fig.I with the resolution function measured as the 514-keV y-line of &Sr.The comparison of the measured GaAs curves to this reference y-line illustrates the effect of Doppler broadening of the annihilation line.Typical values of the FWHM of the $5Sr curve are between 1 and 2 keV. As an example of the application of momentum techniques for defect investigations,the Doppler spectra of as-grown and plastically deformed GaAs are compared in Fig.1.If the Doppler curves are normalized to equal area,the curve of the deformed sample is higher due to the occurrence of vacancy-type defects. This effect can be used to get quantitative information about these defects. Similar investigations providing the kind and concentration of defects in the sample are in principle also possible with angular correlation of annihilation radiation.However,2D-ACAR is very time consuming for defect investigations 1.0 e annihilation 85S in GaAs 0.8 0.6 FWHM=2.6 keV FWHM=14 kev 0.4 0.2 0.0 506 508 510 512514 516 518 520 y-ray energy [kev] Fig.1.Doppler-broadening spectra of as-grown (and plastically deformed ()gallium arsenide (Hubner et al.1997b).The Doppler lines of GaAs are broadened compared with the reference line of Sr at 514 keV.The full width at half maximum (FWHM)of this reference line characterizes the Gaussian resolution function of the spectrometer.The intensity is normalized to the peak height of the strontium curve (A).The lines are drawn to guide the eye
Momentum Distribution Techniques 2 spectroscopy, electron structure investigations are carried out mainly by angular correlation of annihilation radiation. In the case of localization of positrons in open-volume defects, the fraction of valence electrons taking part in the annihilation process increases compared with that of core electrons. Because the momentum of valence electrons is significantly lower, the momentum distribution of annihilating electrons shifts to smaller values. This means a smaller angular deviation for ACAR and a smaller Doppler broadening for DOBS. The curve of defect-rich material is thus higher and narrower than that of defect-free reference material, when both curves are normalized to equal area. Typical Doppler-broadening spectra measured for as-grown and plastically deformed GaAs are compared in Fig. 1 with the resolution function measured as the 514-keV g-line of 85Sr. The comparison of the measured GaAs curves to this reference g-line illustrates the effect of Doppler broadening of the annihilation line. Typical values of the FWHM of the 85Sr curve are between 1 and 2 keV. As an example of the application of momentum techniques for defect investigations, the Doppler spectra of as-grown and plastically deformed GaAs are compared in Fig.1. If the Doppler curves are normalized to equal area, the curve of the deformed sample is higher due to the occurrence of vacancy-type defects. This effect can be used to get quantitative information about these defects. Similar investigations providing the kind and concentration of defects in the sample are in principle also possible with angular correlation of annihilation radiation. However, 2D-ACAR is very time consuming for defect investigations 506 508 510 512 514 516 518 520 0.0 0.2 0.4 0.6 0.8 1.0 e + annihilation in GaAs FWHM » 2.6 keV 85Sr FWHM = 1.4 keV Normalized intensity g–ray energy [keV] Fig. 1. Doppler-broadening spectra of as-grown (®) and plastically deformed (l) gallium arsenide (Hübner et al. 1997b). The Doppler lines of GaAs are broadened compared with the reference line of 85Sr at 514 keV. The full width at half maximum (FWHM) of this reference line characterizes the Gaussian resolution function of the spectrometer. The intensity is normalized to the peak height of the strontium curve (r). The lines are drawn to guide the eye
Momentum Distribution Techniques 3 and cannot be carried out with positron lifetime spectroscopy at the same time. ACAR has thus rarely been used for defect studies in semiconductors. An advantage of the momentum techniques is their sensitivity to the chemical environment of the annihilation site,which is higher compared with positron lifetime spectroscopy.This is because the momentum distribution information is more influenced by the chemical surroundings than the electron density,which is the basis of the positron lifetime technique. 2.Measurement of Annihilation-Line Doppler Broadening The Doppler-broadening technique requires an energy-dispersive system. Compared with the angular correlation technique,a compact and relatively simple setup is possible and,thus,such spectrometers are used in almost all positron laboratories. 2.1 Experimental Setup The energy broadening of the annihilation line described above is measured by a high-resolution energy-dispersive detector system(Fig.2).Liquid-nitrogen-cooled pure Ge crystals of high efficiency (about 20%)are used.Under the applied high voltage of several kV,the annihilation photons cause a charge separation that is converted by a preamplifier into an electrical pulse.Its amplitude is a measure of the photon energy and can be registered after main amplification in a multi- channel analyzer(MCA).A digital peak-stabilizing system as part of the MCA allows the long-term collection of several million counts.The time of the 2Na source Sample e+ Ge Stabilizer MCA e Detector yb八Y ADC -Memory 511 keV 511 keV LN Fig.2.Experimental arrangement of Doppler-broadening spectroscopy.The energy distribution of the annihilation line is measured with a liquid nitrogen (LN2)cooled germanium detector.The signal of the pure-Ge detector is processed by a preamplifier integrated in the detector.A spectroscopy amplifier provides the necessary pulses for the subsequent digitally stabilized analog-digital converter (ADC).The event is stored in the memory of the multi-channel analyzer(MCA)
Momentum Distribution Techniques 3 and cannot be carried out with positron lifetime spectroscopy at the same time. ACAR has thus rarely been used for defect studies in semiconductors. An advantage of the momentum techniques is their sensitivity to the chemical environment of the annihilation site, which is higher compared with positron lifetime spectroscopy. This is because the momentum distribution information is more influenced by the chemical surroundings than the electron density, which is the basis of the positron lifetime technique. 2. Measurement of Annihilation-Line Doppler Broadening The Doppler-broadening technique requires an energy-dispersive system. Compared with the angular correlation technique, a compact and relatively simple setup is possible and, thus, such spectrometers are used in almost all positron laboratories. 2.1 Experimental Setup The energy broadening of the annihilation line described above is measured by a high-resolution energy-dispersive detector system (Fig. 2). Liquid-nitrogen-cooled pure Ge crystals of high efficiency (about 20 %) are used. Under the applied high voltage of several kV, the annihilation photons cause a charge separation that is converted by a preamplifier into an electrical pulse. Its amplitude is a measure of the photon energy and can be registered after main amplification in a multichannel analyzer (MCA). A digital peak-stabilizing system as part of the MCA allows the long-term collection of several million counts. The time of the Ge Detector MCA ADC Stabilizer Memory LN2 22Na source Sample + g - g Fig. 2. Experimental arrangement of Doppler-broadening spectroscopy. The energy distribution of the annihilation line is measured with a liquid nitrogen (LN2 ) cooled germanium detector. The signal of the pure-Ge detector is processed by a preamplifier integrated in the detector. A spectroscopy amplifier provides the necessary pulses for the subsequent digitally stabilized analog–digital converter (ADC). The event is stored in the memory of the multi-channel analyzer (MCA)
Momentum Distribution Techniques 4 measurement is comparable to the collection time of a positron lifetime spectrum Both techniques can easily be performed at the same time because the Ge detector should be separated sufficiently from the sample in order to avoid pile-up effects in the detector system. The background can be drastically reduced by the application of the Doppler- broadening coincidence technique,which registers both y-quanta.This technique is especially important for the measurement of the high-momentum part as far as 9 keV away from the center of the annihilation line.The experimental setup for this technique is shown in Fig.3.The second annihilation y-quantum,being almost collinear to the primarily monitored quantum,can be detected in a second Ge detector.Alternatively,a cheaper scintillator/photomultiplier detector may be used.The main advantage of the system with two Ge detectors is the improvement of the energy resolution,ideally by a factor of2 (MacDonald et al.1978). The coincident y-quantum serves to reduce the background arising mainly from the 1.27-MeV y-quanta of the B*-decay in the source.The background can be suppressed by at least two orders of magnitude in this way.The first experimental realizations of such a coincidence setup were reported by Lynn et al.(1977). MacDonald et al.(1978),and Troev et al.(1979).The first application of this technique to semiconductors was given by Iwase et al.(1985b),who studied the lateral distribution of grown-in defects in an InP wafer.A major step forward in the evaluation of coincidence spectra was the combination with theoretical 22Na● source Sample Ge @日牛 Ge detector A detector B y4n白几y 511 keV 511 keV LN LN ADC ADC Coincidence Memory MCA Fig.3.Coincidence setup for the measurement of background-reduced Doppler-broadening spectra.Two liquid nitrogen(LN2)cooled germanium detectors are used for the registration of the collinear coincidence y-quanta (ADC-analog-digital converter,MCA-multi- channel analyzer)
Momentum Distribution Techniques 4 measurement is comparable to the collection time of a positron lifetime spectrum. Both techniques can easily be performed at the same time because the Ge detector should be separated sufficiently from the sample in order to avoid pile-up effects in the detector system. The background can be drastically reduced by the application of the Dopplerbroadening coincidence technique, which registers both g-quanta. This technique is especially important for the measurement of the high-momentum part as far as 9 keV away from the center of the annihilation line. The experimental setup for this technique is shown in Fig. 3. The second annihilation g-quantum, being almost collinear to the primarily monitored quantum, can be detected in a second Ge detector. Alternatively, a cheaper scintillator/photomultiplier detector may be used. The main advantage of the system with two Ge detectors is the improvement of the energy resolution, ideally by a factor of 2 (MacDonald et al. 1978). The coincident g-quantum serves to reduce the background arising mainly from the 1.27-MeV g-quanta of the b + -decay in the source. The background can be suppressed by at least two orders of magnitude in this way. The first experimental realizations of such a coincidence setup were reported by Lynn et al. (1977), MacDonald et al. (1978), and Troev et al. (1979). The first application of this technique to semiconductors was given by Iwase et al. (1985b), who studied the lateral distribution of grown-in defects in an InP wafer. A major step forward in the evaluation of coincidence spectra was the combination with theoretical Fig. 3. Coincidence setup for the measurement of background-reduced Doppler-broadening spectra. Two liquid nitrogen (LN2 ) cooled germanium detectors are used for the registration of the collinear coincidence g-quanta (ADC—analog–digital converter, MCA—multichannel analyzer)

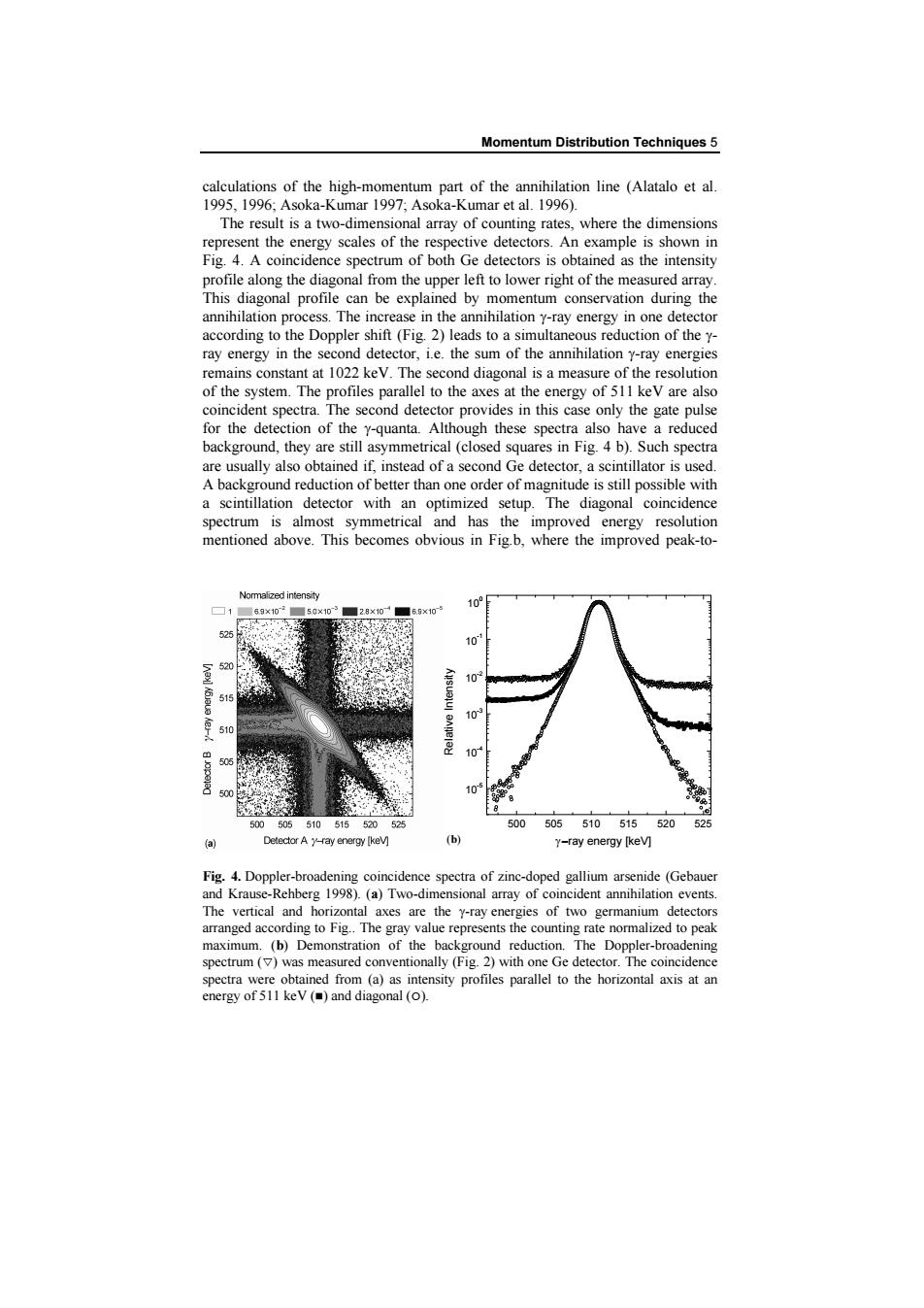

Momentum Distribution Techniques 5 calculations of the high-momentum part of the annihilation line (Alatalo et al. 1995,1996;Asoka-Kumar 1997;Asoka-Kumar et al.1996). The result is a two-dimensional array of counting rates,where the dimensions represent the energy scales of the respective detectors.An example is shown in Fig.4.A coincidence spectrum of both Ge detectors is obtained as the intensity profile along the diagonal from the upper left to lower right of the measured array This diagonal profile can be explained by momentum conservation during the annihilation process.The increase in the annihilation y-ray energy in one detector according to the Doppler shift(Fig.2)leads to a simultaneous reduction of the y- ray energy in the second detector,i.e.the sum of the annihilation y-ray energies remains constant at 1022 keV.The second diagonal is a measure of the resolution of the system.The profiles parallel to the axes at the energy of 511 keV are also coincident spectra.The second detector provides in this case only the gate pulse for the detection of the y-quanta.Although these spectra also have a reduced background,they are still asymmetrical (closed squares in Fig.4 b).Such spectra are usually also obtained if,instead of a second Ge detector,a scintillator is used A background reduction of better than one order of magnitude is still possible with a scintillation detector with an optimized setup.The diagonal coincidence spectrum is almost symmetrical and has the improved energy resolution mentioned above.This becomes obvious in Fig.b,where the improved peak-to- Normalized intensity 10 1 83×10 50×102 28×10 610 10 520 515 0 分 510 10 500505.510515520525 500505510515520 525 Detector A y-ray energy [kev] (b) y-ray energy [kev] Fig.4.Doppler-broadening coincidence spectra of zinc-doped gallium arsenide (Gebauer and Krause-Rehberg 1998).(a)Two-dimensional array of coincident annihilation events. The vertical and horizontal axes are the y-ray energies of two germanium detectors arranged according to Fig..The gray value represents the counting rate normalized to peak maximum.(b)Demonstration of the background reduction.The Doppler-broadening spectrum (v)was measured conventionally (Fig.2)with one Ge detector.The coincidence spectra were obtained from (a)as intensity profiles parallel to the horizontal axis at an energy of 511 keV ()and diagonal (o)
Momentum Distribution Techniques 5 calculations of the high-momentum part of the annihilation line (Alatalo et al. 1995, 1996; Asoka-Kumar 1997; Asoka-Kumar et al. 1996). The result is a two-dimensional array of counting rates, where the dimensions represent the energy scales of the respective detectors. An example is shown in Fig. 4. A coincidence spectrum of both Ge detectors is obtained as the intensity profile along the diagonal from the upper left to lower right of the measured array. This diagonal profile can be explained by momentum conservation during the annihilation process. The increase in the annihilation g-ray energy in one detector according to the Doppler shift (Fig. 2) leads to a simultaneous reduction of the gray energy in the second detector, i.e. the sum of the annihilation g-ray energies remains constant at 1022 keV. The second diagonal is a measure of the resolution of the system. The profiles parallel to the axes at the energy of 511 keV are also coincident spectra. The second detector provides in this case only the gate pulse for the detection of the g-quanta. Although these spectra also have a reduced background, they are still asymmetrical (closed squares in Fig. 4 b). Such spectra are usually also obtained if, instead of a second Ge detector, a scintillator is used. A background reduction of better than one order of magnitude is still possible with a scintillation detector with an optimized setup. The diagonal coincidence spectrum is almost symmetrical and has the improved energy resolution mentioned above. This becomes obvious in Fig.b, where the improved peak-to- 500 505 510 515 520 525 10-5 10-4 10-3 10-2 10-1 100 (b)Relative Intensity g–ray energy [keV] Fig. 4. Doppler-broadening coincidence spectra of zinc-doped gallium arsenide (Gebauer and Krause-Rehberg 1998). (a) Two-dimensional array of coincident annihilation events. The vertical and horizontal axes are the g-ray energies of two germanium detectors arranged according to Fig.. The gray value represents the counting rate normalized to peak maximum. (b) Demonstration of the background reduction. The Doppler-broadening spectrum (s) was measured conventionally (Fig. 2) with one Ge detector. The coincidence spectra were obtained from (a) as intensity profiles parallel to the horizontal axis at an energy of 511 keV (n) and diagonal (°)
