6.1 Basic Concepts of sequence Logic Circuits 1.Differences of Combinational Circuits and Sequential Circuits(区别) *Combinational Circuits:Output of Circuits is at all times dependent on the input,Having nothing to do with the former states. *Sequential Circuits:The output level depends not only on the present value of inputs,but also on past inputs Stored by Flip-Flop ) 2.The structure of Sequential Circuits(组成) Combinational Circuits Storage Circuits

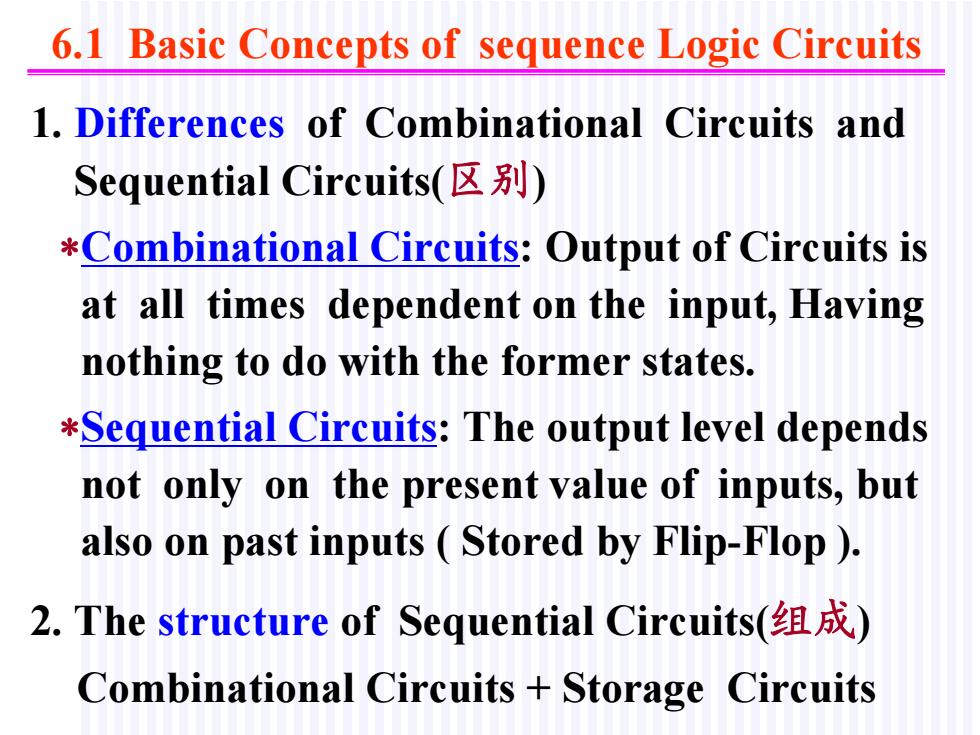

6.1 Basic Concepts of sequence Logic Circuits 1. Differences of Combinational Circuits and Sequential Circuits(区别 ) Combinational Circuits: Output of Circuits is at all times dependent on the input, Having nothing to do with the former states. Sequential Circuits: The output level depends not only on the present value of inputs, but also on past inputs ( Stored by Flip-Flop ). 2. The structure of Sequential Circuits(组成 ) Combinational Circuits + Storage Circuits
3.nput-output relation(输入-输出关系) *Output Equation-输出方程（电路的输出） O=f (I,S) Combinational Circuits *Driving Equation 组合电路 驱动方程：各FF的输入 S E-f2(I,S) Storage Circuit m 存储电路 E *State Equation CP 状态方程：各个FF的输出 Block diagram of Sequential circuits S-f(E,S")
3. Input-output relation (输入－输出关系) Output Equation-输出方程(电路的输出) Driving Equation 驱动方程:各FF的输入 State Equation 状态方程:各个FF的输出 Storage Circuit 存储电路 E1 EK S1 Sm O1 Oj I1 Ii Combinational Circuits 组合电路 Block diagram of Sequential circuits CP O=f1 (I, S) E=f2 (I, S) S=f3 (E, Sn)
4.Category of Sequential Circuits(分类) According to the relationship among output O, present state Sm and input I(各变量的关系) *Moore Model(摩尔型电路)：O=fi(S") *Mealy Model(米里型电路)：O=f2(I,S") According to the clock pulse that control the sequential states(CP对各个触发器的控制) *Synchronous:All FFs in the storage circuits are controlled by a uniform CP source. 同步时序电路：各个FF受同一个CP控制. Asynchronous:No such a uniform CP source. 异步时序电路：各F℉没有统一的CP源

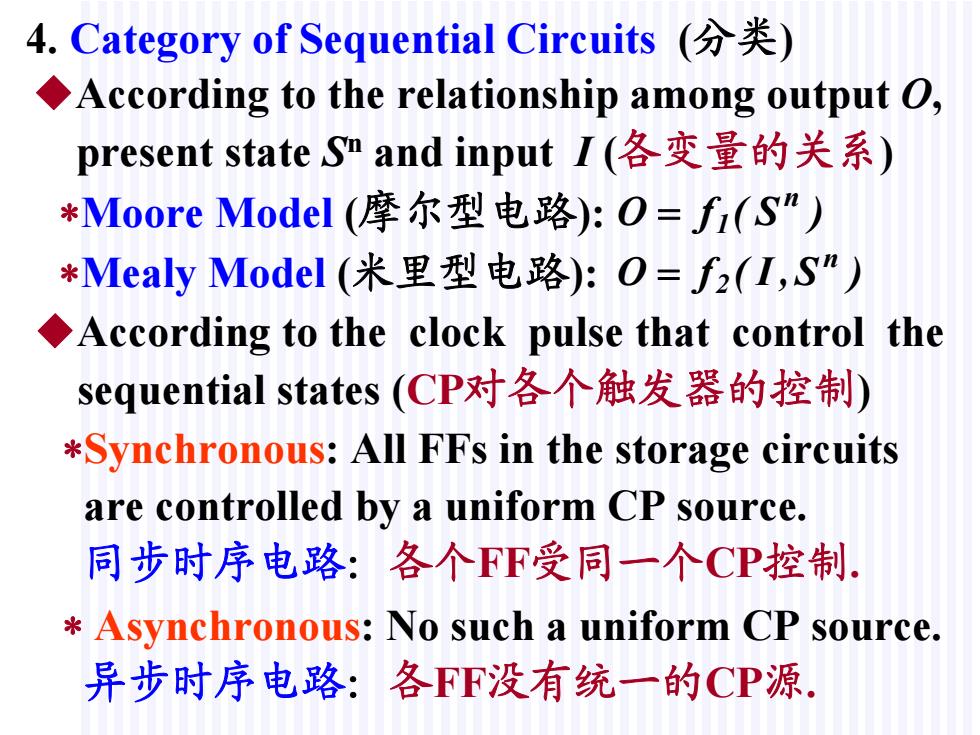

4. Category of Sequential Circuits (分类) ◆According to the relationship among output O, present state Sn and input I (各变量的关系) Moore Model (摩尔型电路): )S(fO n 1 Mealy Model (米里型电路): )S,I(fO n 2 ◆According to the clock pulse that control the sequential states (CP对各个触发器的控制) Synchronous: All FFs in the storage circuits are controlled by a uniform CP source. 同步时序电路：各个FF受同一个CP控制. Asynchronous: No such a uniform CP source. 异步时序电路：各FF没有统一的CP源
6.Description of logic functions(逻辑功能描述) ◆L0 gic Equation(逻辑方程组) *Output Equation(输出方程) *Driving Equation(驱动方程) *State Equation(状态方程) ◆State transition table(状态表) ◆State diagram(状态图) ◆Timing Diagram/Waveform(时序图/波形图)

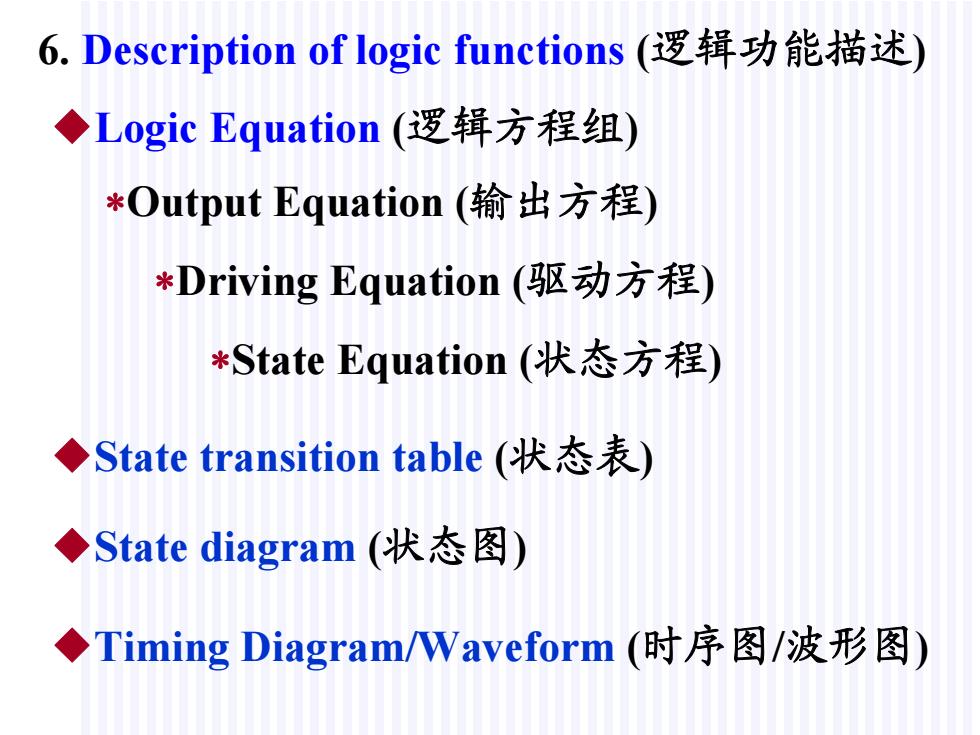

6. Description of logic functions (逻辑功能描述) ◆Logic Equation (逻辑方程组) Output Equation (输出方程) Driving Equation (驱动方程) State Equation (状态方程) ◆State transition table (状态表) ◆State diagram (状态图) ◆Timing Diagram/Waveform (时序图/波形图)
