上海交通大学：《微生物学 Microbiology》课程教学资源（双语课件）Lecture 18.1 Diversity of Eucaryotic Microbe（Eukaryotic Microorganisms）Eukaryotic cell structure function and genetics、Eukaryotic Microbial Diversity

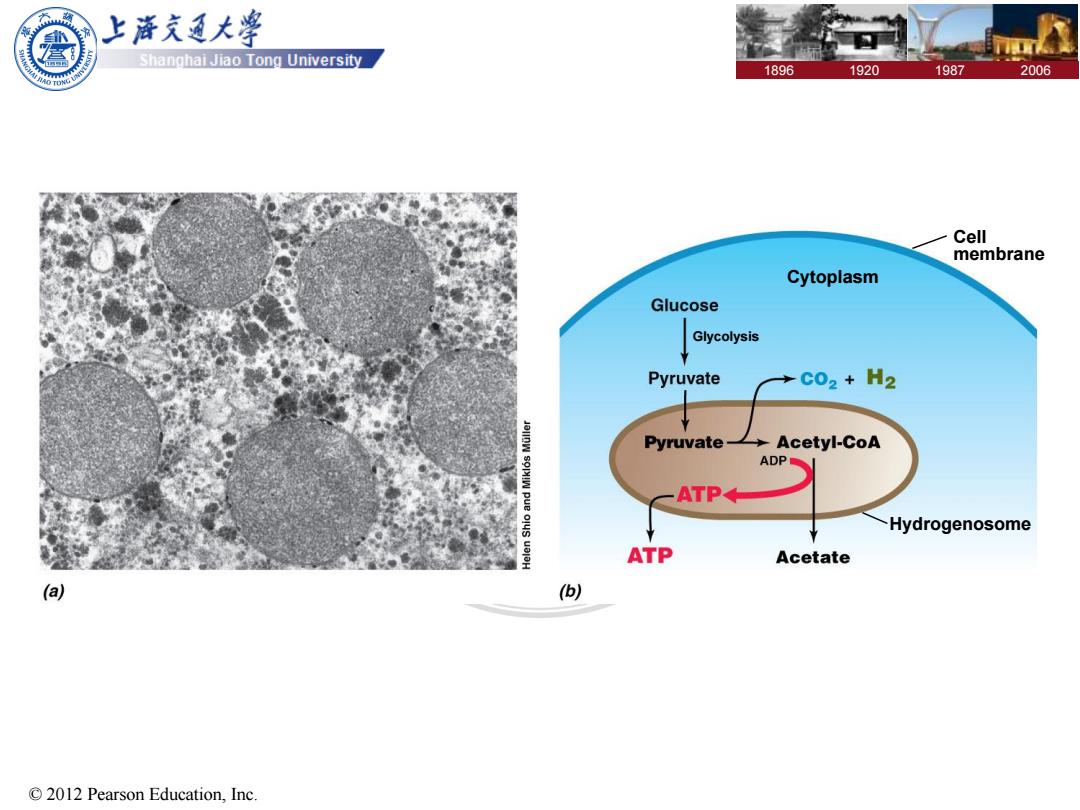

泽充通大学 Shanghai Jiao Tong University 1896 1920 1987 2006 Cell membrane Cytoplasm Glucose Glycolysis Pyruvate C02+H2 Pyruvate-Acetyl-CoA ADP ATP◆ Hydrogenosome ATP Acetate (a) (b) 2012 Pearson Education,Inc

1896 1920 1987 2006 Cell membrane Cytoplasm Hydrogenosome Glycolysis © 2012 Pearson Education, Inc

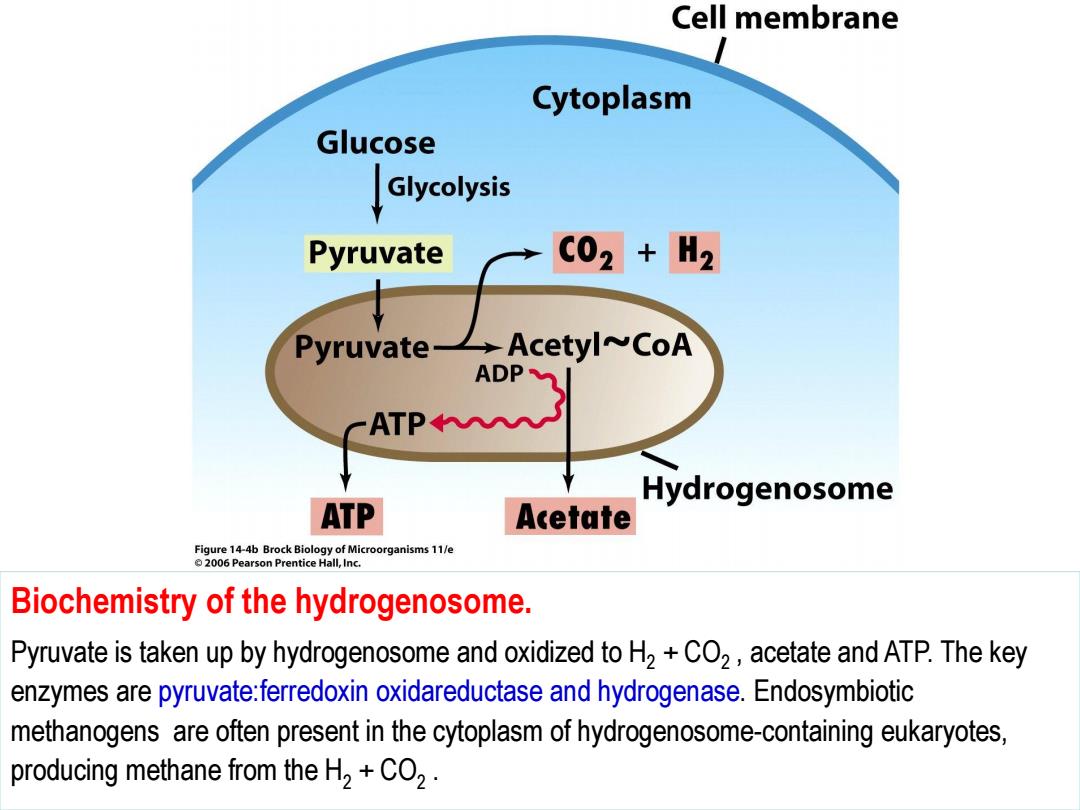

Cell membrane Cytoplasm Glucose Glycolysis Pyruvate C02+H2 Pyruvate- Acetyl~CoA ADP ATP Hydrogenosome ATP Acetate Figure 14-4b Brock Biology of Microorganisms 11/e 2006 Pearson Prentice Hall,Inc. Biochemistry of the hydrogenosome. Pyruvate is taken up by hydrogenosome and oxidized to H2+CO2,acetate and ATP.The key enzymes are pyruvate:ferredoxin oxidareductase and hydrogenase.Endosymbiotic methanogens are often present in the cytoplasm of hydrogenosome-containing eukaryotes, producing methane from the H2 +CO2

Biochemistry of the hydrogenosome. Pyruvate is taken up by hydrogenosome and oxidized to H2 + CO2 , acetate and ATP. The key enzymes are pyruvate:ferredoxin oxidareductase and hydrogenase. Endosymbiotic methanogens are often present in the cytoplasm of hydrogenosome-containing eukaryotes, producing methane from the H2 + CO2

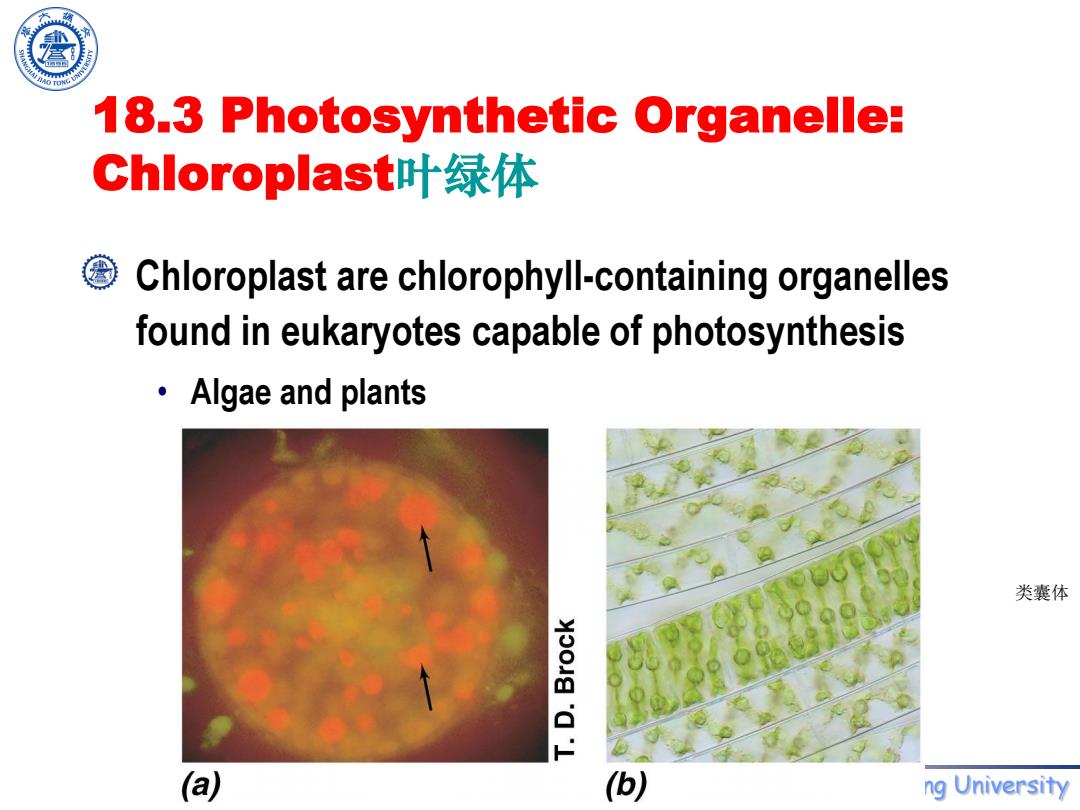

18.3 Photosynthetic Organelle: Chloroplast叶绿体 Chloroplast are chlorophyll-containing organelles found in eukaryotes capable of photosynthesis ·Algae and plants 类囊体 (a) (b) ng University

Chen Feng, Shanghai Jiao Tong University 18.3 Photosynthetic Organelle: Chloroplast叶绿体 Chloroplast are chlorophyll-containing organelles found in eukaryotes capable of photosynthesis • Algae and plants 类囊体

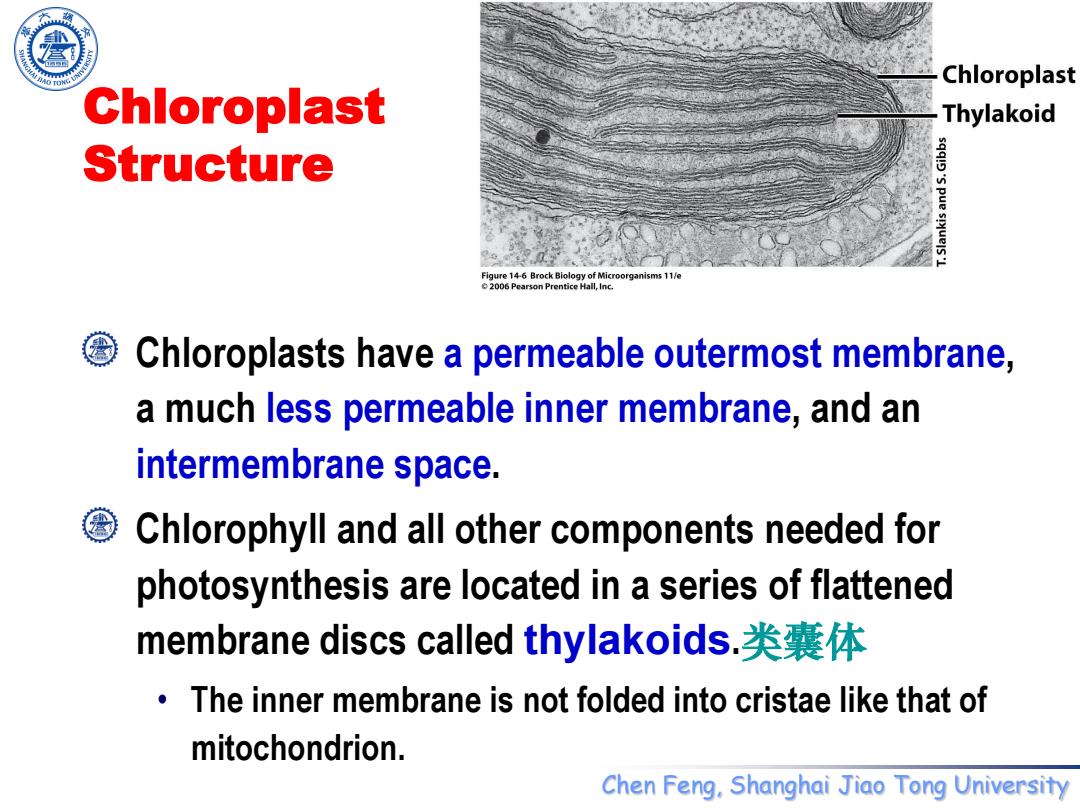

Chloroplast Chloroplast Thylakoid Structure pue Figure 14-6 Brock Biology of Microorganisms 11/e 2006 Pearson Prentice Hall,Inc. Chloroplasts have a permeable outermost membrane, a much less permeable inner membrane,and an intermembrane space. Chlorophyll and all other components needed for photosynthesis are located in a series of flattened membrane discs called thylakoids.类囊体 The inner membrane is not folded into cristae like that of mitochondrion. Chen Feng.Shanghai Jiao Tong University

Chen Feng, Shanghai Jiao Tong University Chloroplast Structure Chloroplasts have a permeable outermost membrane, a much less permeable inner membrane, and an intermembrane space. Chlorophyll and all other components needed for photosynthesis are located in a series of flattened membrane discs called thylakoids.类囊体 • The inner membrane is not folded into cristae like that of mitochondrion

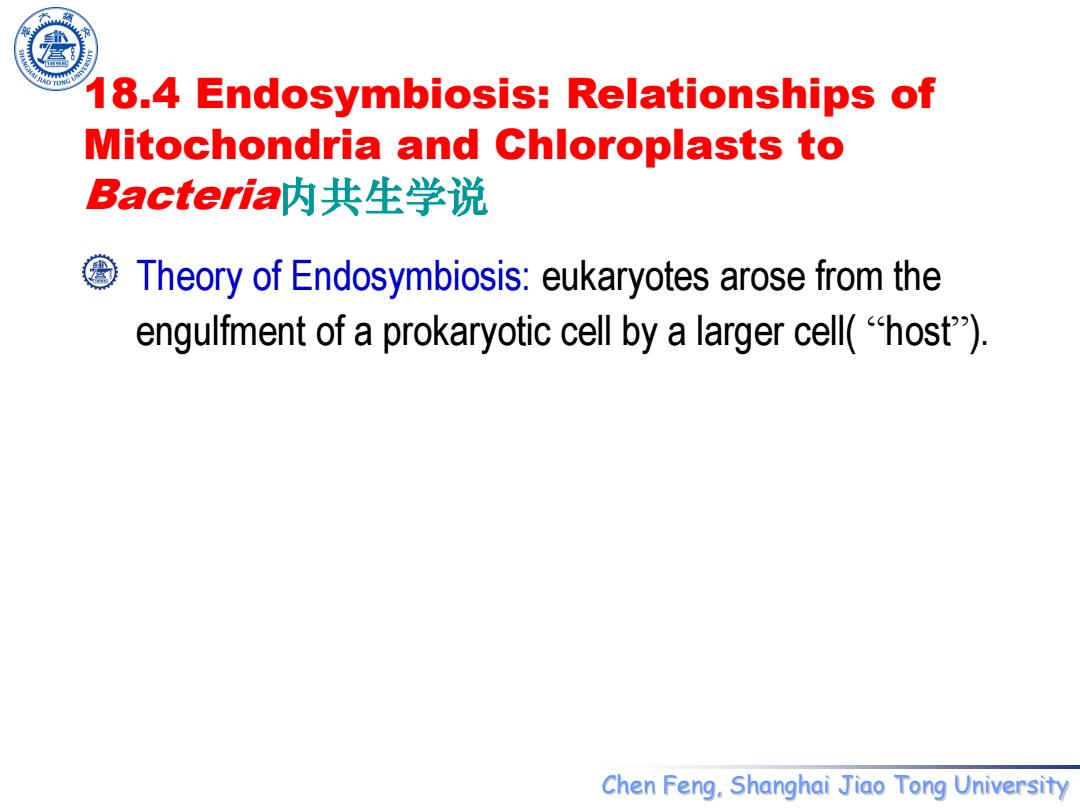

18.4 Endosymbiosis:Relationships of Mitochondria and Chloroplasts to Bacteria内共生学说 Theory of Endosymbiosis:eukaryotes arose from the engulfment of a prokaryotic cell by a larger cell(host) Chen Feng.Shanghai Jiao Tong University

Chen Feng, Shanghai Jiao Tong University 18.4 Endosymbiosis: Relationships of Mitochondria and Chloroplasts to Bacteria内共生学说 Theory of Endosymbiosis: eukaryotes arose from the engulfment of a prokaryotic cell by a larger cell( “host”)
