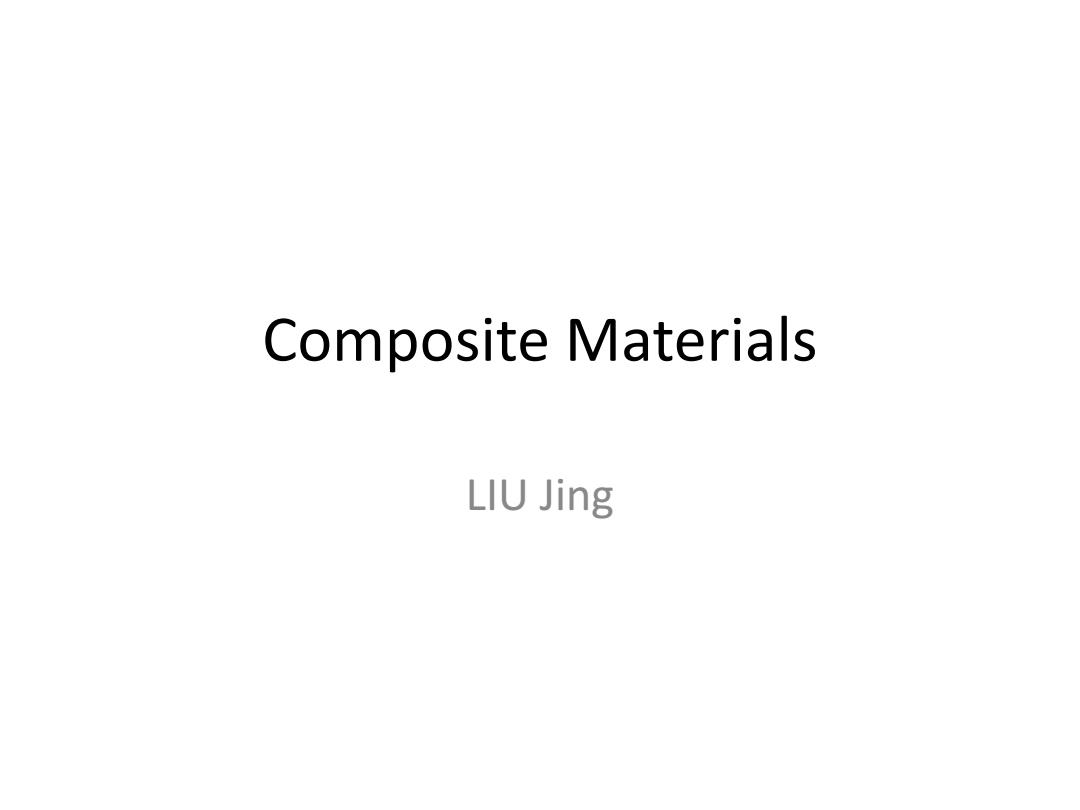

Composite Materials LIU Jing
Composite Materials LIU Jing
Reinforcement The mechanical properties of composites are a function of the type,shape and dimensions of the reinforcement. One of the dimensions of the reinforcement is usually small, a few microns,and the geometry of the reinforcement is one of the major factors in determining its effectiveness. Reinforcements may be fibrous,particulate or laminar
Reinforcement • The mechanical properties of composites are a function of the type, shape and dimensions of the reinforcement. • One of the dimensions of the reinforcement is usually small, a few microns, and the geometry of the reinforcement is one of the major factors in determining its effectiveness. • Reinforcements may be fibrous, particulate or laminar
Fibrous Reinforcement A fibrous reinforcement is characterized by its length (larger than 100 um)being much greater than its cross-sectional diameter, however the ratio of length to cross sectional area (aspect ratio) can vary widely (larger than 10). Fibers can be amorphous,polycrystalline,or single crystalline. 0 Long fibers with high aspect ratios give rise to continuous fiber reinforced composites. Discontinuous fiber composites care made using short fibers of low aspect ratio,which can be arranged in a random or ordered manner
Fibrous Reinforcement • A fibrous reinforcement is characterized by its length (larger than 100 μm) being much greater than its cross-sectional diameter, however the ratio of length to cross sectional area (aspect ratio) can vary widely (larger than 10). • Fibers can be amorphous, polycrystalline, or single crystalline. • Long fibers with high aspect ratios give rise to continuous fiber reinforced composites. • Discontinuous fiber composites care made using short fibers of low aspect ratio, which can be arranged in a random or ordered manner
Fibrous Reinforcement Continuous fiber reinforced polymer matrix composite
Fibrous Reinforcement Continuous fiber reinforced polymer matrix composite
Fibrous Reinforcement Whiskers are elongated single crystalline particles with diameter usually less than 1 um and aspect ratios that can be as low as 10. Owing to the very small dimensions and single crystalline nature,whiskers possess a high degree of structural and chemical perfection which give them an extremely high strength,elastic modulus and elongation at break. Because of the low aspect ratios,whiskers are not as effective as continuous fibers as reinforcing agents
Fibrous Reinforcement • Whiskers are elongated single crystalline particles with diameter usually less than 1 μm and aspect ratios that can be as low as 10. • Owing to the very small dimensions and single crystalline nature, whiskers possess a high degree of structural and chemical perfection which give them an extremely high strength, elastic modulus and elongation at break. • Because of the low aspect ratios, whiskers are not as effective as continuous fibers as reinforcing agents
