先进材料疑固实验室 Metals processed by casting Laboratory of Advanced Materials Solidification Sand casting-60% Investment casting-7% Die casting -9% Permanent mold casting -11% Centrifugal casting-7% Shell mold casting-6% ory of vanced Materials Sol 上浒充通大学 SHANGHAI JIAO TONG UNIVERSITY
Metals processed by casting Sand casting – 60% Investment casting – 7% Die casting – 9% Permanent mold casting – 11% Centrifugal casting – 7% Shell mold casting – 6%
先进材料疑固实验室 Laboratory of Advanced Materials Solidification Major Casting Processes Sand casting Investment casting Lost-foam casting ⊕ Gravity die casting(permanent mould casting) ⊕ Low pressure die casting High pressure die casting ⊕ Centrifugal casting y of vanced Materials Sollc 熟 上游充通大学 SHANGHAI JIAO TONG UNIVERSITY
Major Casting Processes Sand casting Investment casting Lost-foam casting Gravity die casting (permanent mould casting) Low pressure die casting High pressure die casting Centrifugal casting
先进材料疑固实验室 Laboratory of Advanced Materials Solidification 1896 1920 1987 2006 SAND CASTING d Materials Sete 上浒充通大学 SHANGHAI JIAO TONG UNIVERSITY
1896 1920 1987 2006 SAND CASTING

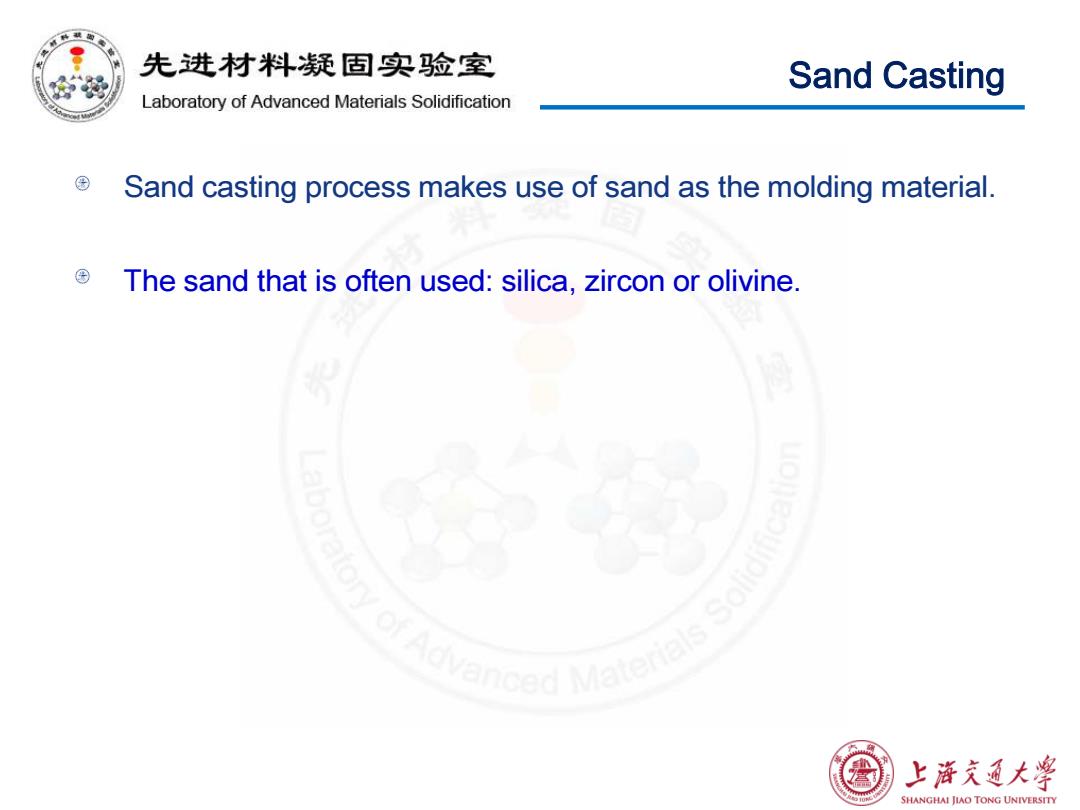

先进材料疑固实验室 Sand Casting Laboratory of Advanced Materials Solidification Sand casting process makes use of sand as the molding material. The sand that is often used:silica,zircon or olivine. ory of vanced Materials Solidil 上浒充通大学 SHANGHAI JIAO TONG UNIVERSITY
Sand Casting Sand casting process makes use of sand as the molding material. The sand that is often used: silica, zircon or olivine
先进材料疑固实验室 Sand Casting Laboratory of Advanced Materials Solidification UPPER COMPLETED MOLD CASTING- HALF BROKEN OPEN TO REVEAL INTERIOR BAKED SAND SEGMENT MOLD SECTION A LOWER MOLD HALF MOLD SECTION B FIGURE 1-4 Sketch of sand-casting process as used in manufacture of a houschold radiator (From Taylor,Flemings,and Wulf.) 熟 上海充通大￥ SHANGHAI JIAO TONG UNIVERSITY
Sand Casting
