Basic requirements for dimensioning 标注尺寸的基本要求 1.Basic requirements for dimensioning标注尺寸的基本要求 Correctness,integrity,clarity,reasonableness. 正确、完整、清晰、合理。 Correctness: There should be no mistake with all dimensions and the national standard (GB)should be observed. 正确： 尺寸无误，注法符合国标规定。 Integrity The dimension must fully define the size of the part and the relative locations of individual components.It can not be skipped,nor repeated 完整： 所注尺寸必须能完整确定零件的形状大小及位置，不遗漏，不重复 Clarity The arrangement of the dimensions should be clear and clean. 清晰： 尺寸布局清晰，便于看图。 Reasonableness:The dimensions must be marked according to the requirements of design,manufacture and test. 合理： 所注尺寸要符合设计、制造和检验等要求。 请点击鼠际左键显示后面内
2

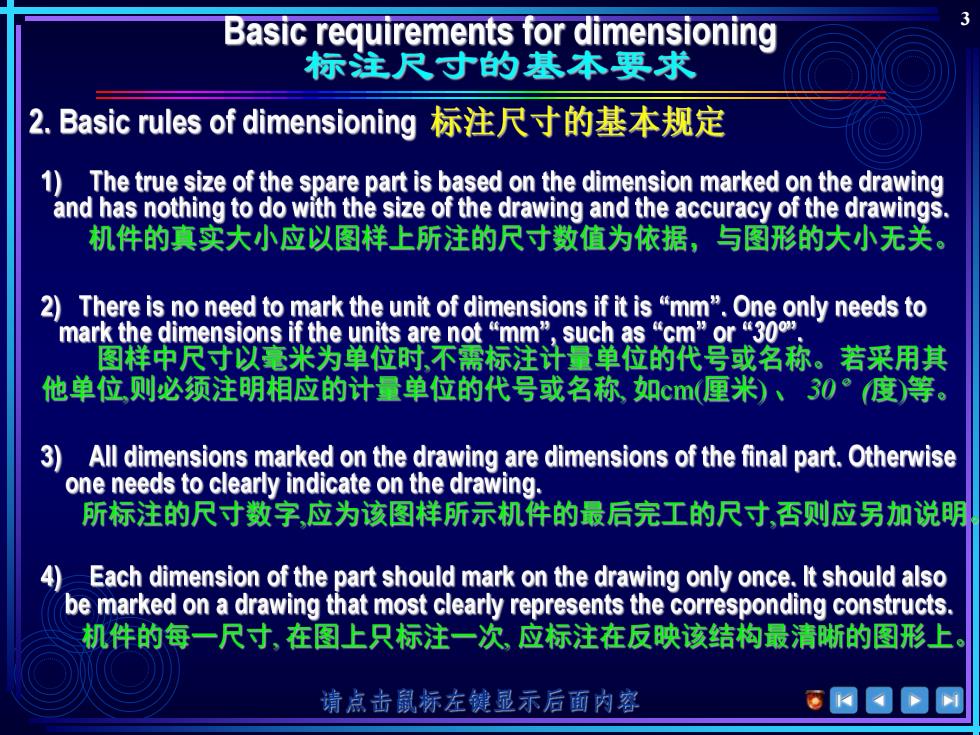

Basic requirements for dimensioning 标注尺寸的基本要求 2. Basic rules of dimensioning标注尺寸的基本规定 1)The true size of the spare part is based on the dimension marked on the drawing and has nothing to do with the size of the drawing and the accuracy of the drawings. 机件的真实大小应以图样上所注的尺寸数值为依据，与图形的大小无关。 2)There is no need to mark the unit of dimensions if it is "mm".One only needs to mark the dimensions if the units are not“mm”,such as“cm”or30 图样中尺寸以毫米为单位时不需标注计量单位的代号或名称。若采用其 他单位则必须注明相应的计量单位的代号或名称如cm(厘米)、30°度)等。 3)All dimensions marked on the drawing are dimensions of the final part.Otherwise one needs to clearly indicate on the drawing. 所标注的尺寸数字应为该图样所示机件的最后完工的尺寸否则应另加说明 4)Each dimension of the part should mark on the drawing only once.It should also be marked on a drawing that most clearly represents the corresponding constructs. 机件的每一尺寸，在图上只标注一次应标注在反映该结构最清晰的图形上 请点击鼠标左键显示后面内容
3
Basic requirements for dimensioning 标注尺寸的基本要求 3.Dimension construction尺寸的组成 28 -1b 约46 18 44 -2~3mm Orientation of linear dimensions 1 Dimension text should be marked above or left the dimension line. All linear dimensions should be marked heading upwards for horizontal Dimension dimensions,heading towards the left for vertical dimensions. text 线性尺寸数字注在尺寸线上方或左方，字头向上或左，垂直尺寸线。 尺寸数字 2 Dimension text can also be entered in the breaking space of the dimension line. 尺寸数字不得被图线穿过，应中断图线或将其引出填写。 3 When there is 30for horizontal line,dimension text can also be placed somewhere else using a leader line. 尽量避免在与垂直方向成30°范围注尺寸，当无法避免时，可引出注 请点击鼠标左键显示后面的察 eWP国山
4 38 3. Φ18 7 23mm 1b 约 4b 44 28 44 30 Extension line 1 24 8 9999 99 9 Dimension text Φ18 38 22 Orientation of linear dimensions
Dimensioning of basic body,cutting and interpenetration bodies 常见基本体、截勿体及相贯体的尺寸注法 1.Dimensioning the basic part基本体的尺寸注法 One usually needs to mark all dimensions of length,width and height. For body of revolution,it only needs to mark its radial dimension (the diameter symbol is added before the dimension figure)and axial dimension. 标注基本体的尺寸，一般要注出长、宽、高三个方向的尺寸。对于回转 体，通常只要注出径向尺时（直径尺寸数字前加符号“”）和轴向尺寸。 17 Φ22 中20 S30 22 4 分 24 中30 请点击鼠标左键显示后面内容
