Experiences in the Design Analysis and Construction of Low Pressure Infatable Structures Javier Marciparl,Eugenio Ofatel and Juan Miquel Canet! International Center for Numerical Methods in Engineering Universidad Politecnica de Cataluna Gran Capitn,s/n,Campus Norte UPC 08034 Barcelona,Spain marcipar@cimne.upc.es http://www.cimne.upc.es Key words:Inflatable structures,membrane simulation codes,temporal pavilions,inflatable structures for civil applications 1 Introduction Inflatable structures have become increasingly popular in recent years for a wide range of applications in architecture,civil engineering,aeronautic (air- ships)and airspace situations [1-5]. Inflatable structures have unique features.Because of their foldability and air-or helium pneumatic stabilisation they cannot be compared to any clas- sical struc-tural concepts. The use of inflatable structures can be found in temporary and/or foldable structures to cover large spaces or to support other elements,in permanent roofs or shelters with a high degree of transparency,in mobile buildings as temporary housing in civil logistic missions (e.g.environmental disasters and rescue situa-tions),in the construction of tunnels and dams,in antennas for both ground and aerospace applications,as well as in extremely light airship structures among other uses. Space Applications Inflatable structures for space applications can be classified into two cate- gories.The first one corresponds with satellite appendages and the second one with habi-tats. 241 E.Onate and B.Kroplin (eds.).Textile Composites and Inflatable Structures,241-257. C 2005 Springer.Printed in the Netherlands
Experiences in the Design Analysis and Construction of Low Pressure Inflatable Structures Javier Marcipar1, Eugenio O˜nate1 and Juan Miquel Canet1 International Center for Numerical Methods in Engineering Universidad Polit´ecnica de Catalu˜na Gran Capitn, s/n, Campus Norte UPC 08034 Barcelona, Spain marcipar@cimne.upc.es http://www.cimne.upc.es Key words: Inflatable structures, membrane simulation codes, temporal pavilions, inflatable structures for civil applications 1 Introduction Inflatable structures have become increasingly popular in recent years for a wide range of applications in architecture, civil engineering, aeronautic (airships) and airspace situations [1-5]. Inflatable structures have unique features. Because of their foldability and air- or helium pneumatic stabilisation they cannot be compared to any classical struc-tural concepts. The use of inflatable structures can be found in temporary and/or foldable structures to cover large spaces or to support other elements, in permanent roofs or shelters with a high degree of transparency, in mobile buildings as temporary housing in civil logistic missions (e.g. environmental disasters and rescue situa-tions), in the construction of tunnels and dams, in antennas for both ground and aerospace applications, as well as in extremely light airship structures among other uses. Space Applications Inflatable structures for space applications can be classified into two categories. The first one corresponds with satellite appendages and the second one with habi-tats. 241 E. Oñate and B. Kröplin (eds.), Textile Composites and Inflatable Structures, 241–257. © 2005 Springer. Printed in the Netherlands
242 Javier Marcipar,Eugenio Onate and Juan Miquel Canet Inflatable structures in satellite appendages can be the primary struc- ture of the appendage,or else be used as the deployment mechanism itself. In the first case the inflatable structure should become rigid after inflated. For deployment mecha-nisms the integrity of the inflatable structure is not requested after deployment and its rigidity is obtained by means of other structural members assembled during de-ployment. Examples of typical satellite appendages where the inflated technology is ap-plicable include solar arrays and flat antenna arrays among others.A flat sunshield concept with inflated struts which become rigid after inflated has been recently developed by EADS CASA Space in the context of the INFLAST project of the Growth EC programme carried out in cooperation with the authors [6]. Inflatable habitats,on the other hand,are characterized by a big inflated vol-ume.These habitats can be used for space stations or Moon/Mars missions [7-8.Other applications include the protection of rovers or other instruments in airspace vehicles or stations.Indeed,inflatable habitats request structures that can with-stand loads such as micrometeorites impacts and radiations. Civil applications Inflated structures for civil applications are competitive due to their minimum weight,high foldability,easy assembly and disassembly as well as easy and quick transportation with little manpower and maintenance. For civil applications,different efforts have been made in the past years to de-velop inflated structures formed by assembly of high or low pressure tubes. This effort has increased the penetration of infatable buildings in the market, but the growth on the use of this structural type is still very low. Recent applications of inflated roof structures include air supported halls for sport or exhibition events with a low internal pressure.In the USA areas up to 30000 m2 have been covered with air supported membrane structures [il].Their disadvantage is the high energy consumption to keep the pressure permanent in the total inner volume.For structures with high pressure(higher than 1,0 kN/m2)the use of inflated elements has often been proposed,but they have rarely been built (Fuji-Pavillon,Japan).The reasons are that the necessary materials,structural design and manufacturing techniques have not been fully developed [i2].Double layer membrane structures,usually known as inflated cushions,require rigid ele-ments at the edges or compression rings. They are used instead of glass elements due to their lower price,which is 1/3 of a glass covering.So far there are only two German companies dealing with these inflated cushions in the world market. Generic technologies have already been tested on prototypes such as a hangar i3,exhibition hall i4,i5,various tube structures [i6]and an air- ship i7.A supporting structure for an exhibition hall was built out of high pressure in-flated chambers by FESTO in 1996.The structure has many new features.These include the use of double-layer-fabric for the walls as load
242 Javier Marcipar, Eugenio O˜nate and Juan Miquel Canet ˜ Inflatable structures in satellite appendages can be the primary structure of the appendage, or else be used as the deployment mechanism itself. In the first case the inflatable structure should become rigid after inflated. For deployment mecha-nisms the integrity of the inflatable structure is not requested after deployment and its rigidity is obtained by means of other structural members assembled during de-ployment. Examples of typical satellite appendages where the inflated technology is ap-plicable include solar arrays and flat antenna arrays among others. A flat sunshield concept with inflated struts which become rigid after inflated has been recently developed by EADS CASA Space in the context of the INFLAST project of the Growth EC programme carried out in cooperation with the authors [6]. Inflatable habitats, on the other hand, are characterized by a big inflated vol-ume. These habitats can be used for space stations or Moon/Mars missions [7-8]. Other applications include the protection of rovers or other instruments in airspace vehicles or stations. Indeed, inflatable habitats request structures that can with-stand loads such as micrometeorites impacts and radiations. Civil applications Inflated structures for civil applications are competitive due to their minimum weight, high foldability, easy assembly and disassembly as well as easy and quick transportation with little manpower and maintenance. For civil applications, different efforts have been made in the past years to de-velop inflated structures formed by assembly of high or low pressure tubes. This effort has increased the penetration of inflatable buildings in the market, but the growth on the use of this structural type is still very low. Recent applications of inflated roof structures include air supported halls for sport or exhibition events with a low internal pressure. In the USA areas up to 30000 m2 have been covered with air supported membrane structures [i1]. Their disadvantage is the high energy consumption to keep the pressure permanent in the total inner volume. For structures with high pressure (higher than 1,0 kN/m2) the use of inflated elements has often been proposed, but they have rarely been built (Fuji-Pavillon, Japan). The reasons are that the necessary materials, structural design and manufacturing techniques have not been fully developed [i2]. Double layer membrane structures, usually known as inflated cushions, require rigid ele-ments at the edges or compression rings. They are used instead of glass elements due to their lower price, which is 1/3 of a glass covering. So far there are only two German companies dealing with these inflated cushions in the world market. Generic technologies have already been tested on prototypes such as a hangar [i3], exhibition hall [i4, i5], various tube structures [i6] and an airship [i7]. A supporting structure for an exhibition hall was built out of high pressure in-flated chambers by FESTO in 1996. The structure has many new features. These include the use of double-layer-fabric for the walls as load

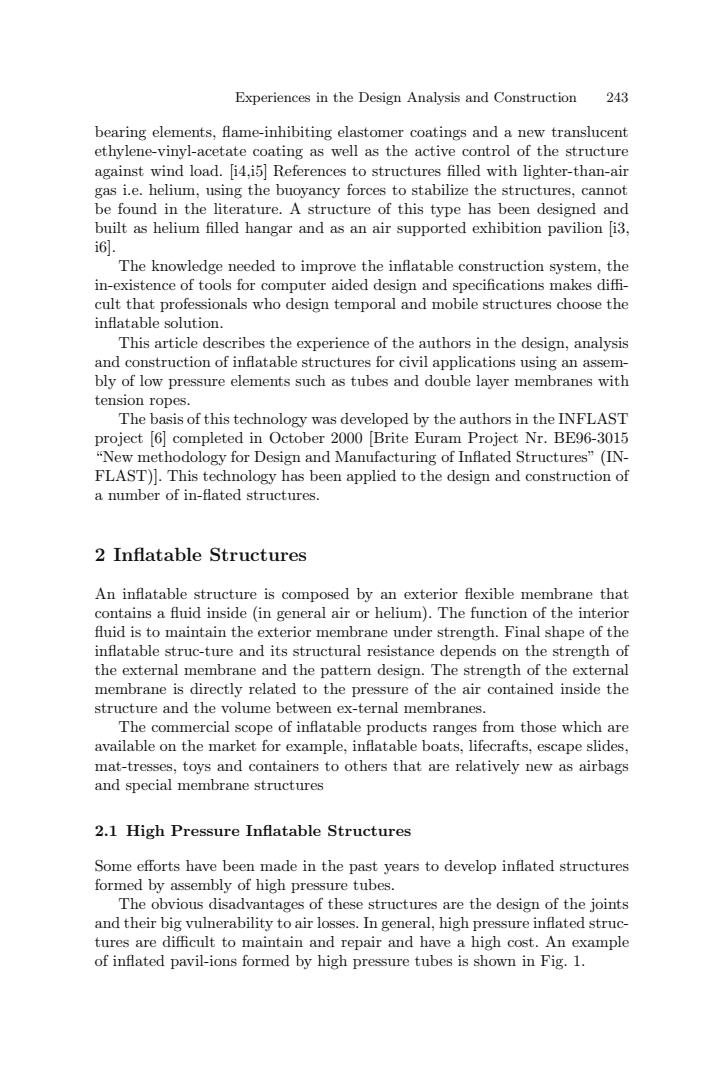

Experiences in the Design Analysis and Construction 243 bearing elements,fame-inhibiting elastomer coatings and a new translucent ethylene-vinyl-acetate coating as well as the active control of the structure against wind load.i4,i5]References to structures filled with lighter-than-air gas i.e.helium,using the buoyancy forces to stabilize the structures,cannot be found in the literature.A structure of this type has been designed and built as helium filled hangar and as an air supported exhibition pavilion i3, i6. The knowledge needed to improve the inflatable construction system,the in-existence of tools for computer aided design and specifications makes diffi- cult that professionals who design temporal and mobile structures choose the inflatable solution. This article describes the experience of the authors in the design,analysis and construction of inflatable structures for civil applications using an assem- bly of low pressure elements such as tubes and double layer membranes with tension ropes. The basis of this technology was developed by the authors in the INFLAST project [6]completed in October 2000 Brite Euram Project Nr.BE96-3015 "New methodology for Design and Manufacturing of Inflated Structures"(IN- FLAST)].This technology has been applied to the design and construction of a number of in-flated structures. 2 Inflatable Structures An inflatable structure is composed by an exterior flexible membrane that contains a fluid inside (in general air or helium).The function of the interior fluid is to maintain the exterior membrane under strength.Final shape of the inflatable struc-ture and its structural resistance depends on the strength of the external membrane and the pattern design.The strength of the external membrane is directly related to the pressure of the air contained inside the structure and the volume between ex-ternal membranes. The commercial scope of inflatable products ranges from those which are available on the market for example,inflatable boats,lifecrafts,escape slides, mat-tresses,toys and containers to others that are relatively new as airbags and special membrane structures 2.1 High Pressure Inflatable Structures Some efforts have been made in the past years to develop inflated structures formed by assembly of high pressure tubes. The obvious disadvantages of these structures are the design of the joints and their big vulnerability to air losses.In general,high pressure inflated struc- tures are difficult to maintain and repair and have a high cost.An example of inflated pavil-ions formed by high pressure tubes is shown in Fig.1
Experiences in the Design Analysis and Construction 243 bearing elements, flame-inhibiting elastomer coatings and a new translucent ethylene-vinyl-acetate coating as well as the active control of the structure against wind load. [i4,i5] References to structures filled with lighter-than-air gas i.e. helium, using the buoyancy forces to stabilize the structures, cannot be found in the literature. A structure of this type has been designed and built as helium filled hangar and as an air supported exhibition pavilion [i3, i6]. The knowledge needed to improve the inflatable construction system, the in-existence of tools for computer aided design and specifications makes diffi- cult that professionals who design temporal and mobile structures choose the inflatable solution. This article describes the experience of the authors in the design, analysis and construction of inflatable structures for civil applications using an assembly of low pressure elements such as tubes and double layer membranes with tension ropes. The basis of this technology was developed by the authors in the INFLAST project [6] completed in October 2000 [Brite Euram Project Nr. BE96-3015 “New methodology for Design and Manufacturing of Inflated Structures” (INFLAST)]. This technology has been applied to the design and construction of a number of in-flated structures. 2 Inflatable Structures An inflatable structure is composed by an exterior flexible membrane that contains a fluid inside (in general air or helium). The function of the interior fluid is to maintain the exterior membrane under strength. Final shape of the inflatable struc-ture and its structural resistance depends on the strength of the external membrane and the pattern design. The strength of the external membrane is directly related to the pressure of the air contained inside the structure and the volume between ex-ternal membranes. The commercial scope of inflatable products ranges from those which are available on the market for example, inflatable boats, lifecrafts, escape slides, mat-tresses, toys and containers to others that are relatively new as airbags and special membrane structures 2.1 High Pressure Inflatable Structures Some efforts have been made in the past years to develop inflated structures formed by assembly of high pressure tubes. The obvious disadvantages of these structures are the design of the joints and their big vulnerability to air losses. In general, high pressure inflated structures are difficult to maintain and repair and have a high cost. An example of inflated pavil-ions formed by high pressure tubes is shown in Fig. 1
244 Javier Marcipar,Eugenio Onate and Juan Miquel Canet Fig.1.Example of inflated pavilion formed by assembly of high pressure tubes. "Fuji"Inflatable pavilion constructed by Mamoru Kawaguchi in 1974 for the "Expo Tokyo” 2.2 Low Pressure Inflatable Structures Inflatable structures formed by an assembly of self-supported low pressure mem-brane elements are ideal to cover large space areas.They also adapt easily to any design shape and have minimal maintenance requirements,other than keeping a constant low internal pressure accounting for the air losses through the material pores and the seams. Air supported system One of the inflatable systems most commonly used is in the so called "air sup-ported system".In this structural case an inner space is generated from a com-pletely closed membrane perimeter and filled with air at low pressure. There are areas of more than 30.000 m2 covered with this kind of struc- tures.In any case,this system has several disadvantages: Excessive air volume is needed to support the cover. Complex access should be designed to ensure the stagnation of the inner space. Anchoring loads are really high in order to support the strength of the exterior membrane. Thermal resistance is very low.This aspect has a strong incidence in the climatization of the inner space
244 Javier Marcipar, Eugenio O˜nate and Juan Miquel Canet ˜ Fig. 1. Example of inflated pavilion formed by assembly of high pressure tubes. “Fuji” Inflatable pavilion constructed by Mamoru Kawaguchi in 1974 for the “Expo Tokyo” 2.2 Low Pressure Inflatable Structures Inflatable structures formed by an assembly of self-supported low pressure mem-brane elements are ideal to cover large space areas. They also adapt easily to any design shape and have minimal maintenance requirements, other than keeping a constant low internal pressure accounting for the air losses through the material pores and the seams. Air supported system One of the inflatable systems most commonly used is in the so called “air sup-ported system”. In this structural case an inner space is generated from a com-pletely closed membrane perimeter and filled with air at low pressure. There are areas of more than 30.000 m2 covered with this kind of structures. In any case, this system has several disadvantages: • Excessive air volume is needed to support the cover. • Complex access should be designed to ensure the stagnation of the inner space. • Anchoring loads are really high in order to support the strength of the exterior membrane. • Thermal resistance is very low. This aspect has a strong incidence in the climatization of the inner space
Experiences in the Design Analysis and Construction 245 0 Fig.2.Functional schema of the "Air supported system" Because of the contact or cold membrane with inner hot air,con-densation drops are formed and fall in a rainy way inside the cov-ered space. This system is impossible to move to another location because of the an- choring needed to support the membrane strength. This system has severe restrictions to adapt to any architectural design. Air inflated system Because of the disadvantages above listed,a new and more revolutionized sys- tem was designed called "air inflated system".This system is formed by tubes of dif-ferent textile materials filled with low pressure air.Textile materials are designed to support any external action,from fire resistance to climate aggression. Fig.3.Functional schema of the "Air inflated system
Experiences in the Design Analysis and Construction 245 Fig. 2. Functional schema of the “Air supported system” • Because of the contact or cold membrane with inner hot air, con-densation drops are formed and fall in a rainy way inside the cov-ered space. • This system is impossible to move to another location because of the anchoring needed to support the membrane strength. • This system has severe restrictions to adapt to any architectural design. Air inflated system Because of the disadvantages above listed, a new and more revolutionized system was designed called “air inflated system”. This system is formed by tubes of dif-ferent textile materials filled with low pressure air. Textile materials are designed to support any external action, from fire resistance to climate aggression. Fig. 3. Functional schema of the “Air inflated system
