Recent Advances in the Rigidization of Gossamer Structures B.Defoortl,V.Peypoudatl,M.C.Bernasconi2,K.Chuda3 and X.Coqueret3 1 EADS SPACE Transportation BP11-33165 Saint Medard en Jalles Cedex-France brigitte.defoort@space.eads.net 2 MCB Consultants 8953 Dietikon Switzerland 3 Laboratoire de Chimie Organique et Macromoleculaire UMR CNRS 8009 USTL -59655 Villeneuve d'Ascq Cedex-France 1 Introduction The interest of using inflatable and rigidizable structures for space equipment (such as solar arrays,antenna reflectors ...)has been identified for many years,but this has not yet been implemented on operational space equipment in Europe,due to the lack of adapted materials and technologies.Recent improvements in these fields allow today the development of such projects and solar arrays have been identified as one of the most promising applica- tion.This paper focuses on inflatable and rigidizable lightly loaded structures. Typical driving requirements are high packaging efficiency,very low specific mass and large size.As with other flexible-wall structures,they exploit gas pressure for their deployment ("inflatable structures").But,inflated struc- tures unavoidably loose the gas that pressures them,and therefore require a pressure control apparatus and a gas supply to replenish the losses.This disadvantage is acceptable only for items that have to last for very short pe- riods of time or for items where pressurization is a basic function (as in the case of habitats).It is commonly admitted that all inflated structures shall be rigidized in space as soon as their life time exceeds one week.As a result, the use of rigidizable materials that enable an inflated structure to become permanently rigid without relying on inflation is obviously a key technology in the field of Gossamer structures.For a given architecture,various kinds of rigidization techniques can be proposed:chemical rigidization [use of UV radiation (solar or with integrated light sources),thermal curing (using so- lar radiation and/or active heating),physical rigidization removal of volatile components in vacuum (solvent boil-off)],or mechanical rigidization [metal 259 E.Onate and B.Kroplin (eds.).Textile Composites and Inflatable Structures,259-283. 2005 Springer.Printed in the Netherlands

Recent Advances in the Rigidization of Gossamer Structures B. Defoort1, V. Peypoudat1, M.C. Bernasconi2, K. Chuda3 and X. Coqueret3 1 EADS SPACE Transportation BP11 - 33165 Saint M´edard en Jalles Cedex - France brigitte.defoort@space.eads.net 2 MCB Consultants 8953 Dietikon - Switzerland 3 Laboratoire de Chimie Organique et Macromol´eculaire UMR CNRS 8009 USTL - 59655 Villeneuve d’Ascq Cedex – France 1 Introduction The interest of using inflatable and rigidizable structures for space equipment (such as solar arrays, antenna reflectors · · ·) has been identified for many years, but this has not yet been implemented on operational space equipment in Europe, due to the lack of adapted materials and technologies. Recent improvements in these fields allow today the development of such projects and solar arrays have been identified as one of the most promising applica￾tion. This paper focuses on inflatable and rigidizable lightly loaded structures. Typical driving requirements are high packaging efficiency, very low specific mass and large size. As with other flexible-wall structures, they exploit gas pressure for their deployment (“inflatable structures”). But, inflated struc￾tures unavoidably loose the gas that pressures them, and therefore require a pressure control apparatus and a gas supply to replenish the losses. This disadvantage is acceptable only for items that have to last for very short pe￾riods of time or for items where pressurization is a basic function (as in the case of habitats). It is commonly admitted that all inflated structures shall be rigidized in space as soon as their life time exceeds one week. As a result, the use of rigidizable materials that enable an inflated structure to become permanently rigid without relying on inflation is obviously a key technology in the field of Gossamer structures. For a given architecture, various kinds of rigidization techniques can be proposed: chemical rigidization [use of UV radiation (solar or with integrated light sources), thermal curing (using so￾lar radiation and/or active heating)], physical rigidization [removal of volatile components in vacuum (solvent boil-off)], or mechanical rigidization [metal 259 E. Oñate and B. Kröplin (eds.), Textile Composites and Inflatable Structures, 259–283. © 2005 Springer. Printed in the Netherlands

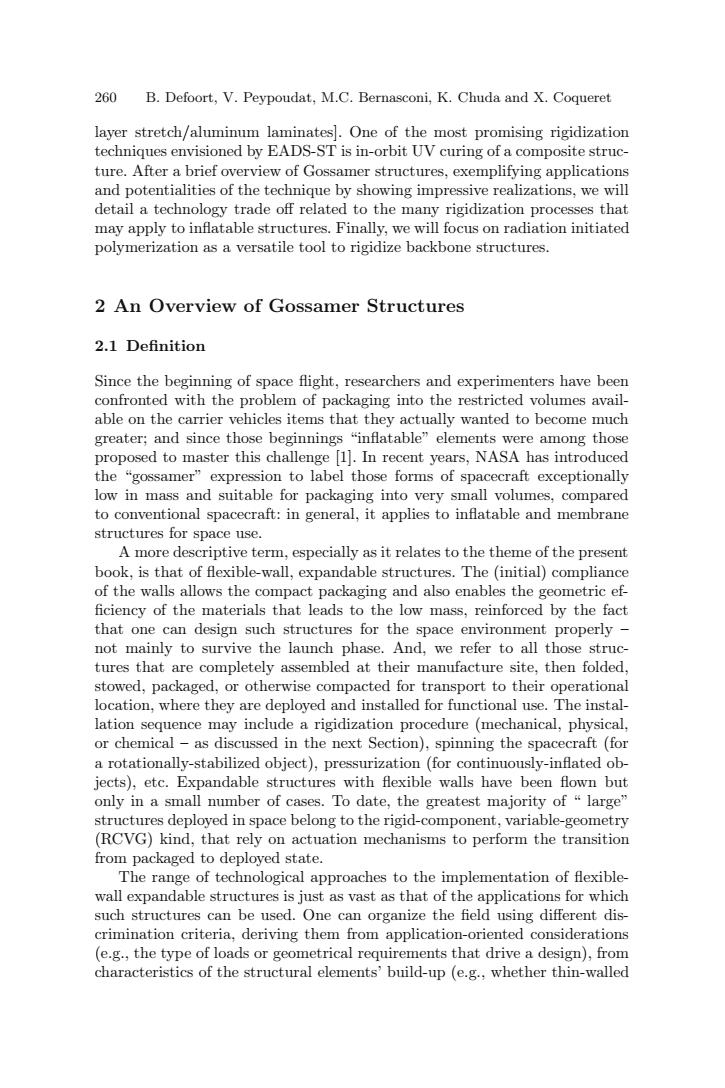

260 B.Defoort,V.Peypoudat,M.C.Bernasconi,K.Chuda and X.Coqueret layer stretch/aluminum laminates.One of the most promising rigidization techniques envisioned by EADS-ST is in-orbit UV curing of a composite struc- ture.After a brief overview of Gossamer structures,exemplifying applications and potentialities of the technique by showing impressive realizations,we will detail a technology trade off related to the many rigidization processes that may apply to inflatable structures.Finally,we will focus on radiation initiated polymerization as a versatile tool to rigidize backbone structures. 2 An Overview of Gossamer Structures 2.1 Definition Since the beginning of space flight,researchers and experimenters have been confronted with the problem of packaging into the restricted volumes avail- able on the carrier vehicles items that they actually wanted to become much greater;and since those beginnings "inflatable"elements were among those proposed to master this challenge [1].In recent years,NASA has introduced the "gossamer"expression to label those forms of spacecraft exceptionally low in mass and suitable for packaging into very small volumes,compared to conventional spacecraft:in general,it applies to inflatable and membrane structures for space use. A more descriptive term,especially as it relates to the theme of the present book,is that of flexible-wall,expandable structures.The (initial)compliance of the walls allows the compact packaging and also enables the geometric ef ficiency of the materials that leads to the low mass,reinforced by the fact that one can design such structures for the space environment properly not mainly to survive the launch phase.And,we refer to all those struc- tures that are completely assembled at their manufacture site,then folded, stowed,packaged,or otherwise compacted for transport to their operational location,where they are deployed and installed for functional use.The instal- lation sequence may include a rigidization procedure(mechanical,physical, or chemical-as discussed in the next Section),spinning the spacecraft (for a rotationally-stabilized object),pressurization (for continuously-inflated ob- jects),etc.Expandable structures with flexible walls have been flown but only in a small number of cases.To date,the greatest majority of "large" structures deployed in space belong to the rigid-component,variable-geometry (RCVG)kind,that rely on actuation mechanisms to perform the transition from packaged to deployed state. The range of technological approaches to the implementation of flexible- wall expandable structures is just as vast as that of the applications for which such structures can be used.One can organize the field using different dis- crimination criteria,deriving them from application-oriented considerations (e.g.,the type of loads or geometrical requirements that drive a design),from characteristics of the structural elements'build-up (e.g.,whether thin-walled

260 B. Defoort, V. Peypoudat, M.C. Bernasconi, K. Chuda and X. Coqueret layer stretch/aluminum laminates]. One of the most promising rigidization techniques envisioned by EADS-ST is in-orbit UV curing of a composite struc￾ture. After a brief overview of Gossamer structures, exemplifying applications and potentialities of the technique by showing impressive realizations, we will detail a technology trade off related to the many rigidization processes that may apply to inflatable structures. Finally, we will focus on radiation initiated polymerization as a versatile tool to rigidize backbone structures. 2 An Overview of Gossamer Structures 2.1 Definition Since the beginning of space flight, researchers and experimenters have been confronted with the problem of packaging into the restricted volumes avail￾able on the carrier vehicles items that they actually wanted to become much greater; and since those beginnings “inflatable” elements were among those proposed to master this challenge [1]. In recent years, NASA has introduced the “gossamer” expression to label those forms of spacecraft exceptionally low in mass and suitable for packaging into very small volumes, compared to conventional spacecraft: in general, it applies to inflatable and membrane structures for space use. A more descriptive term, especially as it relates to the theme of the present book, is that of flexible-wall, expandable structures. The (initial) compliance of the walls allows the compact packaging and also enables the geometric ef- ficiency of the materials that leads to the low mass, reinforced by the fact that one can design such structures for the space environment properly – not mainly to survive the launch phase. And, we refer to all those struc￾tures that are completely assembled at their manufacture site, then folded, stowed, packaged, or otherwise compacted for transport to their operational location, where they are deployed and installed for functional use. The instal￾lation sequence may include a rigidization procedure (mechanical, physical, or chemical – as discussed in the next Section), spinning the spacecraft (for a rotationally-stabilized object), pressurization (for continuously-inflated ob￾jects), etc. Expandable structures with flexible walls have been flown but only in a small number of cases. To date, the greatest majority of “ large” structures deployed in space belong to the rigid-component, variable-geometry (RCVG) kind, that rely on actuation mechanisms to perform the transition from packaged to deployed state. The range of technological approaches to the implementation of flexible￾wall expandable structures is just as vast as that of the applications for which such structures can be used. One can organize the field using different dis￾crimination criteria, deriving them from application-oriented considerations (e.g., the type of loads or geometrical requirements that drive a design), from characteristics of the structural elements’ build-up (e.g., whether thin-walled

Recent Advances in the Rigidization of Gossamer Structures 261 membranes or thicker,more plate-like layouts),or from the methods used to stabilize shape of the object at installation.A first attempt classifies the structures according to four use and requirements criteria as follows: "Lightly-loaded",flexible-wall,expandable space structures-sized for the orbital environment (generally against buckling loads);typical require- ments are:high packaging efficiency,very low specific mass,large size;the tension within an element's wall is of the order of 0.1 kN/m;a further subdivision distinguishes between: support structures in general ("backbones"),in which a small-to- moderate integration between structure and system function occurs, and precision structures,where the structural element and its shape have a direct system function impact "Heavy-duty"flexible-wall,expandable structures-sized to carry (inter- nal)loads(generally,pressurization forces);typical requirements are:large enclosed volumes,compatibility with crew presence,moderate packaging efficiency and/or specific mass;the tension within an element's wall is of the order of 100 kN/m. "High-temperature"flexible-wall,expandable structures-sized to sustain significant temperature levels,as generated during planetary entry (al- though reduced thanks to the lower area loading such structures enable). This article focuses mainly on lightly-loaded and heavy duty flexible-walls and not on high temperature elements which differ from the two first classes in technological terms even if some synergies exist and are used.Wilde and colleagues [2 give a summary of recent work in Western Europe on high temperature flexible walls. 2.2 Applications Historical Background Early Work:Inflatable Satellites After the pioneering suggestions by Gatland and co-workers [1],the idea of in- flatable spacecraft -in particular,to create optically observable orbital bodies- was developed by John O'Sullivan and his colleagues at Langley Research Cen- ter [3].Soon,they prepared 12-ft (3.66-m),mechanically rigidized spheres, launched as Explorer IX and Explorer XIX for contributing to the measure- ment of the high atmosphere's density [4].The Explorer spheres were sturdy enough to support themselves unpressurized under 1-g acceleration(Fig.1). From this work evolved the concept and the technology for the passive com- munications satellites (Echo I II,[5]),that eventually enabled the 40-m diameter PAGEOS (PAssive GEOdetic Satellite)6.Advanced concepts stud- ied to achieve better mass efficiency than using spherical reflectors involved inflated lens/torus configurations and the wire grid sphere satellites,using photolyzable wall materials for the deployment and leaving eventually only a

Recent Advances in the Rigidization of Gossamer Structures 261 membranes or thicker, more plate-like layouts), or from the methods used to stabilize shape of the object at installation. A first attempt classifies the structures according to four use and requirements criteria as follows: • “Lightly-loaded”, flexible-wall, expandable space structures - sized for the orbital environment (generally against buckling loads); typical require￾ments are: high packaging efficiency, very low specific mass, large size; the tension within an element’s wall is of the order of 0.1 kN/m; a further subdivision distinguishes between: – support structures in general (“backbones”), in which a small-to￾moderate integration between structure and system function occurs, and – precision structures, where the structural element and its shape have a direct system function impact • “Heavy-duty” flexible-wall, expandable structures - sized to carry (inter￾nal) loads (generally, pressurization forces); typical requirements are: large enclosed volumes, compatibility with crew presence, moderate packaging efficiency and/or specific mass; the tension within an element’s wall is of the order of 100 kN/m. • “High-temperature” flexible-wall, expandable structures - sized to sustain significant temperature levels, as generated during planetary entry (al￾though reduced thanks to the lower area loading such structures enable). This article focuses mainly on lightly-loaded and heavy duty flexible-walls and not on high temperature elements which differ from the two first classes in technological terms even if some synergies exist and are used.Wilde and colleagues [2] give a summary of recent work in Western Europe on high temperature flexible walls. 2.2 Applications & Historical Background Early Work: Inflatable Satellites After the pioneering suggestions by Gatland and co-workers [1], the idea of in- flatable spacecraft –in particular, to create optically observable orbital bodies– was developed by John O’Sullivan and his colleagues at Langley Research Cen￾ter [3]. Soon, they prepared 12-ft (3.66-m), mechanically rigidized spheres, launched as Explorer IX and Explorer XIX for contributing to the measure￾ment of the high atmosphere’s density [4]. The Explorer spheres were sturdy enough to support themselves unpressurized under 1-g acceleration (Fig. 1). From this work evolved the concept and the technology for the passive com￾munications satellites (Echo I & II, [5]), that eventually enabled the 40- m diameter PAGEOS (PAssive GEOdetic Satellite) [6]. Advanced concepts stud￾ied to achieve better mass efficiency than using spherical reflectors involved inflated lens/torus configurations and the wire grid sphere satellites, using photolyzable wall materials for the deployment and leaving eventually only a

262 B.Defoort,V.Peypoudat,M.C.Bernasconi,K.Chuda and X.Coqueret structure of stretched metal wires,making a radio reflector less sensitive to the solar pressure.Several such wire-grid spheres actually flew,e.g.the USAF OV1-8 satellite. Fig.1.An example of a balloon satellite:a mechanically-rigidized,12-ft Explorer IX inflatable sphere under full-gravity testing.(NASA picture) Precision Structures Solar concentrators (for thermodynamic power generation)represent a fur- ther application that received extensive treatment using different gossamer technology approaches(with inflated membranes,with various foam-in-place techniques,with chemically-rigidized composites-both in form of membranes and of expandable-honeycomb structures),and with most designs adopting the lens-torus layout.Throughout the 1960s,they were studied in the US [7]. but also in Germany where,around 1965,Bolkow investigated an inflatable foam-rigidized solar-thermal power collector 8].Eventually,early in the 1970s, MBB built a 1-m inflatable and rigidized antenna reflector using glass-fibre- reinforced gelatin for the torus and the reflector shells,and a polymer-film radome [9]. In 1979,ESA began sponsoring a series of development contracts at Con- traves(Zurich,Switzerland)that one of the authors (MCB)had the privilege

262 B. Defoort, V. Peypoudat, M.C. Bernasconi, K. Chuda and X. Coqueret structure of stretched metal wires, making a radio reflector less sensitive to the solar pressure. Several such wire-grid spheres actually flew, e.g. the USAF OV1-8 satellite. Fig. 1. An example of a balloon satellite: a mechanically-rigidized, 12-ft Explorer IX inflatable sphere under full-gravity testing. (NASA picture) Precision Structures Solar concentrators (for thermodynamic power generation) represent a fur￾ther application that received extensive treatment using different gossamer technology approaches (with inflated membranes, with various foam-in-place techniques, with chemically-rigidized composites – both in form of membranes and of expandable-honeycomb structures), and with most designs adopting the lens-torus layout. Throughout the 1960s, they were studied in the US [7], but also in Germany where, around 1965, Bolkow investigated an inflatable ¨ foam-rigidized solar-thermal power collector [8]. Eventually, early in the 1970s, MBB built a 1-m inflatable and rigidized antenna reflector using glass- fibre￾reinforced gelatin for the torus and the reflector shells, and a polymer-film radome [9]. In 1979, ESA began sponsoring a series of development contracts at Con￾traves (Zurich, Switzerland) that one of the authors (MCB) had the privilege

Recent Advances in the Rigidization of Gossamer Structures 263 to execute,lead,and participate in.For historical reasons,those development activities concentrated on microwave antenna reflectors,exemplified by the re- alization of the first rigidized offset reflector,but work was done in all classes of objects but for the "high-temperature"one. Work on this technology -identified as Inflatable Space-Rigidized Struc- tures(ISRS)-included a series of experimental activities using objects in the size range from 1-to 10-m aperture.First came three small models of a sym- metric (center-fed)reflector to gauge issues such as folding and deployment, manufacture processes,and initially achievable accuracy.In successive phases, three 2.8-m reflectors (called LOAD-3 and designed for operation at 3.6 GHz) allowed the execution of following tests [10]: accuracy-improved manufacturing procedures adopted during that devel- opment phase allowed a reduction of the RMS error from 0.9 to 0.7 mm, while identifying the main sources of the remaining inaccuracies; packaging efficiency-were verified using the object that was successively subjected to electrical measurements;without degradation of surface qual- ity as consequence of the folding and deployment exercises; controlled deployment in vacuum-a test within ESTEC's Dynamic Test Chamber demonstrated the quality of the residual air control procedures, the correctness of the deployment sequence,and the controlled deployment of the structure; electrical performance -measures were performed on the first complete object,after a full cycle of pressurization tests,folding,packaging,deploy- ment,and cure; cure under(simulated)space conditions-a thermal-vacuum chamber solar simulation test demonstrated the correctness of the reflector's thermal design. Further reflectors were manufactured and tested (under clean-room con- ditions): a 5.7-m diameter Test Article for the QUASAT radio telescope reflector, a center-fed layout [11,and a 10-m aperture offset-fed reflector (LOAD-10,Fig.2),designed for oper- ation at 1.6 GHz;after the folding and deployment cycle,the surface error had grown from 2.15 mm to 2.66 mm RMS,still yielding a gain of 42.6 dB and a sidelobe level of-33.8 dB [12]. The ISRS developments in Europe apparently found a resonance in Japan. Around the mid 1980s,a team formed around ISAS and began work on a modular,hybrid antenna reflector concept [13-a variable-geometry truss backbone carrying ISRS reflector facets-as an unsuccessful candidate for the VSOP mission (the Japanese equivalent of QUASAT that eventually flew as HALCA)

Recent Advances in the Rigidization of Gossamer Structures 263 to execute, lead, and participate in. For historical reasons, those development activities concentrated on microwave antenna reflectors, exemplified by the re￾alization of the first rigidized offset reflector, but work was done in all classes of objects but for the “high-temperature” one. Work on this technology –identified as Inflatable Space-Rigidized Struc￾tures (ISRS)– included a series of experimental activities using objects in the size range from 1- to 10-m aperture. First came three small models of a sym￾metric (center-fed) reflector to gauge issues such as folding and deployment, manufacture processes, and initially achievable accuracy. In successive phases, three 2.8-m reflectors (called LOAD-3 and designed for operation at 3.6 GHz) allowed the execution of following tests [10]: - accuracy - improved manufacturing procedures adopted during that devel￾opment phase allowed a reduction of the RMS error from 0.9 to 0.7 mm, while identifying the main sources of the remaining inaccuracies; - packaging efficiency - were verified using the object that was successively subjected to electrical measurements; without degradation of surface qual￾ity as consequence of the folding and deployment exercises; - controlled deployment in vacuum - a test within ESTEC’s Dynamic Test Chamber demonstrated the quality of the residual air control procedures, the correctness of the deployment sequence, and the controlled deployment of the structure; - electrical performance – measures were performed on the first complete object, after a full cycle of pressurization tests, folding, packaging, deploy￾ment, and cure; - cure under (simulated) space conditions - a thermal-vacuum chamber solar simulation test demonstrated the correctness of the reflector’s thermal design. Further reflectors were manufactured and tested (under clean-room con￾ditions): - a 5.7-m diameter Test Article for the QUASAT radio telescope reflector, a center-fed layout [11], and - a 10-m aperture offset-fed reflector (LOAD-10, Fig. 2), designed for oper￾ation at 1.6 GHz; after the folding and deployment cycle, the surface error had grown from 2.15 mm to 2.66 mm RMS, still yielding a gain of 42.6 dB and a sidelobe level of -33.8 dB [12]. The ISRS developments in Europe apparently found a resonance in Japan. Around the mid 1980s, a team formed around ISAS and began work on a modular, hybrid antenna reflector concept [13] – a variable-geometry truss backbone carrying ISRS reflector facets – as an unsuccessful candidate for the VSOP mission (the Japanese equivalent of QUASAT that eventually flew as HALCA)
