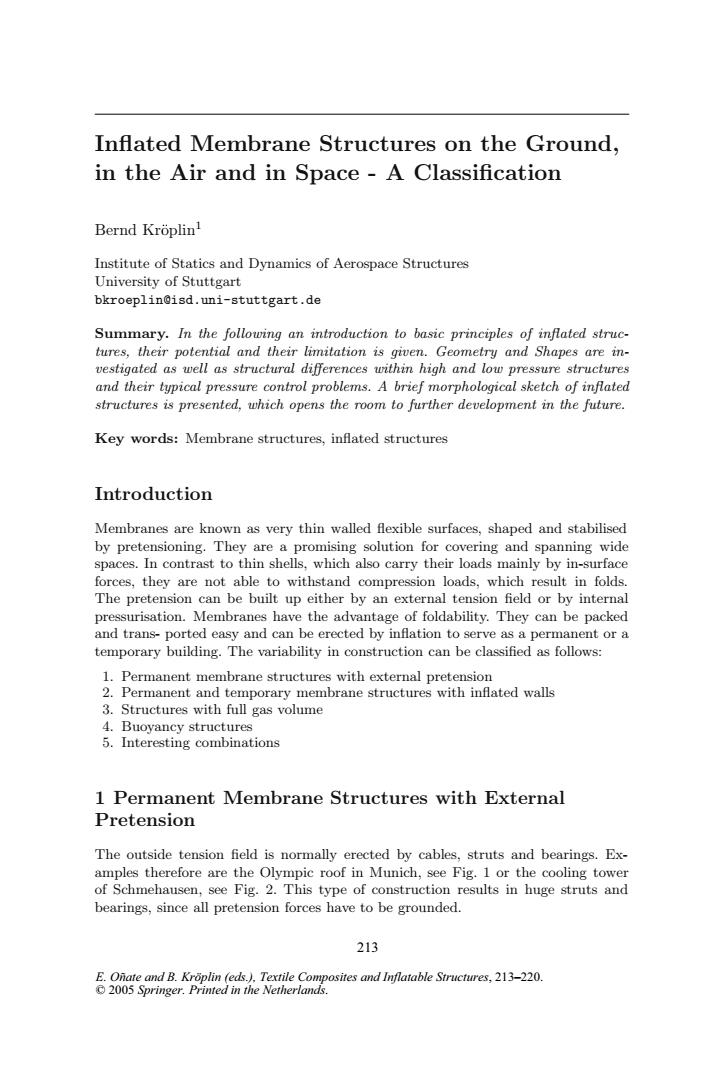

Inflated Membrane Structures on the Ground, in the Air and in Space -A Classification Bernd Kroplin Institute of Statics and Dynamics of Aerospace Structures University of Stuttgart bkroeplinQisd.uni-stuttgart.de Summary.In the following an introduction to basic principles of inflated struc- tures,their potential and their limitation is given.Geometry and Shapes are in- vestigated as well as structural differences within high and low pressure structures and their typical pressure control problems.A brief morphological sketch of inflated structures is presented,which opens the room to further development in the future. Key words:Membrane structures,inflated structures Introduction Membranes are known as very thin walled flexible surfaces,shaped and stabilised by pretensioning.They are a promising solution for covering and spanning wide spaces.In contrast to thin shells,which also carry their loads mainly by in-surface forces,they are not able to withstand compression loads,which result in folds. The pretension can be built up either by an external tension field or by internal pressurisation.Membranes have the advantage of foldability.They can be packed and trans-ported easy and can be erected by inflation to serve as a permanent or a temporary building.The variability in construction can be classified as follows: 1.Permanent membrane structures with external pretension 2.Permanent and temporary membrane structures with inflated walls 3.Structures with full gas volume 4.Buoyancy structures 5.Interesting combinations 1 Permanent Membrane Structures with External Pretension The outside tension field is normally erected by cables,struts and bearings.Ex- amples therefore are the Olympic roof in Munich,see Fig.1 or the cooling tower of Schmehausen,see Fig.2.This type of construction results in huge struts and bearings,since all pretension forces have to be grounded. 213 E.Onate and B.Kroplin (eds.).Textile Composites and Inflatable Structures,213-220. 2005 Springer.Printed in the Netherlands
Inflated Membrane Structures on the Ground, in the Air and in Space - A Classification Bernd Kr¨plin o 1 Institute of Statics and Dynamics of Aerospace Structures University of Stuttgart bkroeplin@isd.uni-stuttgart.de Summary. In the following an introduction to basic principles of inflated structures, their potential and their limitation is given. Geometry and Shapes are investigated as well as structural differences within high and low pressure structures and their typical pressure control problems. A brief morphological sketch of inflated structures is presented, which opens the room to further development in the future. Key words: Membrane structures, inflated structures Introduction Membranes are known as very thin walled flexible surfaces, shaped and stabilised by pretensioning. They are a promising solution for covering and spanning wide spaces. In contrast to thin shells, which also carry their loads mainly by in-surface forces, they are not able to withstand compression loads, which result in folds. The pretension can be built up either by an external tension field or by internal pressurisation. Membranes have the advantage of foldability. They can be packed and trans- ported easy and can be erected by inflation to serve as a permanent or a temporary building. The variability in construction can be classified as follows: 1. Permanent membrane structures with external pretension 2. Permanent and temporary membrane structures with inflated walls 3. Structures with full gas volume 4. Buoyancy structures 5. Interesting combinations 1 Permanent Membrane Structures with External Pretension The outside tension field is normally erected by cables, struts and bearings. Examples therefore are the Olympic roof in Munich, see Fig. 1 or the cooling tower of Schmehausen, see Fig. 2. This type of construction results in huge struts and bearings, since all pretension forces have to be grounded. 213 E. Oñate and B. Kröplin (eds.), Textile Composites and Inflatable Structures, 213–220. © 2005 Springer. Printed in the Netherlands
214 Bernd Kroplin Fig.1.Olympic stadium roof Munich [1],permanent Fig.2.Cooling tower Schmehausen [2),permanent 2 Permanent and Temporary Membrane Structures with Inflated Walls Another class are the inflated structures.There are two different types,the structures with inflated walls and the structures with inflated volumes.The walls can be inflated
214 Bernd Kroplin ¨ Fig. 1. Olympic stadium roof Munich [1], permanent Fig. 2. Cooling tower Schmehausen [2], permanent 2 Permanent and Temporary Membrane Structures with Inflated Walls Another class are the inflated structures. There are two different types, the structures with inflated walls and the structures with inflated volumes. The walls can be inflated
Inflated Membrane Structures on the Ground,in the Air and in Space 215 by high or low pressure.For high pressure closed wall-chambers are used with the pressure probably exeeding 1 bar requiring rein-forced membrane materials.An example is the Festo-building at Stuttgart,see Fig.3.Pressure and manufacturing required a rubber coated Polyester fabric.In the case of low pressure,about 50 mbar,an open wall can be used,whereby the pressure is permanently imposed by a blower,which is capable to erect the structure.See e.g.the temporary Builtair- roof in Barcelona Fig.4.Recently the inflated wall principle was also introduced by Russian reserchers to reentry vehicles for the return from space to earth. Fig.3.Festo-building in Stuttgart [3],permanent Fig.4.Build-Air-building in Barcelona [4],temporary
Inflated Membrane Structures on the Ground, in the Air and in Space 215 by high or low pressure. For high pressure closed wall-chambers are used with the pressure probably exeeding 1 bar requiring rein- forced membrane materials. An example is the Festo-building at Stuttgart, see Fig. 3. Pressure and manufacturing required a rubber coated Polyester fabric. In the case of low pressure, about 50 mbar, an open wall can be used, whereby the pressure is permanently imposed by a blower, which is capable to erect the structure. See e.g. the temporary Builtairroof in Barcelona Fig. 4. Recently the inflated wall principle was also introduced by Russian reserchers to reentry vehicles for the return from space to earth. Fig. 3. Festo-building in Stuttgart [3], permanent Fig. 4. Build-Air-building in Barcelona [4], temporary
216 Bernd Kroplin Addtional ifatable Braking Device Man Infatable Brakng Device FREGAT Upper Stage Thermal Protection Filng Sysem Fig.5.Inflated reentry capsule[5] 3 Structures with Full Gas Volume The inflated tennis court-halls of the last century are a well known example for this class of structures,see Fig.6.Since the air pressure has to be maintained permanently for the stability of the structure,the doors are designed as double door pressure lock.Another example to overcome the totally inflated space inside is to inflate only the roof.Fig.7 gives an example.For adaptation to different load cases, e.g.snow,a spherical pressure chamber is included. Fig.6.Tennis court cover [6],permanent 4 Buoyancy-Structures If the inside space of the structure is filled with a gas lighter than air,an upward force is created,which is called buoyancy.The buoyancy depends on the density difference between the internal and the external medium.The principle has been used since the 18th Century.1 m3 buoyancy gas,e.g.helium,can roughly carry 1 kg
216 Bernd Kroplin ¨ Fig. 5. Inflated reentry capsule [5] 3 Structures with Full Gas Volume The inflated tennis court-halls of the last century are a well known example for this class of structures, see Fig. 6. Since the air pressure has to be maintained permanently for the stability of the structure, the doors are designed as double door pressure lock. Another example to overcome the totally inflated space inside is to inflate only the roof. Fig. 7 gives an example. For adaptation to different load cases, e.g. snow, a spherical pressure chamber is included. Fig. 6. Tennis court cover [6], permanent 4 Buoyancy-Structures If the inside space of the structure is filled with a gas lighter than air, an upward force is created, which is called buoyancy. The buoyancy depends on the density difference between the internal and the external medium. The principle has been used since the 18th Century. 1 m3 buoyancy gas, e.g. helium, can roughly carry 1 kg

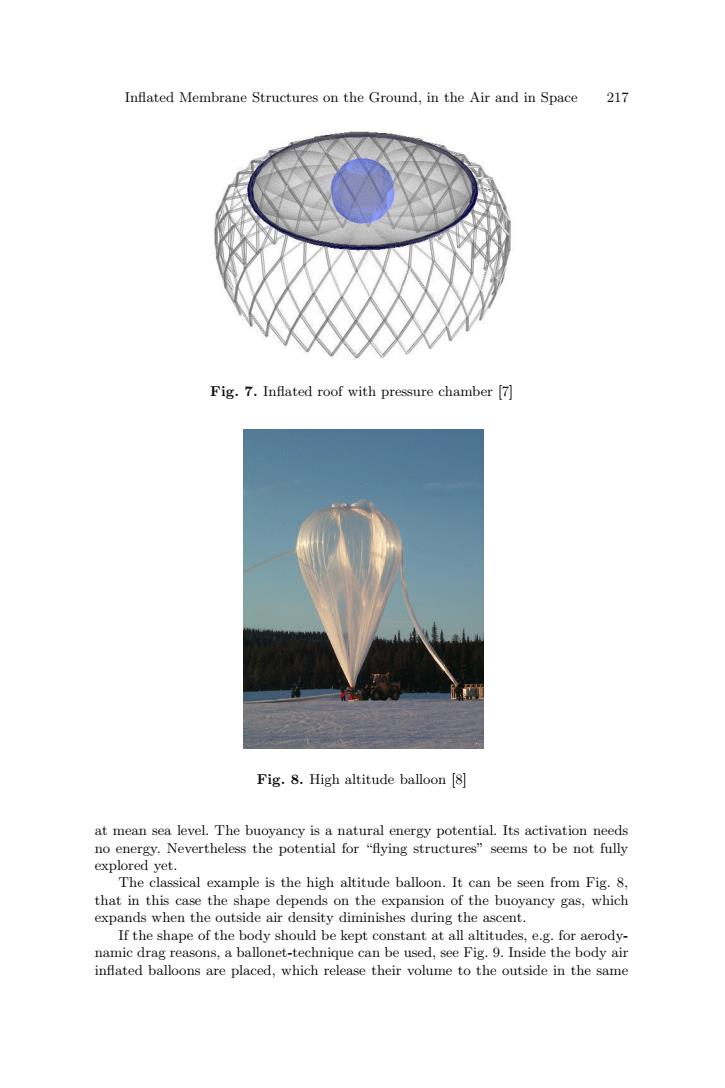

Inflated Membrane Structures on the Ground,in the Air and in Space 217 Fig.7.Inflated roof with pressure chamber [7] Fig.8.High altitude balloon [8] at mean sea level.The buoyancy is a natural energy potential.Its activation needs no energy.Nevertheless the potential for "flying structures"seems to be not fully explored yet. The classical example is the high altitude balloon.It can be seen from Fig.8, that in this case the shape depends on the expansion of the buoyancy gas,which expands when the outside air density diminishes during the ascent. If the shape of the body should be kept constant at all altitudes,e.g.for aerody- namic drag reasons,a ballonet-technique can be used,see Fig.9.Inside the body air inflated balloons are placed,which release their volume to the outside in the same
Inflated Membrane Structures on the Ground, in the Air and in Space 217 Fig. 7. Inflated roof with pressure chamber [7] Fig. 8. High altitude balloon [8] at mean sea level. The buoyancy is a natural energy potential. Its activation needs no energy. Nevertheless the potential for “flying structures” seems to be not fully explored yet. The classical example is the high altitude balloon. It can be seen from Fig. 8, that in this case the shape depends on the expansion of the buoyancy gas, which expands when the outside air density diminishes during the ascent. If the shape of the body should be kept constant at all altitudes, e.g. for aerodynamic drag reasons, a ballonet-technique can be used, see Fig. 9. Inside the body air inflated balloons are placed, which release their volume to the outside in the same
