Form-Optimizing Processes in Biological Structures.Self-generating structures in nature based on pneumatics Edgar Stachl University of Tennessee,College of Architecture and Design 1715 Volunteer Boulevard,Knoxville,TN 37996,USA stachOutk.edu "If architects designed a building like a body,it would have a system of bones and muscles and tendons and a brain that knows how to respond.If a building could change its posture,tighten its muscles and brace itself against the wind,its structural mass could literally be cut in half." Guy Nordenson,Ove Arup and Partners Summary.This case study is an investigation of self-generating forms in nature based on pneumatic structures and their use in architectural theory.It focuses on the concept of self organization as a defining principle in nature and in particular,on the mathematical,geometrical and physical properties of bubble clusters and shows eramples from nature,biology and engineering.Part of the research resulted in a se- ries of digital models and renderings of different bubble clusters and there polyhedral configuration.Advanced structural design methods are already using systems based upon self-generated models rooted in biological and genetic forms.Engineers are able to input a series of variables into a computer program which in turn,derive a struc- ture using a genetic algorithm resulting in the most efficient use of materials,etc. Numerous eramples of such procedures already erist in nature today,in particular, biology.Blueprints for these forms are stored in the genetic code of the DNA of all life forms.Until recent advances in computer technology,the ability to put such genetic algorithms to use has not been possible. 1 The DNA(deoxyribonucleic acid)is the carrier of our hereditary characteristics and that it is based on two strands twisted about one another forming a double he- lix.The strands consist of alternating carbohydrate and phosphate molecules.On each carbohydrate sits one of the four nitrogenous molecules Adenine,Cytosine, Guanine and Thymine.A DNA strand can thus be compared with a long sentence (sequence)of code words,where each word consists of three letters that can be combined in many different ways,e.g.CAG,ACT.Each code word can be read by components inside the cell and translated into one of the twenty amino acids that build proteins.The three-dimensional structure,and hence the function,of the proteins is determined by the order in which the different amino acids are linked together according to the genetic code.(www.nobel.se/chemistry). 285 E.Onate and B.Kroplin (eds.).Textile Composites and Inflatable Structures,285-303. 2005 Springer.Printed in the Netherlands
Form-Optimizing Processes in Biological Structures. Self-generating structures in nature based on pneumatics Edgar Stach1 University of Tennessee, College of Architecture and Design 1715 Volunteer Boulevard, Knoxville, TN 37996, USA stach@utk.edu “If architects designed a building like a body, it would have a system of bones and muscles and tendons and a brain that knows how to respond. If a building could change its posture, tighten its muscles and brace itself against the wind, its structural mass could literally be cut in half.” Guy Nordenson, Ove Arup and Partners Summary. This case study is an investigation of self-generating forms in nature based on pneumatic structures and their use in architectural theory. It focuses on the concept of self organization as a defining principle in nature and in particular, on the mathematical, geometrical and physical properties of bubble clusters and shows examples from nature, biology and engineering. Part of the research resulted in a series of digital models and renderings of different bubble clusters and there polyhedral configuration. Advanced structural design methods are already using systems based upon self-generated models rooted in biological and genetic forms. Engineers are able to input a series of variables into a computer program which in turn, derive a structure using a genetic algorithm resulting in the most efficient use of materials, etc. Numerous examples of such procedures already exist in nature today, in particular, biology. Blueprints for these forms are stored in the genetic code of the DNA1 of all life forms. Until recent advances in computer technology, the ability to put such genetic algorithms to use has not been possible. 1 The DNA (deoxyribonucleic acid) is the carrier of our hereditary characteristics and that it is based on two strands twisted about one another forming a double helix. The strands consist of alternating carbohydrate and phosphate molecules. On each carbohydrate sits one of the four nitrogenous molecules Adenine, Cytosine, Guanine and Thymine. A DNA strand can thus be compared with a long sentence (sequence) of code words, where each word consists of three letters that can be combined in many different ways, e.g. CAG, ACT. Each code word can be read by components inside the cell and translated into one of the twenty amino acids that build proteins. The three-dimensional structure, and hence the function, of the proteins is determined by the order in which the different amino acids are linked together according to the genetic code. (www.nobel.se/chemistry). 285 E. Oñate and B. Kröplin (eds.), Textile Composites and Inflatable Structures, 285–303. © 2005 Springer. Printed in the Netherlands
286 Edgar Stach Key words:Form-optimization,lightweight membrane-construction,radiolarian, genetic algorithm polyhedra 1 Introduction The study of form-optimizing processes in biological structures has a long his- tory starting with Frei Otto,Werner Nachtigall and followed by many researchers (23][4][10].These researchers have outlined in a number of forms the mathematical relationships that control the overall geometry of polyhedral in biological structures [12].The research centers on an investigation how optimizing processes in biologi- cal structures are possible starting points to generate optimized architectural forms and structures.For this particular study the bubble cluster based on the pneus was selected.The pneu is a system of construction comprising of a non-rigid envelope having a certain tensile strength,and an internal filling,which is in most cases pres- surized.This system of construction can be translated into the architectural world in the form of pneumatic structures.This structural system,which can be found in many lightweight structures today,is based on the principals of those pneumatic structures found in nature. Fig.1.DNA double helix Fig.2.DNA,the genetic code 2 Pneumatic Structures in Nature One example of a pneumatic structure in nature is the soap bubble.In soap bubbles, growth is achieved through a system of division and inflation.This increased internal pressure encased in a reinforced membrane subject to tensile stress causes the bubble to grow in a process known as isomorphism or self-generation. Free-floating bubbles collect and form dense clusters known as foam.If three bubbles are placed on a glass surface and a fourth is added,the fourth bubble will relocate to the top of the three bubbles to form the simplest three-dimensional cluster consisting of four bubbles.If further bubbles are added they will automatically form a foam structure.If the bubbles are of equal size the liquid edges of the foam are straight and of equal length and the angles of incidence at the nodal points are equal.The total structure forms a net of equal mesh size called the "basic net"(Fig. 13)
286 Edgar Stach Key words: Form-optimization, lightweight membrane-construction, radiolarian, genetic algorithm polyhedra 1 Introduction The study of form-optimizing processes in biological structures has a long history starting with Frei Otto, Werner Nachtigall and followed by many researchers [2][3][4][10]. These researchers have outlined in a number of forms the mathematical relationships that control the overall geometry of polyhedral in biological structures [12]. The research centers on an investigation how optimizing processes in biological structures are possible starting points to generate optimized architectural forms and structures. For this particular study the bubble cluster based on the pneus was selected. The pneu is a system of construction comprising of a non-rigid envelope having a certain tensile strength, and an internal filling, which is in most cases pressurized. This system of construction can be translated into the architectural world in the form of pneumatic structures. This structural system, which can be found in many lightweight structures today, is based on the principals of those pneumatic structures found in nature. Fig. 1. DNA double helix Fig. 2. DNA, the genetic code 2 Pneumatic Structures in Nature One example of a pneumatic structure in nature is the soap bubble. In soap bubbles, growth is achieved through a system of division and inflation. This increased internal pressure encased in a reinforced membrane subject to tensile stress causes the bubble to grow in a process known as isomorphism or self-generation. Free-floating bubbles collect and form dense clusters known as foam. If three bubbles are placed on a glass surface and a fourth is added, the fourth bubble will relocate to the top of the three bubbles to form the simplest three-dimensional cluster consisting of four bubbles. If further bubbles are added they will automatically form a foam structure. If the bubbles are of equal size the liquid edges of the foam are straight and of equal length and the angles of incidence at the nodal points are equal. The total structure forms a net of equal mesh size called the “basic net” (Fig. 13)

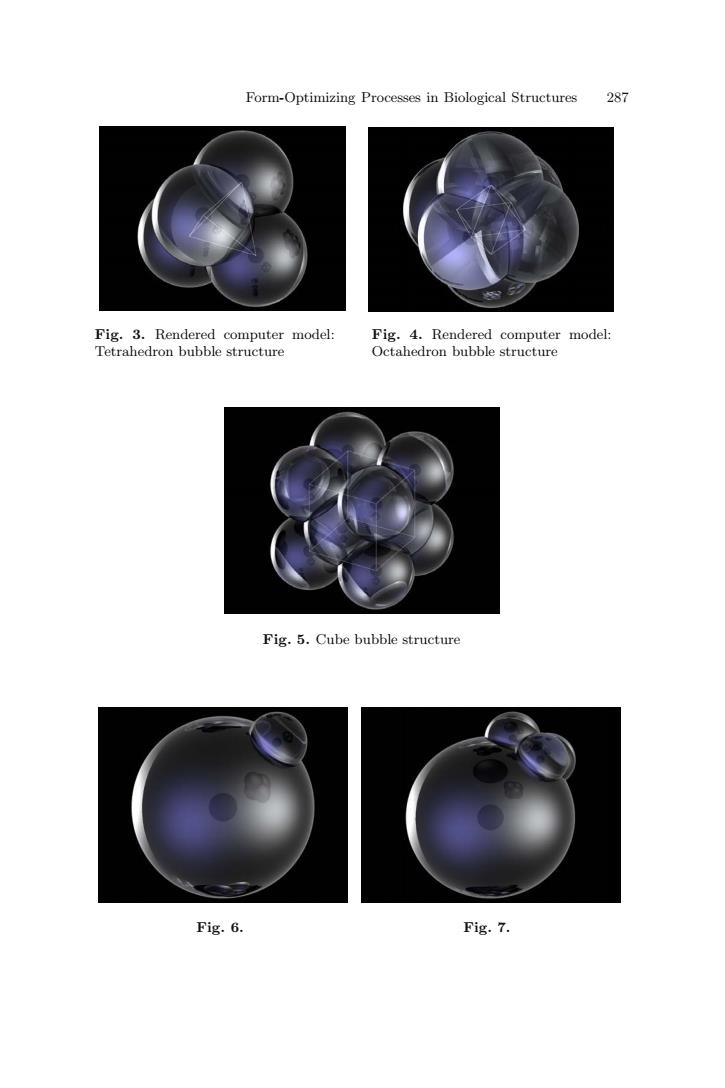

Form-Optimizing Processes in Biological Structures 287 Fig.3.Rendered computer model: Fig.4.Rendered computer model: Tetrahedron bubble structure Octahedron bubble structure Fig.5.Cube bubble structure Fig.6. Fig.7
Form-Optimizing Processes in Biological Structures 287 Fig. 3. Rendered computer model: Tetrahedron bubble structure Fig. 4. Rendered computer model: Octahedron bubble structure Fig. 5. Cube bubble structure Fig. 6. Fig. 7

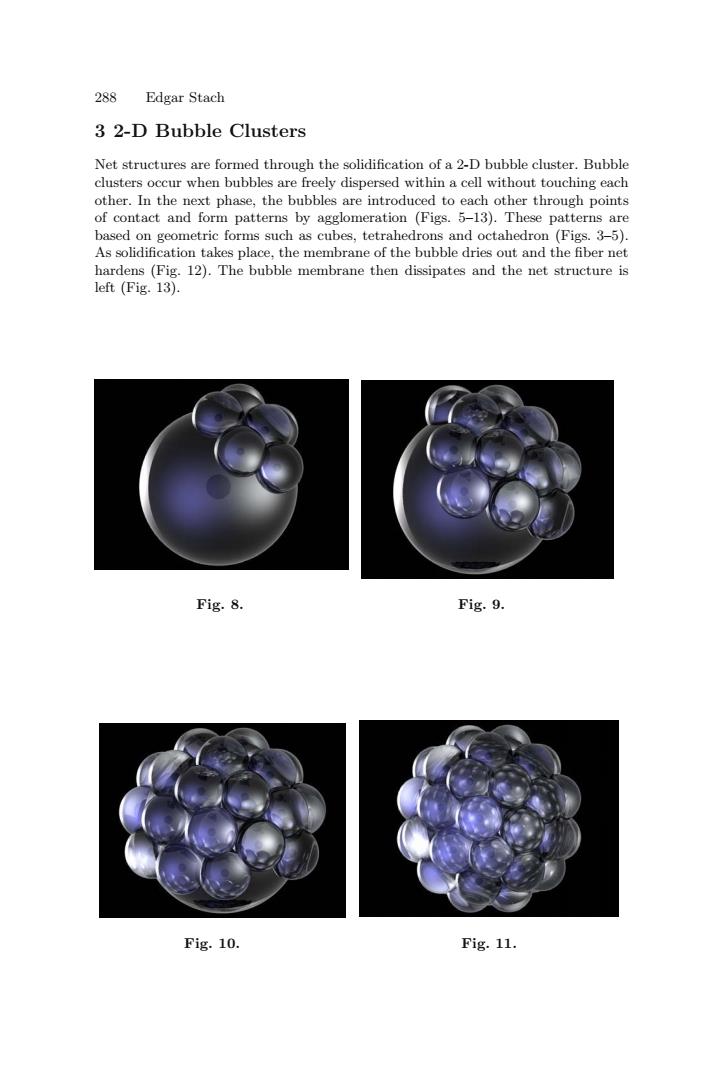

288 Edgar Stach 3 2-D Bubble Clusters Net structures are formed through the solidification of a 2-D bubble cluster.Bubble clusters occur when bubbles are freely dispersed within a cell without touching each other.In the next phase,the bubbles are introduced to each other through points of contact and form patterns by agglomeration (Figs.5-13).These patterns are based on geometric forms such as cubes,tetrahedrons and octahedron (Figs.3-5). As solidification takes place,the membrane of the bubble dries out and the fiber net hardens(Fig.12).The bubble membrane then dissipates and the net structure is left (Fig.13). Fig.8. Fig.9. Fig.10. Fig.11
288 Edgar Stach 3 2-D Bubble Clusters Net structures are formed through the solidification of a 2-D bubble cluster. Bubble clusters occur when bubbles are freely dispersed within a cell without touching each other. In the next phase, the bubbles are introduced to each other through points of contact and form patterns by agglomeration (Figs. 5–13). These patterns are based on geometric forms such as cubes, tetrahedrons and octahedron (Figs. 3–5). As solidification takes place, the membrane of the bubble dries out and the fiber net hardens (Fig. 12). The bubble membrane then dissipates and the net structure is left (Fig. 13). Fig. 8. Fig. 9. Fig. 10. Fig. 11
Form-Optimizing Processes in Biological Structures 289 Fig.12. Fig.13. 4 Mathematics/Geometry Closest packing One of the fundamental geometric principles that drives the repetitive,self-generating forms in nature is the notion of closest packing [1]of spheres.It is this,which de- fines the curvature of an insect's compound eye or creates the formwork to mold a radiolarian's skeletal structure. As spheres are packed closely together,certain laws of physics cause geometric shapes to occur,such as hexagons.These polygons create repetitive surfaces among and around the spheres.In some cases,these surfaces find themselves useful for a number of functions,such as in an insect's eye.In other instances,these surfaces interlock together to create volumes,polygons create polyhedrons.These volumes may be used to serve a purpose. Often times,it is not the surface or volume that is put to use in these systems. Quite likely,it is the edges along which these spheres meet that are of use to the organism.Once again,the radiolarian and diatom gather silicate deposits along the edges where the spheres meet around the outer surface.It is along these edges that a skeletal system is formed. Fig.14.Closest packing of spheres
Form-Optimizing Processes in Biological Structures 289 Fig. 12. Fig. 13. 4 Mathematics/Geometry Closest packing One of the fundamental geometric principles that drives the repetitive, self-generating forms in nature is the notion of closest packing [1] of spheres. It is this, which de- fines the curvature of an insect’s compound eye or creates the formwork to mold a radiolarian’s skeletal structure. As spheres are packed closely together, certain laws of physics cause geometric shapes to occur, such as hexagons. These polygons create repetitive surfaces among and around the spheres. In some cases, these surfaces find themselves useful for a number of functions, such as in an insect’s eye. In other instances, these surfaces interlock together to create volumes, polygons create polyhedrons. These volumes may be used to serve a purpose. Often times, it is not the surface or volume that is put to use in these systems. Quite likely, it is the edges along which these spheres meet that are of use to the organism. Once again, the radiolarian and diatom gather silicate deposits along the edges where the spheres meet around the outer surface. It is along these edges that a skeletal system is formed. Fig. 14. Closest packing of spheres
