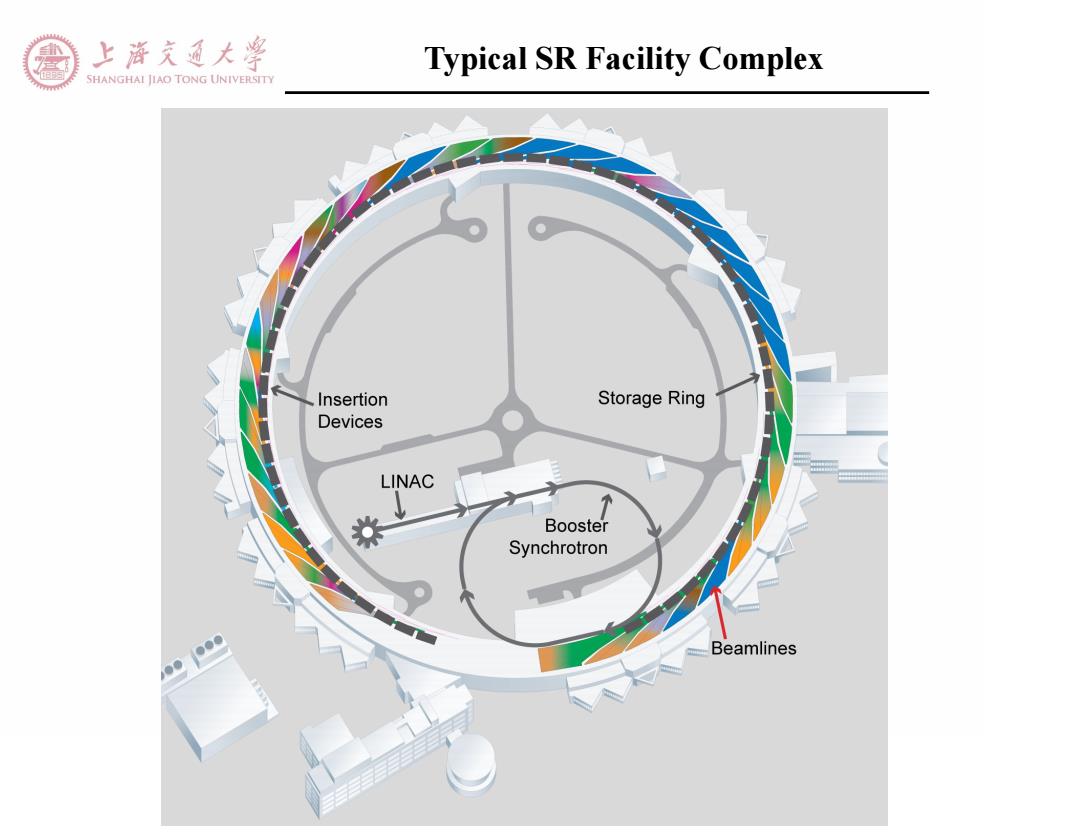

上海充通大粤 Typical SR Facility Complex SHANGHAI JIAO TONG UNIVERSITY Insertion Storage Ring Devices LINAC Booster Synchrotron 00●00 Beamlines
Typical SR Facility Complex

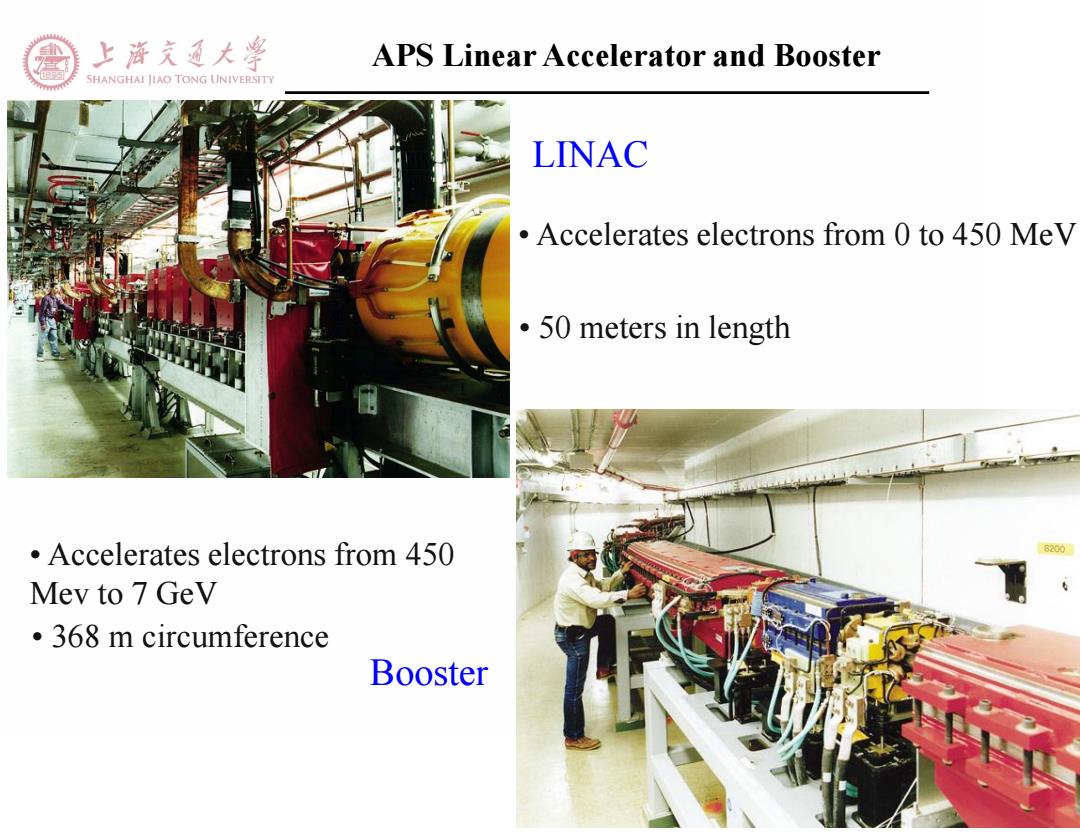

上游充通大 APS Linear Accelerator and Booster SHANGHAI JIAO TONG UNIVERSITY LINAC Accelerates electrons from 0 to 450 MeV ·50 meters in length Accelerates electrons from 450 6200 Mey to 7 GeV ·368 m circumference Booster
LINAC Booster • Accelerates electrons from 450 Mev to 7 GeV 11 APS Linear Accelerator and Booster • 50 meters in length • Accelerates electrons from 0 to 450 MeV • 368 m circumference

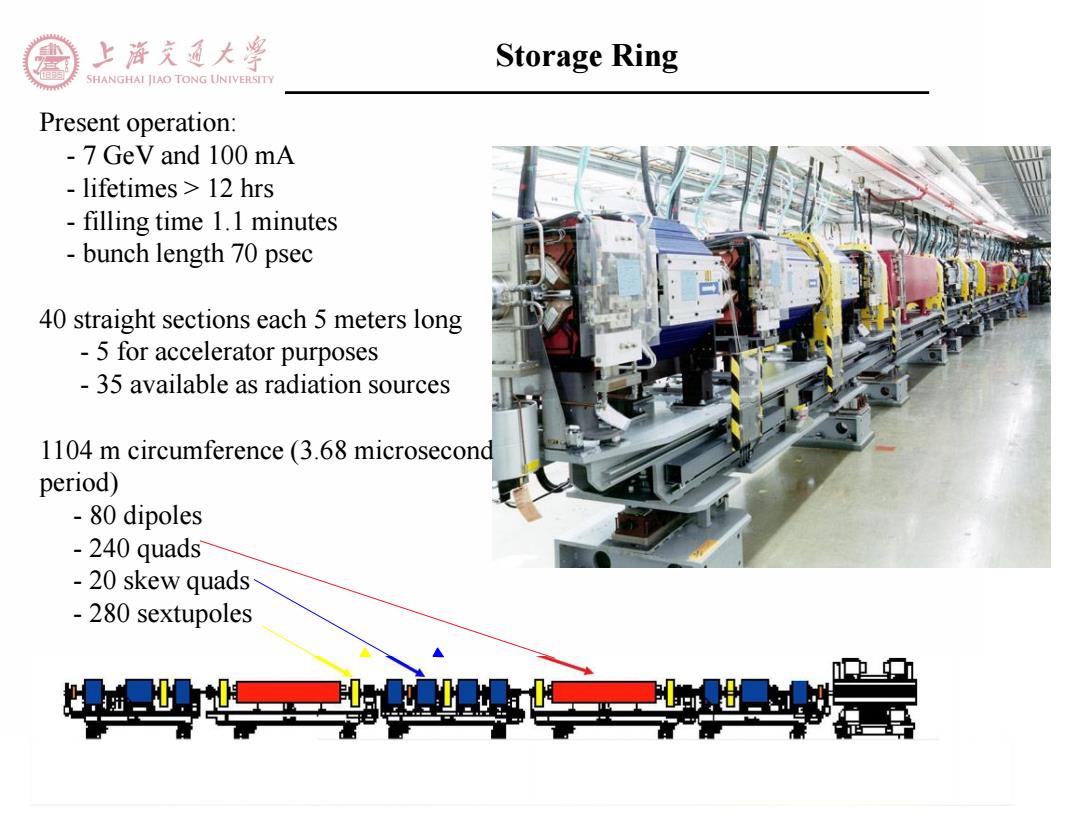

上游充通大学 Storage Ring SHANGHAI JIAO TONG UNIVERSITY Present operation: -7 GeV and 100 mA lifetimes 12 hrs filling time 1.1 minutes bunch length 70 psec 40 straight sections each 5 meters long -5 for accelerator purposes 35 available as radiation sources 1104 m circumference (3.68 microsecond period) -80 dipoles 240 quads -20 skew quads -280 sextupoles
Present operation: - 7 GeV and 100 mA - lifetimes > 12 hrs - filling time 1.1 minutes - bunch length 70 psec 40 straight sections each 5 meters long - 5 for accelerator purposes - 35 available as radiation sources 1104 m circumference (3.68 microsecond period) - 80 dipoles - 240 quads - 20 skew quads - 280 sextupoles Storage Ring

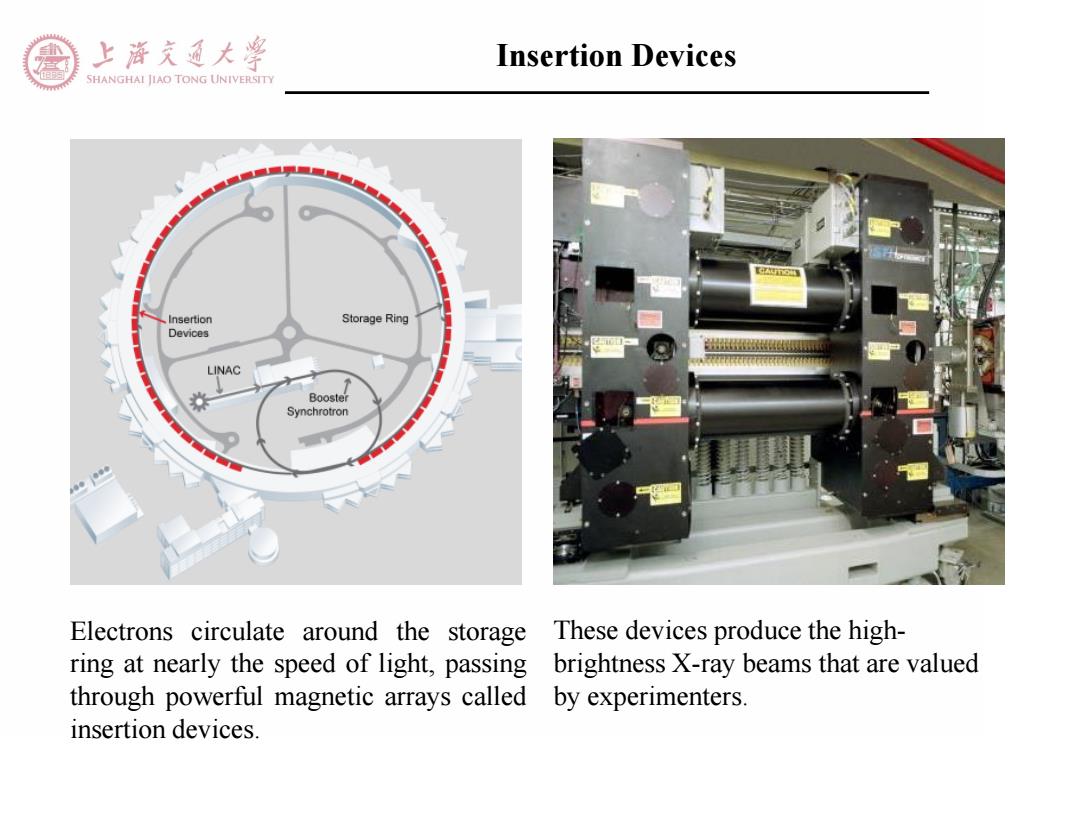

上海充通大粤 Insertion Devices SHANGHAI JIAO TONG UNIVERSITY Insertion Storage Ring Devices LINAC Booster Synchrotron Electrons circulate around the storage These devices produce the high- ring at nearly the speed of light,passing brightness X-ray beams that are valued through powerful magnetic arrays called by experimenters. insertion devices
Insertion Devices Electrons circulate around the storage ring at nearly the speed of light, passing through powerful magnetic arrays called insertion devices. These devices produce the highbrightness X-ray beams that are valued by experimenters

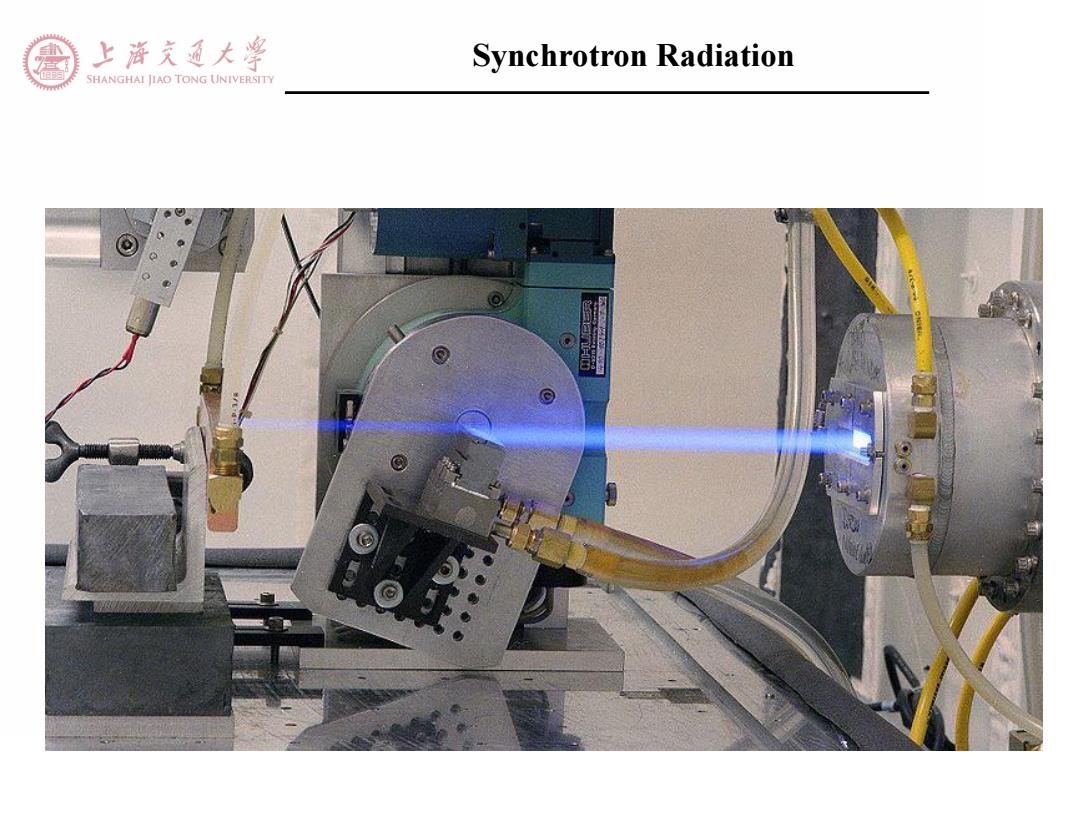

上海充通大粤 Synchrotron Radiation SHANGHAI JIAO TONG UNIVERSITY
Synchrotron Radiation
