Digital Image Processing,3rd ed. Gonzalez Woods www.ImageProcessingPlace.com Chapter 6 Color Image Processing Pseudocolor Image Processing Pseudocolor (also called false color)image processing consists of assigning colors to gray values based on a specified criterion. The principal use of pseudocolor is for human visualization and interpretation of gray-scale events in an image or sequence of images. 1992-2008 R.C.Gonzalez &R.E.Woods
Digital Image Processing, 3rd ed. www.ImageProcessingPlace.com © 1992–2008 R. C. Gonzalez & R. E. Woods Gonzalez & Woods Chapter 6 Color Image Processing Pseudocolor Image Processing Pseudocolor (also called false color) image processing consists of assigning colors to gray values based on a specified criterion. The principal use of pseudocolor is for human visualization and interpretation of gray-scale events in an image or sequence of images
Digital Image Processing,3rd ed. Gonzalez Woods www.ImageProcessingPlace.com Chapter 6 Color Image Processing Pseudocolor Image Processing (Whice)L1 ·Intensity slicing Let [0,L-1]represent the gray scale,let level lo represent black FIGURE 6.18 Geometric [f(x,y)=0],and level lL-1 tereo represent white [f(x,y)=L-1]. slicing technique f(x,y)=ck if f(x,y)E Vk Where ck is the color associated with the k-th intensity,interval Vk defined by the partitioning planes at l=k-1and l=k L-1 Gray levels FIGURE 6.19 An alternative representation of the intensity-slicing technique. 1992-2008 R.C.Gonzalez R.E.Woods
Digital Image Processing, 3rd ed. www.ImageProcessingPlace.com © 1992–2008 R. C. Gonzalez & R. E. Woods Gonzalez & Woods Chapter 6 Color Image Processing Pseudocolor Image Processing • Intensity slicing Let [0,L-1] represent the gray scale, let level l0 represent black 𝑓 𝑥, 𝑦 = 0 , and level 𝑙𝐿−1 represent white 𝑓 𝑥, 𝑦 = 𝐿 − 1 . 𝑓 𝑥, 𝑦 = 𝑐𝑘 if 𝑓 𝑥, 𝑦 ∈ 𝑉𝑘 Where 𝑐𝑘 is the color associated with the k-th intensity, interval 𝑉𝑘 defined by the partitioning planes at 𝑙 = 𝑘 − 1 𝑎𝑛𝑑 𝑙 = 𝑘
Digital Image Processing,3rd ed. Gonzalez&Woods www.ImageProcessingPlace.com Chapter 6 Color Image Processing Example of intensity slicing 1992-2008 R.C.Gonzalez R.E.Woods
Digital Image Processing, 3rd ed. www.ImageProcessingPlace.com © 1992–2008 R. C. Gonzalez & R. E. Woods Gonzalez & Woods Chapter 6 Color Image Processing • Example of intensity slicing

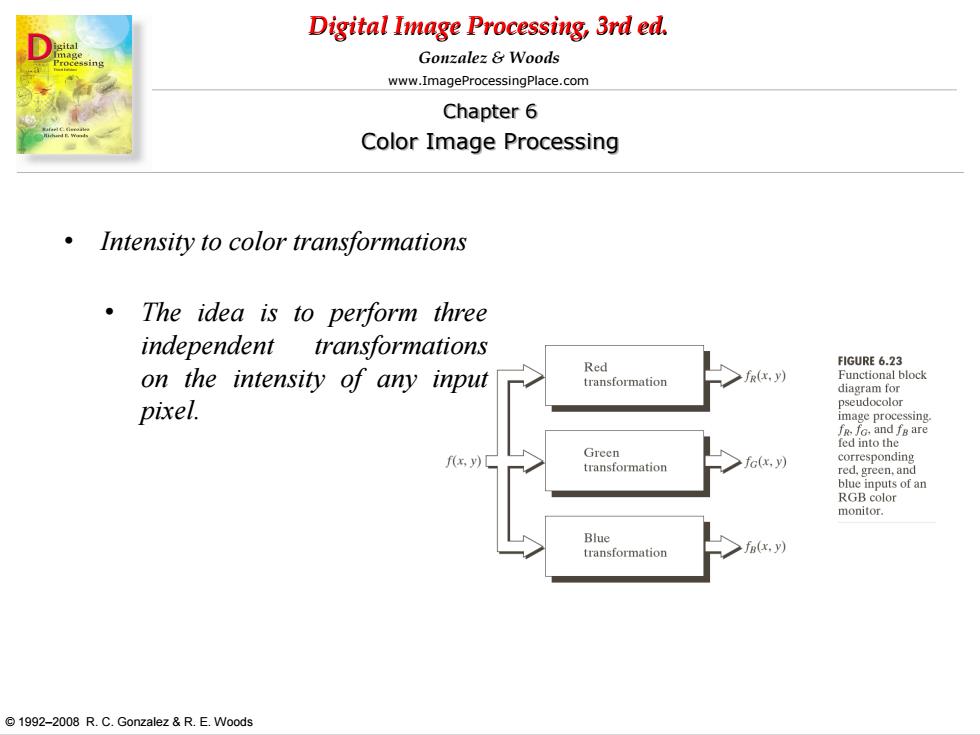

Digital Image Processing,3rd ed. Gonzalez Woods www.ImageProcessingPlace.com Chapter 6 Color Image Processing Intensity to color transformations The idea is to perform three independent transformations Red FIGURE 6.23 on the intensity of any input transformation fr(x.y) Functional block diagram for pixel. pseudocolor edto fxy)口 Green transformation fc(x.y) corresponding red,green,and blue inputs of an RGB color monitor. Blue transformation fg(x.y) 1992-2008 R.C.Gonzalez R.E.Woods
Digital Image Processing, 3rd ed. www.ImageProcessingPlace.com © 1992–2008 R. C. Gonzalez & R. E. Woods Gonzalez & Woods Chapter 6 Color Image Processing • Intensity to color transformations • The idea is to perform three independent transformations on the intensity of any input pixel
