先进材料疑固实验室 Gating system Laboratory of Advanced Materials Solidification Pouring cup Runner Sprue extension 、 Gates to casting Runner Sprue well Runner well FIGURE 13-9 Typical gating system for a horizontal parting plane mold, showing key components involved in controlling the flow of metal into the mold cavity. 熟 上游文通大学 SHANGHAI JIAO TONG UNIVERSITY
Gating system
先进材料疑固实验室 Gating system Laboratory of Advanced Materials Solidification How to deliver liquid metal fast? By using a sufficient large cross sectional area; By using multiple runners. How to minimize turbulent flow? By using tapered sprue and runners. By bottom filling of the liquid into the mould cavity. e By regulating the change of cross sectional area of the channels according to fluid dynamics principles. 上浒充通大学 SHANGHAI JIAO TONG UNIVERSITY
Gating system How to deliver liquid metal fast? • By using a sufficient large cross sectional area; • By using multiple runners. How to minimize turbulent flow? • By using tapered sprue and runners. • By bottom filling of the liquid into the mould cavity. • By regulating the change of cross sectional area of the channels according to fluid dynamics principles
先进材料疑固实验室 Gating system Laboratory of Advanced Materials Solidification How to keep dross and inclusion particles from entering mould cavity? ·By using dross traps. ·By using filters. ory of ivanced Materials Solid 上海充通大￥ SHANGHAI JIAO TONG UNIVERSITY
Gating system How to keep dross and inclusion particles from entering mould cavity? • By using dross traps. • By using filters

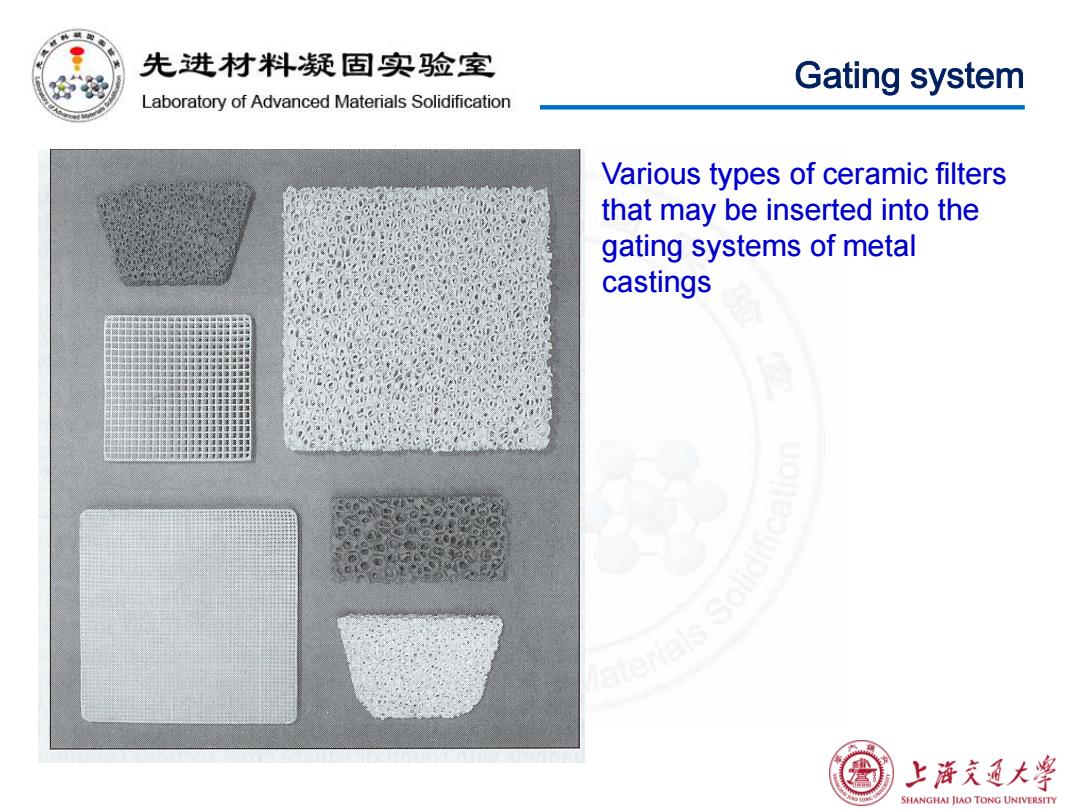

先进材料疑固实验室 Gating system Laboratory of Advanced Materials Solidification Various types of ceramic filters that may be inserted into the gating systems of metal castings 上浒充通大 SHANGHAI JIAO TONG UNIVERSITY
Gating system Various types of ceramic filters that may be inserted into the gating systems of metal castings
先进材料疑固实验室 Gating system Laboratory of Advanced Materials Solidification Conical- cup Reverse- taper sprue Runner in cope Casting in Gates in drag drag Figure 2.3 A poor running system. Weir bush Correct taper sprue Well Casting in cope Gates in cope Stepped runner in drag Figure 2.4 A more satisfactory running system. 上游文通大学 SHANGHAI JIAO TONG UNIVERSITY
Gating system
