ABDOMEN IV liyingchd@163.com
ABDOMEN Ⅳ liyingchd@163.com
Objects Go over the stomach and the liver The arteries and ligaments of stomach and liver ·Bile circulation ·Pancreas ·Small intestine ·Large intestine Dissection 3
Objects 1 • Go over the stomach and the liver • The arteries and ligaments of stomach and liver 2 • Bile circulation • Pancreas • Small intestine • Large intestine • 3 •Dissection
Greater omentum Lesser omentum Hepatogastric ligament Hepatoduodenal ligament Gastrophrenic ligament Gastrosplenic ligament Gastrocolic ligament
Hepatogastric ligament Hepatoduodenal ligament Gastrophrenic ligament Gastrosplenic ligament Gastrocolic ligament Greater omentum & Lesser omentum
Visceral surface of liver left lobe right lobe caudate lobe quadrate lobe Caudate lobe left lobe Right lobe
Visceral surface of liver left lobe right lobe caudate lobe quadrate lobe 4 Right Quadrate lobe lobe Caudate lobe left lobe

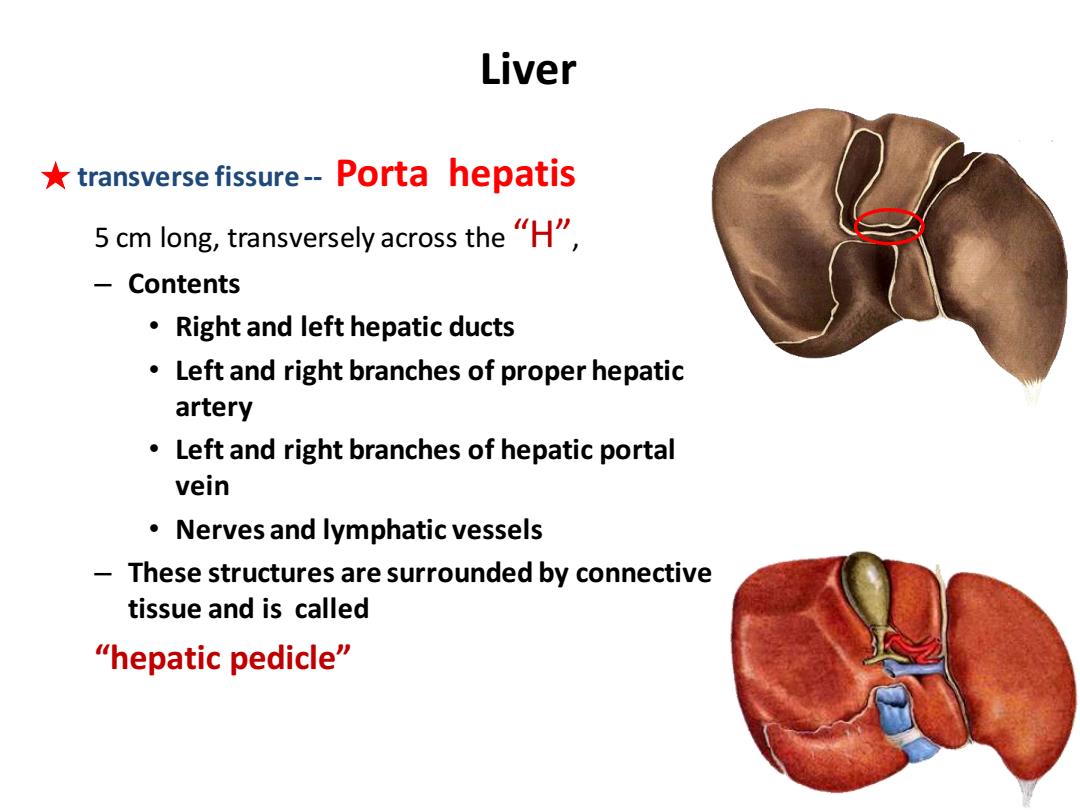

Liver *transverse fissure--Porta hepatis 5 cm long,transversely across the "H" -Contents Right and left hepatic ducts Left and right branches of proper hepatic artery Left and right branches of hepatic portal vein Nerves and lymphatic vessels These structures are surrounded by connective tissue and is called “hepatic pedicle
Liver ★ transverse fissure -- Porta hepatis 5 cm long, transversely across the “H”, – Contents • Right and left hepatic ducts • Left and right branches of proper hepatic artery • Left and right branches of hepatic portal vein • Nerves and lymphatic vessels – These structures are surrounded by connective tissue and is called “hepatic pedicle
