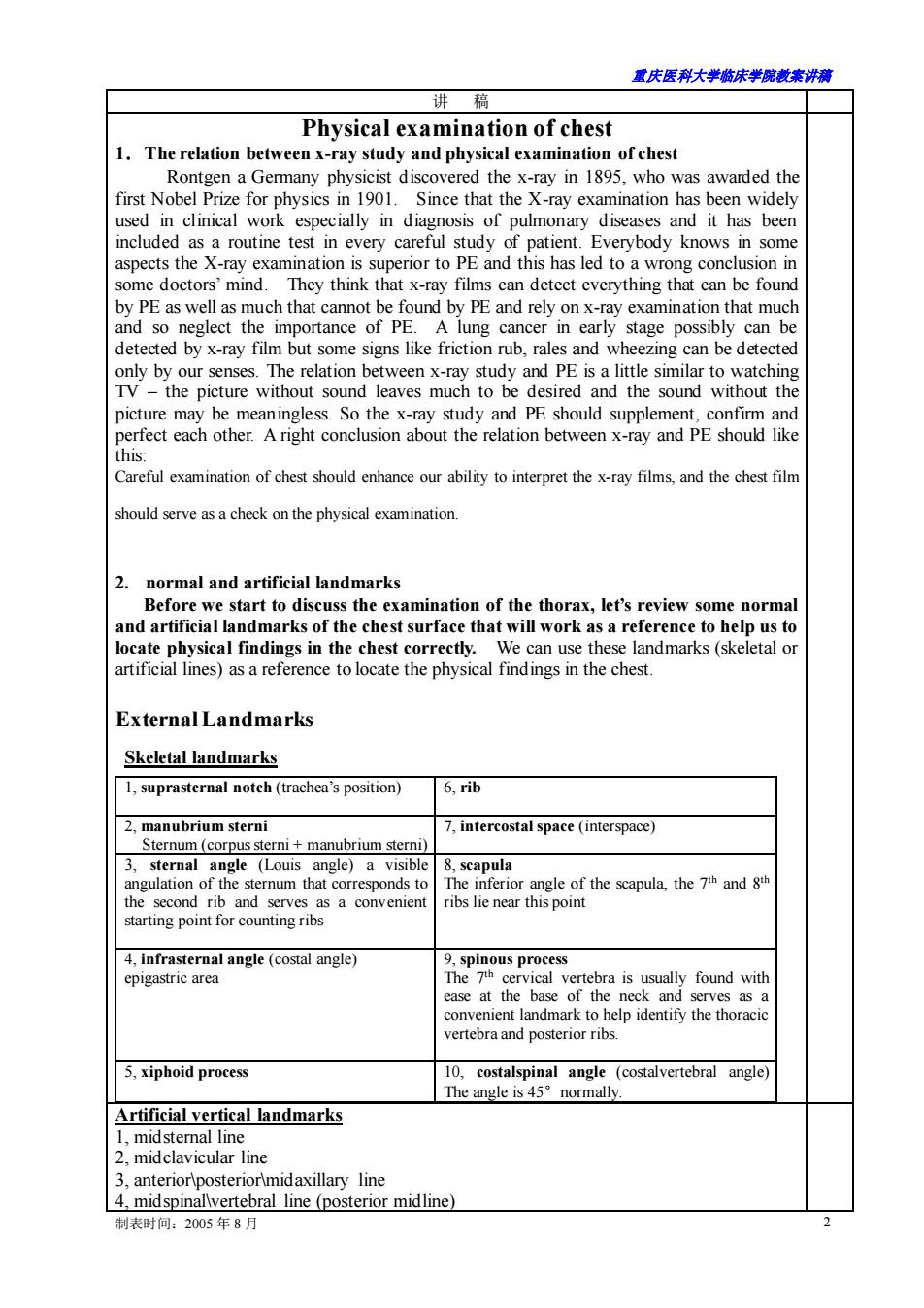

重庆医科大学临床学院教案讲稿制表时间：2005 年 8 月 2 讲稿 Physical examination of chest 1．The relation between x-ray study and physical examination of chest Rontgen a Germany physicist discovered the x-ray in 1895, who was awarded the first Nobel Prize for physics in 1901. Since that the X-ray examination has been widely used in clinical work especially in diagnosis of pulmonary diseases and it has been included as a routine test in every careful study of patient. Everybody knows in some aspects the X-ray examination is superior to PE and this has led to a wrong conclusion in some doctors’ mind. They think that x-ray films can detect everything that can be found by PE as well as much that cannot be found by PE and rely on x-ray examination that much and so neglect the importance of PE. A lung cancer in early stage possibly can be detected by x-ray film but some signs like friction rub, rales and wheezing can be detected only by our senses. The relation between x-ray study and PE is a little similar to watching TV – the picture without sound leaves much to be desired and the sound without the picture may be meaningless. So the x-ray study and PE should supplement, confirm and perfect each other. A right conclusion about the relation between x-ray and PE should like this: Careful examination of chest should enhance our ability to interpret the x-ray films, and the chest film should serve as a check on the physical examination. 2. normal and artificial landmarks Before we start to discuss the examination of the thorax, let’s review some normal and artificial landmarks of the chest surface that will work as a reference to help us to locate physical findings in the chest correctly. We can use these landmarks (skeletal or artificial lines) as a reference to locate the physical findings in the chest. External Landmarks Skeletal landmarks 1, suprasternal notch (trachea’s position) 6, rib 2, manubrium sterni Sternum (corpus sterni + manubrium sterni) 7, intercostal space (interspace) 3, sternal angle (Louis angle) a visible angulation of the sternum that corresponds to the second rib and serves as a convenient starting point for counting ribs 8, scapula The inferior angle of the scapula, the 7th and 8th ribs lie near this point 4, infrasternal angle (costal angle) epigastric area 9, spinous process The 7th cervical vertebra is usually found with ease at the base of the neck and serves as a convenient landmark to help identify the thoracic vertebra and posterior ribs. 5, xiphoid process 10, costalspinal angle (costalvertebral angle) The angle is 45°normally. Artificial vertical landmarks 1, midsternal line 2, midclavicular line 3, anterior\posterior\midaxillary line 4, midspinal\vertebral line (posterior midline)

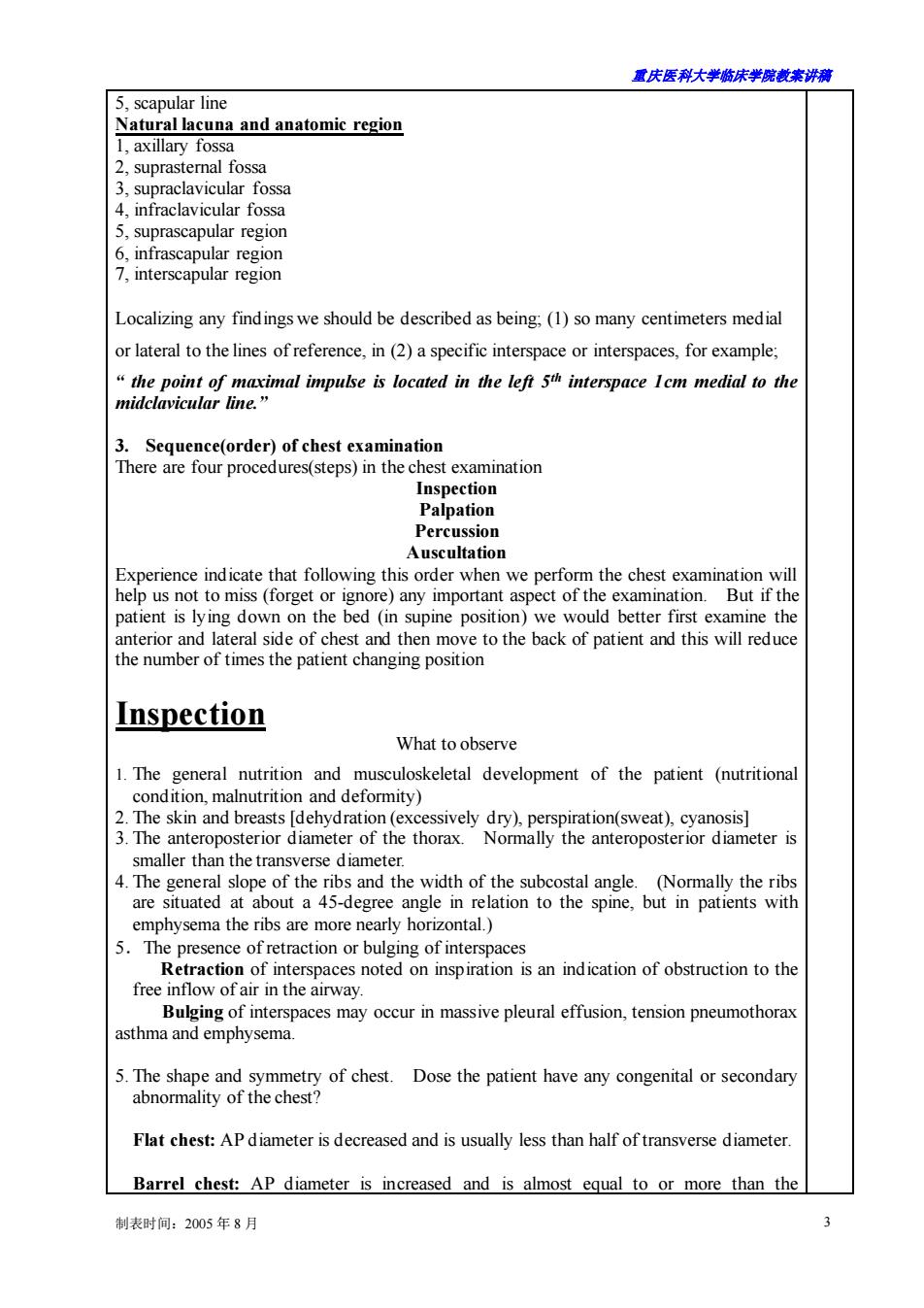

重庆医科大学临床学院教案讲稿制表时间：2005 年 8 月 3 5, scapular line Natural lacuna and anatomic region 1, axillary fossa 2, suprasternal fossa 3, supraclavicular fossa 4, infraclavicular fossa 5, suprascapular region 6, infrascapular region 7, interscapular region Localizing any findings we should be described as being; (1) so many centimeters medial or lateral to the lines of reference, in (2) a specific interspace or interspaces, for example; “ the point of maximal impulse is located in the left 5th interspace 1cm medial to the midclavicular line.” 3. Sequence(order) of chest examination There are four procedures(steps) in the chest examination Inspection Palpation Percussion Auscultation Experience indicate that following this order when we perform the chest examination will help us not to miss (forget or ignore) any important aspect of the examination. But if the patient is lying down on the bed (in supine position) we would better first examine the anterior and lateral side of chest and then move to the back of patient and this will reduce the number of times the patient changing position Inspection What to observe 1. The general nutrition and musculoskeletal development of the patient (nutritional condition, malnutrition and deformity) 2. The skin and breasts [dehydration (excessively dry), perspiration(sweat), cyanosis] 3. The anteroposterior diameter of the thorax. Normally the anteroposterior diameter is smaller than the transverse diameter. 4. The general slope of the ribs and the width of the subcostal angle. (Normally the ribs are situated at about a 45-degree angle in relation to the spine, but in patients with emphysema the ribs are more nearly horizontal.) 5．The presence of retraction or bulging of interspaces Retraction of interspaces noted on inspiration is an indication of obstruction to the free inflow of air in the airway. Bulging of interspaces may occur in massive pleural effusion, tension pneumothorax asthma and emphysema. 5. The shape and symmetry of chest. Dose the patient have any congenital or secondary abnormality of the chest? Flat chest: AP diameter is decreased and is usually less than half of transverse diameter. Barrel chest: AP diameter is increased and is almost equal to or more than the

重庆医科大半床半院载未讲满 transverse diameter Funnel chest:a depression of the sternum Pigeon breast:an anterior protrusion of the sternum The above all belong to the hypogenesis of thoracic wall(developmental problem) Unilateral retraction of the chest:atelectasis,pleural thickening and trauma The type,rate and depth of quiet breathing riaeabout 16-20 timesinte ands In the mal ratio of 8.Abnormal types of respiration Taehypnea:the breath rate is over 24 times/min Rrad a:the breath rate is below 12 times Apnea:the temporary cessation of breathing Hyp rpnea:an increased depth of breathing (Kussmaul's breathing.is associated with metabolic acidosis) Dyspnea:consciousness of difficulty or effort in breathing Inspiratory dyspnea:effort is the greatest in the inspiratory phase Expiratory dyspnea:effort is the greatest in the expiratory phase Dyspnea Normally a person do es not feel he is taking any effort to breath.Dyspnea describes a condition in which the patient becomes con of difficulty or effort in reathing and has to use greater respiratory effort to satisfy the body's needs. Although dyspnea is an entirely subjective feeling,sever dyspnea can be observed by watching: If the patient is in acute distress? Is there nasal flaring(nose wing is fanning)or pursed lip breathing? Are there audible signs,such as stridor and wheezing? Is cyanosis present? Is the patient using accessory muscles (the muscles of the shoulder and neck)? Will he raise his shoulder and nod his head while he is breathing? All of these signs indicate that the patient is in dyspnea. Inspiratory dyspnea:Tumor,foreign body,severe laryngitis,or extrinsic compression that obstruct trachea or major bronchi and produce an obstruction to the inward flow of air.Inspiratory dyspnea is often accompanied by inspiratory retraction of the interspaces,suprasternal fossa and supraclavicular fossas and an audible stridor if the obstruction located in the trachea or larynx. cle constriction,bronchial inflam and exs ecive secreations in asthma,broncl obstru of the inte 制表时间：2005年8月

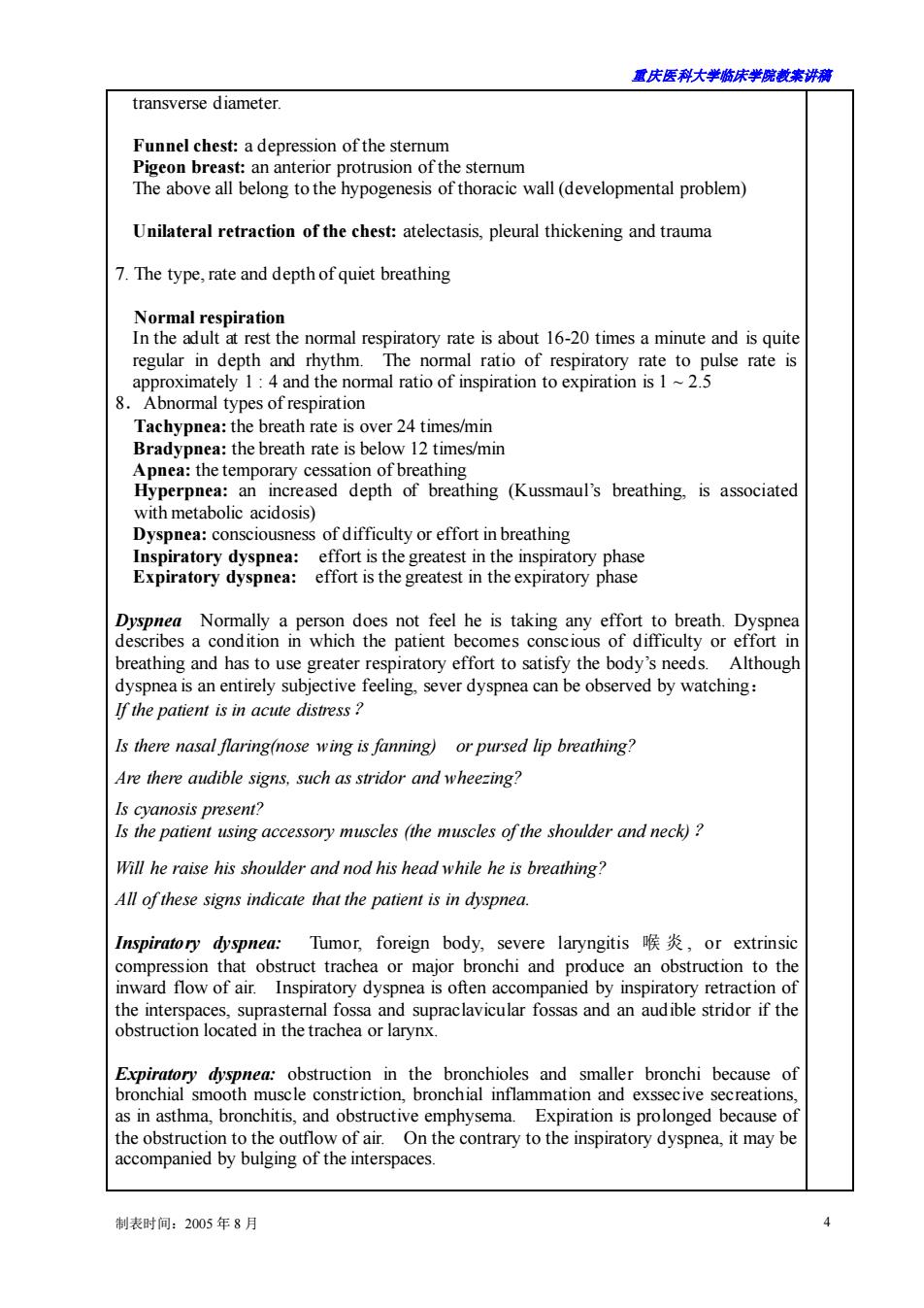

重庆医科大学临床学院教案讲稿制表时间：2005 年 8 月 4 transverse diameter. Funnel chest: a depression of the sternum Pigeon breast: an anterior protrusion of the sternum The above all belong to the hypogenesis of thoracic wall (developmental problem) Unilateral retraction of the chest: atelectasis, pleural thickening and trauma 7. The type, rate and depth of quiet breathing Normal respiration In the adult at rest the normal respiratory rate is about 16-20 times a minute and is quite regular in depth and rhythm. The normal ratio of respiratory rate to pulse rate is approximately 1 : 4 and the normal ratio of inspiration to expiration is 1 ~ 2.5 8．Abnormal types of respiration Tachypnea: the breath rate is over 24 times/min Bradypnea: the breath rate is below 12 times/min Apnea: the temporary cessation of breathing Hyperpnea: an increased depth of breathing (Kussmaul’s breathing, is associated with metabolic acidosis) Dyspnea: consciousness of difficulty or effort in breathing Inspiratory dyspnea: effort is the greatest in the inspiratory phase Expiratory dyspnea: effort is the greatest in the expiratory phase Dyspnea Normally a person does not feel he is taking any effort to breath. Dyspnea describes a condition in which the patient becomes conscious of difficulty or effort in breathing and has to use greater respiratory effort to satisfy the body’s needs. Although dyspnea is an entirely subjective feeling, sever dyspnea can be observed by watching： If the patient is in acute distress？ Is there nasal flaring(nose wing is fanning) or pursed lip breathing? Are there audible signs, such as stridor and wheezing? Is cyanosis present? Is the patient using accessory muscles (the muscles of the shoulder and neck)？ Will he raise his shoulder and nod his head while he is breathing? All of these signs indicate that the patient is in dyspnea. Inspiratory dyspnea: Tumor, foreign body, severe laryngitis 喉炎 , or extrinsic compression that obstruct trachea or major bronchi and produce an obstruction to the inward flow of air. Inspiratory dyspnea is often accompanied by inspiratory retraction of the interspaces, suprasternal fossa and supraclavicular fossas and an audible stridor if the obstruction located in the trachea or larynx. Expiratory dyspnea: obstruction in the bronchioles and smaller bronchi because of bronchial smooth muscle constriction, bronchial inflammation and exssecive secreations, as in asthma, bronchitis, and obstructive emphysema. Expiration is prolonged because of the obstruction to the outflow of air. On the contrary to the inspiratory dyspnea, it may be accompanied by bulging of the interspaces

露庆医科大学临床半蕊藏案讲满 Pusing our hands to touch patient and it may or supplement the findings already noted during inspection Palpation is the process of touching the patient in an effort to evaluate (1)cervical and axillary lymph nodes (2)trachea's position(position of the mediastinum) (3)thoracic expansion tenderness (5)any chest abnormalities that can not be seen (6)tactile fremitus (vocal fremitus) The term fremitus means vibration and tactile means touch(feeling) The sound that arise in the larynx are transmitted down along the bronchial system into each lung setting the thoracic wall in motion. Thus vibration are produced in the chest wall that can be felt by the hand I of the examiner.To elicit vocal fremitus the patient is with an unifor compa tr on c remit areas of th o fe yo place the corresponding areas so you can compare th Normal variations of fremitus Normally thereare several factorswill infuence the intensity of fremitu duce mo inte ice low nitch ofthe 3)N thickn ss of the ore intens than in obe atient (4)varying relations of the bronehi to the chest wall In general,vocal fremitus is most intense in the regions of the thorax where the large bronchi are the closest to the chest wall It should be pointed out that only big changes in the lung give palpable fremitus and so we shouldn't expect that small patches of early tuberculosis or pneumonia would be accompanied by significant changes of the vocal fremitus. Abnormal variations offremitus Decreased or absent tactile vocal fremitus excess air in the lung (emphysema)because air transmits vibrations are less intense than the tissue. obstruction of major bronchus (obstructive atelectasis)When a tumor occlude the bronchus the transmission of vibration will be diminished othorax the e prne mthe (3)subcutaneous emphysema (the escape of air from the lungs or outside into the subcutaneous tissues as the result of injuries to or operation on the thorax. Increased tactile vocal fremitus 制表时间.2005年8月

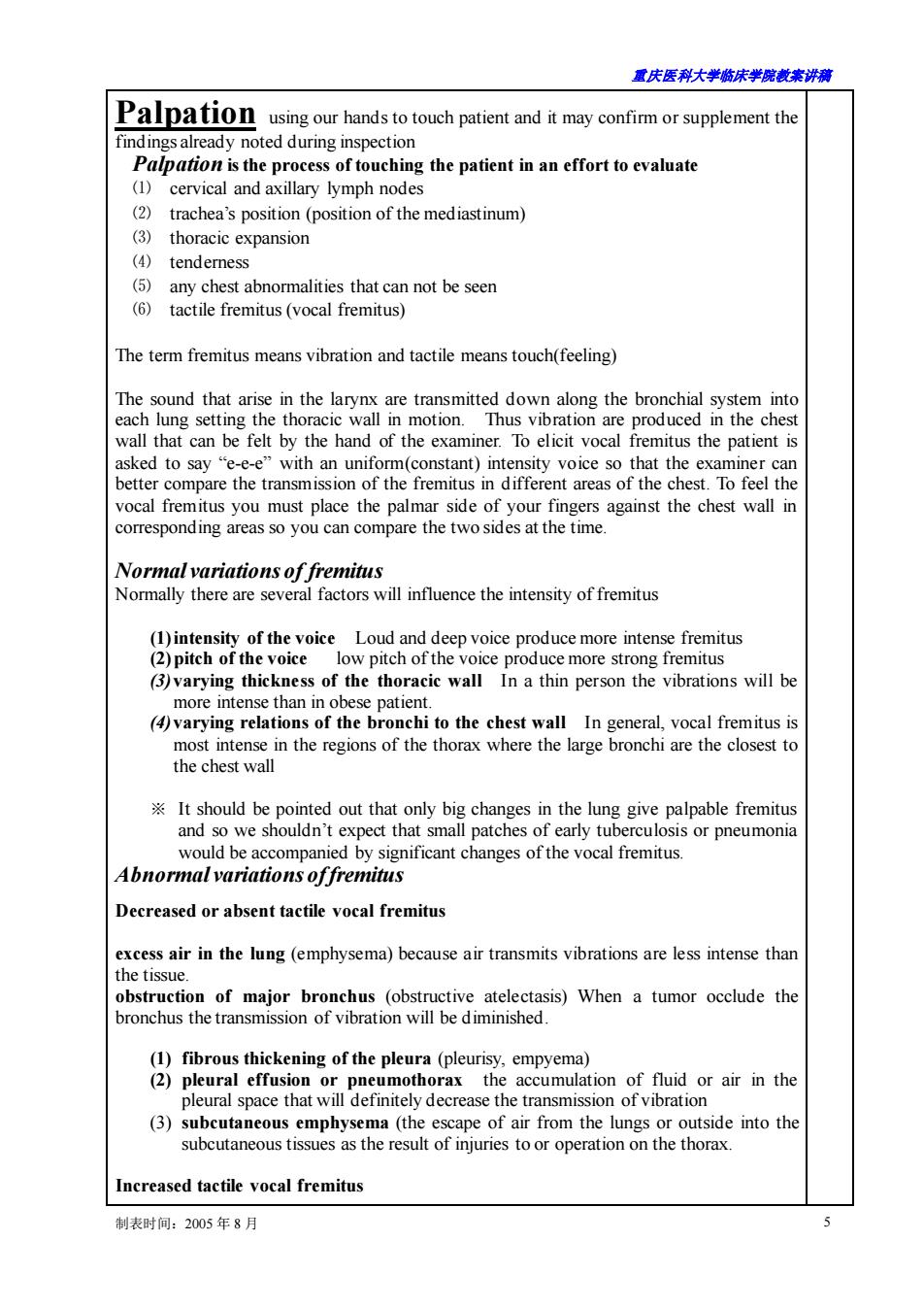

重庆医科大学临床学院教案讲稿制表时间：2005 年 8 月 5 Palpation using our hands to touch patient and it may confirm or supplement the findings already noted during inspection Palpation is the process of touching the patient in an effort to evaluate ⑴ cervical and axillary lymph nodes ⑵ trachea’s position (position of the mediastinum) ⑶ thoracic expansion ⑷ tenderness ⑸ any chest abnormalities that can not be seen ⑹ tactile fremitus (vocal fremitus) The term fremitus means vibration and tactile means touch(feeling) The sound that arise in the larynx are transmitted down along the bronchial system into each lung setting the thoracic wall in motion. Thus vibration are produced in the chest wall that can be felt by the hand of the examiner. To elicit vocal fremitus the patient is asked to say “e-e-e” with an uniform(constant) intensity voice so that the examiner can better compare the transmission of the fremitus in different areas of the chest. To feel the vocal fremitus you must place the palmar side of your fingers against the chest wall in corresponding areas so you can compare the two sides at the time. Normal variations of fremitus Normally there are several factors will influence the intensity of fremitus (1)intensity of the voice Loud and deep voice produce more intense fremitus (2)pitch of the voice low pitch of the voice produce more strong fremitus (3)varying thickness of the thoracic wall In a thin person the vibrations will be more intense than in obese patient. (4)varying relations of the bronchi to the chest wall In general, vocal fremitus is most intense in the regions of the thorax where the large bronchi are the closest to the chest wall ※ It should be pointed out that only big changes in the lung give palpable fremitus and so we shouldn’t expect that small patches of early tuberculosis or pneumonia would be accompanied by significant changes of the vocal fremitus. Abnormal variations of fremitus Decreased or absent tactile vocal fremitus excess air in the lung (emphysema) because air transmits vibrations are less intense than the tissue. obstruction of major bronchus (obstructive atelectasis) When a tumor occlude the bronchus the transmission of vibration will be diminished. (1) fibrous thickening of the pleura (pleurisy, empyema) (2) pleural effusion or pneumothorax the accumulation of fluid or air in the pleural space that will definitely decrease the transmission of vibration (3) subcutaneous emphysema (the escape of air from the lungs or outside into the subcutaneous tissues as the result of injuries to or operation on the thorax. Increased tactile vocal fremitus
