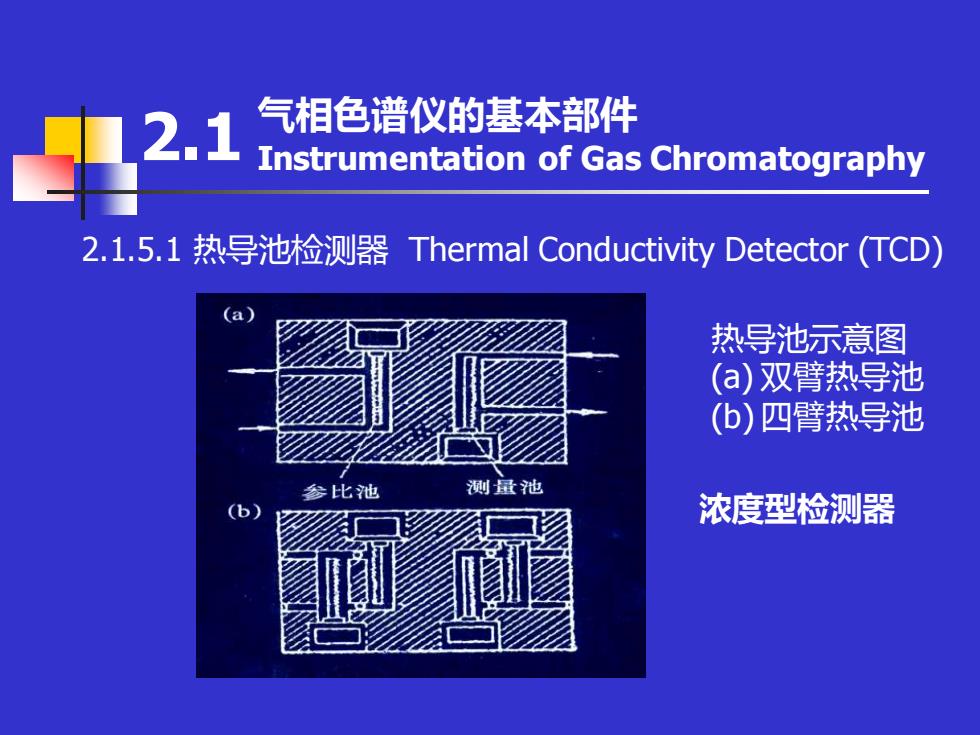

2.1 气相色谱仪的基本部件 Instrumentation of Gas Chromatography 2.1.5.1热导池检测器Thermal Conductivity Detector(TCD) (a】 热导池示意图 (a)双臂热导池 (b)四臂热导池 参比池 测量池 (b 浓度型检测器
气相色谱仪的基本部件 2.1 Instrumentation of Gas Chromatography 2.1.5.1 热导池检测器 Thermal Conductivity Detector (TCD) 热导池示意图 (a) 双臂热导池 (b) 四臂热导池 浓度型检测器

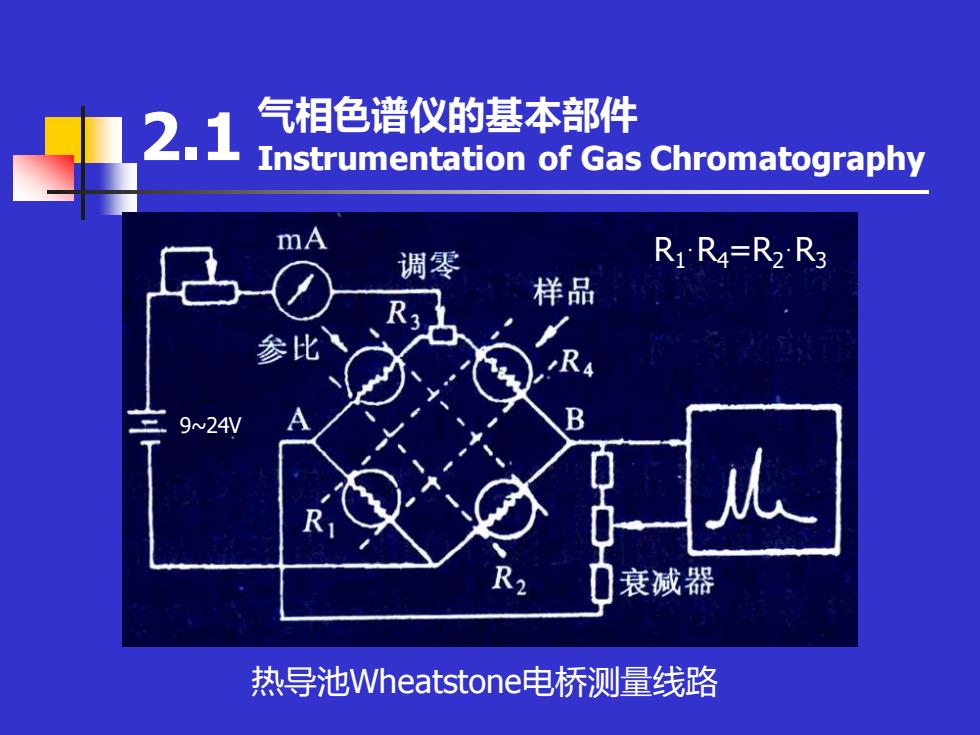

2.1 气相色谱仪的基本部件 Instrumentation of Gas Chromatography mA 调零 R1R4=R2R3 样品 参比 三924W R 衰减器 热导池Vheatstonel电桥测量线路
气相色谱仪的基本部件 2.1 Instrumentation of Gas Chromatography 热导池Wheatstone电桥测量线路 R1·R4=R2·R3 9~24V

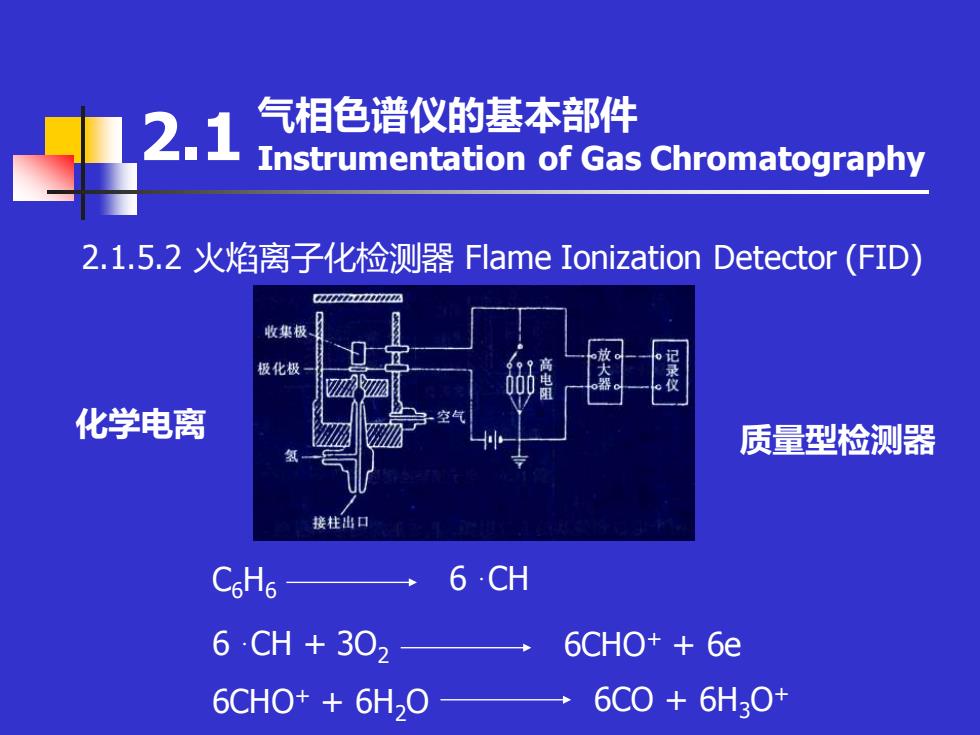

2.1 气相色谱仪的基本部件 Instrumentation of Gas Chromatography 2.1.5.2火焰离子化检测器Flame Ionization Detector(FID) RAFRF2224852822 收集极 极化极 记录仪 化学电离 质量型检测器 接柱出口 CoH6 6·CH 6.CH+302 6CHO+6e 6CH0++6H20 6C0+6H30+
气相色谱仪的基本部件 2.1 Instrumentation of Gas Chromatography 2.1.5.2 火焰离子化检测器 Flame Ionization Detector (FID) C6H6 6 ·CH 6 ·CH + 3O2 6CHO+ + 6e 6CHO+ + 6H2O 6CO + 6H3O+ 化学电离 质量型检测器

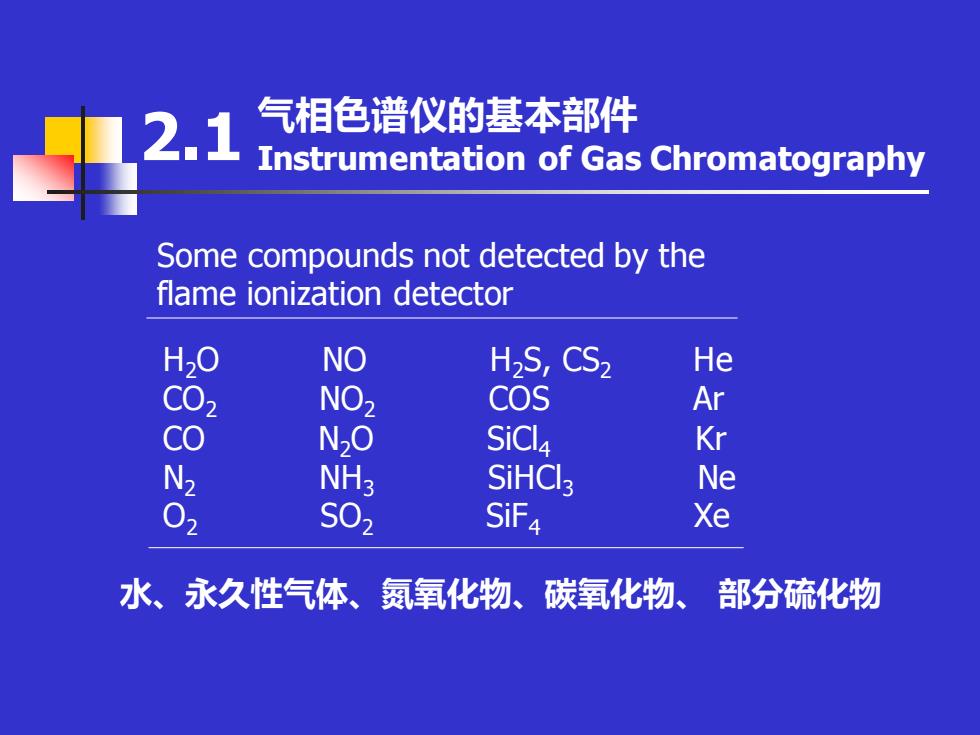

2.1 气相色谱仪的基本部件 Instrumentation of Gas Chromatography Some compounds not detected by the flame ionization detector H20 NO H2S,CS2 He c02 NO2 cos Ar CO N2O SiCl4 K灯 N2 NH3 SiHCl3 Ne 2 S02 SiF4 Xe 水、永久性气体、 氮氧化物、碳氧化物、 部分硫化物
气相色谱仪的基本部件 2.1 Instrumentation of Gas Chromatography Some compounds not detected by the flame ionization detector H2O NO H2S, CS2 He CO2 NO2 COS Ar CO N2O SiCl4 Kr N2 NH3 SiHCl3 Ne O2 SO2 SiF4 Xe 水、永久性气体、氮氧化物、碳氧化物、 部分硫化物
