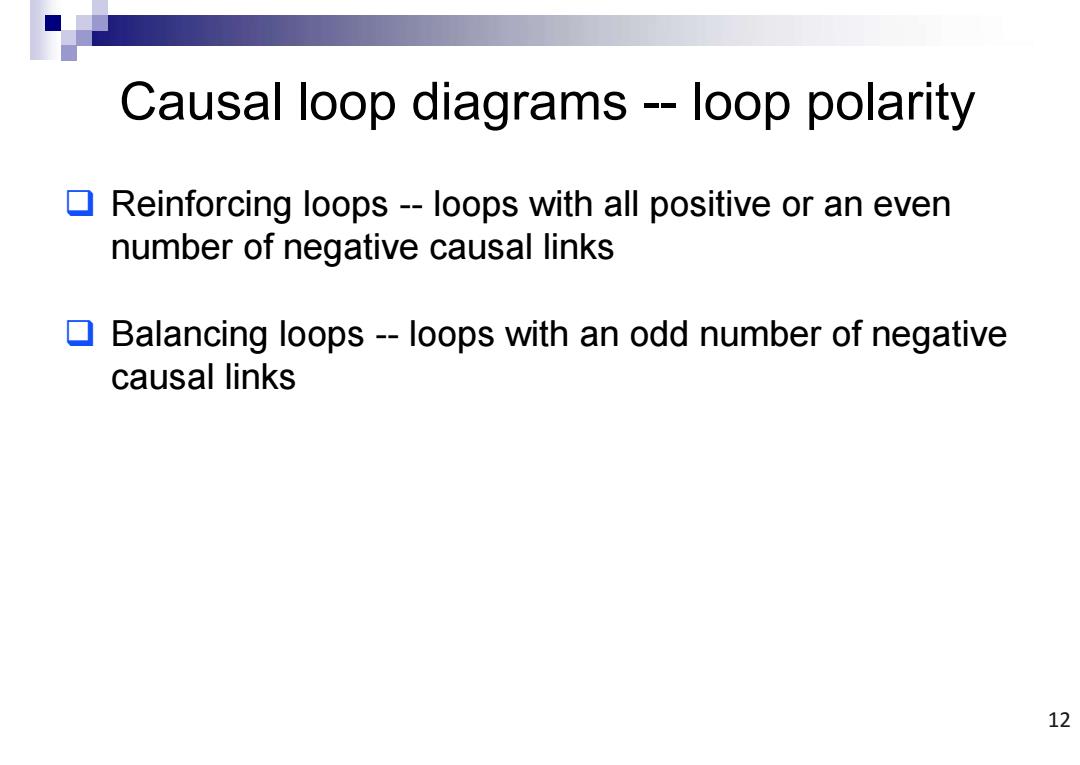

Causal loop diagrams --loop polarity Reinforcing loops -loops with all positive or an even number of negative causal links Balancing loops--loops with an odd number of negative causal links 12
Causal loop diagrams -- loop polarity Reinforcing loops -- loops with all positive or an even number of negative causal links Balancing loops -- loops with an odd number of negative causal links 12

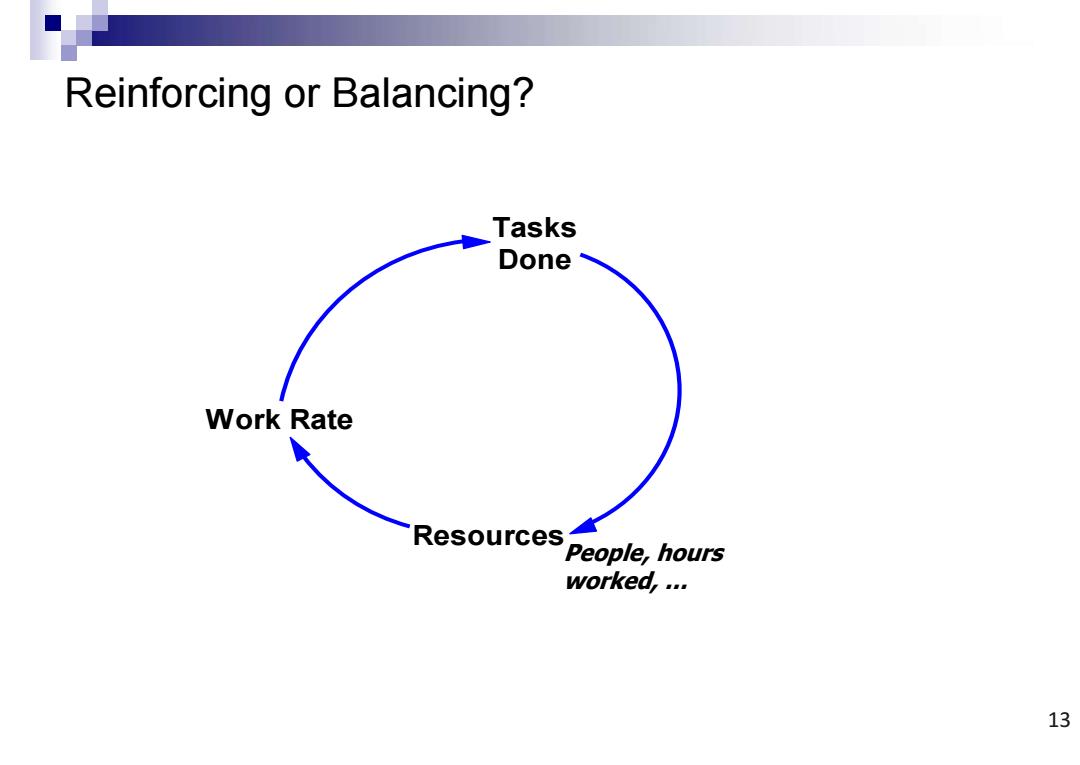

Reinforcing or Balancing? Tasks Done Work Rate Resourcs people,hours worked,.. 13
Reinforcing or Balancing? Tasks Done Resources Work Rate Tasks to Do 13 People, hours worked, …

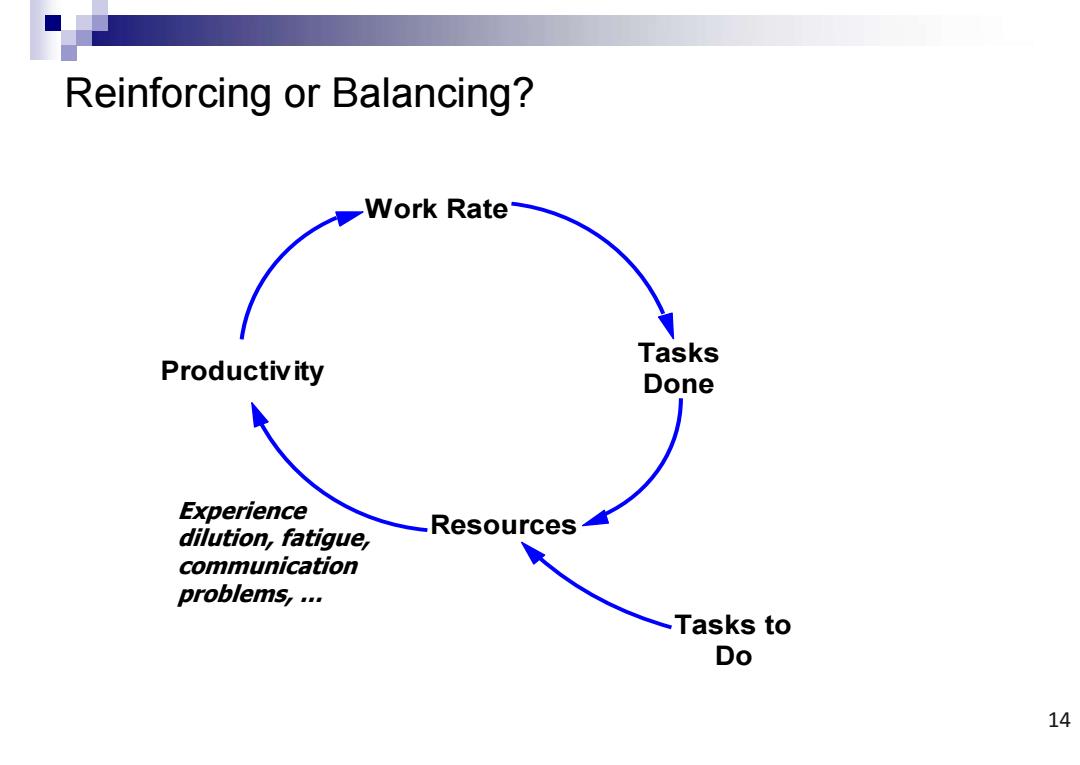

Reinforcing or Balancing? Work Rate Tasks Productiv ity Done Experience dilution,fatigue, Resources communication problems,.. Tasks to Do 14
Reinforcing or Balancing? Resources Productivity Work Rate Tasks Done Tasks to Do 14 Experience dilution, fatigue, communication problems, …

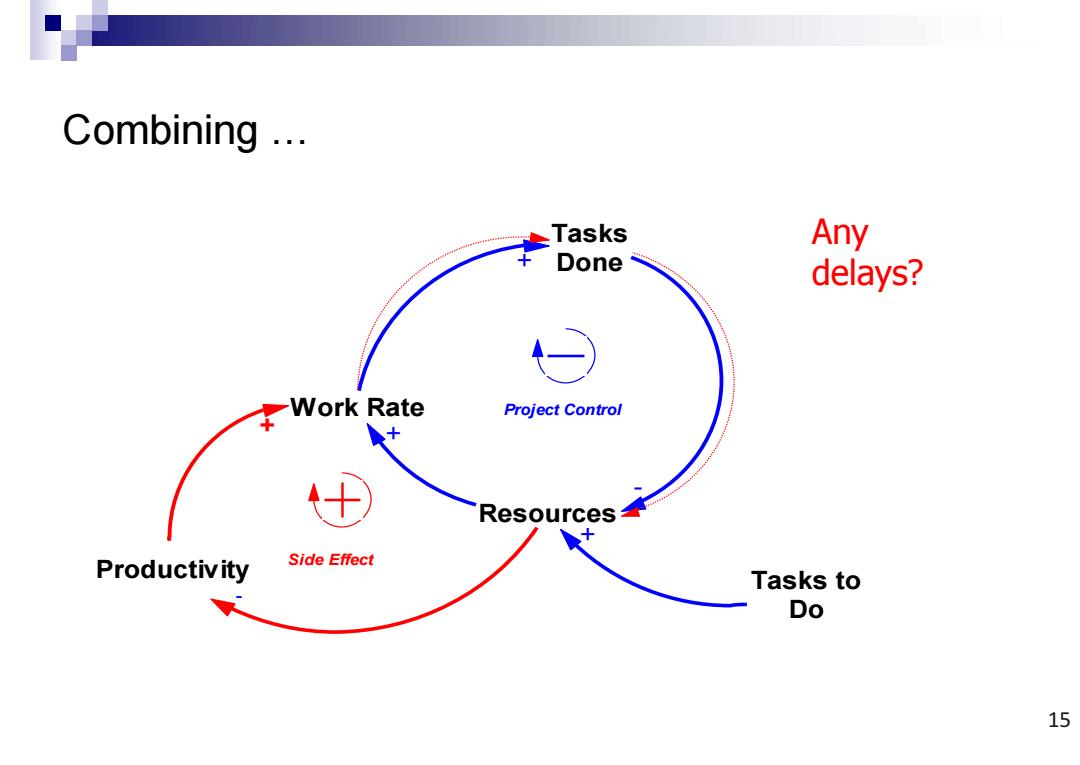

Combining .. Tasks Any Done delays? 车Work Rate Project Control Resources Productivity Side Effect Tasks to Do 15
Combining … Tasks Done Resources Work Rate Tasks to Do - + + + Productivity - + Project Control Side Effect Any delays? 15

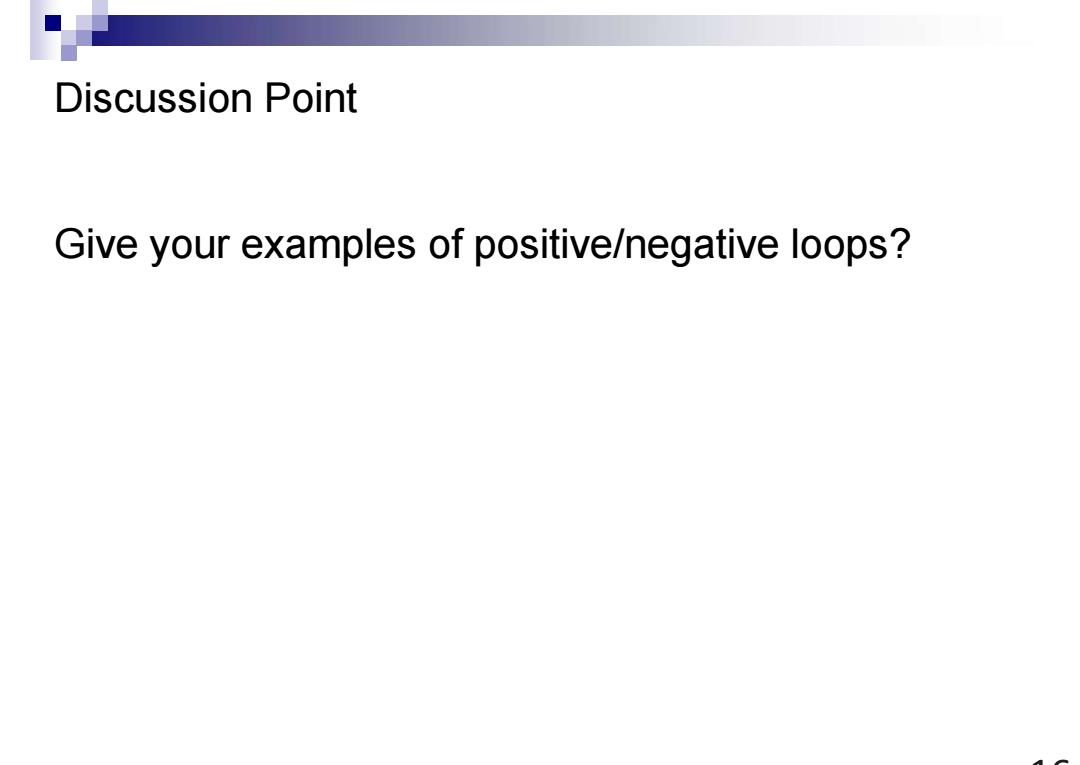

Discussion Point Give your examples of positive/negative loops?
Discussion Point Give your examples of positive/negative loops? 16
