KC3GPP标准的产生 3GPP specifications and studies are contribution-driven,by member companies,in Working Groups and at the Technical Specification Group level.The three Technical Specification Groups(TSG)in 3GPP are:Radio Access Networks(RAN),Services Systems Aspects(SA),Core Network Terminals(CT). The Working Groups,within the TSGs,meet regularly and come together for their quarterly TSG Plenary meeting,where their work is presented for information, discussion and approval. 3GPP's Meeting Cycle(Q4 example) September October November December TSG#73 RAN5 RAN1 SA2 CT1 TSG#74 SA RAN2 SA5 CT3 SA CT CT4 bis RAN3 SA6 CT4 CT RAN SA1 RAN RAN4 CT6 Co-located Plenary Individual Working Group RAN5 Co-located Co-located Working Group Plenary Meetings Ordinary /Bis/Ad-hoc (x4 per year) Meetings RAN6 Meetings Meetings
{ynh,cxh}@ustc.edu.cn 3GPP标准的产生 6 3GPP specifications and studies are contribution-driven, by member companies, in Working Groups and at the Technical Specification Group level. The three Technical Specification Groups (TSG) in 3GPP are: Radio Access Networks (RAN), Services & Systems Aspects (SA), Core Network & Terminals (CT) . The Working Groups, within the TSGs, meet regularly and come together for their quarterly TSG Plenary meeting, where their work is presented for information, discussion and approval
KC小结：3GPP The 3rd Generation Partnership Project(3GPP),1998 TSG:Technical Specification Groups TSG RAN:Radio Access network TSG SA:Service System Aspects TSG CT:Core Network Terminals 3GPP Organizational Partners ARIB,ATIS,CCSA,ETSI,TSDSI,TTA,TTC 3GPP Market Representation Partners atis) ◆WG:Working Group ARIB CCSA ▣TR:Technical Report (CHINA TS:Technical Specification (JAPAN) ETSI 3GPP's Meeting Cycle (Q4 example) TTA tsdsi 7 (KOREA (INDIA)
{ynh,cxh}@ustc.edu.cn 小结：3GPP The 3rd Generation Partnership Project (3GPP), 1998 TSG: Technical Specification Groups TSG RAN：Radio Access network TSG SA：Service & System Aspects TSG CT：Core Network & Terminals 3GPP Organizational Partners ARIB, ATIS, CCSA, ETSI, TSDSI, TTA, TTC 3GPP Market Representation Partners WG: Working Group TR : Technical Report TS: Technical Specification 3GPP's Meeting Cycle (Q4 example) 7

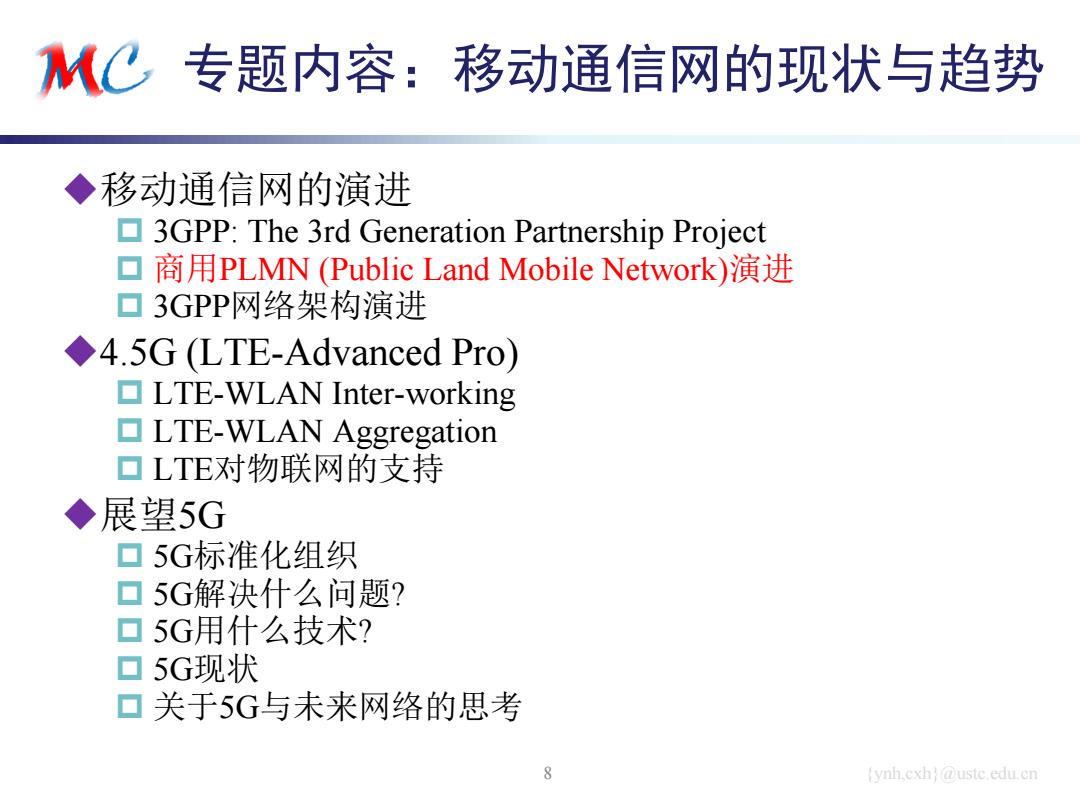

K心专题内容：移动通信网的现状与趋势 ◆天 移动通信网的演进 3GPP:The 3rd Generation Partnership Project ▣商用PLMN(Public Land Mobile Network)演进 ▣3GPP网络架构演进 4.5G (LTE-Advanced Pro) LTE-WLAN Inter-working LTE-WLAN Aggregation ▣LTE对物联网的支持 ◆ 展望5G ▣5G标准化组织 ▣5G解决什么问题？ ▣5G用什么技术？ ▣5G现状 ▣关于5G与未来网络的思考 8 ynh.cxh @ustc.edu.cn
{ynh,cxh}@ustc.edu.cn 专题内容：移动通信网的现状与趋势 移动通信网的演进 3GPP: The 3rd Generation Partnership Project 商用PLMN (Public Land Mobile Network)演进 3GPP网络架构演进 4.5G (LTE-Advanced Pro) LTE-WLAN Inter-working LTE-WLAN Aggregation LTE对物联网的支持 展望5G 5G标准化组织 5G解决什么问题? 5G用什么技术? 5G现状 关于5G与未来网络的思考 8
Me 3GPP标准的演进 3GPP Release Name Status Start date End date Closure date Release 17 Open 2021-09-17(SP-93 Release 16 Open 2017-03-22 2020-06-19(SP-88 Release 15 Frozen 2016-06-01 2019-06-07(SP-84) Release 14 Frozen 2014-09-17 2017-06-09(SP-76 Release 13 Frozen 2012-09-30 2016-03-11(SP-71) Release 12 Frozen 2011-06-26 2015-03-13(SP-67) Release 11 Frozen 2010-01-22 2013-03-06(SP-59) Release 10 Frozen 2009-01-20 2011-06-08(SP-52) Release 9 Frozen 2008-03-06 2010-03-25(SP-47) Release 8 Frozen 2006-01-23 2009-03-12(SP-43 Release 7 Closed 2003-10-06 2008-03-13(SP-39) 2014-09-17(SP-65) Release 6 Closed 2000-03-28 2005-09-28(SP-29) 2014-09-17(SP-65) Release 5 Closed 2000-05-01 2002-09-12(SP-17)2014-09-17(SP-65) Release 4 Closed 1998-08-01 2001-06-21(P-12)2014-09-17(SP-65) Release 1999 Closed 1996-11-01 1999-12-17(SP-06)2008-06-05(SP-40) http://www.3gpp.org/specifications/releases Retrieved:20191110
{ynh,cxh}@ustc.edu.cn 3GPP标准的演进 3GPP Release 9 Name Status Start date End date Closure date Release 17 Open 2021-09-17 (SP-93) Release 16 Open 2017-03-22 2020-06-19 (SP-88) Release 15 Frozen 2016-06-01 2019-06-07 (SP-84) Release 14 Frozen 2014-09-17 2017-06-09 (SP-76) Release 13 Frozen 2012-09-30 2016-03-11 (SP-71) Release 12 Frozen 2011-06-26 2015-03-13 (SP-67) Release 11 Frozen 2010-01-22 2013-03-06 (SP-59) Release 10 Frozen 2009-01-20 2011-06-08 (SP-52) Release 9 Frozen 2008-03-06 2010-03-25 (SP-47) Release 8 Frozen 2006-01-23 2009-03-12 (SP-43) Release 7 Closed 2003-10-06 2008-03-13 (SP-39) 2014-09-17 (SP-65) Release 6 Closed 2000-03-28 2005-09-28 (SP-29) 2014-09-17 (SP-65) Release 5 Closed 2000-05-01 2002-09-12 (SP-17) 2014-09-17 (SP-65) Release 4 Closed 1998-08-01 2001-06-21 (SP-12) 2014-09-17 (SP-65) Release 1999 Closed 1996-11-01 1999-12-17 (SP-06) 2008-06-05 (SP-40) http://www.3gpp.org/specifications/releases Retrieved:20191110
MC 3GPP Ongoing Releases 2017 2018 2019 2020 TSG#75 76 77 78 TSG#79 80 81 82 TSG#83 84 85 86TSG#87 88 Release 14 Rel-145t.3 Extension Release 15(5G Phase 1) Rel-15 Stage 1 Rel-15 Stage 2 ASN.1 (Abstract Syntax Notation one) Rel-15 Stage 3 Early drop here Rel-15 ASN.1 Release 16(5G Phase 2) Rel-16 Stage 1 Rel-16 Stage 2 Rel-16 Stage 3(TSG#87) Rel-16 ASN.1 (TSG#88 2019年6月6日，工信部正式向中国电信 、中国移动、中国联通、中国广电发放 5G商用牌照，中国进入5G商用元年。 10 ynh.cxh @ustc.edu.cn http://www.3gpp.org/specifications/releases Retrieved:20191110
{ynh,cxh}@ustc.edu.cn 3GPP Ongoing Releases 10 http://www.3gpp.org/specifications/releases Retrieved:20191110 ASN.1（Abstract Syntax Notation one） 2019年6月6日，工信部正式向中国电信 、中国移动、中国联通、中国广电发放 5G商用牌照，中国进入5G商用元年
