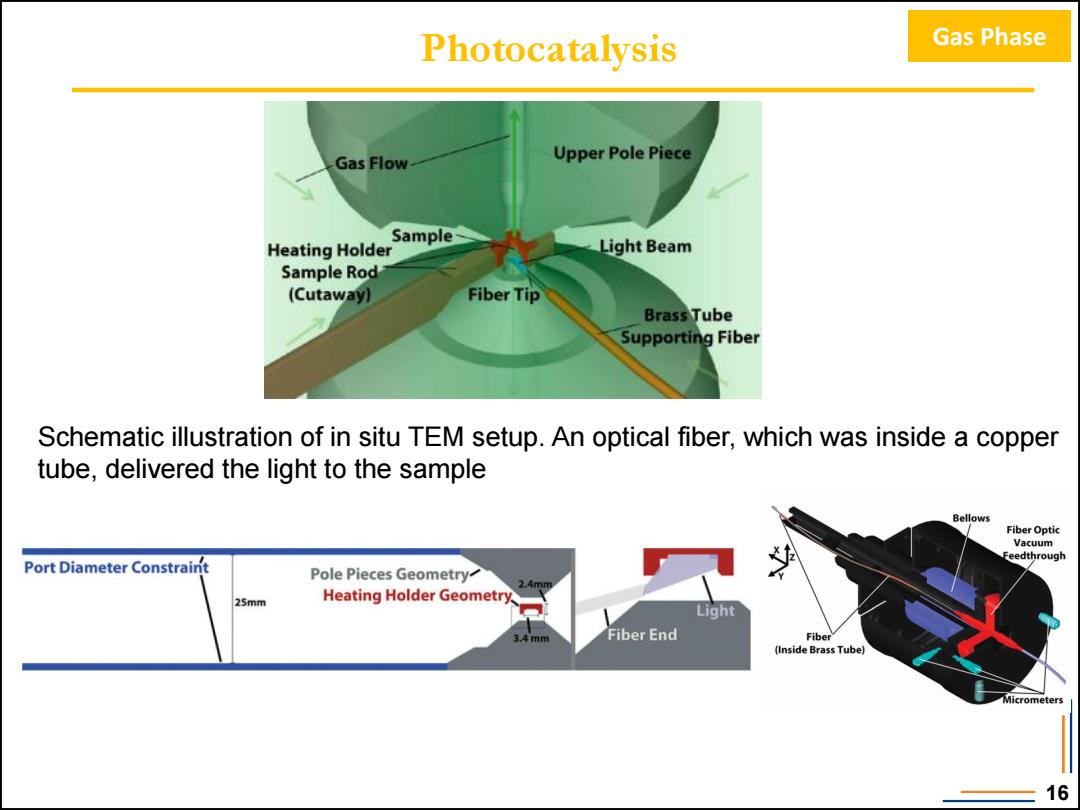

Photocatalysis Gas Phase Gas Flow Upper Pole Piece Sample Heating Holder Light Beam Sample Rod (Cutaway) Fiber Tip Brass Tube Supporting Fiber Schematic illustration of in situ TEM setup.An optical fiber,which was inside a copper tube,delivered the light to the sample Bellows Fiber Optic Vacuum Feedthrough Port Diameter Constraint Pole Pieces Geometry 2.4mm 25mm Heating Holder Geometry. 3,4mm Fiber End Fiber (Inside Brass Tube) Micrometers 16
Photocatalysis 16 Schematic illustration of in situ TEM setup. An optical fiber, which was inside a copper tube, delivered the light to the sample Gas Phase

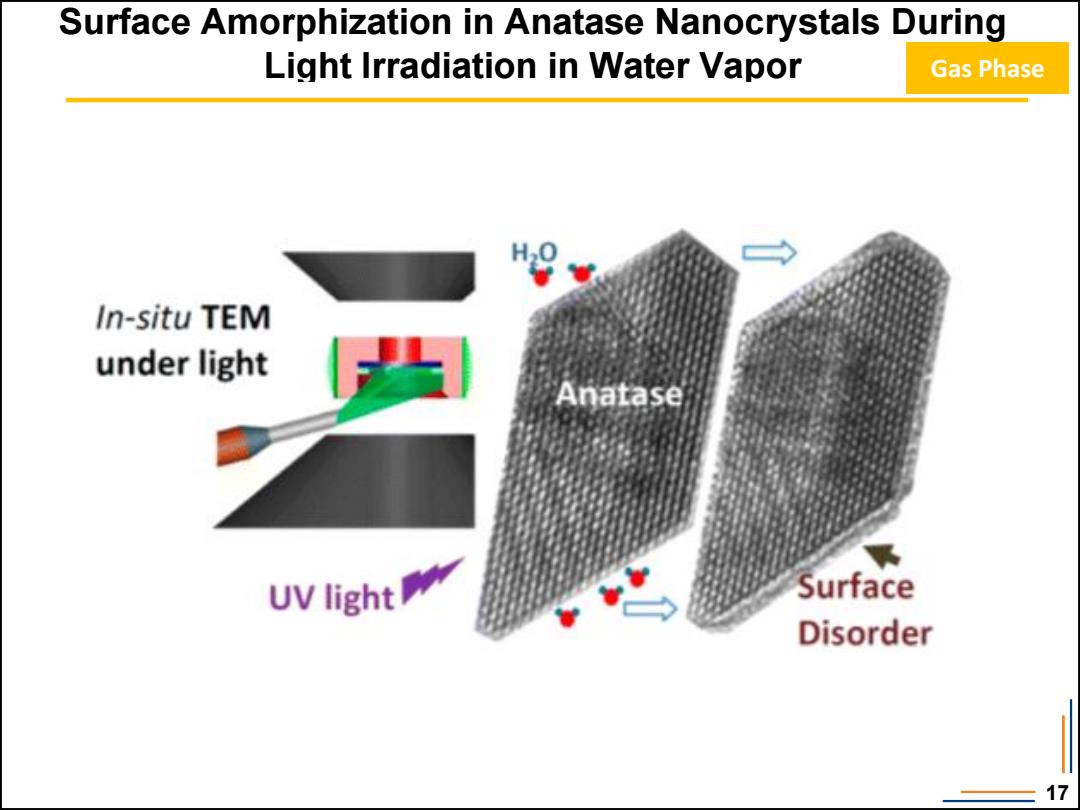

Surface Amorphization in Anatase Nanocrystals During Light Irradiation in Water Vapor Gas Phase In-situ TEM under light Anatase UV light Surface Disorder 17
Surface Amorphization in Anatase Nanocrystals During Light Irradiation in Water Vapor 17 Gas Phase
