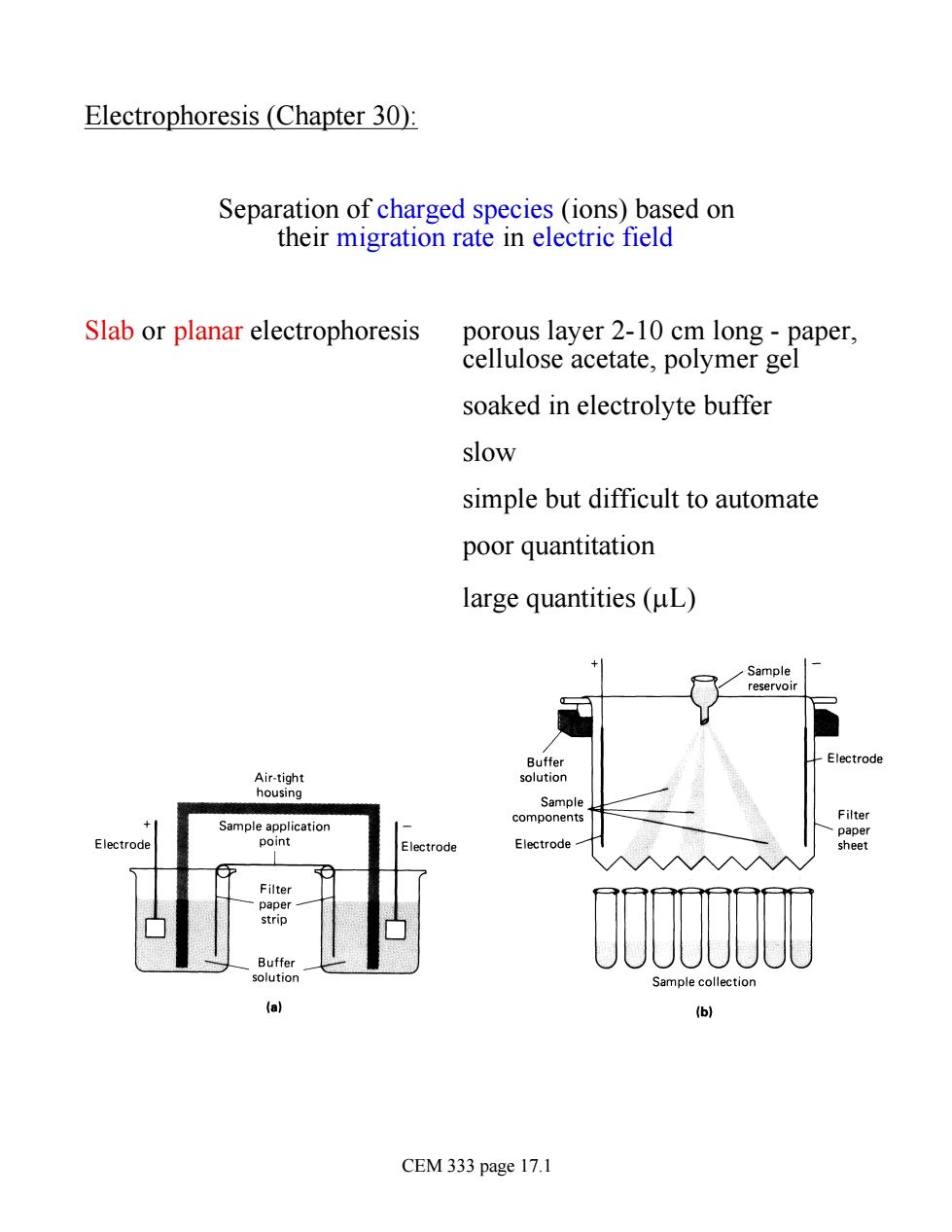

Electrophoresis (Chapter 30): Separation of charged species (ions)based on their migration rate in electric field Slab or planar electrophoresis porous layer 2-10 cm long-paper, cellulose acetate,polymer gel soaked in electrolyte buffer slow simple but difficult to automate poor quantitation large quantities (uL) + Sample Air-tigh housing poliecatio components Electrode uffe ample c 6 CEM 333 page 17.1
Electrophoresis (Chapter 30): Separation of charged species (ions) based on their migration rate in electric field Slab or planar electrophoresis porous layer 2-10 cm long - paper, cellulose acetate, polymer gel soaked in electrolyte buffer slow simple but difficult to automate poor quantitation large quantities (mL) CEM 333 page 17.1
Capillary electrophoresis narrow(25-75 um diameter)silica capillary tube 40-100 cm long filled with electrolyte buffer fast complex but easy to automate quantitative small quantities(nL) Plexiglass Capillary box Detector High-voltage power supply Solvent reservoirs Fig 30-1 CEM 333 page 17.2
Capillary electrophoresis narrow (25-75 mm diameter) silica capillary tube 40-100 cm long filled with electrolyte buffer fast complex but easy to automate quantitative small quantities (nL) Fig 30-1 CEM 333 page 17.2
Migration rate depends on movement in electric field ·molecular weight charge -small/highly-charged species migrate rapidly affected by pH HAH+A affected by ionic strength =(A]ZA2+[B]ZB2) low u,few counter-ions,low charge shielding high u,many counter-ions,high charge shielding CEM 333 page 17.3
Migration rate depends on movement in electric field • molecular weight • charge - small/highly-charged species migrate rapidly - affected by pH HA « H + + A - - affected by ionic strength m = 1 2 [A]×ZA 2 +[B]×ZB 2 ( .) low m, few counter-ions, low charge shielding high m, many counter-ions, high charge shielding CEM 333 page 17.3
Migration Rate: V v=uE=μ migration rate(cm.s1) electric field (V.cm1) electrophoretic mobility (-ve for anions)(cm2.V.s) Electrophoretic mobility depends on net charge and frictional forces (size/molecular weight of analyte) ·Only ions separated Plate Height and Number: N=u.V H=L-2D.L 2D N-HV diffusion coefficient(cm2.s-1) Increase number of plates(better resolution)by increasing V CEM 333 page 17.4
Migration Rate: v = m ×E = m V L migration rate (cm·s-1) electric field (V·cm-1) electrophoretic mobility (-ve for anions) (cm2·V·s) Electrophoretic mobility depends on net charge and frictional forces (size/molecular weight of analyte) • Only ions separated Plate Height and Number: N = m ×V 2D H = L N = 2D×L m× V diffusion coefficient (cm2·s-1) Increase number of plates (better resolution) by increasing V CEM 333 page 17.4
Slab electrophoresis large cross-sectional area,short length low electrical resistance,high currents Sample heating Vmax=500 V N=100-1000 low resolution Capillary electrophoresis small cross-sectional area,long length high resistance,low currents Vmax=20-100 kV N=100.000-10,000,000 high resolution (HPLC N=1,000-20,000) Zone broadening? Single phase(mobile phase)-no partitioning In chromatography three zone broadening phenomena (1) longitudinal diffusion(ii)transport to/from stationary phase(iii) multipath In planar EP no stationary phase In capillary EP no stationary phase or multipath CEM 333 page 17.5
• Slab electrophoresis large cross-sectional area, short length low electrical resistance, high currents Sample heating Vmax=500 V N=100-1000 low resolution • Capillary electrophoresis small cross-sectional area, long length high resistance, low currents Vmax=20-100 kV N=100,000-10,000,000 high resolution (HPLC N=1,000-20,000) Zone broadening? • Single phase (mobile phase) - no partitioning In chromatography three zone broadening phenomena (i) longitudinal diffusion (ii) transport to/from stationary phase (iii) multipath • In planar EP no stationary phase • In capillary EP no stationary phase or multipath CEM 333 page 17.5
