Chapter 12 Network Management Tools and Systems 12.1 Network Management Tools The catalog of network management tools is extensive,and we cannot do justice to the full range of these tools here.They are necessary for troubleshooting of problems in networks and supplement system tools that detect problems or failures and notify the various alarms.In this section,we will consider the tools used daily by network managers and operators to conduct their activities.Some of these tools can also be utilized by network users in their normal use of network services

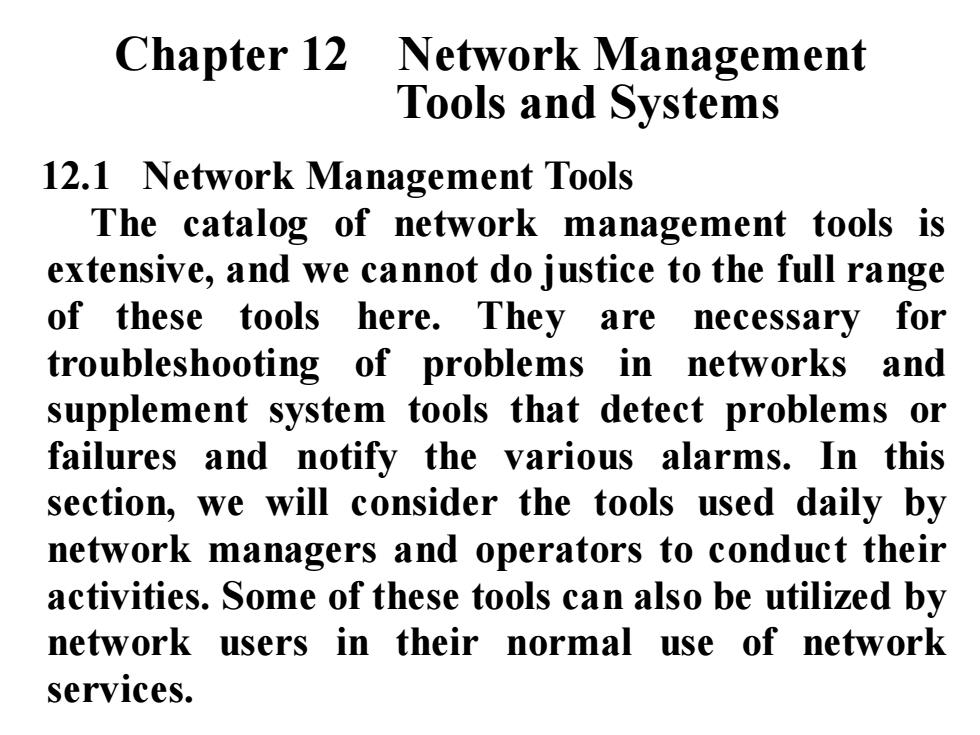

12.1 Network Management Tools The catalog of network management tools is extensive, and we cannot do justice to the full range of these tools here. They are necessary for troubleshooting of problems in networks and supplement system tools that detect problems or failures and notify the various alarms. In this section, we will consider the tools used daily by network managers and operators to conduct their activities. Some of these tools can also be utilized by network users in their normal use of network services. Chapter 12 Network Management Tools and Systems
Network Management Tools 0199 Network Functional Resources and Role Mechanism Operating Acquisition Components Environment Examples: Examples: Examples: Examples: Free Alarm Bridge NMS DOS Library Manager Ethernet Ping Windows NT Sourcelib Security P SNMP Sun Traffic NFS A UNIX Figure 12.1 NOC Tool Categories [RFC 1470]
Table 12.1 Functional Role of Management Tools Function Description Alarm A reporting/logging tool that can be triggered by specific events with a network Analyzer A traffic monitoring tool that reconstructs and interprets protocol messages that span several packets Benchmark A tool used to evaluate the performance of network components Control a tool that can change the state or status of a remote network resource Debugger A tool that,by generating arbitrary packets and monitoring traffic,can drive a remote network component to various states and record its responses Generator a traffic generation tool Manager A distributed network management system or system component

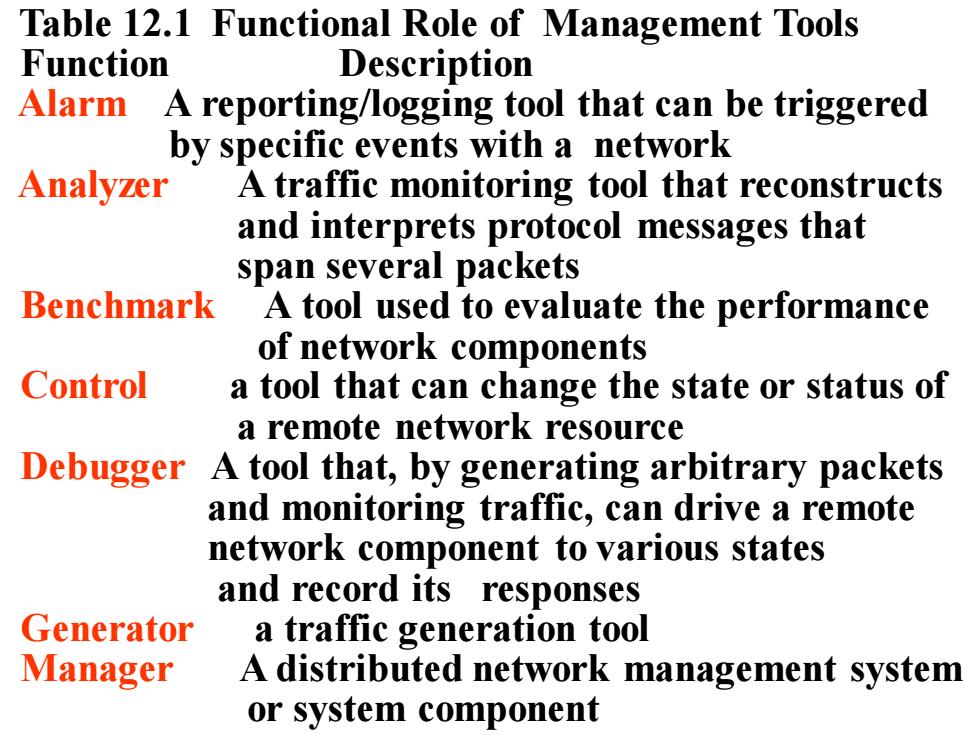

Table 12.1 Functional Role of Management Tools Function Description Alarm A reporting/logging tool that can be triggered by specific events with a network Analyzer A traffic monitoring tool that reconstructs and interprets protocol messages that span several packets Benchmark A tool used to evaluate the performance of network components Control a tool that can change the state or status of a remote network resource Debugger A tool that, by generating arbitrary packets and monitoring traffic, can drive a remote network component to various states and record its responses Generator a traffic generation tool Manager A distributed network management system or system component
Map A tool that can discover and report a system's topology or configuration Reference A tool for documenting MIB structure or system configuration Routing A packet route discovery tool Security A tool for analyzing or reducing threats to security Status A tool that remotely tracks the status of network components Traffic A tool that monitors packet flow Table 12.2 Resources and Components Managed by Tools Resource/Component Description Bridge A tool for controlling/monitoring LAN bridges CHAOS A tool for controlling or monitoring implementations of the CHAOS protocol suite or network components that use it
Map A tool that can discover and report a system's topology or configuration Reference A tool for documenting MIB structure or system configuration Routing A packet route discovery tool Security A tool for analyzing or reducing threats to security Status A tool that remotely tracks the status of network components Traffic A tool that monitors packet flow Table 12.2 Resources and Components Managed by Tools Resource/Component Description Bridge A tool for controlling/monitoring LAN bridges CHAOS A tool for controlling or monitoring implementations of the CHAOS protocol suite or network components that use it
DECnet A tool for controlling or monitoring implementations of the DECnet protocol suite or network components that use it DNS A domain name system debugging tool Ethernet a tool for controlling or monitoring network components on Ethernet LANs FDDI A tool for controlling or monitoring network components on FDDI LANs or WANs P A tool for controlling or monitoring implementations of the TCP/IP protocol suite or network components that use it OSI A tool for controlling or monitoring implementations of the OSI protocol suite or network components that use it NFS A Network File System debugging tool Ring A tool for controlling or monitoring network components on token ring LANs SMTP An SMTP debugging tool Star A tool for controlling or monitoring network components on Star LANs
DECnet A tool for controlling or monitoring implementations of the DECnet protocol suite or network components that use it DNS A domain name system debugging tool Ethernet A tool for controlling or monitoring network components on Ethernet LANs FDDI A tool for controlling or monitoring network components on FDDI LANs or WANs IP A tool for controlling or monitoring implementations of the TCP/IP protocol suite or network components that use it OSI A tool for controlling or monitoring implementations of the OSI protocol suite or network components that use it NFS A Network File System debugging tool Ring A tool for controlling or monitoring network components on token ring LANs SMTP An SMTP debugging tool Star A tool for controlling or monitoring network components on Star LANs
