Hydro-mechanical Transmission and Continuously Variable Transmission
Hydro-mechanical Transmission and Continuously Variable Transmission
Hydro-mechanical transmission and continuously variable transmission ☐Main content 1.The working principle of hydraulic coupler and hydrodynamictorque converter 2.The structure and principle of hydro- mechanical transmission 3.The control mechanism of automatic transmission 4.Continuous variable transmission
Hydro-mechanical transmission and continuously variable transmission Main content 1. The working principle of hydraulic coupler and hydrodynamic torque converter 2. The structure and principle of hydromechanical transmission 3. The control mechanism of automatic transmission 4. Continuous variable transmission
The development of hydraulic transmission In the early 20th century,a ship with high power and high speed turbine needs high power reduction gear to match with the propeller,and gear manufacturing technology can't meet the requirements.So German professor Gell-Mann Fottinger put forward a hydraulic loop transmission system consisting of tank,centrifugal pump,water pipe and hydroturbine; .Using the pump impeller and turbine with blades to substitute centrifugal pump and hydroturbine ,the tank and water pipe canceled,forming a hydrodynamic torque converter which had a co-working liquid circulation chamber; .German passenger ship Chellebitz'once used hydrodynamic torque converter .Afterwards,marine gear reducer replaced marine hydrodynamic torque converter,and hydrodynamic torque converter began using on the car .In the 1970 s,More than 90%of the cars,100%of the bus and 70%of the heavy duty vehicles and off-highway vehicles applied hydrodynamic torque converter in America.The major car companies in the world are producing hydraulic transmission two-gear,three-gear or four-gear automatic transmission at present
The development of hydraulic transmission • In the early 20th century, a ship with high power and high speed turbine needs high power reduction gear to match with the propeller, and gear manufacturing technology can’t meet the requirements . So German professor Gell-Mann Fottinger put forward a hydraulic loop transmission system consisting of tank , centrifugal pump, water pipe and hydroturbine; •Using the pump impeller and turbine with blades to substitute centrifugal pump and hydroturbine ,the tank and water pipe canceled, forming a hydrodynamic torque converter which had a co-working liquid circulation chamber; •German passenger ship ‘Chellebitz’ once used hydrodynamic torque converter ; •Afterwards, marine gear reducer replaced marine hydrodynamic torque converter , and hydrodynamic torque converter began using on the car ； •In the 1970 s , More than 90% of the cars, 100% of the bus and 70% of the heavy duty vehicles and off-highway vehicles applied hydrodynamic torque converter in America. The major car companies in the world are producing hydraulic transmission + two-gear, three-gear or four-gear automatic transmission at present

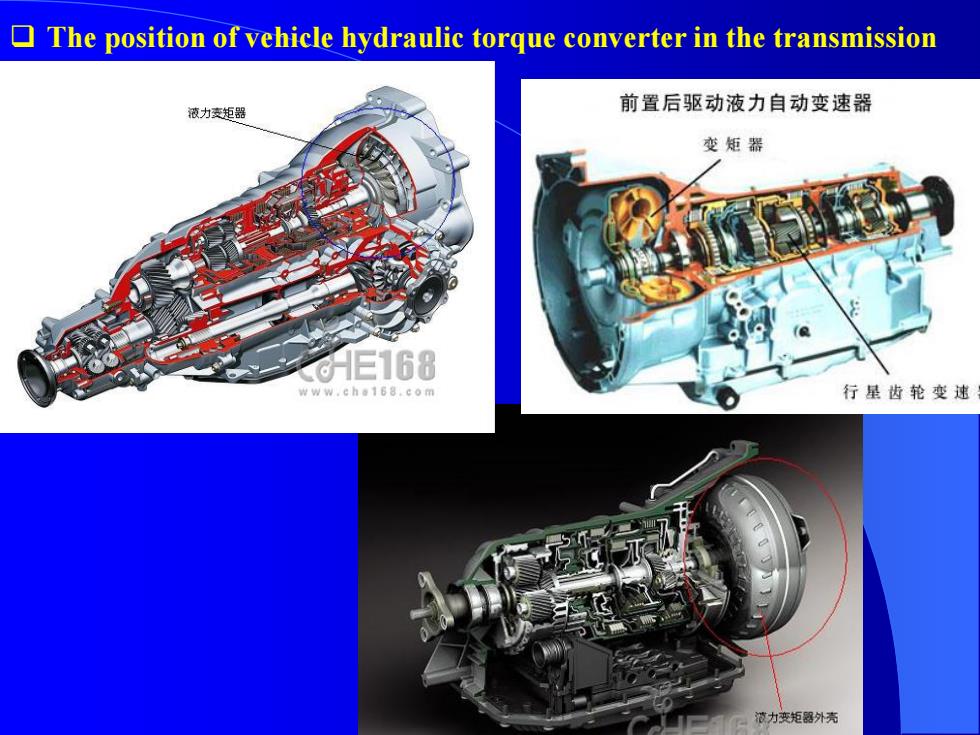

The position of vehicle hydraulic torque converter in the transmission 液力支矩器 前置后驱动液力自动变速器 变矩器 HE168 www.c h a 168.c o m 行星齿轮变速 液力变拒器外壳
The position of vehicle hydraulic torque converter in the transmission
Basic components of vehicle torque converter 导轮 CHE168 泵轮 涡轮 www.che168.com
Basic components of vehicle torque converter
