Section one Hydro-mechanical transmission l、Hydraulic coupler Hydraulic coupler is a kind of hydrodynamic unit.Hydrokinetic transmission is a hydraulic transmission that using the change of liquid's kinetic energy in circular flow process to transmit dynamic. 液力耦合器与液力 变矩器 液力耦合器结构与工作原理 结构 1-壳体2-涡轮3-泵轮
Section one Hydro-mechanical transmission Hydraulic coupler is a kind of hydrodynamic unit. Hydrokinetic transmission is a hydraulic transmission that using the change of liquid’s kinetic energy in circular flow process to transmit dynamic. 1、 Hydraulic coupler

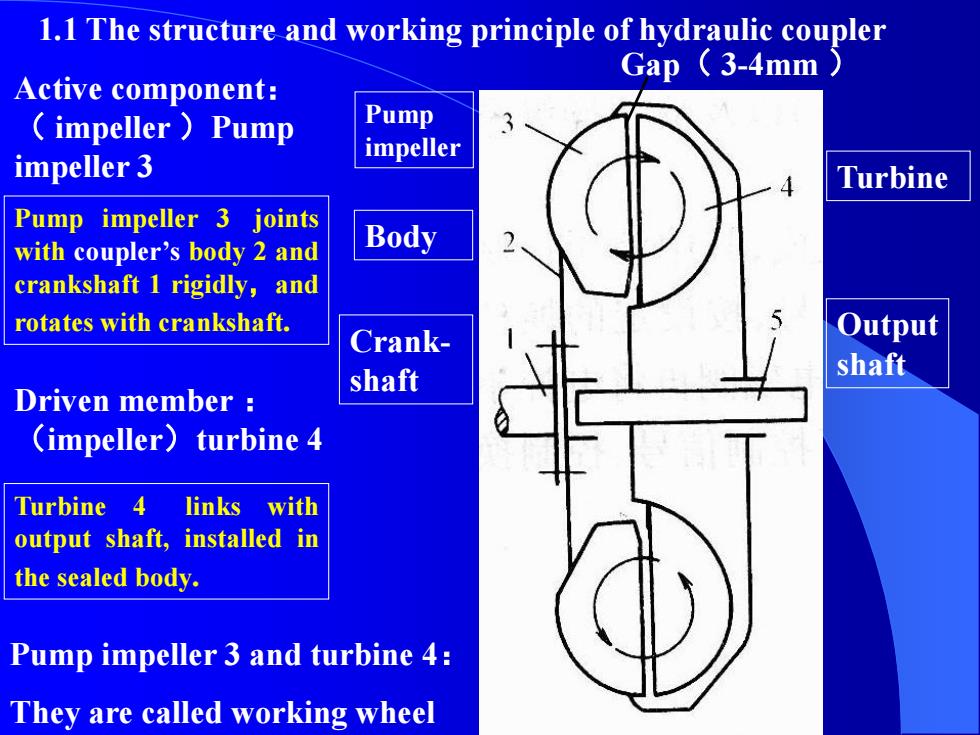

1.1 The structure and working principle of hydraulic coupler Gap (3-4mm Active component: impeller Pump Pump impeller impeller 3 Turbine Pump impeller 3 joints with coupler's body 2 and Body crankshaft 1 rigidly,and rotates with crankshaft. Crank- Output shaft shaft Driven member (impeller)turbine 4 Turbine 4 links with output shaft,installed in the sealed body. Pump impeller 3 and turbine 4: They are called working wheel
Crankshaft Body Pump impeller Turbine Output shaft 1.1 The structure and working principle of hydraulic coupler Active component： （ impeller ）Pump impeller 3 Driven member ： （impeller）turbine 4 Pump impeller 3 joints with coupler’s body 2 and crankshaft 1 rigidly，and rotates with crankshaft. Turbine 4 links with output shaft, installed in the sealed body. Pump impeller 3 and turbine 4： They are called working wheel Gap（ 3-4mm ）
Pump impeller 3 Turbine 风
Pump impeller Turbine
The same number of blades weld on the radial direction of pump impeller and turbine to transmit power After pump impeller and turbine assembled,the vertical section through the input shaft or output shaft is a ring,which is called torus section.The liquid to transfer power is driven by pump impeller's blade and does rotary motion around the axis.The liquid flows to the blade tip and it's speed increases under the action of the centrifugal force.The speed depends on the speed of the crankshaft and the radius of working wheel.The kinetic energy of the liquid increases after pressure rising by hit the wall', and rushes at turbine's blade to drive turbine rotating Afterwards,the kinetic energy of the liquid decreases and a dynamic fluid circulation from the high energy region to the low energy region forms.That is liquid rushes from the outer edge of pump impeller to turbine and forms a end- to-end spiral
The same number of blades weld on the radial direction of pump impeller and turbine to transmit power . After pump impeller and turbine assembled, the vertical section through the input shaft or output shaft is a ring, which is called torus section. The liquid to transfer power is driven by pump impeller’s blade and does rotary motion around the axis. The liquid flows to the blade tip and it’s speed increases under the action of the centrifugal force. The speed depends on the speed of the crankshaft and the radius of working wheel. The kinetic energy of the liquid increases after pressure rising by ‘hit the wall’, and rushes at turbine’s blade to drive turbine rotating . Afterwards, the kinetic energy of the liquid decreases and a dynamic fluid circulation from the high energy region to the low energy region forms. That is liquid rushes from the outer edge of pump impeller to turbine and forms a endto-end spiral
Conclusion: The working process of hydraulic coupler Pump impeller receives the mechanical energy from the engine and transfers it to the working fluid,so the kinetic energy of working fluid increases.Then the kinetic energy of working fluid transfers to the turbine to realize the power output. The necessary conditions of hydraulic coupler to realize transmission: There is a liquid circulation flow between pump impeller and turbine, the reason why there is a liquid circulation flow is that existing speeds difference between the two.So pump impeller's speed is always higher than turbine's when hydraulic coupler is working. The working principle of hydraulic coupler When the kinetic energy of flowing liquid changes,it will absorb or release energy
Conclusion： The working process of hydraulic coupler : Pump impeller receives the mechanical energy from the engine and transfers it to the working fluid, so the kinetic energy of working fluid increases. Then the kinetic energy of working fluid transfers to the turbine to realize the power output. The necessary conditions of hydraulic coupler to realize transmission: There is a liquid circulation flow between pump impeller and turbine, the reason why there is a liquid circulation flow is that existing speeds difference between the two. So pump impeller’s speed is always higher than turbine’s when hydraulic coupler is working. The working principle of hydraulic coupler ： When the kinetic energy of flowing liquid changes, it will absorb or release energy
