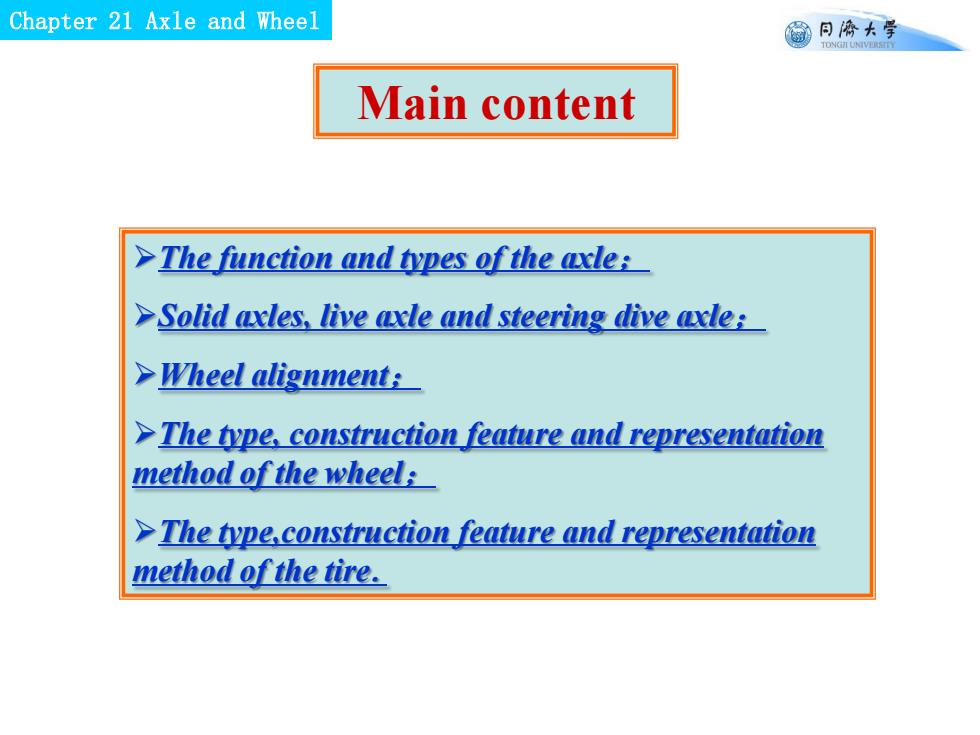

Chapter 21 Axle and Wheel 窗月桥大学 TONGII UNIVERSTTY Main content >The function and types ofthe axle: >Solid axles,live axle and steering dive axle; >Wheel alignment: >The type,construction feature and representation method of the wheel: The type construction feature and representation method of the tire
Chapter 21 Axle and Wheel Main content The function and types of the axle； Solid axles, live axle and steering dive axle； Wheel alignment； The type, construction feature and representation method of the wheel； The type,construction feature and representation method of the tire
Chapter 21 Axle and Wheel 窗月桥大学 TONGII UNIVERSTTY Part 1 The axle >Axle is a assemble that connects the left and right wheel of the car,and it also connects the frame through the suspension system. 驱动桥 悬架 汽车驱动桥与悬架的关系
Chapter 21 Axle and Wheel Part 1 The Axle Axle is a assemble that connects the left and right wheel of the car, and it also connects the frame through the suspension system
Chapter 21 Axle and Wheel 窗月桥大学 TONGII UNIVERSITY Function of the axle >The function of the axle is to transfer the force and moment between frame (or uni-body)and wheels. Axle types According to effect of According to connecting the wheels the structure >Steering axle >Live axle >Drive axle >Solid axles >Steering drive axle >Support axle
Chapter 21 Axle and Wheel The function of the axle is to transfer the force and moment between frame (or uni-body) and wheels. According to effect of connecting the wheels Steering axle Drive axle Steering drive axle Support axle Function of the axle Axle types According to the structure Live axle Solid axles
Chapter 21 Axle and Wheel 同©大学 TONGII UNIVERSTTY Axle types >Solid axle:usually used along with rigid suspension system,the middle of solid axle is rigid. >Live axle:usually used along with independent suspension,each wheel mounts separately to the frame thus the wheels act independently of one another. Two-axle vehicle >Front axle is steering drive axle and rear axle is support FF or AWD axle(or dive axle). >Or front axle is steering axle >FR or RR and rear is drive axle. >Multi-axle vehicle front axle is steering axle and rear is drive axle,middle axle acts as support axle or drive axle
Chapter 21 Axle and Wheel Two-axle vehicle Front axle is steering drive axle and rear axle is support axle(or dive axle). Or front axle is steering axle and rear is drive axle. FR or RR FF or AWD Multi-axle vehicle : front axle is steering axle and rear is drive axle ,middle axle acts as support axle or drive axle. Axle types Solid axle：usually used along with rigid suspension system, the middle of solid axle is rigid. Live axle：usually used along with independent suspension, each wheel mounts separately to the frame thus the wheels act independently of one another
