2008 Semifinal Exam Part A 3 Part A Question Al Four square metal plates of area A are arranged at an even spacing d as shown in the diagram.(Assume that Ad2.) Plate I Plate 3 ate4 Plates 1 and 4 are first connected to a voltage source of magnitude Vo,with plate 1 positive;plates 2 and 3 are then connected together with a wire.The wire is subsequently removed.Finally,the voltage source attached between plates 1 and 4 is replaced with a wire.The steps are summarized in the diagrams below Step I Step 2 Step 3 Find the resulting potential difference AVi2 between plates 1 and 2;like wise find AV23 and AV34,defined similarly. Assume,in each case,that a positive potential difference means that the top plate is at a higher potential than the bottom plate. Copyright C2008 American Association of Physics Teachers

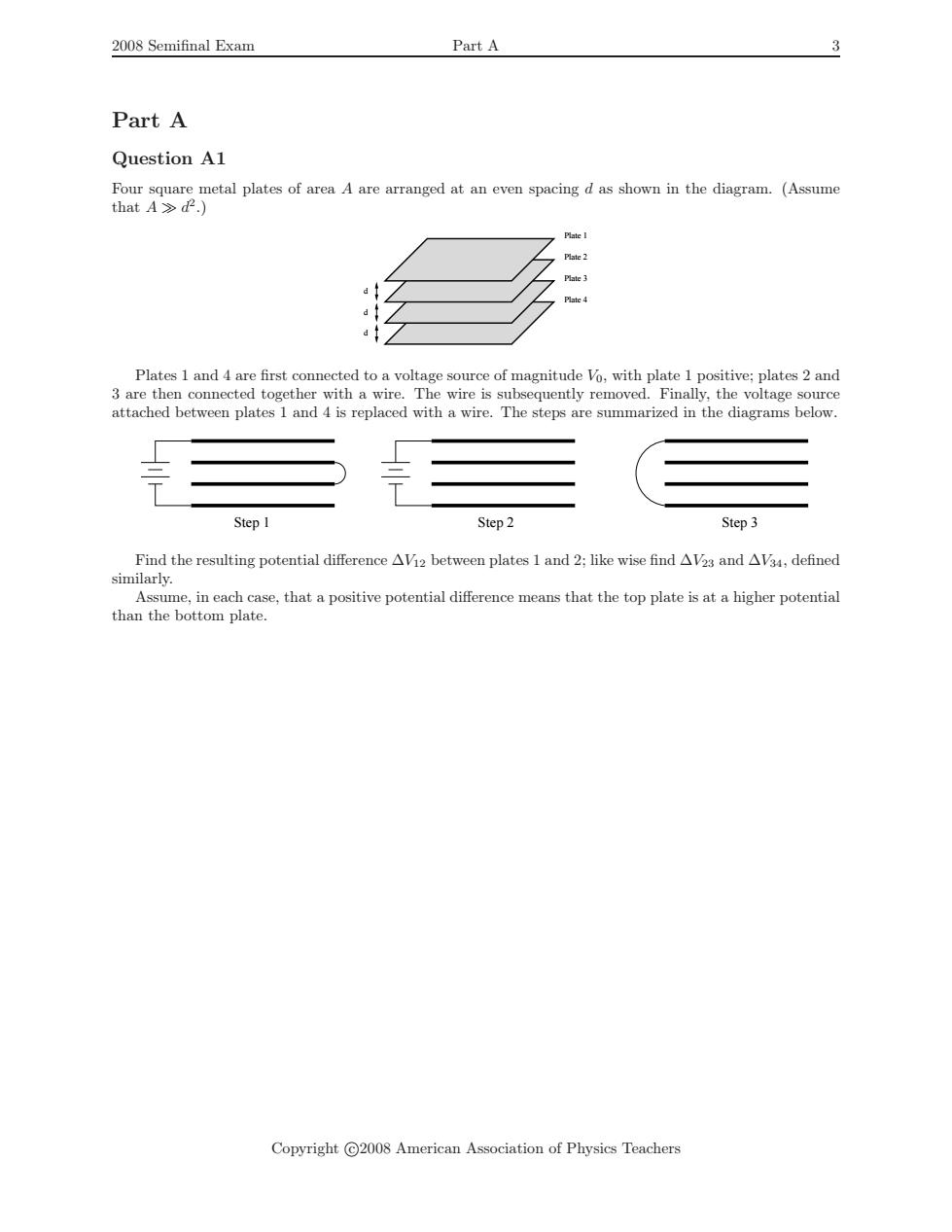

2008 Semifinal Exam Part A 3 Part A Question A1 Four square metal plates of area A are arranged at an even spacing d as shown in the diagram. (Assume that A ≫ d 2 .) Plate 1 Plate 2 Plate 3 Plate 4 d d d Plates 1 and 4 are first connected to a voltage source of magnitude V0, with plate 1 positive; plates 2 and 3 are then connected together with a wire. The wire is subsequently removed. Finally, the voltage source attached between plates 1 and 4 is replaced with a wire. The steps are summarized in the diagrams below. Step 1 Step 2 Step 3 Find the resulting potential difference ∆V12 between plates 1 and 2; like wise find ∆V23 and ∆V34, defined similarly. Assume, in each case, that a positive potential difference means that the top plate is at a higher potential than the bottom plate. Copyright c 2008 American Association of Physics Teachers
2008 Semifinal Exam Part A Question A2 A simple heat engine consists of a moveable piston in a cylinder filled with an ideal monatomic gas.Initially the gas in the cylinder is at a pressure Po and volume Vo.The gas is slowly heated at constant volume.Once the pressure reaches 32Po the piston is released,allowing the gas to expand so that no heat either enters or escapes the gas as the piston moves.Once the pressure has returned to Po the outside of the cylinder is cooled back to the original temperature,keeping the pressure constant.For the monatomic ideal gas you should assume that the molar heat capacity at constant volume is given by Cy=R,where R is the ideal gas constant.You may express your answers in fractional form or as decimals.If you choose decimals,keep three significant figures in your calculations.The diagram below is not necessarily drawn to scale. 32P0 Po Vo Vmax Volume a.Let Vax be the maximum volume achieved by the gas during the cycle.What is Vax in terms of Vo?If you are unable to solve this part of the problem,you may express your answers to the remaining parts in terms of Vmax without further loss of points. b.In terms of Po and Vo determine the heat added to the gas during a complete cycle. c.In terms of Po and Vo determine the heat removed from the gas during a complete cycle. d.What is the efficiency of this cycle? Copyright C2008 American Association of Physics Teachers
2008 Semifinal Exam Part A 4 Question A2 A simple heat engine consists of a moveable piston in a cylinder filled with an ideal monatomic gas. Initially the gas in the cylinder is at a pressure P0 and volume V0. The gas is slowly heated at constant volume. Once the pressure reaches 32P0 the piston is released, allowing the gas to expand so that no heat either enters or escapes the gas as the piston moves. Once the pressure has returned to P0 the outside of the cylinder is cooled back to the original temperature, keeping the pressure constant. For the monatomic ideal gas you should assume that the molar heat capacity at constant volume is given by CV = 3 2R, where R is the ideal gas constant. You may express your answers in fractional form or as decimals. If you choose decimals, keep three significant figures in your calculations. The diagram below is not necessarily drawn to scale. Pressure P 0 0 V0 32P Vmax Volume a. Let Vmax be the maximum volume achieved by the gas during the cycle. What is Vmax in terms of V0? If you are unable to solve this part of the problem, you may express your answers to the remaining parts in terms of Vmax without further loss of points. b. In terms of P0 and V0 determine the heat added to the gas during a complete cycle. c. In terms of P0 and V0 determine the heat removed from the gas during a complete cycle. d. What is the efficiency of this cycle? Copyright c 2008 American Association of Physics Teachers
2008 Semifinal Exam Part A 5 Question A3 A certain planet of radius R is composed of a uniform material that,through radioactive decay,generates a net power P.This results in a temperature differential between the inside and outside of the planet as heat is transfered from the interior to the surface. The rate of heat transfer is governed by the thermal conductivity.The thermal conductivity of a ma- terial is a measure of how quickly heat flows through that material in response to a temperature gradient. Specifically,consider a thin slab of material of area A and thickness Ax where one surface is hotter than the other by an amount AT.Suppose that an amount of heat AQ flows through the slab in a time At.The thermal conductivity k of the material is then k=414x △tA△T It is found that k is approximately constant for many materials;assume that it is constant for the planet. For the following assume that the planet is in a steady state;temperature might depend on position,but does not depend on time. a.Find an expression for the temperature of the surface of the planet assuming blackbody radiation,an emissivity of 1,and no radiation incident on the planet surface.You may express your answer in terms of any of the above variables and the Stephan-Boltzmann constant o. b.Find an expression for the temperature difference between the surface of the planet and the center of the planet.You may express your answer in terms of any of the above variables;you do not need to answer part (a)to be able to answer this part. Copyright C2008 American Association of Physics Teachers

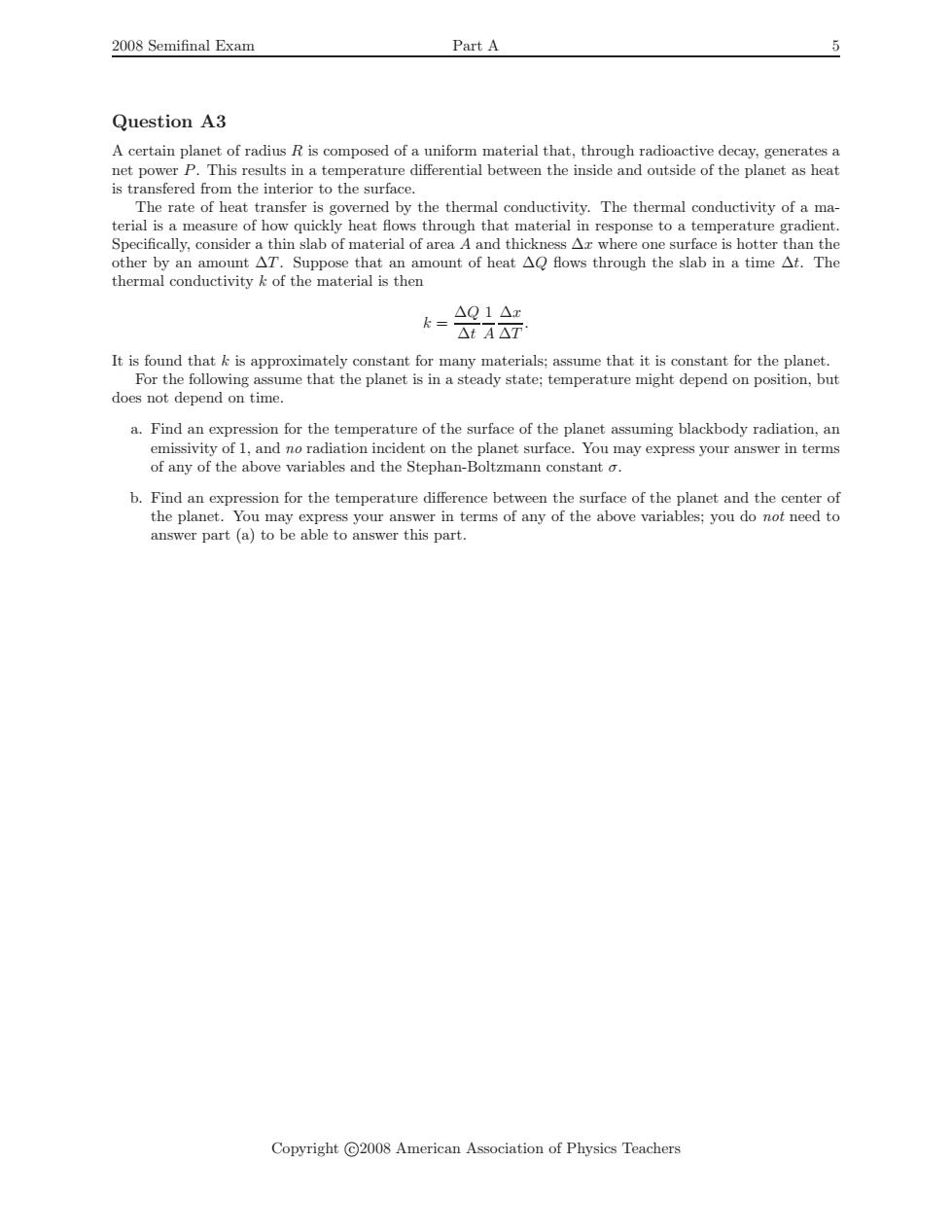

2008 Semifinal Exam Part A 5 Question A3 A certain planet of radius R is composed of a uniform material that, through radioactive decay, generates a net power P. This results in a temperature differential between the inside and outside of the planet as heat is transfered from the interior to the surface. The rate of heat transfer is governed by the thermal conductivity. The thermal conductivity of a material is a measure of how quickly heat flows through that material in response to a temperature gradient. Specifically, consider a thin slab of material of area A and thickness ∆x where one surface is hotter than the other by an amount ∆T . Suppose that an amount of heat ∆Q flows through the slab in a time ∆t. The thermal conductivity k of the material is then k = ∆Q ∆t 1 A ∆x ∆T . It is found that k is approximately constant for many materials; assume that it is constant for the planet. For the following assume that the planet is in a steady state; temperature might depend on position, but does not depend on time. a. Find an expression for the temperature of the surface of the planet assuming blackbody radiation, an emissivity of 1, and no radiation incident on the planet surface. You may express your answer in terms of any of the above variables and the Stephan-Boltzmann constant σ. b. Find an expression for the temperature difference between the surface of the planet and the center of the planet. You may express your answer in terms of any of the above variables; you do not need to answer part (a) to be able to answer this part. Copyright c 2008 American Association of Physics Teachers
