2010 Semifinal Exam AAPT UNITEDSTATES PHYSICS TEAM AIP 2010 Semifinal Exam DO NOT DISTRIBUTE THIS PAGE Important Instructions for the Exam Supervisor This examination consists of two parts. Part A has four questions and is allowed 90 minutes. Part B has two questions and is allowed 90 minutes. The first page that follows is a cover sheet.Examinees may keep the cover sheet for both parts of the exam. The parts are then identified by the center header on each page.Examinees are only allowed to do one part at a time,and may not work on other parts,even if they have time remaining. Allow 90 minutes to complete Part A.Do not let students look at Part B.Collect the answers to Part A before allowing the examinee to begin Part B.Examinees are allowed a 10 to 15 minutes break between parts A and B. Allow 90 minutes to complete Part B.Do not let students go back to Part A. Ideally the test supervisor will divide the question paper into 3 parts:the cover sheet (page 2),Part A (pages 3-4),and Part B(pages 6-7).Examinees should be provided parts A and B individually,although they may keep the cover sheet. The supervisor must collect all examination questions,including the cover sheet,at the end of the exam,as well as any scratch paper used by the examinees.Examinees may not take the exam questions.The examination questions may be returned to the students after March 31.2010. Examinees are allowed calculators,but they may not use symbolic math,programming,or graphic features of these calculators.Calculators may not be shared and their memory must be cleared of data and programs.Cell phones,PDA's or cameras may not be used during the exam or while the exam papers are present.Examinees may not use any tables,books, or collections of formulas. Copyright C2010 American Association of Physics Teachers

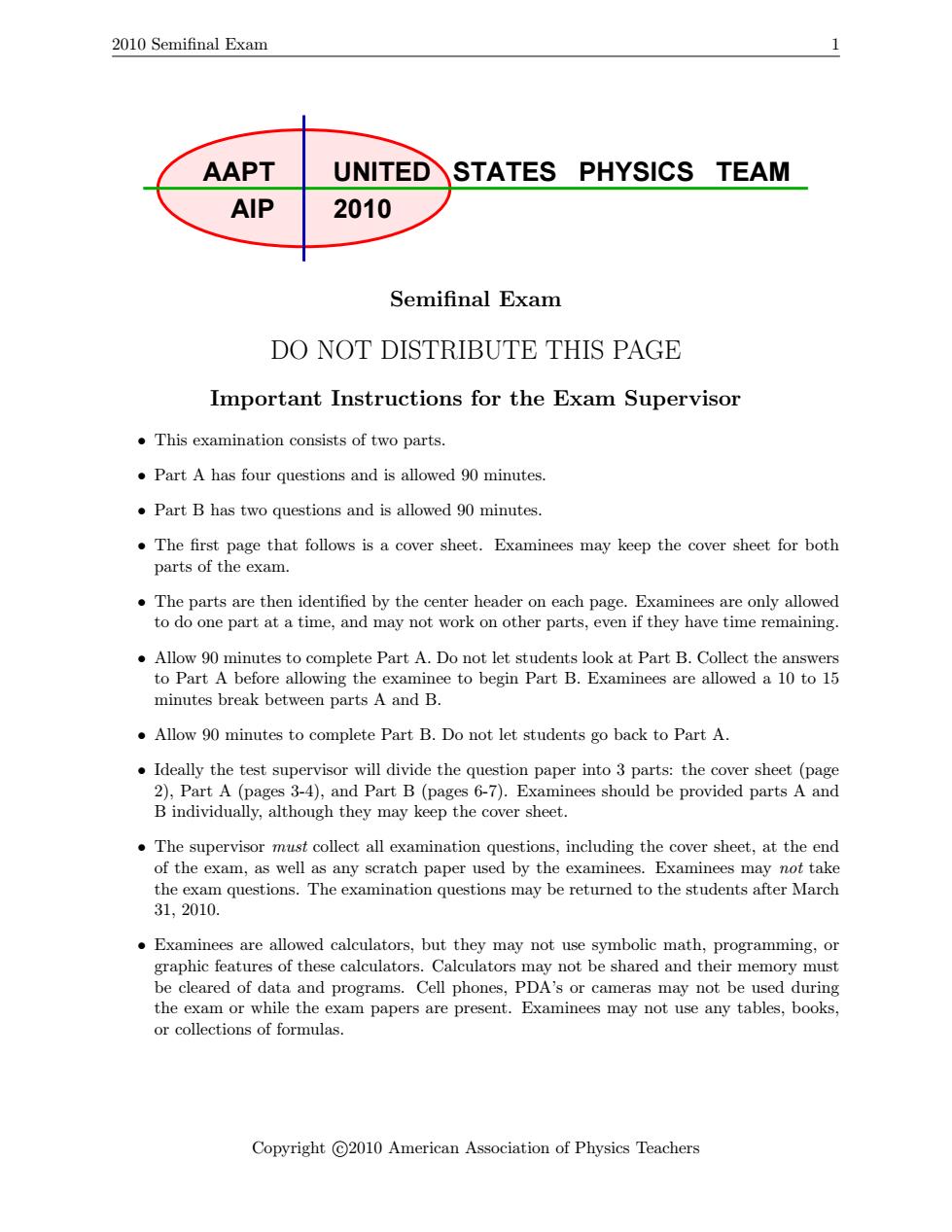

2010 Semifinal Exam 1 AAPT UNITED STATES PHYSICS TEAM AIP 2010 Semifinal Exam DO NOT DISTRIBUTE THIS PAGE Important Instructions for the Exam Supervisor • This examination consists of two parts. • Part A has four questions and is allowed 90 minutes. • Part B has two questions and is allowed 90 minutes. • The first page that follows is a cover sheet. Examinees may keep the cover sheet for both parts of the exam. • The parts are then identified by the center header on each page. Examinees are only allowed to do one part at a time, and may not work on other parts, even if they have time remaining. • Allow 90 minutes to complete Part A. Do not let students look at Part B. Collect the answers to Part A before allowing the examinee to begin Part B. Examinees are allowed a 10 to 15 minutes break between parts A and B. • Allow 90 minutes to complete Part B. Do not let students go back to Part A. • Ideally the test supervisor will divide the question paper into 3 parts: the cover sheet (page 2), Part A (pages 3-4), and Part B (pages 6-7). Examinees should be provided parts A and B individually, although they may keep the cover sheet. • The supervisor must collect all examination questions, including the cover sheet, at the end of the exam, as well as any scratch paper used by the examinees. Examinees may not take the exam questions. The examination questions may be returned to the students after March 31, 2010. • Examinees are allowed calculators, but they may not use symbolic math, programming, or graphic features of these calculators. Calculators may not be shared and their memory must be cleared of data and programs. Cell phones, PDA’s or cameras may not be used during the exam or while the exam papers are present. Examinees may not use any tables, books, or collections of formulas. Copyright c 2010 American Association of Physics Teachers
2010 Semifinal Exam Cover Sheet 2 AAPT UNITEDSTATES PHYSICS TEAM AIP 2010 Semifinal Exam INSTRUCTIONS DO NOT OPEN THIS TEST UNTIL YOU ARE TOLD TO BEGIN Work Part A first.You have 90 minutes to complete all four problems.Each question is worth 25 points.Do not look at Part B during this time. After you have completed Part A you may take a break. Then work Part B.You have 90 minutes to complete both problems.Each question is worth 50 points.Do not look at Part A during this time. Show all your work.Partial credit will be given.Do not write on the back of any page.Do not write anything that you wish graded on the question sheets. Start each question on a new sheet of paper.Put your school ID number,your name,the question number and the page number/total pages for this problem,in the upper right hand corner of each page.For example, School ID# Doe,Jamie A1-1/3 A hand-held calculator may be used.Its memory must be cleared of data and programs.You may use only the basic functions found on a simple scientific calculator.Calculators may not be shared.Cell phones,PDA's or cameras may not be used during the exam or while the exam papers are present.You may not use any tables,books,or collections of formulas. Questions with the same point value are not necessarily of the same difficulty. In order to maintain exam security,do not communicate any information about the questions (or their answers/solutions)on this contest until after March 31, 2010. Possibly Useful Information.You may use this sheet for both parts of the exam. g=9.8 N/kg G=6.67×10-11N.m2/kg2 k=1/4π60=8.99×109N.m2/C2 km=40/4r=10-7T.m/A c=3.00×108m/s k3=1.38×10-23J/K NA=6.02×1023(mol)-1 R=NAkB =8.31 J/(mol .K) o=5.67×10-8J/(s·m2.K4) e=1.602×10-19C 1eV=1.602×10-19J h=6.63×10-34Js=4.14×10-15eV,s me=9.109×10-31kg=0.511MeV/c2(1+x)"≈1+nz for<1 sin0≈0-ae3 for<1 cos0≈1-202forl<1 Copyright C2010 American Association of Physics Teachers
2010 Semifinal Exam Cover Sheet 2 AAPT UNITED STATES PHYSICS TEAM AIP 2010 Semifinal Exam INSTRUCTIONS DO NOT OPEN THIS TEST UNTIL YOU ARE TOLD TO BEGIN • Work Part A first. You have 90 minutes to complete all four problems. Each question is worth 25 points. Do not look at Part B during this time. • After you have completed Part A you may take a break. • Then work Part B. You have 90 minutes to complete both problems. Each question is worth 50 points. Do not look at Part A during this time. • Show all your work. Partial credit will be given. Do not write on the back of any page. Do not write anything that you wish graded on the question sheets. • Start each question on a new sheet of paper. Put your school ID number, your name, the question number and the page number/total pages for this problem, in the upper right hand corner of each page. For example, School ID # Doe, Jamie A1 - 1/3 • A hand-held calculator may be used. Its memory must be cleared of data and programs. You may use only the basic functions found on a simple scientific calculator. Calculators may not be shared. Cell phones, PDA’s or cameras may not be used during the exam or while the exam papers are present. You may not use any tables, books, or collections of formulas. • Questions with the same point value are not necessarily of the same difficulty. • In order to maintain exam security, do not communicate any information about the questions (or their answers/solutions) on this contest until after March 31, 2010. Possibly Useful Information. You may use this sheet for both parts of the exam. g = 9.8 N/kg G = 6.67 × 10−11 N · m2/kg2 k = 1/4π0 = 8.99 × 109 N · m2/C 2 km = µ0/4π = 10−7 T · m/A c = 3.00 × 108 m/s kB = 1.38 × 10−23 J/K NA = 6.02 × 1023 (mol)−1 R = NAkB = 8.31 J/(mol · K) σ = 5.67 × 10−8 J/(s · m2 · K4 ) e = 1.602 × 10−19 C 1eV = 1.602 × 10−19 J h = 6.63 × 10−34 J · s = 4.14 × 10−15 eV · s me = 9.109 × 10−31 kg = 0.511 MeV/c 2 (1 + x) n ≈ 1 + nx for |x| 1 sin θ ≈ θ − 1 6 θ 3 for |θ| 1 cos θ ≈ 1 − 1 2 θ 2 for |θ| 1 Copyright c 2010 American Association of Physics Teachers
2010 Semifinal Exam Part A 3 Part A Question Al An object of mass m is sitting at the northernmost edge of a stationary merry-go-round of radius R.The merry-go-round begins rotating clockwise (as seen from above)with constant angular acceleration of o.The coefficient of static friction between the object and the merry-go-round is μs a.Derive an expression for the magnitude of the object's velocity at the instant when it slides off the merry-go-round in terms of us,R,a,and any necessary fundamental constants. b.For this problem assume that us =0.5,a =0.2 rad/s2,and R=4 m.At what angle,as measured clockwise from north,is the direction of the object's velocity at the instant when it slides off the merry-go-round?Report your answer to the nearest degree in the range 0 to 360°. Question A2 A spherical shell of inner radius a and outer radius b is made of a material of resistivity p and negligible dielectric activity.A single point charge go is located at the center of the shell.At time t =0 all of the material of the shell is electrically neutral,including both the inner and outer surfaces.What is the total charge on the outer surface of the shell as a function of time for t>0? Ignore any effects due to magnetism or radiation;do not assume that b-a is small. Question A3 A cylindrical pipe contains a movable piston that traps 2.00 mols of air.Originally,the air is at one atmosphere of pressure,a volume Vo,and at a temperature of To =298 K.First (process A) the air in the cylinder is compressed at constant temperature to a volume of Vo.Then (process B)the air is allowed to expand adiabatically to a volume of V =15.0 L.After this (process C) this piston is withdrawn allowing the gas to expand to the original volume Vo while maintaining a constant temperature.Finally (process D)while maintaining a fixed volume,the gas is allowed to return to the original temperature To.Assume air is a diatomic ideal gas,no air flows into,or out of,the pipe at any time,and that the temperature outside the remains constant always.Possibly useful information:Cp=号R,Cw=号R,1atm=1.01×105Pa. a.Draw a P-V diagram of the whole process. b.How much work is done on the trapped air during process A? c.What is the temperature of the air at the end of process B? Copyright C2010 American Association of Physics Teachers

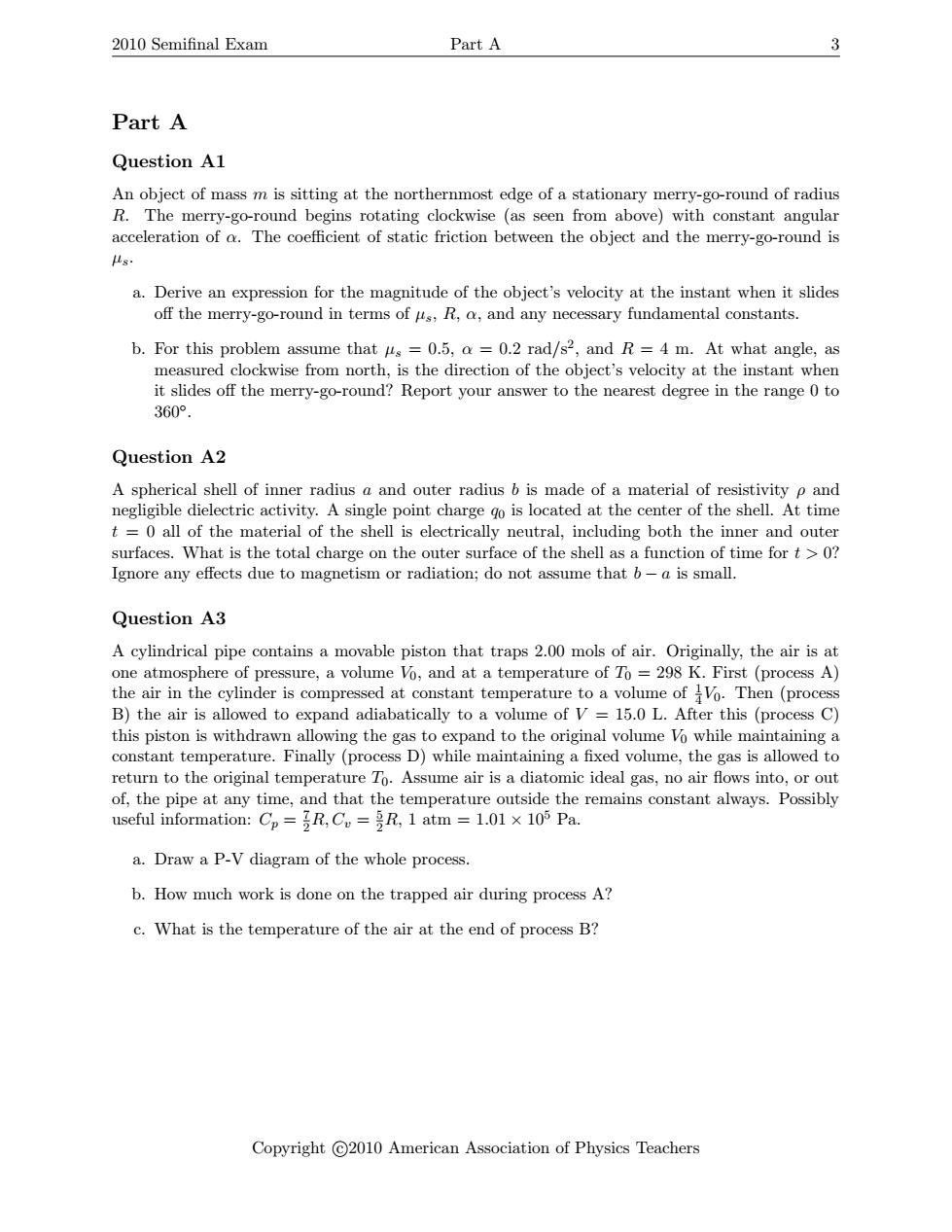

2010 Semifinal Exam Part A 3 Part A Question A1 An object of mass m is sitting at the northernmost edge of a stationary merry-go-round of radius R. The merry-go-round begins rotating clockwise (as seen from above) with constant angular acceleration of α. The coefficient of static friction between the object and the merry-go-round is µs. a. Derive an expression for the magnitude of the object’s velocity at the instant when it slides off the merry-go-round in terms of µs, R, α, and any necessary fundamental constants. b. For this problem assume that µs = 0.5, α = 0.2 rad/s2 , and R = 4 m. At what angle, as measured clockwise from north, is the direction of the object’s velocity at the instant when it slides off the merry-go-round? Report your answer to the nearest degree in the range 0 to 360◦ . Question A2 A spherical shell of inner radius a and outer radius b is made of a material of resistivity ρ and negligible dielectric activity. A single point charge q0 is located at the center of the shell. At time t = 0 all of the material of the shell is electrically neutral, including both the inner and outer surfaces. What is the total charge on the outer surface of the shell as a function of time for t > 0? Ignore any effects due to magnetism or radiation; do not assume that b − a is small. Question A3 A cylindrical pipe contains a movable piston that traps 2.00 mols of air. Originally, the air is at one atmosphere of pressure, a volume V0, and at a temperature of T0 = 298 K. First (process A) the air in the cylinder is compressed at constant temperature to a volume of 1 4 V0. Then (process B) the air is allowed to expand adiabatically to a volume of V = 15.0 L. After this (process C) this piston is withdrawn allowing the gas to expand to the original volume V0 while maintaining a constant temperature. Finally (process D) while maintaining a fixed volume, the gas is allowed to return to the original temperature T0. Assume air is a diatomic ideal gas, no air flows into, or out of, the pipe at any time, and that the temperature outside the remains constant always. Possibly useful information: Cp = 7 2R, Cv = 5 2R, 1 atm = 1.01 × 105 Pa. a. Draw a P-V diagram of the whole process. b. How much work is done on the trapped air during process A? c. What is the temperature of the air at the end of process B? Copyright c 2010 American Association of Physics Teachers
2010 Semifinal Exam Part A 4 Question A4 The energy radiated by the Sun is generated primarily by the fusion of hydrogen into helium-4.In stars the size of the Sun,the primary mechanism by which fusion takes place is the proton-proton chain.The chain begins with the following reactions: 2p-X1+e++X2(0.42MeV) (A4-1) p+X1→Xg+Y(5.49MeV) (A42) The amounts listed in parentheses are the total kinetic energy carried by the products,including gamma rays.p is a proton,et is a positron,y is a gamma ray,and X1,X2,and X3 are particles for you to identify. The density of electrons in the Sun's core is sufficient that the positron is annihilated almost immediately,releasing an energy x: e++e→2Y(x) (A4-3) Subsequently,two major processes occur simultaneously.The "pp I branch"is the single reaction 2X3→4He+2X4(y): (A44) which releases an energy y.The "pp II branch"consists of three reactions: X3+4He→X5+y (A4-5) X5+e-→X6+X7(z) (A4-6) X6+X4→24He (A4-7) where z is the energy released in step A4-6. a.Identify XI through X7.X2 and X7 are neutral particles of negligible mass.It is useful to know that the first few elements,in order of atomic number,are H,He,Li,Be,B,C,N,O. b.The mass of the electron is 0.51 MeV/c2,the mass of the proton is 938.27 MeV/c2,and the mass of the helium-4 nucleus is 3727.38 MeV/c2.Find the energy released during the production of one helium-4 nucleus,including the kinetic energy of all products and all energy carried by gamma rays. c.Find the unknown energies x and y above. d.Step (A4-6)does not proceed as follows because there is insufficient energy. X5→X6+e++X7 What constraint does this fact place on 2? e.In which of the reaction steps is the energy carried by any given product the same every time the step occurs?Assume that the kinetic energy carried in by the reactants in each step is negligible,and that the products are in the ground state. Copyright C2010 American Association of Physics Teachers
2010 Semifinal Exam Part A 4 Question A4 The energy radiated by the Sun is generated primarily by the fusion of hydrogen into helium-4. In stars the size of the Sun, the primary mechanism by which fusion takes place is the proton-proton chain. The chain begins with the following reactions: 2 p → X1 + e+ + X2 (0.42 MeV) (A4-1) p + X1 → X3 + γ (5.49 MeV) (A4-2) The amounts listed in parentheses are the total kinetic energy carried by the products, including gamma rays. p is a proton, e+ is a positron, γ is a gamma ray, and X1, X2, and X3 are particles for you to identify. The density of electrons in the Sun’s core is sufficient that the positron is annihilated almost immediately, releasing an energy x: e + + e− → 2 γ (x) (A4-3) Subsequently, two major processes occur simultaneously. The “pp I branch” is the single reaction 2 X3 → 4He + 2 X4 (y), (A4-4) which releases an energy y. The “pp II branch” consists of three reactions: X3 + 4He → X5 + γ (A4-5) X5 + e− → X6 + X7 (z) (A4-6) X6 + X4 → 2 4He (A4-7) where z is the energy released in step A4-6. a. Identify X1 through X7. X2 and X7 are neutral particles of negligible mass. It is useful to know that the first few elements, in order of atomic number, are H, He, Li, Be, B, C, N, O. b. The mass of the electron is 0.51 MeV/c 2 , the mass of the proton is 938.27 MeV/c 2 , and the mass of the helium-4 nucleus is 3 727.38 MeV/c 2 . Find the energy released during the production of one helium-4 nucleus, including the kinetic energy of all products and all energy carried by gamma rays. c. Find the unknown energies x and y above. d. Step (A4-6) does not proceed as follows because there is insufficient energy. X5 → X6 + e+ + X7 What constraint does this fact place on z? e. In which of the reaction steps is the energy carried by any given product the same every time the step occurs? Assume that the kinetic energy carried in by the reactants in each step is negligible, and that the products are in the ground state. Copyright c 2010 American Association of Physics Teachers
2010 Semifinal Exam Part A 5 STOP:Do Not Continue to Part B If there is still time remaining for Part A,you should review your work for Part A,but do not continue to Part B until instructed by your exam supervisor. Copyright C2010 American Association of Physics Teachers
2010 Semifinal Exam Part A 5 STOP: Do Not Continue to Part B If there is still time remaining for Part A, you should review your work for Part A, but do not continue to Part B until instructed by your exam supervisor. Copyright c 2010 American Association of Physics Teachers
