Physica A 415 (2014) 43–53 Contents lists available at ScienceDirect Physica A journal homepage: www.elsevier.com/locate/physa Systemic risk and causality dynamics of the world international shipping market Xin Zhang a,∗ , Boris Podobnik b,c,d,e , Dror Y. Kenett b , H. Eugene Stanley b a College of Transport and Communication, Shanghai Maritime University, Shanghai 201306, China b Center for Polymer Studies and Department of Physics, Boston University, Boston, MA 02215, United States c Faculty of Civil Engineering, University of Rijeka, 51000 Rijeka, Croatia d Zagreb School of Economics and Management, 10000 Zagreb, Croatia e Faculty of Economics, 1000 Ljubljana, Slovenia h i g h l i g h t s • We study the temporal correlation networks of the world shipping market over time. • We model the systemic risk level of the shipping market based on the Dynamic Causality Index. • We explore directional connections between the shipping market and the financial market. • Different market sectors tend to link and comove closely during financial crisis. • The Dynamic Causality Index can provide efficient warning before market downturn. a r t i c l e i n f o Article history: Received 10 July 2014 Received in revised form 22 July 2014 Available online 2 August 2014 Keywords: Complex networks Systemic risk Correlation networks Brownian distance Granger causality test a b s t r a c t Various studies have reported that many economic systems have been exhibiting an increase in the correlation between different market sectors, a factor that exacerbates the level of systemic risk. We measure this systemic risk of three major world shipping markets, (i) the new ship market, (ii) the second-hand ship market, and (iii) the freight market, as well as the shipping stock market. Based on correlation networks during three time periods, that prior to the financial crisis, during the crisis, and after the crisis, minimal spanning trees (MSTs) and hierarchical trees (HTs) both exhibit complex dynamics, i.e., different market sectors tend to be more closely linked during financial crisis. Brownian distance correlation and Granger causality test both can be used to explore the directional interconnectedness of market sectors, while Brownian distance correlation captures more dependent relationships, which are not observed in the Granger causality test. These two measures can also identify and quantify market regression periods, implying that they contain predictive power for the current crisis. © 2014 Elsevier B.V. All rights reserved. 1. Introduction It is widely acknowledged that economic systems are highly complex. In recent years they have become a subject of much interest among both economists and physicists [1–12]. Because the international shipping industry facilitates 90% of world trade and is a key factor in global economic development [13] it is a major topic for economic theory. The shipping industry ∗ Corresponding author. E-mail addresses: zhangxin@shmtu.edu.cn, sivaxin@bu.edu (X. Zhang). http://dx.doi.org/10.1016/j.physa.2014.07.068 0378-4371/© 2014 Elsevier B.V. All rights reserved
44 X.Zhang et aL Physica A 415 (2014)43-53 is tightly linked to the world economy and to the international trade business cycle;thus it enjoyed a long prosperous period with growing trade at the international level until the financial crisis in 2008.Since then the shipping industry has faced idle capacity,huge losses,and risk of bankruptcy[14].The shipping industry is also dynamic and volatile.The Baltic capsize index(BCl),which measures the volatility in shipping markets,is significantly higher(~79%)than the average volatility in commodity markets(50%)and equity markets(e.g.,S&P50020%)[15].This extremely high risk is not only due to volatility in global economic cycles,but also is highly influenced by intrinsic characteristics of the shipping industry itself.The shipping industry comprises several separate but closely connected markets including the new ship,the second- hand ship,and the freight markets.Each of these markets comprises several tightly integrated sub-sectors according to ship type:oil tanker,dry bulk carrier,and container carrier.Oil tanker is designed for the bulk transport of oil and tankers are generally categorized by size from smallest to largest,e.g..Panamax,Aframax,Suezmax,VLCC and UVLCC.Dry bulk carrier is mainly used to transport dry bulk cargo,such as iron ore,grain and coal.Similar to oil tanker dry bulk ship also can be classified by size into Handysize,Handymax,Panamax,Super-Panamax and VLOC.Dry bulk shipping provides an economical and convenient way to transport three major raw materials to support the world industry.Container shipping provide transportation of containerized goods over sea via regular linear services.According to ship size,container vessel from smallest size to largest one also includes Handymax,Panamax,Post-Panamax and Large Container Vessel. Despite the economic importance of the shipping industry,there are surprisingly few studies about shipping industry risk.Studies of systemic risk in the shipping industry tend to fall into three categories.The first category uses a linear or non-linear stochastic model and focuses on freight rate returns and the volatility of some specific submarkets in the shipping industry[16-18].The second category focuses on asset bubbles caused by the supercycle of the shipping industry and determines how much asset values in the second-hand market deviate from underlying fundamentals [19,20.The third category identifies factors affecting the performance of shipping industry stocks in order to understand the linkage between the real shipping market and financial markets[21,22].Most previous studies focus on individual segments of the shipping industry and not the industry as a whole.Thus these studies ignore the interactions among different market sectors that are likely to compound systemic risk. In this paper we use the correlation-based network and the causality measures to examine the structure and dynamics of the shipping industry.We begin our analysis by using the minimal spanning tree (MST)and the hierarchical tree(HT)to examine the topology of correlation networks among different submarkets and ship types of the shipping industry during the pre-crisis,crisis,and post-crisis periods.Then we use a causality analysis based on Granger-causality and Brownian distance correlation to explore the directional connections between the physical market and the financial market of the shipping industry before,during,and after the financial crisis. 2.Methods 2.1.Network topology Using the minimal spanning tree(MST)and hierarchical tree(HT).we study the structure and dynamics of the shipping industry and explore the hierarchical structure of various time series.Hierarchical structure methods have been introduced in finance to ascertain the structure of asset price influences within a market(23-28],but application of this method is not limited to financial markets,and we extend the method to time series in other economic systems[29-32]. The minimal spanning tree (MST)is a graph of a set of elements in the node arrangement in a given metric space, e.g.,an ultrametric space [23].In the MST the taxonomy displays meaningful clusters,and it reduces the noise in a historical correlation matrix 33. A hierarchical tree is an important tool for data clustering.It partitions a dataset into subsets(clusters)such that the data in each subset share some common traits-often similarity or proximity at some defined distance.In our case,the construction of an ultrametric hierarchical tree structure allows us to determine the hierarchical structure of a network[34]. Both MST and HT require that a metric distance be defined.Because the definition of correlation does not fulfill the three axioms that define a metric,Mantegna[23]introduced a definition of distance, (YY分》-(Y)Y》 P时= (1) V(肾-(》(《Y-(Y》 where (denotes the mean.For each time series vector,we calculate the monthly return,defined as the change of logarithmic price of time series Yi(t)=log(P)-log(P-1)and Pr is the value of a time series at time t.Here we use the absolute value of the Pearson correlation coefficient to define the distance between two time series as[9] d=√2(1-lpl). (2) The distance dij fulfills the three axioms of a metric:(i)dij=0 if and only if i=j.(ii)dij=di.and (iii)dijs dik+dkj [9]. We then use the distance matrix di to determine the minimal spanning tree (MST).An MST is defined as the set of n-1 links that connects a set of elements across the smallest possible total distance.The determination of the hierarchical tree of a subdominant ultrametric is thus completely controlled by the ultrametric distance matrix
44 X. Zhang et al. / Physica A 415 (2014) 43–53 is tightly linked to the world economy and to the international trade business cycle; thus it enjoyed a long prosperous period with growing trade at the international level until the financial crisis in 2008. Since then the shipping industry has faced idle capacity, huge losses, and risk of bankruptcy [14]. The shipping industry is also dynamic and volatile. The Baltic capsize index (BCI), which measures the volatility in shipping markets, is significantly higher (≈79%) than the average volatility in commodity markets (≈50%) and equity markets (e.g., S&P500 ≈ 20%) [15]. This extremely high risk is not only due to volatility in global economic cycles, but also is highly influenced by intrinsic characteristics of the shipping industry itself. The shipping industry comprises several separate but closely connected markets including the new ship, the secondhand ship, and the freight markets. Each of these markets comprises several tightly integrated sub-sectors according to ship type: oil tanker, dry bulk carrier, and container carrier. Oil tanker is designed for the bulk transport of oil and tankers are generally categorized by size from smallest to largest, e.g., Panamax, Aframax, Suezmax, VLCC and UVLCC. Dry bulk carrier is mainly used to transport dry bulk cargo, such as iron ore, grain and coal. Similar to oil tanker dry bulk ship also can be classified by size into Handysize, Handymax, Panamax, Super-Panamax and VLOC. Dry bulk shipping provides an economical and convenient way to transport three major raw materials to support the world industry. Container shipping provide transportation of containerized goods over sea via regular linear services. According to ship size, container vessel from smallest size to largest one also includes Handymax, Panamax, Post-Panamax and Large Container Vessel. Despite the economic importance of the shipping industry, there are surprisingly few studies about shipping industry risk. Studies of systemic risk in the shipping industry tend to fall into three categories. The first category uses a linear or non-linear stochastic model and focuses on freight rate returns and the volatility of some specific submarkets in the shipping industry [16–18]. The second category focuses on asset bubbles caused by the supercycle of the shipping industry and determines how much asset values in the second-hand market deviate from underlying fundamentals [19,20]. The third category identifies factors affecting the performance of shipping industry stocks in order to understand the linkage between the real shipping market and financial markets [21,22]. Most previous studies focus on individual segments of the shipping industry and not the industry as a whole. Thus these studies ignore the interactions among different market sectors that are likely to compound systemic risk. In this paper we use the correlation-based network and the causality measures to examine the structure and dynamics of the shipping industry. We begin our analysis by using the minimal spanning tree (MST) and the hierarchical tree (HT) to examine the topology of correlation networks among different submarkets and ship types of the shipping industry during the pre-crisis, crisis, and post-crisis periods. Then we use a causality analysis based on Granger-causality and Brownian distance correlation to explore the directional connections between the physical market and the financial market of the shipping industry before, during, and after the financial crisis. 2. Methods 2.1. Network topology Using the minimal spanning tree (MST) and hierarchical tree (HT), we study the structure and dynamics of the shipping industry and explore the hierarchical structure of various time series. Hierarchical structure methods have been introduced in finance to ascertain the structure of asset price influences within a market [23–28], but application of this method is not limited to financial markets, and we extend the method to time series in other economic systems [29–32]. The minimal spanning tree (MST) is a graph of a set of elements in the node arrangement in a given metric space, e.g., an ultrametric space [23]. In the MST the taxonomy displays meaningful clusters, and it reduces the noise in a historical correlation matrix [33]. A hierarchical tree is an important tool for data clustering. It partitions a dataset into subsets (clusters) such that the data in each subset share some common traits—often similarity or proximity at some defined distance. In our case, the construction of an ultrametric hierarchical tree structure allows us to determine the hierarchical structure of a network [34]. Both MST and HT require that a metric distance be defined. Because the definition of correlation does not fulfill the three axioms that define a metric, Mantegna [23] introduced a definition of distance, ρij = ⟨YiYj⟩ − ⟨Yi⟩⟨Yj⟩ (⟨Y 2 i − ⟨Y 2 i ⟩⟩)(⟨Y 2 j − ⟨Y 2 j ⟩⟩) , (1) where ⟨· · ·⟩ denotes the mean. For each time series vector, we calculate the monthly return, defined as the change of logarithmic price of time series Yi(t) = log(Pt) − log(Pt−1) and Pt is the value of a time series at time t. Here we use the absolute value of the Pearson correlation coefficient to define the distance between two time series as [9] dij = 2(1 − |ρij|). (2) The distance dij fulfills the three axioms of a metric: (i) dij = 0 if and only if i = j, (ii) dij = dji, and (iii) dij ≤ dik + dkj [9]. We then use the distance matrix dij to determine the minimal spanning tree (MST). An MST is defined as the set of n − 1 links that connects a set of elements across the smallest possible total distance. The determination of the hierarchical tree of a subdominant ultrametric is thus completely controlled by the ultrametric distance matrix
X.Zhang et al.Physica A 415 (2014)43-53 野 2.2.Granger causality analysis To investigate the dynamic systemic risk,we must measure both the degree of interconnectedness between the subsectors of the shipping industry and the direction of these relationships[35-37].To this end,using Granger causality analysis we propose a statistical definition of causality based on the relative forecasting power of two series.Specifically, let R and R be two stationary time series,and for simplicity we assume they both have zero mean.We can represent their linear inter-relationships using the model [38,39] Ri1=aR:+bR+e+1. (3) Ri+1=R:+bR:+e+1 (4) where e ande are two uncorrelated white noise processes.The definition of causality implies that Rcauses R when b is statistically significant from zero.Likewise,R causes R whenb is statistically significant from zero.When both b and bi are statistically significant from zero,there is a feedback relationship between the two time series.In practice,the causality is based on the F-test where the null hypothesis is defined such that coefficients a'and a are equal to zero. We analyze the pairwise Granger causality between the t and t+1 monthly returns of the shipping physical market and the shipping stock market.We follow the definition of the dynamic causality index(DCI)[40]series. number of causal relationships over a given period Lpa(t)= (5) total possible number of causal relationships 2.3.Brownian distance Distance correlation is a new approach proposed by Szekely and Rizzo to measure statistical interdependence between two random vectors of arbitrary,not necessarily equal dimension41.Brownian distance covariance captures the non-linear dependence,which make up deficiency of the classical measure of dependence,such as the Pearson correlation coefficient, that is mainly sensitive to a linear relationship between two variables [41l. According to the basic definition of distance correlation,Brownian covariance(v(X,Y))between fxfy and fx.y is obtained as the square root of v2(X,Y)=llfx.y(t,s)-x(t)fy(s)2where ll l is the joint characteristic function of X and Y.Brownian covariance is based on Brownian motion or Wiener process with an important property that v(X,Y)=0 if and only if X and Y are independent [42].The Brownian covariance is equal to the distance covariance.The distance correlation R(X,Y) can be defined from the following expression: v2(X,Y) u2(X)u2(Y)>0. √u2X)u2(Y) (6) 0 v2(X)u2(Y)=0. In this paper we utilize Brownian distance correlation between current value of time series Y:and I lagged value of another time series vector X-exploring then the non-linear causality effect.In general,if R(X-1.Y)0 and I>0.then X-leads the series Yr.Additionally,if R(X-1,Yt)0.R(X,Y-1)0,and I>0,there is a unidirectional relationship between X and Y. 3.Data We investigate two datasets.Dataset I comprises the prices of the real shipping market.Dataset Il comprises the stock prices of publicly-listed shipping companies.For the shipping market we select 45 monthly price indicator series for the time period from January 2003 to June 2013,provided by world leading shipping database Clarksons.The dataset includes three shipping markets,the new ship market,the second-hand ship sale and purchase market,and the world-wide chartering market.For each market we use price indicators according to ship type,oil tankers,container carriers,and bulk carriers.The New-building ship market price indicators investigated are shown in Table 1.The Secondhand ship market price indicators are shown in Table 2.The freight rates are shown in Table 3. We also select 40 publicly-listed shipping companies to represent the shipping financial market.The sample includes the oil tanker,container carrier,and bulk carrier industry as well as the ship-building industry.The monthly closing price of each stock is recorded from January 2003 to June 2013,provided by Yahoo Finance. 4.Real shipping market hierarchical structure In this section,using 45 physical shipping market price indicators,we present the MSTs and the HTs,and investigate the topology and structure of the correlation networks in the shipping market.We find that MSTs and HTs both show
X. Zhang et al. / Physica A 415 (2014) 43–53 45 2.2. Granger causality analysis To investigate the dynamic systemic risk, we must measure both the degree of interconnectedness between the subsectors of the shipping industry and the direction of these relationships [35–37]. To this end, using Granger causality analysis we propose a statistical definition of causality based on the relative forecasting power of two series. Specifically, let R i t and R j t be two stationary time series, and for simplicity we assume they both have zero mean. We can represent their linear inter-relationships using the model [38,39] R i t+1 = a i R i t + b ijR j t + e i t+1 , (3) R j t+1 = a j R j t + b jiR i t + e j t+1 , (4) where e i t+1 and e j t+1 are two uncorrelated white noise processes. The definition of causality implies that R j t causes R i t+1 when b ij is statistically significant from zero. Likewise, R i t causes R j t+1 when b ji is statistically significant from zero. When both b ij and b ji are statistically significant from zero, there is a feedback relationship between the two time series. In practice, the causality is based on the F -test where the null hypothesis is defined such that coefficients a i and a j are equal to zero. We analyze the pairwise Granger causality between the t and t +1 monthly returns of the shipping physical market and the shipping stock market. We follow the definition of the dynamic causality index (DCI) [40] series, LDCI(t) = number of causal relationships over a given period total possible number of causal relationships . (5) 2.3. Brownian distance Distance correlation is a new approach proposed by Székely and Rizzo to measure statistical interdependence between two random vectors of arbitrary, not necessarily equal dimension [41]. Brownian distance covariance captures the non-linear dependence, which make up deficiency of the classical measure of dependence, such as the Pearson correlation coefficient, that is mainly sensitive to a linear relationship between two variables [41]. According to the basic definition of distance correlation, Brownian covariance (v(X, Y)) between fX fY and fX,Y is obtained as the square root of v 2 (X, Y) = ∥fX,Y (t, s)−fX (t)fY (s)∥ 2 where ∥·∥ is the joint characteristic function of X and Y. Brownian covariance is based on Brownian motion or Wiener process with an important property that v(X, Y) = 0 if and only if X and Y are independent [42]. The Brownian covariance is equal to the distance covariance. The distance correlation R(X, Y) can be defined from the following expression: R 2 = v 2 (X, Y) v 2 (X)v2 (Y) , v2 (X)v2 (Y) > 0. 0, v2 (X)v2 (Y) = 0. (6) In this paper we utilize Brownian distance correlation between current value of time series Yt and l lagged value of another time series vector Xt−l exploring then the non-linear causality effect. In general, if R(Xt−l, Yt) ̸= 0 and l > 0, then Xt−l leads the series Yt . Additionally, if R(Xt−l, Yt) ̸= 0, R(Xt, Yt−l) ̸= 0, and l > 0, there is a unidirectional relationship between X and Y. 3. Data We investigate two datasets. Dataset I comprises the prices of the real shipping market. Dataset II comprises the stock prices of publicly-listed shipping companies. For the shipping market we select 45 monthly price indicator series for the time period from January 2003 to June 2013, provided by world leading shipping database Clarksons. The dataset includes three shipping markets, the new ship market, the second-hand ship sale and purchase market, and the world-wide chartering market. For each market we use price indicators according to ship type, oil tankers, container carriers, and bulk carriers. The New-building ship market price indicators investigated are shown in Table 1. The Secondhand ship market price indicators are shown in Table 2. The freight rates are shown in Table 3. We also select 40 publicly-listed shipping companies to represent the shipping financial market. The sample includes the oil tanker, container carrier, and bulk carrier industry as well as the ship-building industry. The monthly closing price of each stock is recorded from January 2003 to June 2013, provided by Yahoo Finance. 4. Real shipping market hierarchical structure In this section, using 45 physical shipping market price indicators, we present the MSTs and the HTs, and investigate the topology and structure of the correlation networks in the shipping market. We find that MSTs and HTs both show
X.Zhang et aL Physica A 415 (2014)43-53 b ID EPFASA Dry bulk ship Secondhand market 4 ship market Oil tanker SPCONPANA market SPTANKPANA Container ship marker Oil tanker 开A New ship market marke Pre-Crisis Period Crisis Period (January 2003 to December 2006) (January 2007 to December 2010) UEZ NBCONLARGE FRA a Secondhaud shuip market New market .oc NPAN APE TCIYCONPANA TOTYPASA Post-Crisis Period (January 2011 to December 2013) Fig.1.Minimal spanning tree of the shipping market.Red indicates the new-building ship market,green indicates the second-hand ship sale and purchase market,blue indicates the freight market.Solid cycle represents oil tanker,solid square represents dry bulk ship and solid diamond represents container ship.(a)Pre-Crisis period (January 2003-December 2006).(b)Crisis period (January 2007-December 2010).(c)Post-Crisis period (January 2011-June 2013).(For interpretation of the references to color in this figure legend,the reader is referred to the web version of this article.) significantly different structures in three periods:prior to the financial crisis,during the crisis,and after the crisis.Notice that prior to the financial crisis(see Fig.1(a)),the three groups are easily identified,the container ship market(red dash line circle),dry bulk ship market(blue dash line circle),and oil tanker market(green dash line circle).Inside each group,we find that newly-built prices(red color nodes)are linked only to second-hand prices(green color nodes).Freight rates(blue color nodes)are also linked only to second-hand ship prices.Thus the second-hand ship market acts as a bridge between the new ship market and the freight market.Changes in the freight rates of a ship influence the prices of second-hand ships of the same type but not ships of other types,implying that there are clear boundaries existing between the container,dry bulk. and oil tanker markets. Using HTs we also find little distance between the second-hand prices and the freight rate of dry bulk carriers during the pre-crisis period,indicating a strong relationship between these two markets in dry bulk transport(the first cluster,the red block in Fig.2(a)).The second cluster is the second-hand purchase-and-sale market of container ships.This submarket contains all five price indicators and is thus different from other submarkets,the green block in Fig.2(a).The third cluster,the blue block in Fig.2(a),is the new ship market of the three major crude oil tanker sizes:VLCC(large),Suezmax(middle-sized). and Aframax(small). During the crisis period the new ship market tends to link to freight rates,which means that new ship prices are seriously affected by freight rate fluctuations.We also see that the boundaries separating the submarkets based on ship type in the pre-crisis disappear,indicating a high systemic risk throughout the shipping market system.Notice that only freight rate

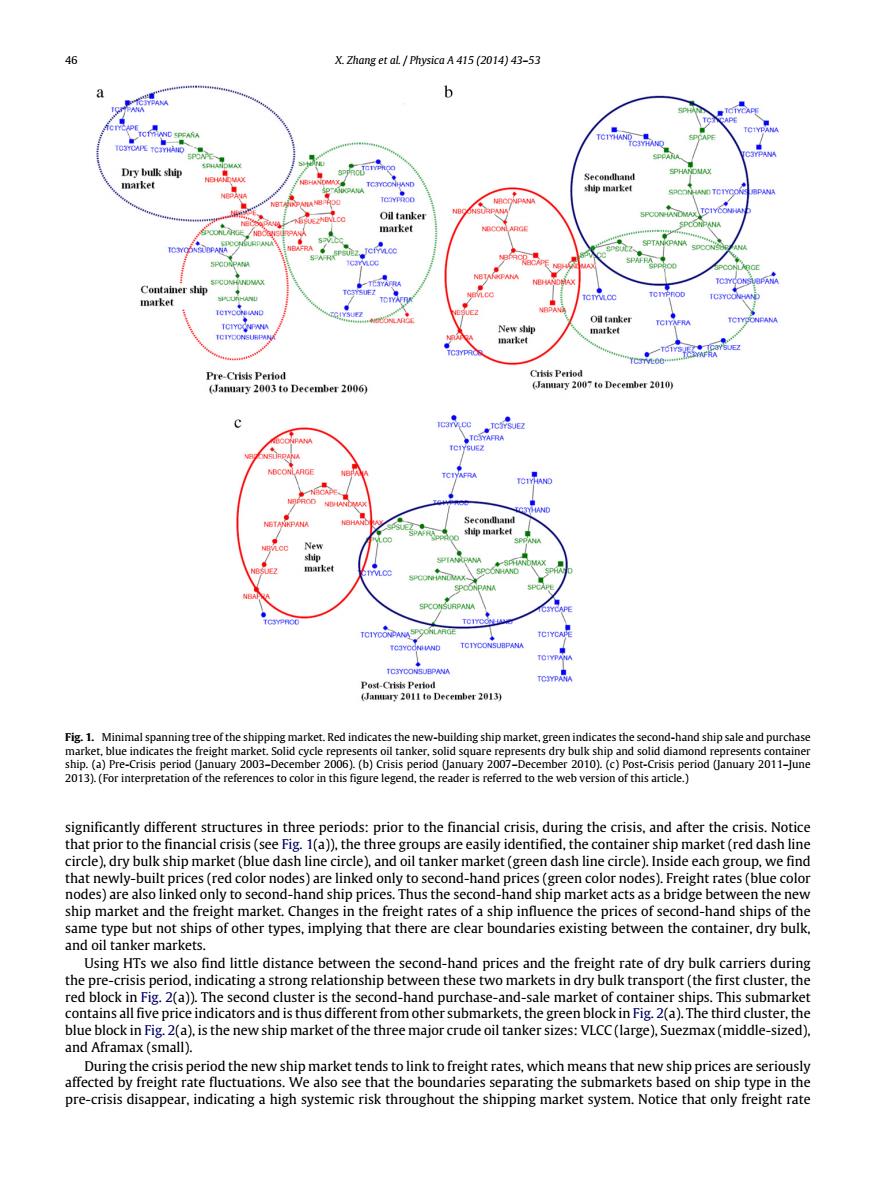

46 X. Zhang et al. / Physica A 415 (2014) 43–53 Fig. 1. Minimal spanning tree of the shipping market. Red indicates the new-building ship market, green indicates the second-hand ship sale and purchase market, blue indicates the freight market. Solid cycle represents oil tanker, solid square represents dry bulk ship and solid diamond represents container ship. (a) Pre-Crisis period (January 2003–December 2006). (b) Crisis period (January 2007–December 2010). (c) Post-Crisis period (January 2011–June 2013). (For interpretation of the references to color in this figure legend, the reader is referred to the web version of this article.) significantly different structures in three periods: prior to the financial crisis, during the crisis, and after the crisis. Notice that prior to the financial crisis (see Fig. 1(a)), the three groups are easily identified, the container ship market (red dash line circle), dry bulk ship market (blue dash line circle), and oil tanker market (green dash line circle). Inside each group, we find that newly-built prices (red color nodes) are linked only to second-hand prices (green color nodes). Freight rates (blue color nodes) are also linked only to second-hand ship prices. Thus the second-hand ship market acts as a bridge between the new ship market and the freight market. Changes in the freight rates of a ship influence the prices of second-hand ships of the same type but not ships of other types, implying that there are clear boundaries existing between the container, dry bulk, and oil tanker markets. Using HTs we also find little distance between the second-hand prices and the freight rate of dry bulk carriers during the pre-crisis period, indicating a strong relationship between these two markets in dry bulk transport (the first cluster, the red block in Fig. 2(a)). The second cluster is the second-hand purchase-and-sale market of container ships. This submarket contains all five price indicators and is thus different from other submarkets, the green block in Fig. 2(a). The third cluster, the blue block in Fig. 2(a), is the new ship market of the three major crude oil tanker sizes: VLCC (large), Suezmax (middle-sized), and Aframax (small). During the crisis period the new ship market tends to link to freight rates, which means that new ship prices are seriously affected by freight rate fluctuations. We also see that the boundaries separating the submarkets based on ship type in the pre-crisis disappear, indicating a high systemic risk throughout the shipping market system. Notice that only freight rate
X.Zhang et al.Physica A 415 (2014)43-53 罗 Distance b Distance 0.8 12141.618 05 15 2 C0LA0 p00 字COs小A SPHAND TCYPAR Distance 02040608112141618222 11 APA3A Fig.2.Hierarchical tree of subdominant ultrametric space.Each text label presents one price indicator.Text label with red bottom color means price indicators belong to the new ship market,green bottom color one means the second-hand ship market,and blue bottom color means the freight market (a)Pre-Crisis period (January 2003-December 2006).(b)Crisis period (January 2007-December 2010).(c)Post-Crisis period (January 2011-June 2013). (For interpretation of the references to color in this figure legend,the reader is referred to the web version of this article.) and second-hand ship price indicators of the oil tanker market tend to link to each other(green dash line circle in Fig.1(b)). Moreover two groups can be easily identified:the new ship market (red solid line circle Fig.1(b))and the second-hand
X. Zhang et al. / Physica A 415 (2014) 43–53 47 Fig. 2. Hierarchical tree of subdominant ultrametric space. Each text label presents one price indicator. Text label with red bottom color means price indicators belong to the new ship market, green bottom color one means the second-hand ship market, and blue bottom color means the freight market. (a) Pre-Crisis period (January 2003–December 2006). (b) Crisis period (January 2007–December 2010). (c) Post-Crisis period (January 2011–June 2013). (For interpretation of the references to color in this figure legend, the reader is referred to the web version of this article.) and second-hand ship price indicators of the oil tanker market tend to link to each other (green dash line circle in Fig. 1(b)). Moreover two groups can be easily identified: the new ship market (red solid line circle Fig. 1(b)) and the second-hand
